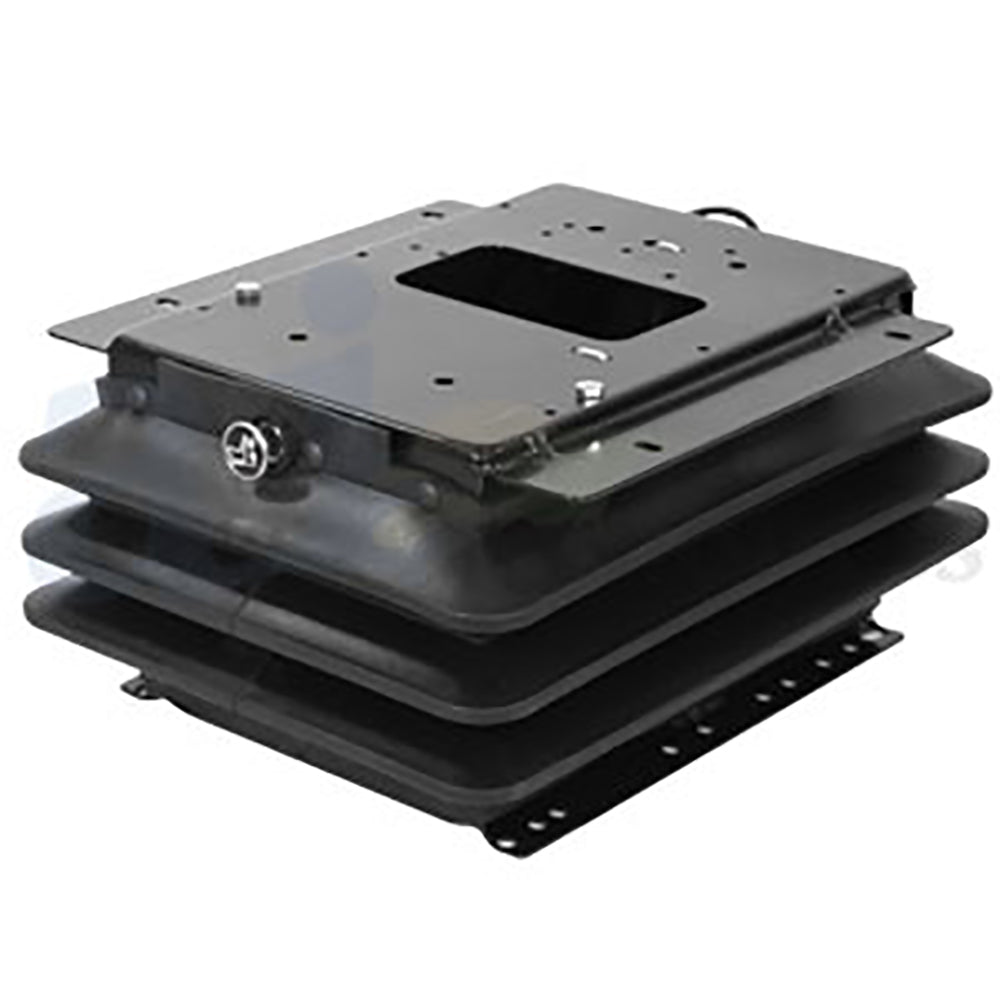

Wide Base Seat Air Suspension Fits Deutz Replaces MA2C12

Wide Base Seat Air Suspension Fits Deutz Replaces MA2C12

£467.00 GBP
£467.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Wide Base Seat Air Suspension

Tech Info:
 -Reference: ST87
 -
 -Air Suspension - Wide Base
 -Suspension Stroke 4" / 100mm
 -Weight Adjustment 110 - 330 lbs. / 50 - 150kg
 -Slide Tracks Not Included
 -
 -All Dimensions & Specifications Must Be Checked Before Ordering.
 -This Is a Universal Suspension Meant for a Flat Mounting Surface.
 -Some Applications May Require Drilling & Bracket Fabrication to Mount.
 -
 -The Following Seats Can Be Added to This Suspension: F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, T122BL
 -
 -Amperage: 9 Max
 -Volt: 12

Fits Deutz:
 Tractor Models: DX3.70, DX3.50, DX3.90
 Model Breaks: DX3.50 (Star Cab), DX3.70 (Star Cab), DX3.90 (Star Cab)
 Replaces Part Number(s): MA2C12

Models This Part Fits:

DX3.50, DX3.70, DX3.90

Additional Information:

Reference: ST87 Air Suspension - Wide Base Suspension Stroke 4" / 100mm Weight Adjustment 110 - 330 lbs. / 50 - 150kg Slide Tracks Not Included All Dimensions & Specifications Must Be Checked Before Ordering. This Is a Universal Suspension Meant for a Flat Mounting Surface. Some Applications May Require Drilling & Bracket Fabrication to Mount. The Following Seats Can Be Added to This Suspension: F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, T122BL Amperage: 9 Max Volt: 12

Reference Numbers:

MA2C12
