H42508 1/2 inch Hydraulic Hose 3500 psi 100R2 AT 300 Foot
H42508 1/2 inch Hydraulic Hose 3500 psi 100R2 AT 300 Foot
Couldn't load pickup availability

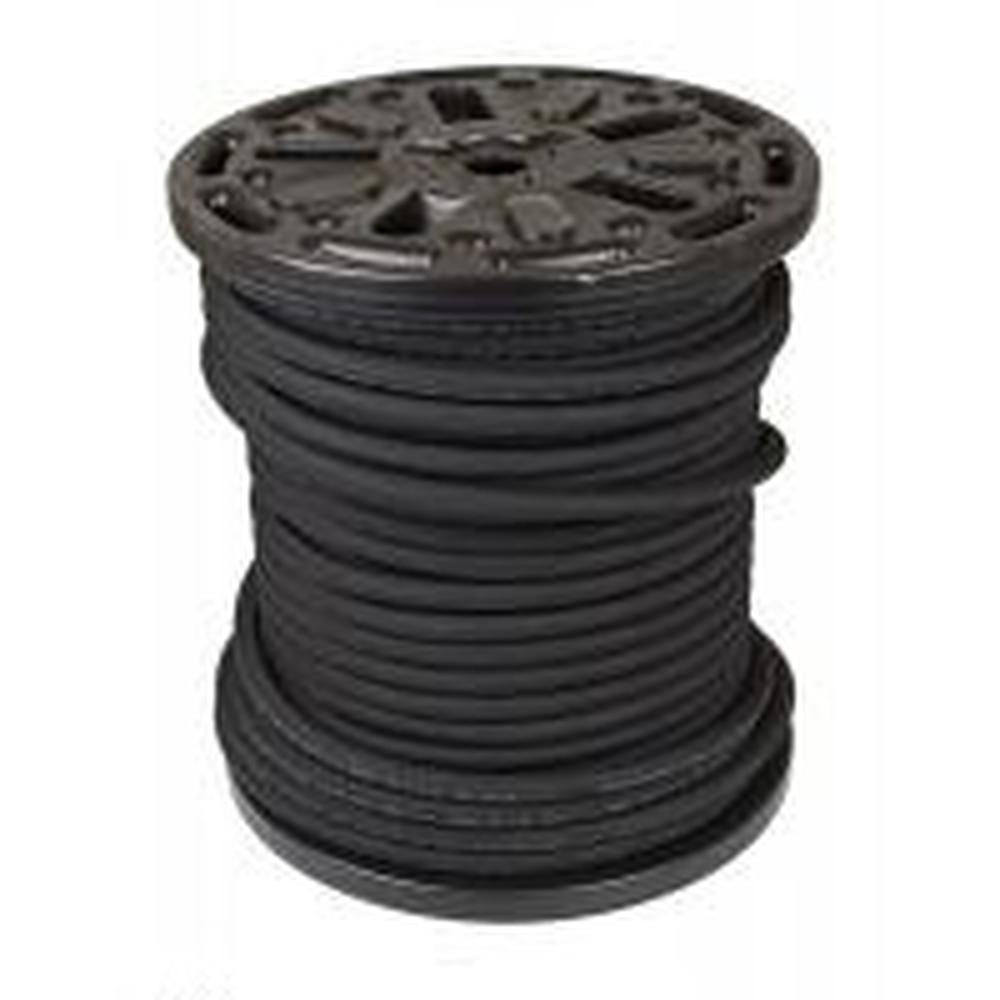

One New Aftermarket Replacement SAE 100R2AT 2-Wire Hydraulic Hose - 1/2 inch ID, 300-Foot Bulk Reel
This bulk 300-foot reel of SAE 100R2AT (100R2 Type AT) 2-wire braided hydraulic hose is a high-pressure replacement hose suited for use in construction equipment, agricultural machinery, and industrial hydraulic systems. Compatible with petroleum-based and water-based hydraulic fluids, it features an oil-resistant nitrile inner tube, dual high-tensile steel wire braid reinforcement, and a neoprene rubber outer cover that resists abrasion, weather, ozone, and oil. Sold as a bulk reel for custom-cut hose fabrication and field repair applications.
Specifications
- Inside Diameter: 1/2 in (Dash Size -08)
- Outside Diameter: 0.88 in
- Working Pressure: 3,500 psi
- Burst Pressure: 14,000 psi
- Safety Factor: 4:1
- Minimum Bend Radius: 7.00 in
- Operating Temperature: -40 degrees F to +212 degrees F
- Inner Tube: Nitrile (oil-resistant synthetic rubber)
- Reinforcement: Two layers of high-tensile braided steel wire
- Cover: Neoprene rubber (abrasion, weather, and oil resistant)
- Standard: SAE 100R2AT / EN 853 2SN
- Length: 300 feet (bulk reel)
- Compatible Fittings: Weatherhead 425 N, S, U, Z Series
Compatible Applications
Fits Case / Fits Case IH: Suitable for hydraulic hose replacement and fabrication on Fits Case and Fits International Harvester (IH) construction equipment, agricultural tractors, and related machinery. Also widely used across agriculture, construction, mining, and industrial hydraulic systems requiring SAE 100R2AT-rated 1/2 in 2-wire hose.
Replaces Part Number(s):
256-H42508, 256H42508, 42508250, H42508-250R, H42508X250
New aftermarket replacement part - not remanufactured, not used.
