Weld On Utility Trailer Double-Eye Leaf Spring Hanger Kit - Single Axle

Name: Weld On Utility Trailer Double-Eye Leaf Spring Hanger Kit - Single Axle
SKU: TLU31-0027_2
Price: 27.0 USD
Availability: OutOfStock

Weld On Utility Trailer Double-Eye Leaf Spring Hanger Kit - Single Axle

£27.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Weld On Utility Trailer Single Axle Leaf Spring Hanger Kit for Double Eye Spring

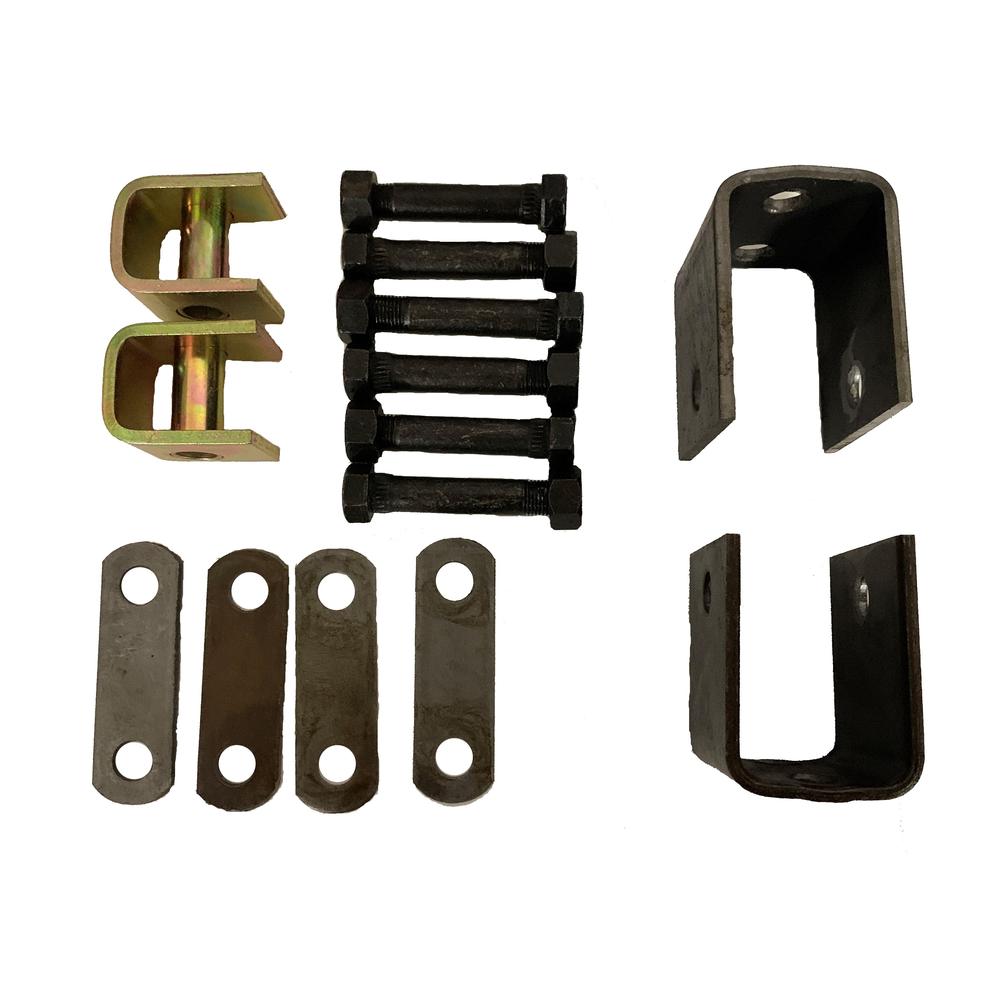

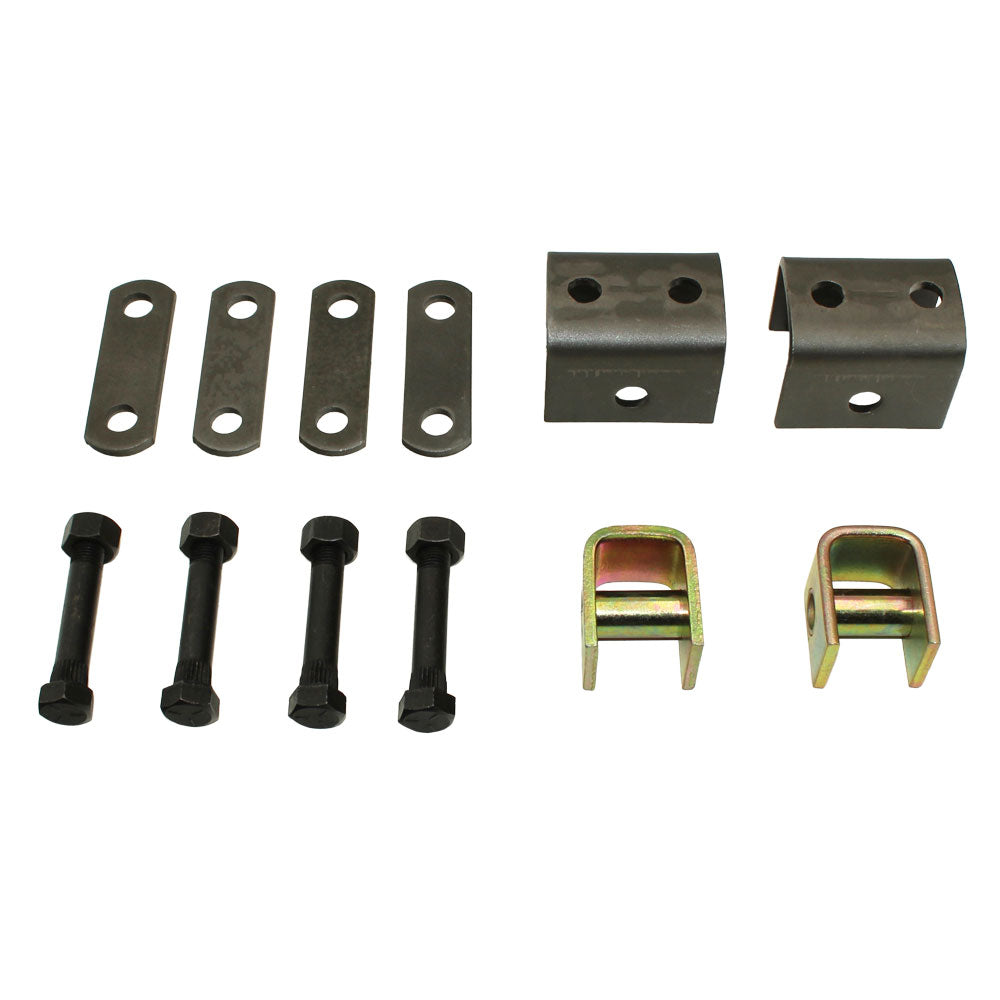

Kit Contains:

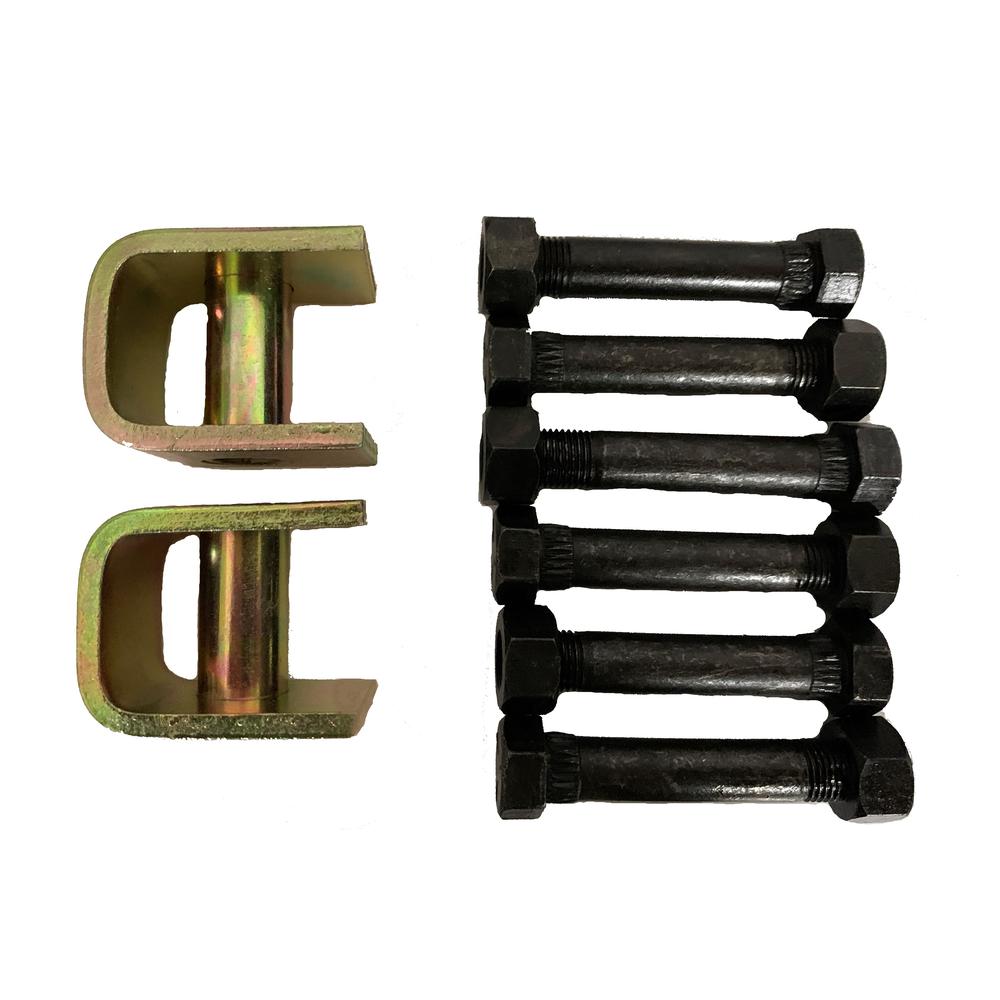

(2) Front Hangers (115917)

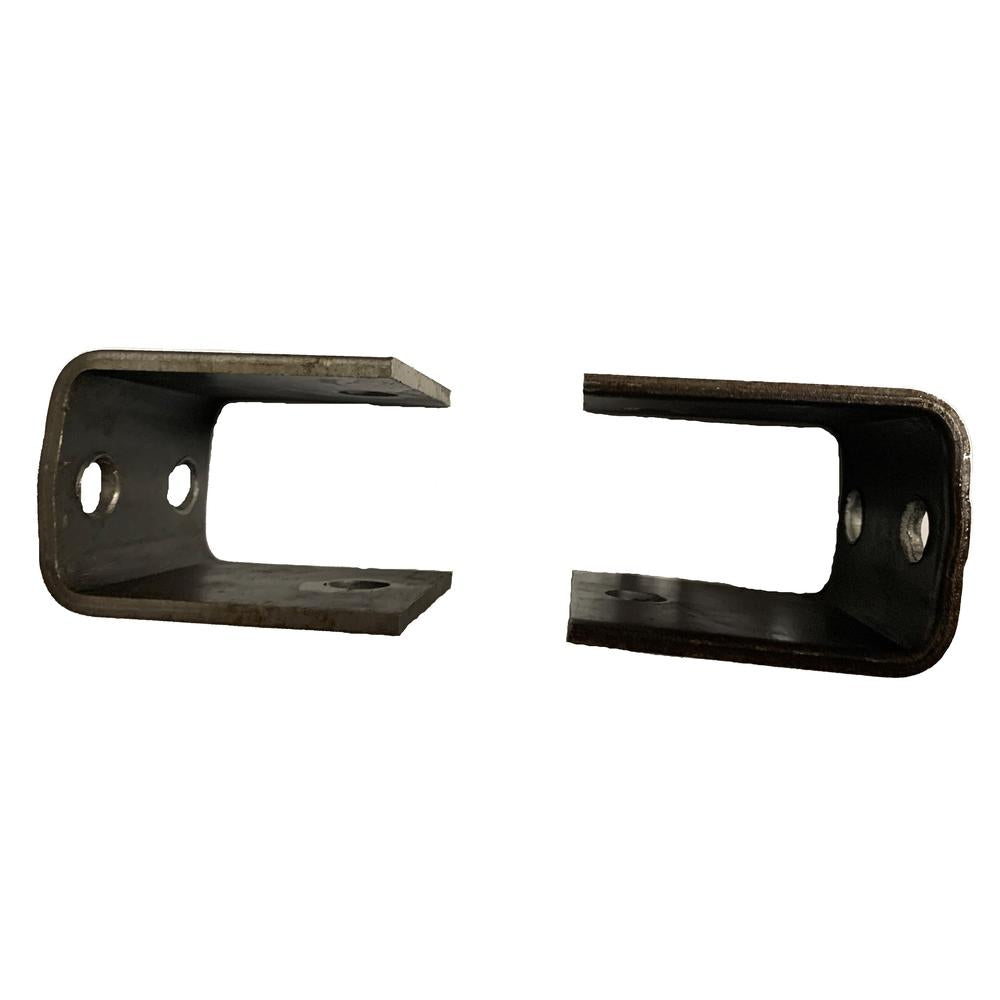

(2) Rear Hangers (30-20)

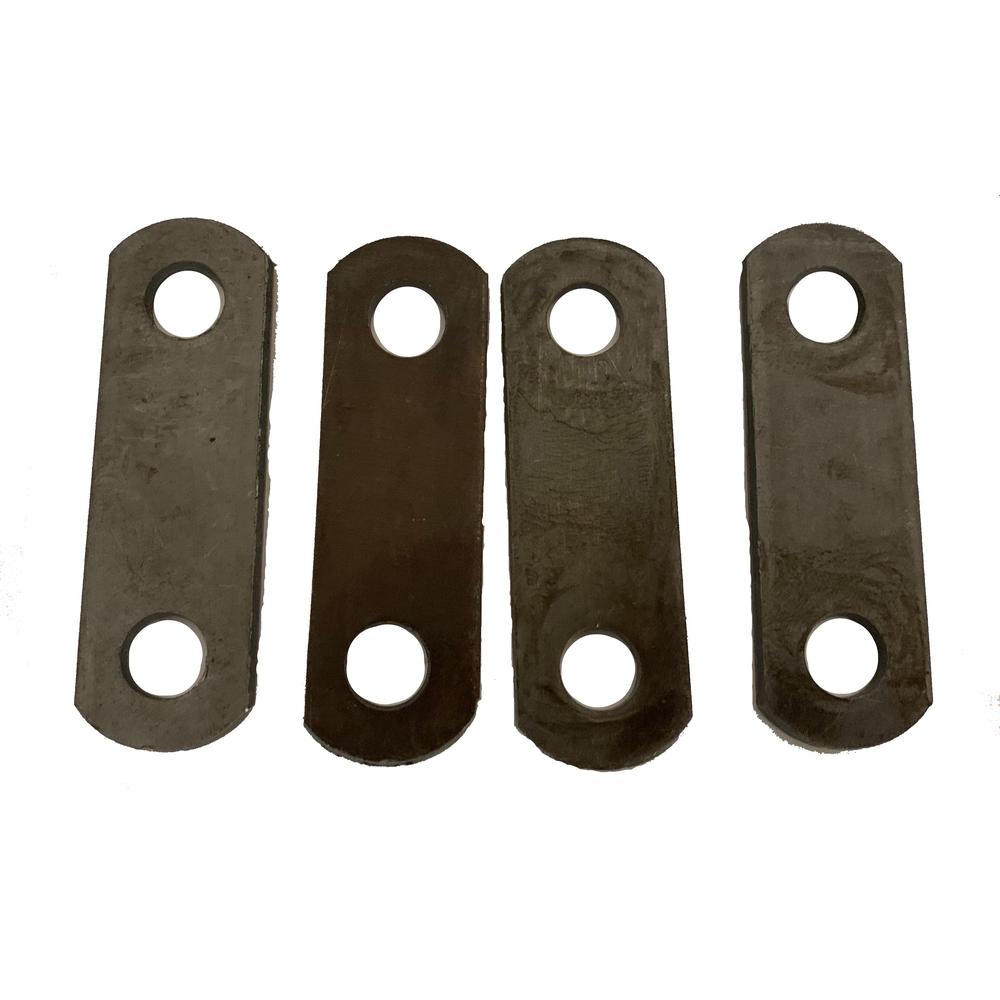

(4) Shackle Straps (115208)
(6) Shackle Bolts (9163B)
(6) Lock Nuts (916DLN)

Tech Info:
Front Hangers- 1-1/2" Tall
Rear Hangers- 7/8" Tall
Shackle Straps- 3-1/8" Long
Shackle Bolts- 9/16" x 3" Long
Lock Nuts- 9/16"

Designed for use on 2,000 to 7,000 lb Axles
For use with 1-3/4" wide springs
Attaches 2 leaf springs to your trailer frame

Models This Part Fits:

2, 000 to 7, 000 lb. Axles

Additional Information:

Attaches 2 Leaf Springs to Your Trailer Frame Kit Contains: (2) Front Hangers: Height: 1-1/2" Replaces Part Numbers: 115917 (2) Rear Hangers: Height: 7/8" Replaces Part Numbers: 30-20 (4) Shackle Straps: Length: 3-1/8" Replaces Part Numbers: 115208 (6) Shackle Bolts: Length: 9/16" x 3" Replaces Part Numbers: 9163B (6) Lock Nuts: Size: 9/16" Replaces Part Numbers: 916DLN
