Weasler 59-1/16" x 26.5 MM x 3.4 MM Wall Tri-lobe Inner Profile Tubing 1 Series
Weasler 59-1/16" x 26.5 MM x 3.4 MM Wall Tri-lobe Inner Profile Tubing 1 Series
Couldn't load pickup availability

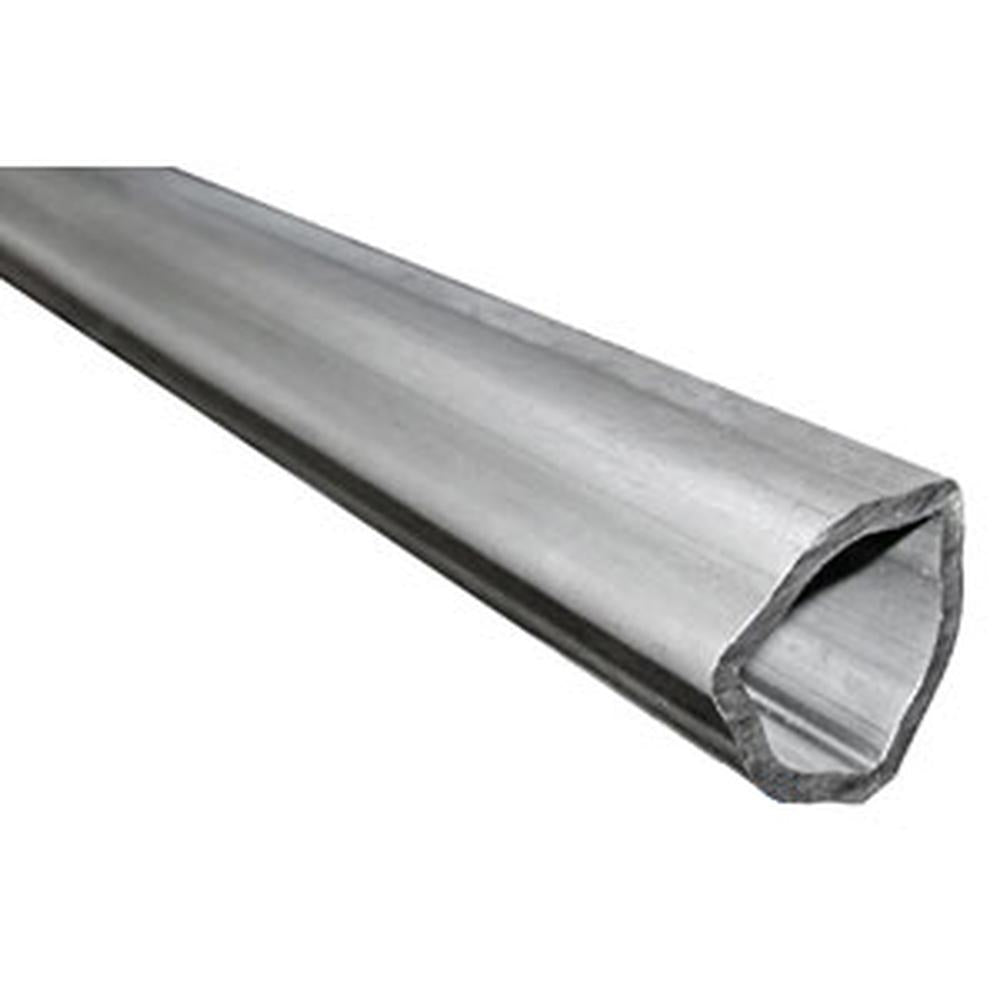

One New Aftermarket Replacement Tri-Lobe Inner Profile Tube for Weasler / Bondioli & Pavesi Series 1 PTO Drivelines
This tri-lobe inner profile tube is the sliding inner half of a Series 1 metric PTO driveshaft assembly. It telescopes inside the outer profile tube to allow length adjustment during operation, transferring torque from the tractor PTO to the implement. The tri-lobe (three-rounded-lobe) cross-section is standard for Bondioli & Pavesi (B&P) and Weasler metric Series 1 drivelines used on a wide range of agricultural implements including mowers, spreaders, tillers, and augers.
Specifications
- Length: 59-1/16 in. (1,500 mm)
- Profile A size (across lobes): 26.5 MM
- Wall thickness: 3.4 MM
- Profile shape: Tri-lobe (metric)
- Series: 1 (Metric Series 1 - U-joint cap size 22.0 MM / 7/8 in., cap-to-cap 54.0 MM / 2-1/8 in.)
- Can be cut to length as needed
Compatible Models
Series 1 Metric PTO Drivelines: Bondioli & Pavesi (B&P) Series 1, Weasler AB1 Series - fits any Series 1 metric tri-lobe driveline assembly requiring an inner profile tube with 26.5 MM / 3.4 MM wall specification.
Replaces Part Number(s):
DRF30-0103, 400-6126, 404-6126
Aftermarket Interchange Numbers
Bondioli & Pavesi: 125023000, BP125021500, 51A4811 | Fits Case/IH: W4006126DS, W4046126DS | Comer: 191.110.100 | Eurocardan: 1531300 | Fits John Deere: PM400-6126, PM404-6126 | Fits Vapormatic: VTE2009, VTE2309 | Also known as: 1-04M1.5, 104M1.5, 343-1401, 40210322, 5-06, BT26-3, BYT5-00-2-52
New aftermarket replacement part - not remanufactured, not used.
