Weasler 39-3/8" x 41 MM x 2.9 MM Wall Lemon Shaped Outer Profile Tubing 604-7241
Weasler 39-3/8" x 41 MM x 2.9 MM Wall Lemon Shaped Outer Profile Tubing 604-7241
Couldn't load pickup availability

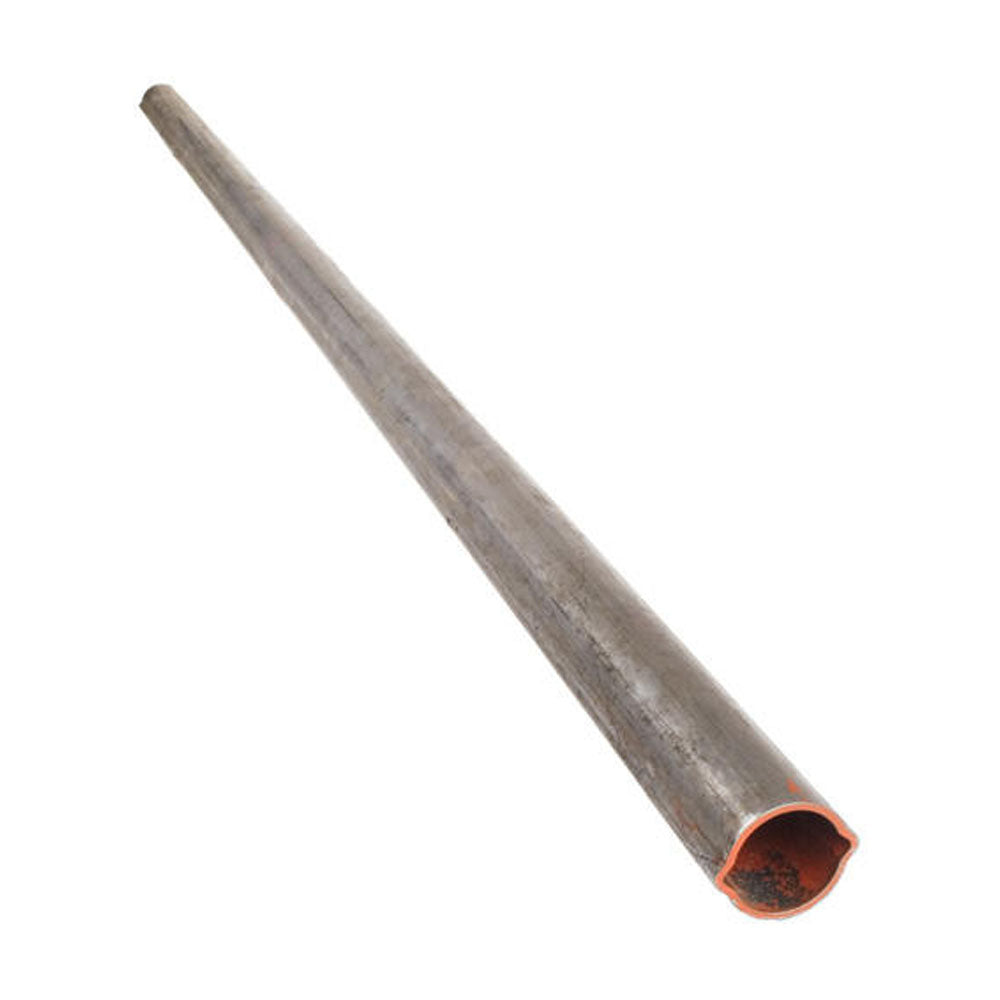

One New Aftermarket Replacement Lemon Profile Outer PTO Tube for Walterscheid Metric Driveline Systems
This outer profile tube is a component of metric German-style PTO driveline assemblies, serving as the outer telescoping half of the driveshaft. The lemon-shaped profile is characteristic of Walterscheid (German-style) metric drivelines and allows the inner and outer tubes to slide together while transmitting torque. This tube is compatible with Weasler and Walterscheid driveline repair and rebuild applications.
Specifications
- Length: 39-3/8" (1,000 mm / 1.0 m)
- Profile Width (Dim A): 41 MM (1.61")
- Wall Thickness: 2.9 MM (0.114")
- Profile Shape: Lemon (German-style metric)
- Position: Outer tube (female)
Compatible Series
Walterscheid / Weasler Metric Driveline: Series I, Series 2200 (200), Series 2300 (210), Series 2400, Series 220/720
Note: Verify series fitment by measuring your existing tube profile width and wall thickness before ordering. The lemon profile is specific to German-style metric drivelines -- it is not interchangeable with Italian-style (trilobed/bell) profiles or North American square/hex profiles.
Replaces Part Number(s):
604-7241, 604-7241GV, 6047241GV, 971-6047241, WT41-3-39, WT41-3-39GV, WT41339GV
New aftermarket replacement part - not remanufactured, not used.
