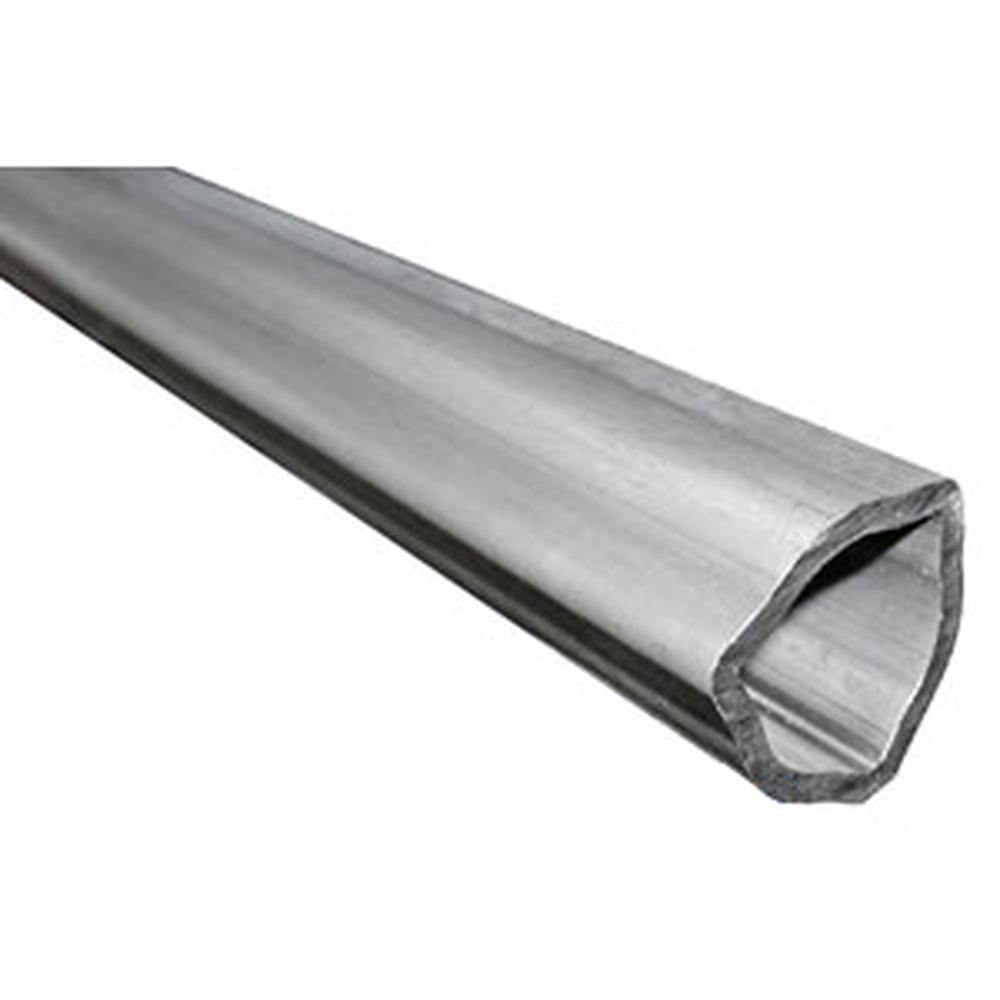

Weasler 39-3/8" x 36 MM Tri-lobe Inner Profile Tubing 4 Series 404-6436 Farmer
Weasler 39-3/8" x 36 MM Tri-lobe Inner Profile Tubing 4 Series 404-6436 Farmer
Couldn't load pickup availability
One New Aftermarket Replacement Tri-Lobe Inner Profile Tubing for Weasler Series 4 PTO Drivelines
This 39-3/8" x 36 MM tri-lobe inner profile tubing is a direct replacement component for Weasler AB4 Series metric PTO driveshafts used on agricultural equipment. The tri-lobe (Italian-style) profile is compatible with Bondioli & Pavesi (B&P) Size 4 driveline systems. The inner profile tube slides within the outer profile tube to allow the driveshaft to telescope and transmit torque from the tractor PTO to the implement. This is a Weasler-style part designed for use in Italian-metric style drivelines -- verify your existing tube profile shape (tri-lobe) and series (4) before ordering.
Specifications
- Length: 39-3/8" (1000 mm approx.)
- Tube Profile Diameter: 36 MM
- Profile Style: Tri-Lobe (Italian metric style)
- Series: 4 (AB4 / Bondioli & Pavesi Size 4)
- U-Joint Cap Size: 27.0 MM / 1-1/16" (1.063")
- Cap to Cap: 74.6 MM / 2-15/16" (2.937")
- Compatible Profile System: Bondioli & Pavesi Size 4
Compatible Models
Bondioli & Pavesi / Weasler Series 4 Driveline Systems: Size 4 (AB4 Series) metric tri-lobe PTO driveshaft assemblies used on a wide range of agricultural implements including disc mowers, rotary cutters, hay equipment, and tillage implements equipped with Italian-metric style Series 4 drivelines.
Replaces Part Number(s):
404-6436, 404 6436, 4046436, 971-4046436, 9714046436, PM404-6436
New aftermarket replacement part - not remanufactured, not used.
