Weasler 1" Round Bore 1/4" Keyway & Set Screw Implement Yoke 12N Series 800-1216
Weasler 1" Round Bore 1/4" Keyway & Set Screw Implement Yoke 12N Series 800-1216
Couldn't load pickup availability
One New Aftermarket Replacement Implement Yoke for Weasler 12N Series PTO Drivelines

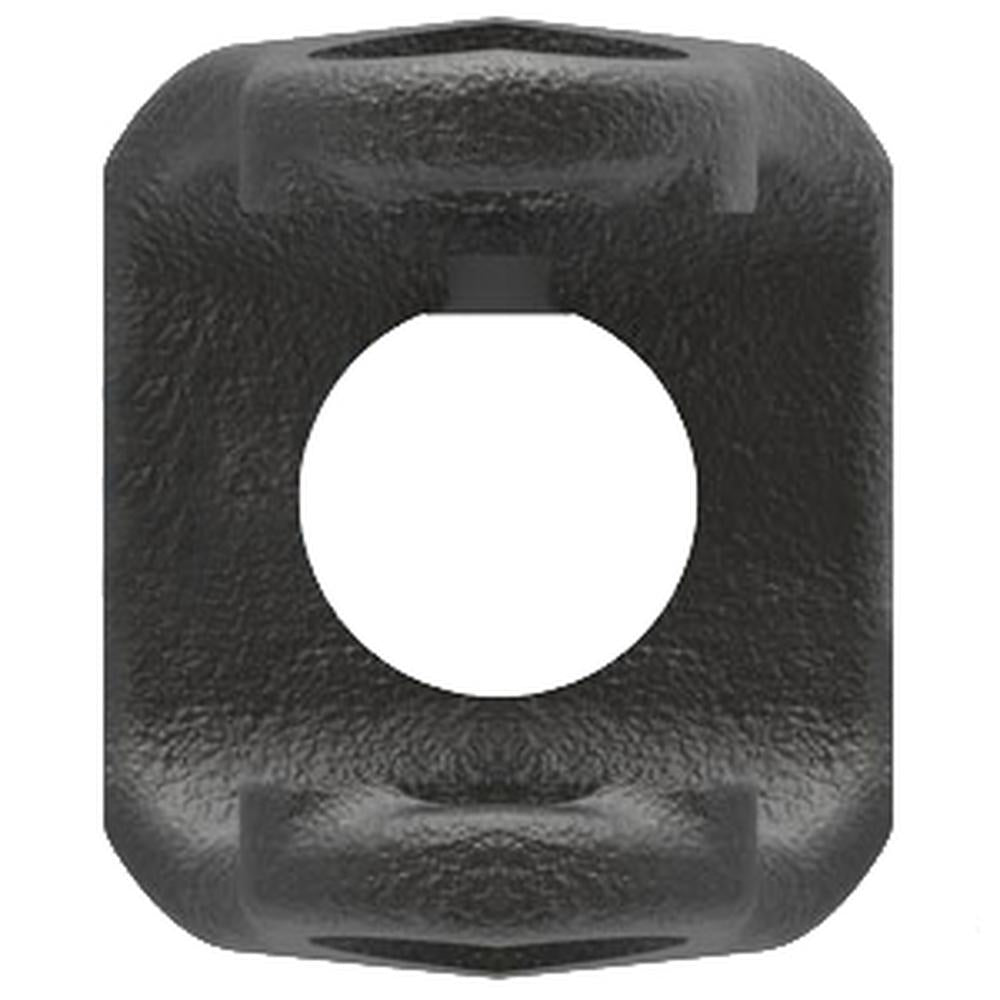

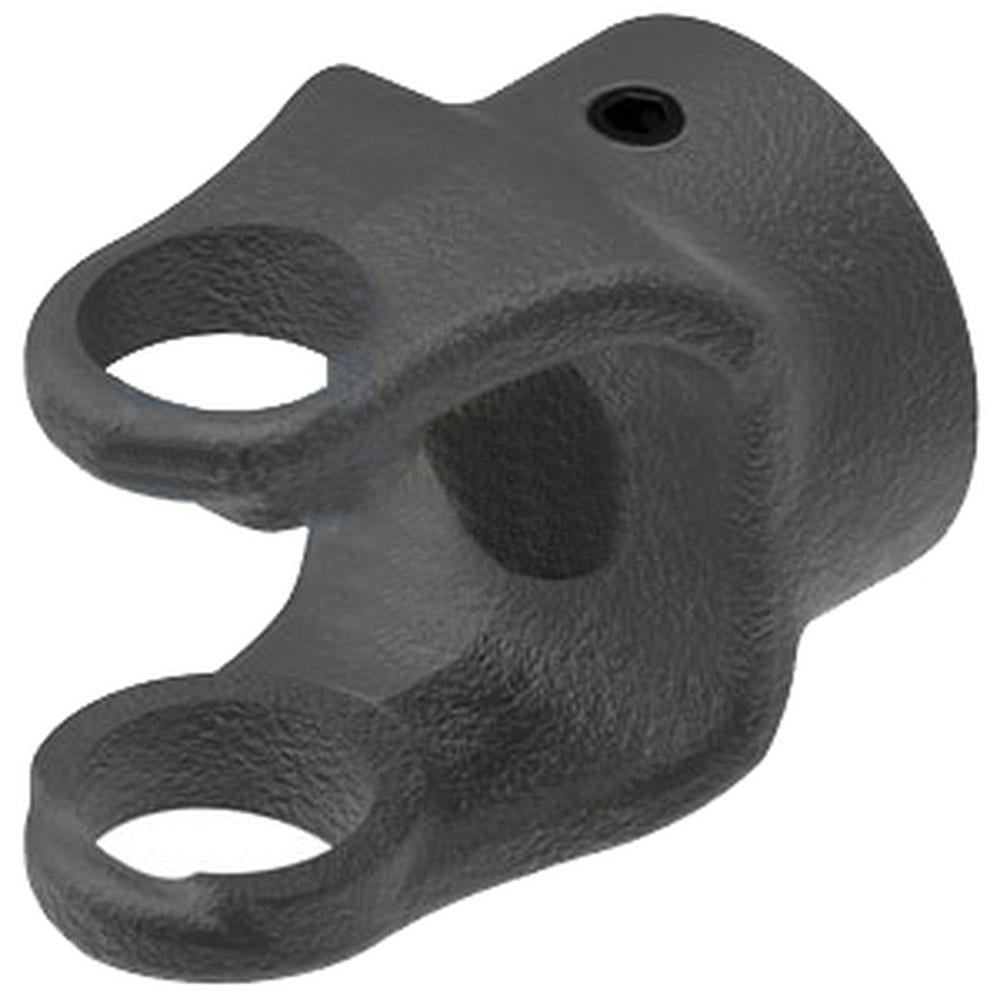

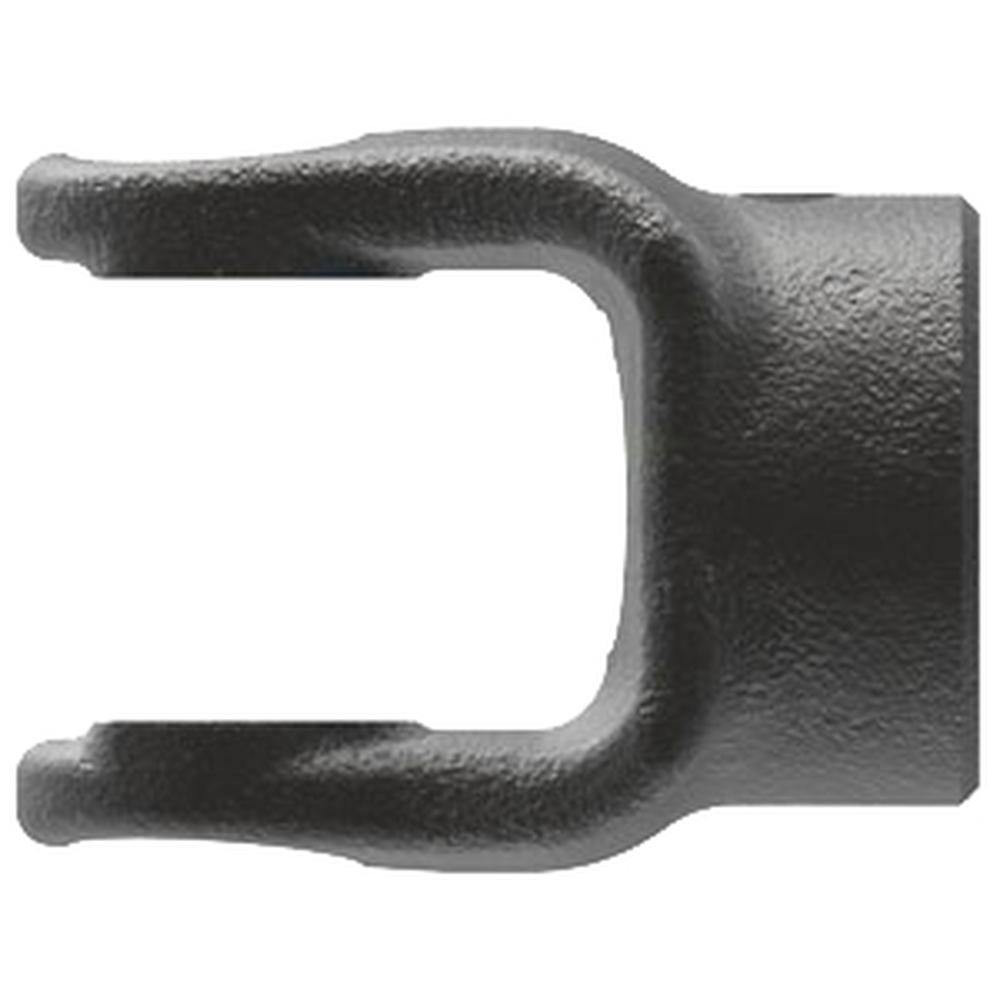

This Weasler 12N Series implement yoke is the final connection between a PTO drive shaft and the attached machine or implement. It features a 1-inch round bore with a 1/4-inch keyway and set screw for secure shaft attachment, and is designed for use on agricultural PTO driveline assemblies.
Specifications
- Series: 12 / 12N
- Bore: 1.00 inch (25 mm) - Round with Keyway
- Keyway Width: 0.25 inch (1/4")
- Connection Type: Set Screw
- Bearing Cap Diameter: 1.063 inch (1-1/16")
- Bearing Cap-to-Cap Span: 2.50 inch
- Height: 3.00 inch (76 mm)
- Rated HP @ 1000 RPM: 40 HP (30 kW)
- Rated HP @ 540 RPM: 26 HP (19 kW)
Compatible Applications
Fits all agricultural implements and PTO-driven equipment using Weasler 12 Series / 12N Series drivelines with a 1-inch round keyed shaft. Compatible with a wide range of tractors and implements across major brands including Fits John Deere, Fits Case IH, Fits New Holland, AGCO, Fits Massey Ferguson, and others where a 12N Series implement yoke is required.
Replaces Part Number(s):
800-1216, 800 1216, 8001216
Aftermarket Interchange Numbers
11115, 12N164, 184-1216, 1841216, 30185E1, 30316E1, 850-022, 850022, 971-8001216, 9718001216, PM800-1216, TPC10758
New aftermarket replacement part - not remanufactured, not used.
