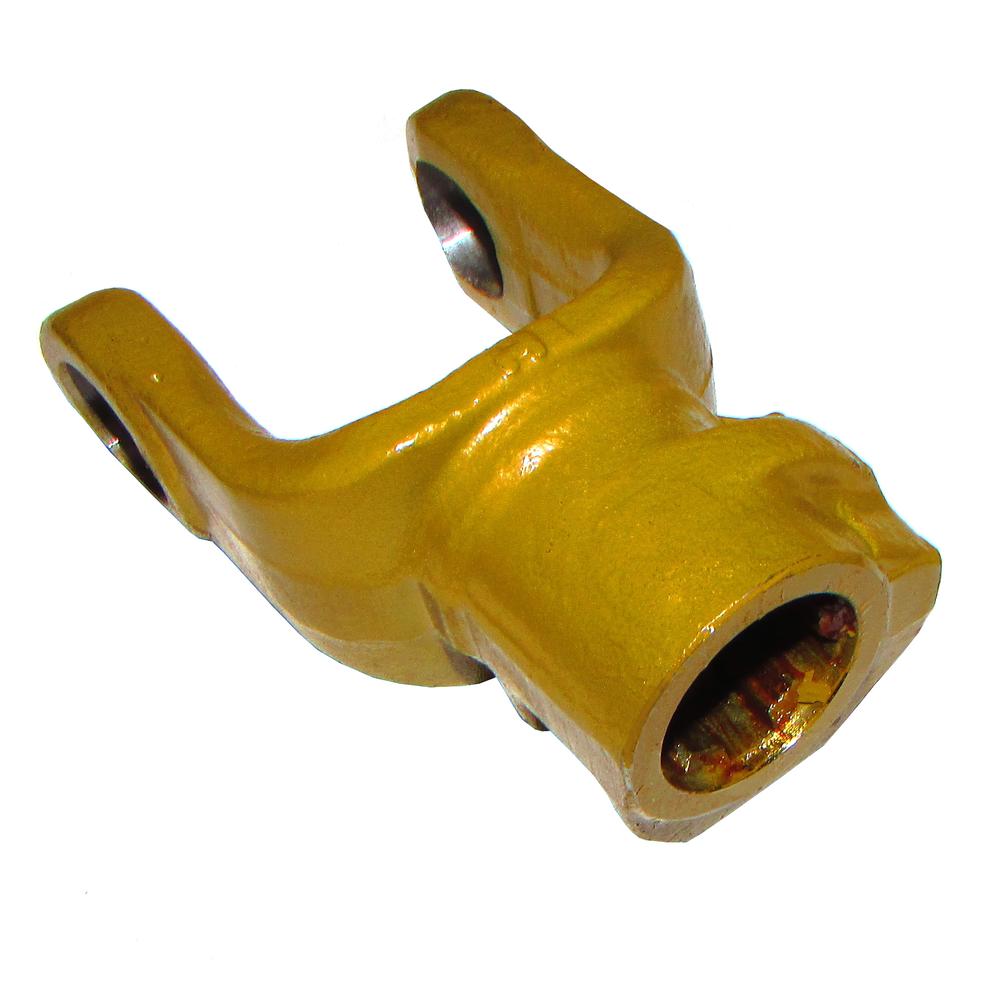

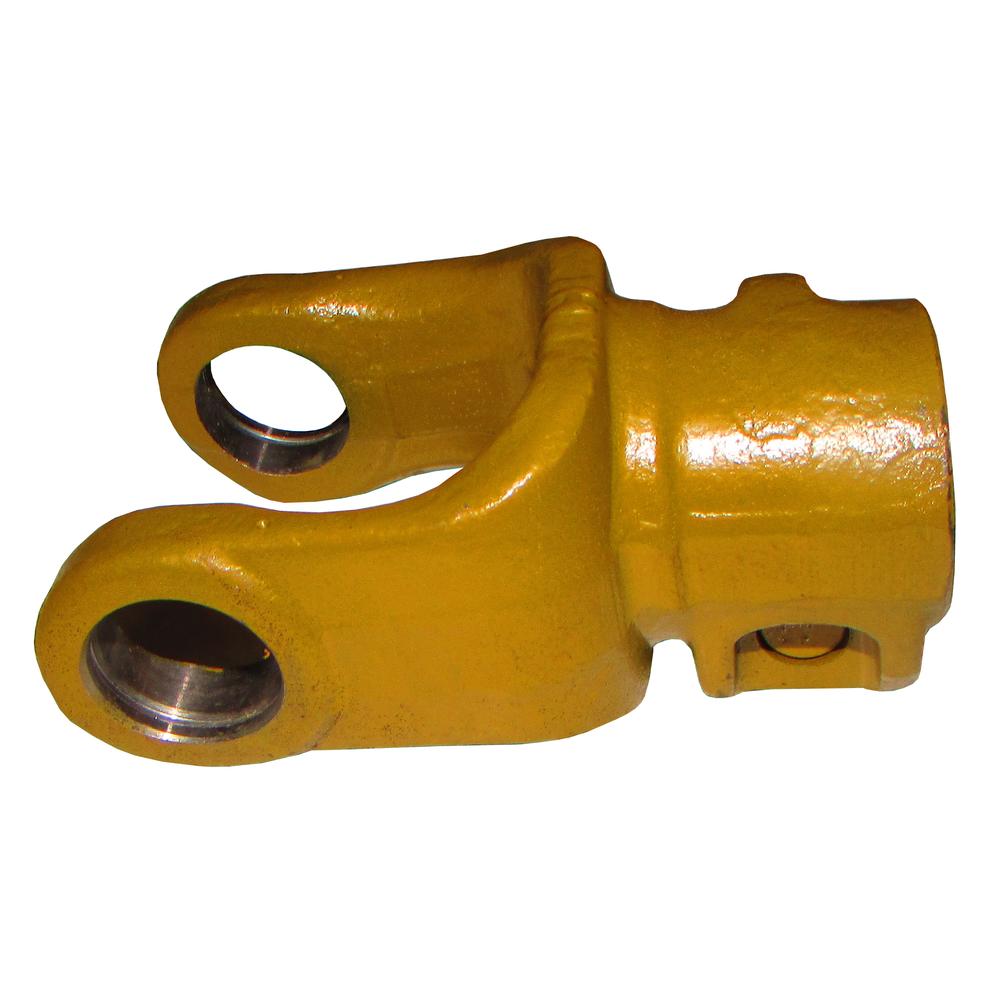

Weasler 1-3/8" 6 Spline Tractor Quick Disconnect Yoke 2300/210 & 4 Series
Weasler 1-3/8" 6 Spline Tractor Quick Disconnect Yoke 2300/210 & 4 Series
Couldn't load pickup availability
One New Aftermarket Replacement Quick Disconnect Tractor Yoke for Weasler AB4/AW21 Series PTO Drivelines
This Weasler 102-8406 quick disconnect tractor yoke connects the tractor PTO shaft to the driveline on Series 2300/210 and Series 4 (AB4/AW21) PTO shaft assemblies. Featuring a 1-3/8 in. 6-spline bore and quick disconnect mechanism, it serves as the leading connection between the tractor and implement driveline. The cast iron collar construction protects the internal spring from damage, and compound radius locking pawls fit the contour of the tractor shaft groove for secure engagement.
Specifications
- Bore: 1-3/8 in., 6-Spline (Type 1)
- U-Joint Cap Size: 27.0 mm / 1-1/16 in. (1.063 in.)
- Cap to Cap: 74.6 mm / 2-15/16 in. (2.937 in.)
- Dimensions: 4.21 in. L x 2.36 in. W x 3.82 in. H
- Weight: 2.62 lb.
- Material: Cast iron collar
- Connection Type: Quick disconnect
- HP Rating: 70 HP / 52 kW @ 1000 RPM; 45 HP / 34 kW @ 540 RPM
- Interchangeable with Bondioli & Pavesi AND Walterscheid yokes
Compatible Series
Weasler PTO Driveline Series: 2300/210 Series, Series 4 (AB4, AW21)
This yoke is interchangeable with Bondioli & Pavesi and Walterscheid metric yokes of the same series. Suitable for use with standard agricultural PTO shafts on rotary cutters, mowers, tillers, spreaders, and similar implements.
Replaces Part Number(s):
102-8406
Aftermarket Interchange Numbers
1028406, 21-10-00, 211000, 274023, 3734749M1, 4-05-07, 40060322, 41034010, 507040351, 53412, 64692, 65-01-12, 7-05-08, 779856, 971-1028406, BYQ4211138, BYQ7-23-7-138, BYQ7237138, PM102-8406, QDK-2M, QDK2M, WYQ4-21-1-138, WYQ4211138, DRF30-0134
New aftermarket replacement part - not remanufactured, not used.
