W208PP5, DC208TT5, 5AS08-1-1/8 DISC HARROW BEARING

Name: W208PP5, DC208TT5, 5AS08-1-1/8 DISC HARROW BEARING
SKU: AGER1200068
Price: 29.0 USD
Availability: InStock

W208PP5, DC208TT5, 5AS08-1-1/8 DISC HARROW BEARING

£29.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

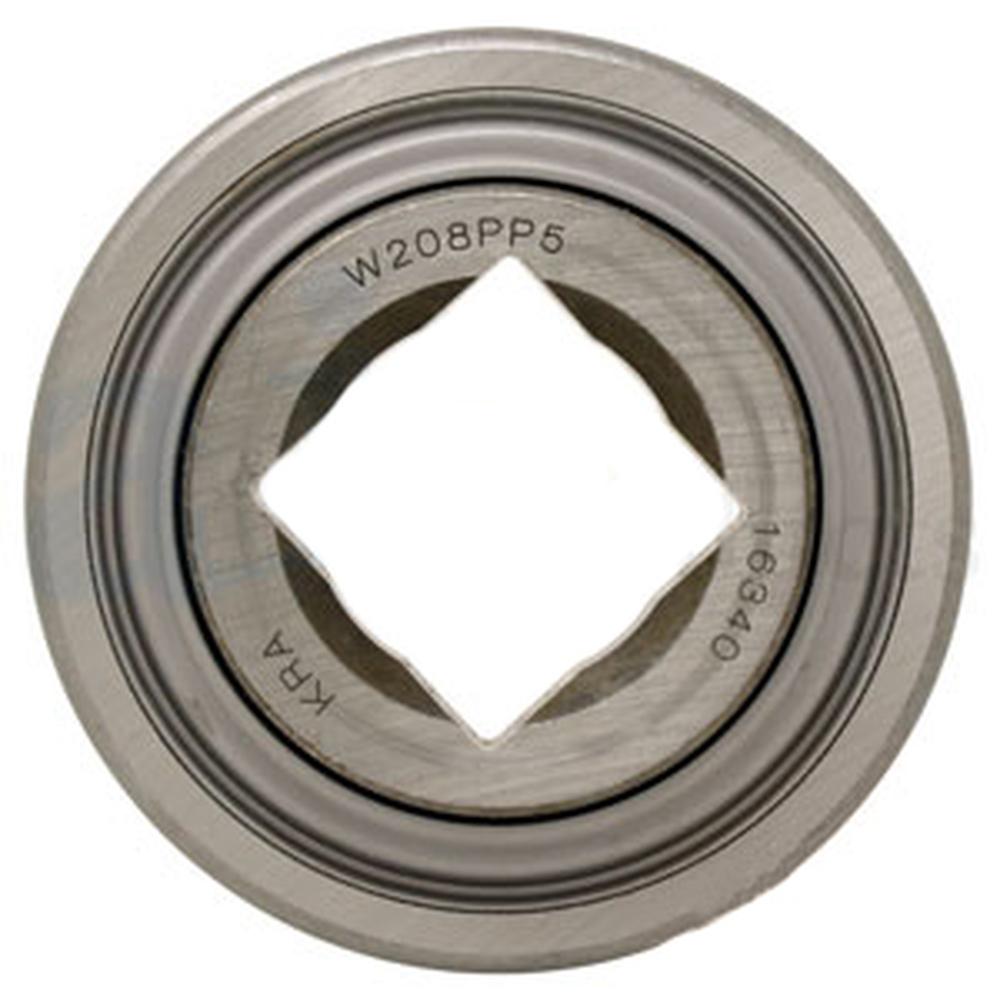

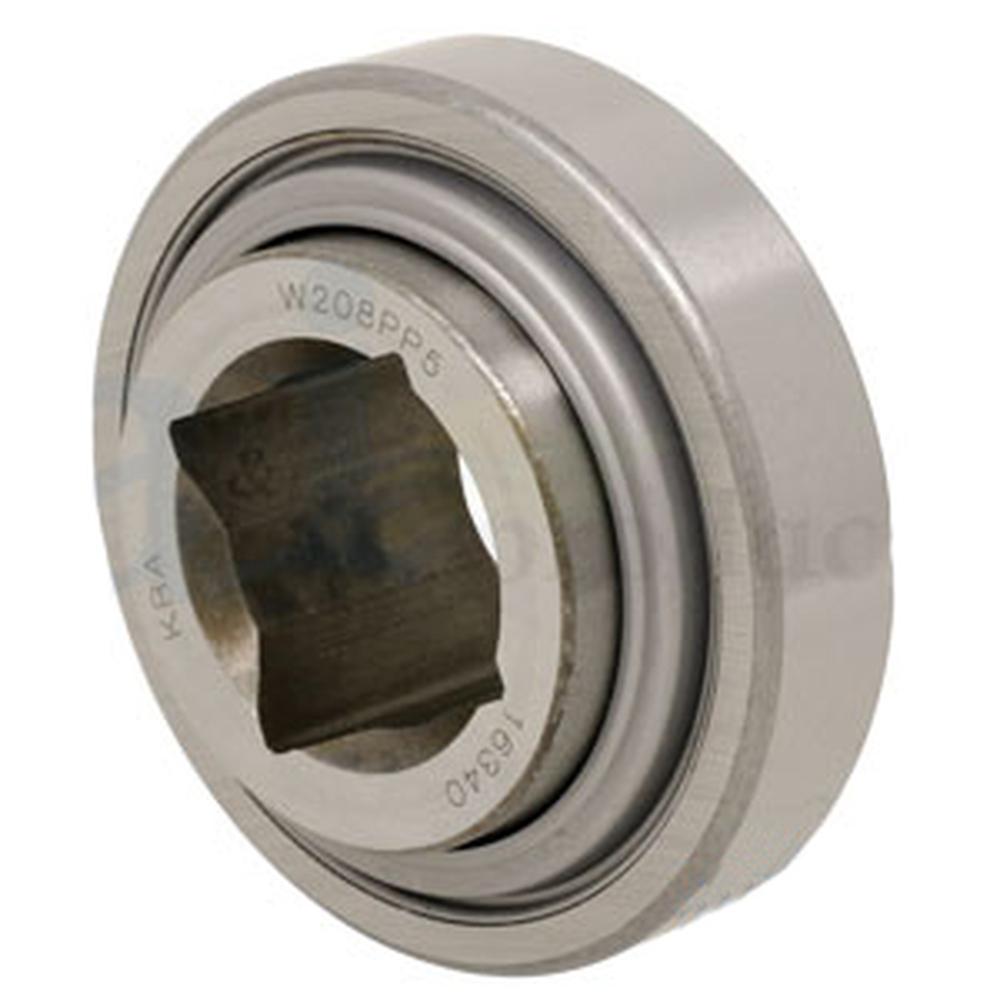

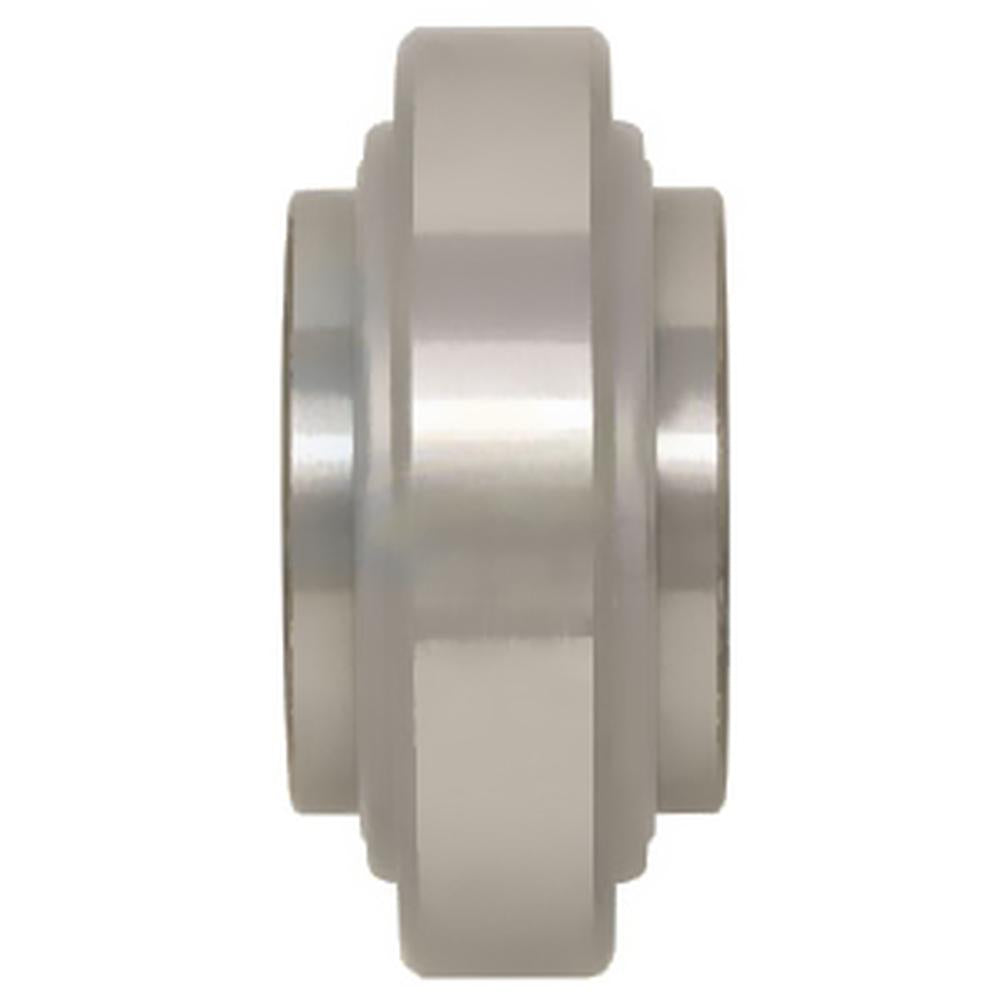

One New Aftermarket Replacement Disc Harrow Bearing - 1-1/8" Square Bore (W208PP5 / DC208TT5 / 5AS08-1-1/8)

This heavy-duty disc harrow bearing features a 1-1/8" square bore and cylindrical outside diameter, engineered for demanding agricultural disc harrow, disc tiller, and trenching machinery applications. Built with triple-lip seals to protect against corrosive field environments, this pre-lubricated bearing is a direct replacement for Fafnir/Torrington W208PP5, BCA/Federal Mogul DC208TT5, and NTN 5AS08-1-1/8 units. Compatible with disc harrows from John Deere, Case IH, Bush Hog, Massey Ferguson (MF), New Holland, Burch, Rhino, Lilliston, Riverside Tractor, and other major manufacturers.

Specifications

Bore: 1-1/8" (1.125") Square
Outside Diameter: 3.1496" (80mm Flat/Cylindrical)
Inner Ring Width: 1.438"
Outer Ring Width: 0.709"
Seal Type: Triple-lip, double-sealed
Lubrication: Pre-lubricated (non-relubricatable)
Operating Temperature Range: -40 to 250 degrees F
Dynamic Radial Load Capacity: 6,542 lbf

Compatible Models

John Deere: Disc Harrow models including 70

Case IH / International Harvester: Disc Harrow models including 120

Bush Hog: Disc Harrow models

Massey Ferguson: Disc Harrow models including 637

New Holland: Disc Harrow models

Burch, Rhino, Lilliston, Riverside Tractor, Kewanee, Forrest City, Athens: Disc Harrow models

This is a widely-used universal disc harrow bearing. Verify your bore size (1-1/8" square) and outside diameter (3.1496") before ordering.

Replaces Part Number(s):

JD9350, JD9350IMP, W208PP5, DC208TT5, 5AS08-1-1/8, 963889R1, 963889R1IMP, 843638M1, T12903, T16289, 2251, 2251IMP, 232471, 70500, 70500IMP, 1611176BH, 1611176BHIMP, 06A51001, 06A51001IMP, J9554A, J9554AIMP, 9554A, 9554AIMP, AK3997B, 7950006

Aftermarket Interchange Numbers

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

637, Disc Harrow, 120, 70

Additional Information:

Bore 1.125" Bore Type Square Inner Ring Width 1.438" Lube Type Pre-lubed Outer Ring Width .709" Outside Diameter 3.1496"

Reference Numbers:

963889R1, 963889R1IMP, 7950006, 232471, 70500, 70500IMP, 1611176BH, 1611176BHIMP, DC208TT5, J9554A, J9554AIMP, 9554A, 9554AIMP, W208PP5, 2251, 2251IMP, 06A51001, 06A51001IMP, AK3997B, JD9350, JD9350IMP, 843638M1, T12903, T16289
