VERMEER ROUND BALER PTO DRIVELINE Shaft With Torque limiter

One New Aftermarket Replacement PTO Driveline Shaft with Torque Limiter for Vermeer Round Balers

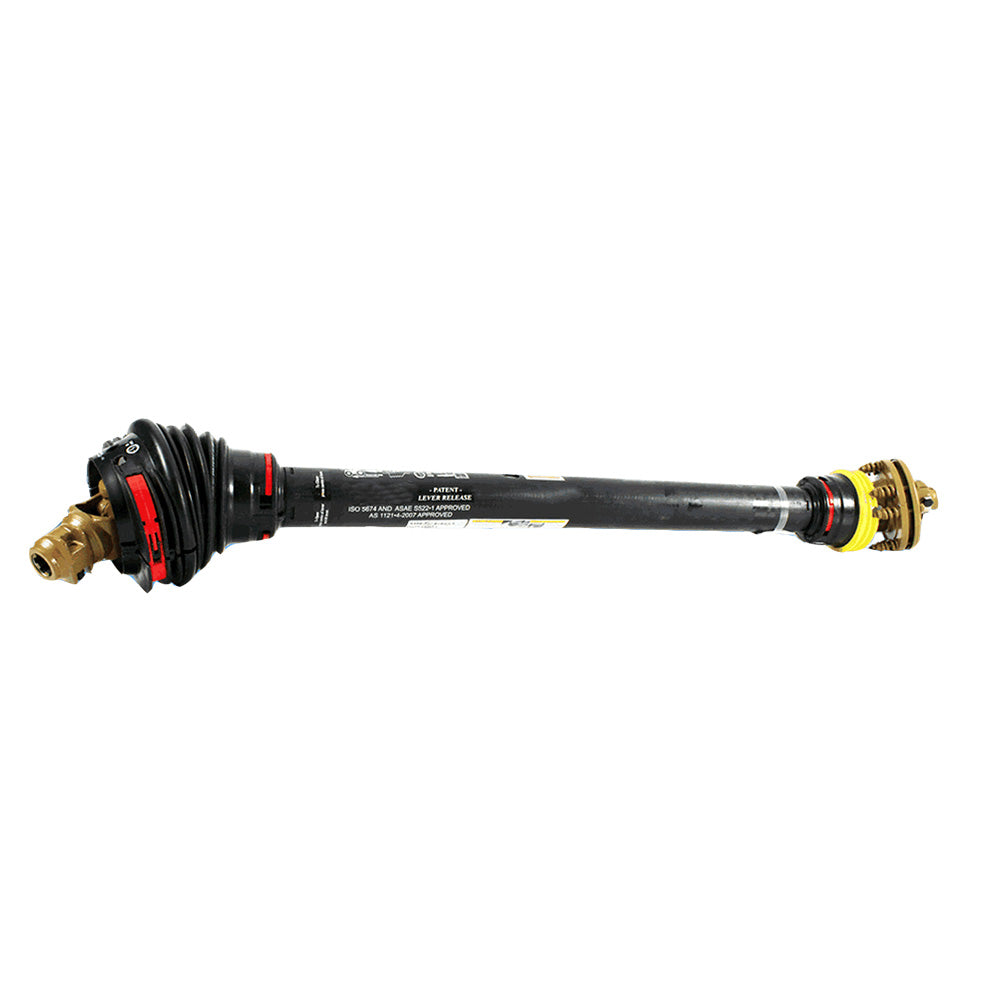

This PTO driveline shaft assembly transfers rotational power from the tractor's power take-off to the Vermeer round baler's input gearbox, driving the pickup, belts, rollers, and bale-forming systems. The shaft features a wide-angle constant-velocity tractor end and an integrated torque-limiting yoke clutch on the implement end to protect the baler's drivetrain from shock loads and overloads during baling operations. Designed as a direct replacement for worn or damaged original driveline assemblies on Vermeer round balers.

Specifications

• Shaft Series: 6 Series
• Shaft Type: 80-degree Wide Angle End
• End Device: Torque Limiting Yoke Clutch
• Clutch Diameter: 4 in.
• Tractor End: 1-3/8 in. x 6 Spline (540 RPM)
• Implement End: 1-3/8 in. x 6 Spline

Compatible Models

Vermeer Round Balers: 504F, 504G, 504H, 504I, 504MCL, 505MCL, 5400 Rebel, 5410 Rebel, 5500 Rebel

Replaces Part Number(s):

WT6150

New aftermarket replacement part - not remanufactured, not used.
