Vanner 20-1050CUL-DC LifeStar Ambulance Inverter Charger 1050W 12V

Vanner 20-1050CUL-DC LifeStar Ambulance Inverter Charger 1050W 12V

£2,042.00 GBP
£2,042.00 GBP
Sale Sold out
Shipping calculated at checkout.

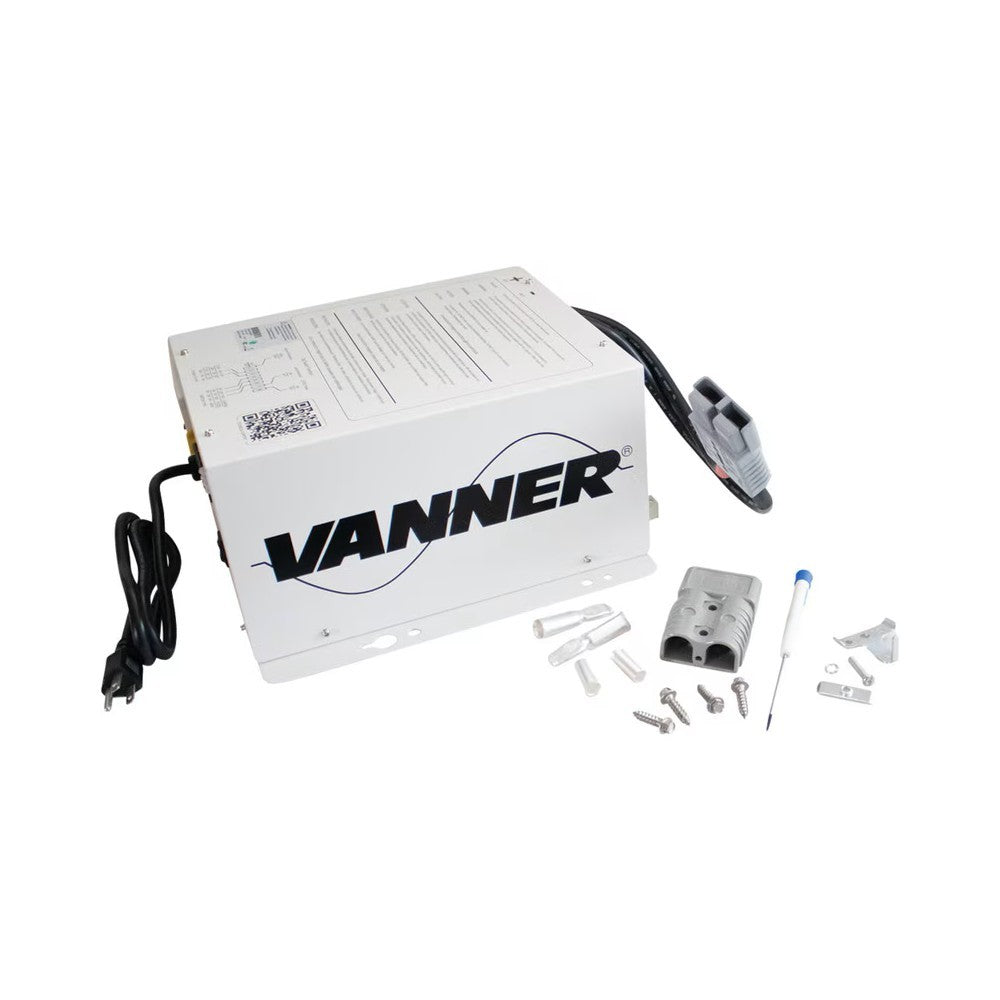

Vanner LifeStar Ambulance Power Module, Model 20-1050CUL-DC

A single module that does three jobs in an emergency vehicle: it inverts 12 volt battery power to 120 VAC, it charges the batteries at up to 55 amps from shore power, and it transfers between the two automatically.

Output
- 1050 watts continuous at 120 VAC
- 2100 watts surge, three second rating
- 120 VAC plus or minus 5 percent, 60 Hz plus or minus 0.2 percent
- Duplex GFCI receptacle
- Transfer switch rated 12 amps

Input and charging
- 12 VDC nominal, operating range 10.5 to 16.0 VDC
- Battery charger 55 amps on the high setting, 15 amps on low
- Suits flooded lead acid and gel lead acid batteries
- Hardwire AC input

Physical
- 11.57 in wide by 5.94 in high by 11.04 in deep
- 22 lb

Standards
- Complies with KKK-A-1822 section 3.7.7.2 for the portable equipment charging circuit
- AC input branch protection is required per the National Electric Code, NFPA 70

Additional Information:

BATTERY TYPE: Flooded & Gel, CHARGE RATES: 55, CONTINUOUS WATT: 1050, HEIGHT: 151mm, HEIGHT: 5.945", INCLUDES: Battery Charger, Transfer Switch, INPUT TYPE: Hardwire, LENGTH: 11.575", LENGTH: 294 mm, OUTPUT TYPE: Double 3-Prong AC GFCI, SERIES: LifeStar, SURGE WATT: 2100, TRANSFER SWITCH RATING: 12, VOLTAGE INPUT: 12 VDC, VOLTAGE INPUT HIGH: 16, VOLTAGE INPUT LOW: 10.500, VOLTAGE OUTPUT: 120 VAC, VOLTAGE OUTPUT HIGH: 126, VOLTAGE OUTPUT LOW: 114, WAVE TYPE: Modified Sine, WIDTH: 11.024", WIDTH: 280mm, Arrowhead: 20-1050CUL-DC; Vanner: 20-1050CUL, 20-1050CUL-DC, 20-1050CULW

Reference Numbers:

VAN-20-1050CUL-DC
