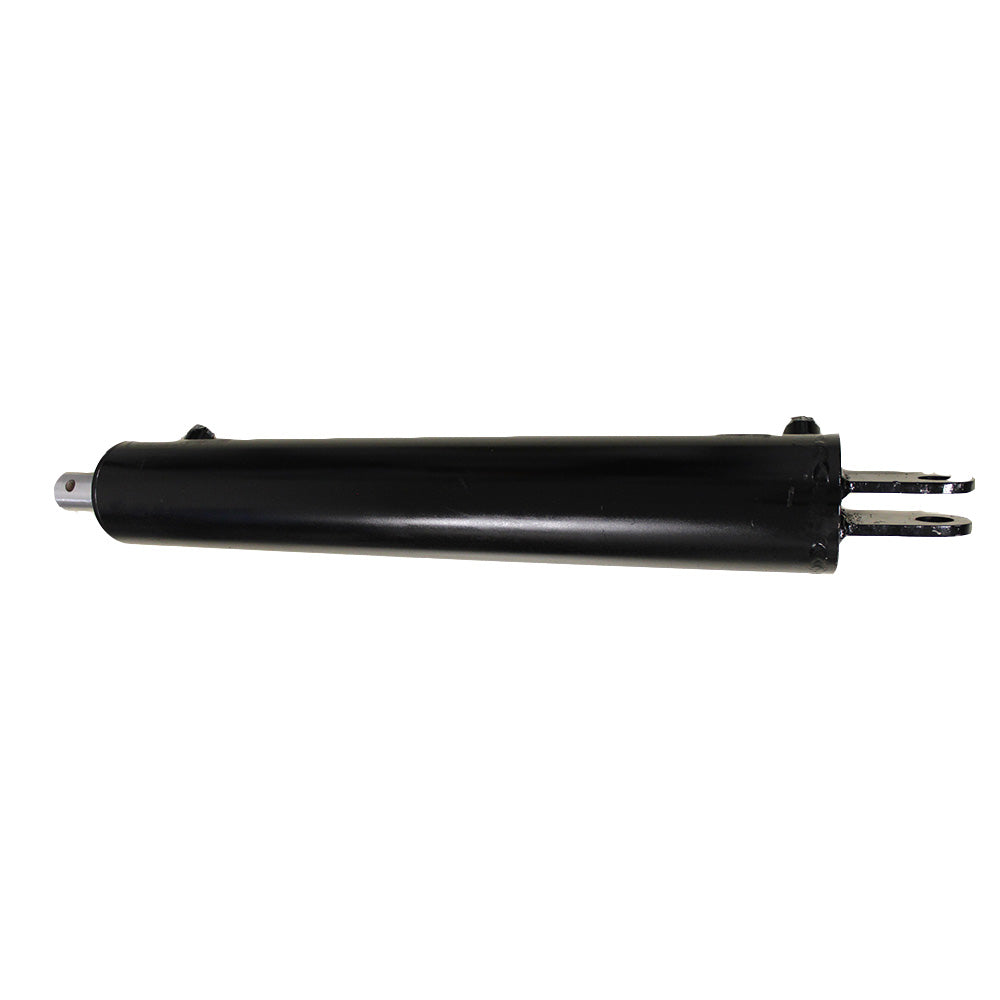

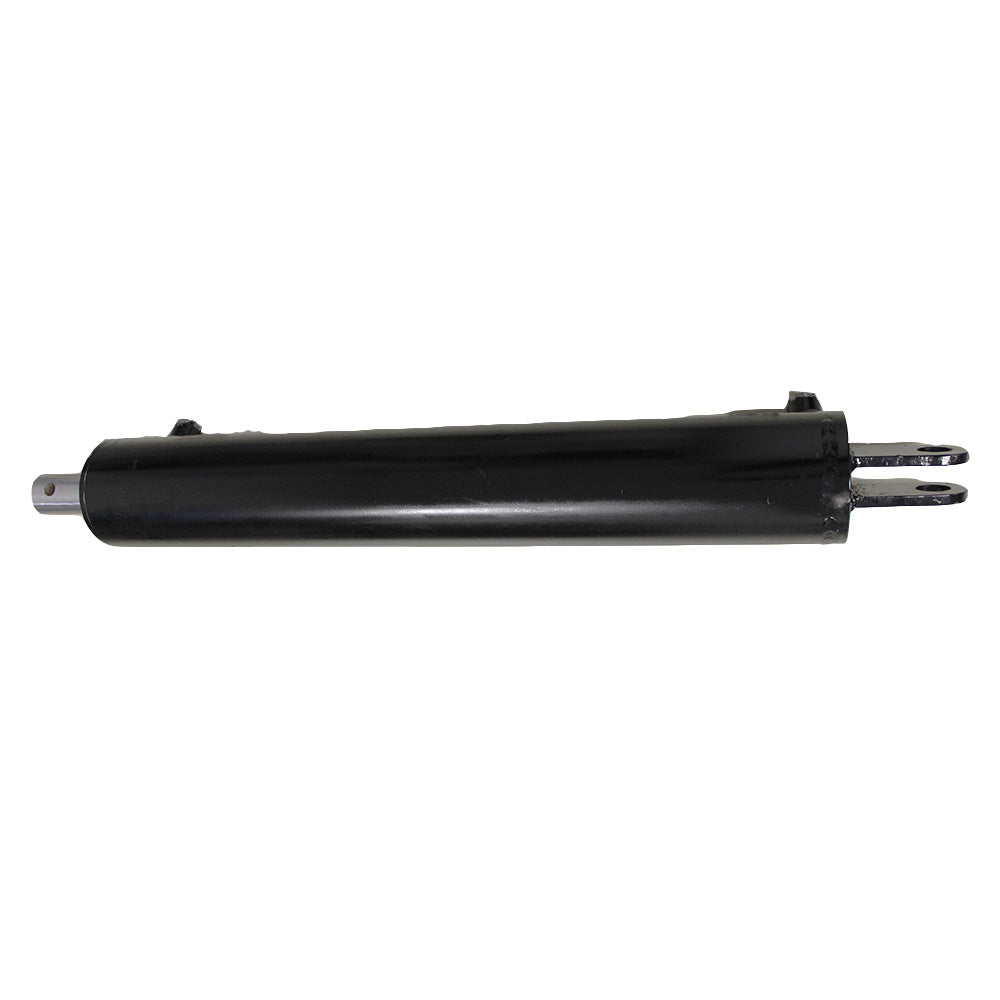

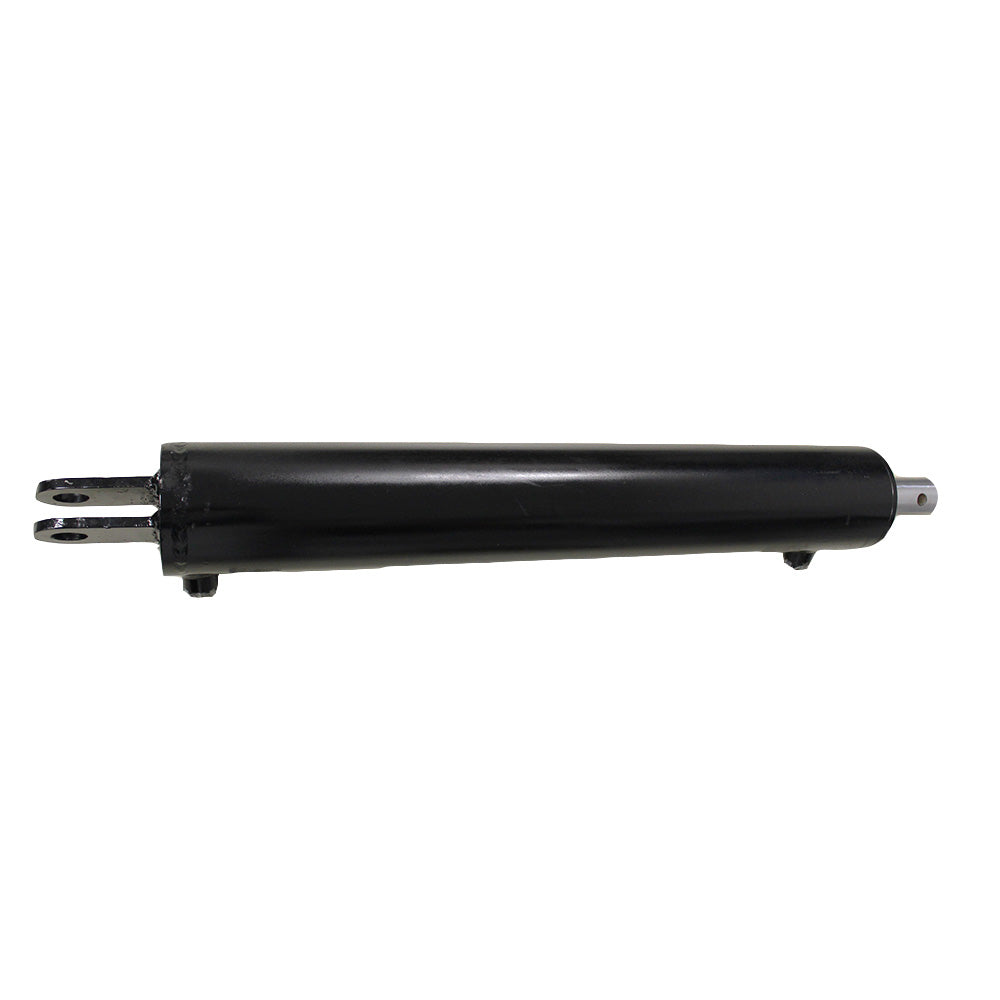

Universal Hydraulic Cylinder, Double-Acting, 3500 PSI with 4" Bore x 24" Stroke
Universal Hydraulic Cylinder, Double-Acting, 3500 PSI with 4" Bore x 24" Stroke
Couldn't load pickup availability
One New Aftermarket Replacement Double-Acting Hydraulic Log Splitter Cylinder for MTD, Fits Cub Cadet, Troy-Bilt, and Bolens Log Splitters

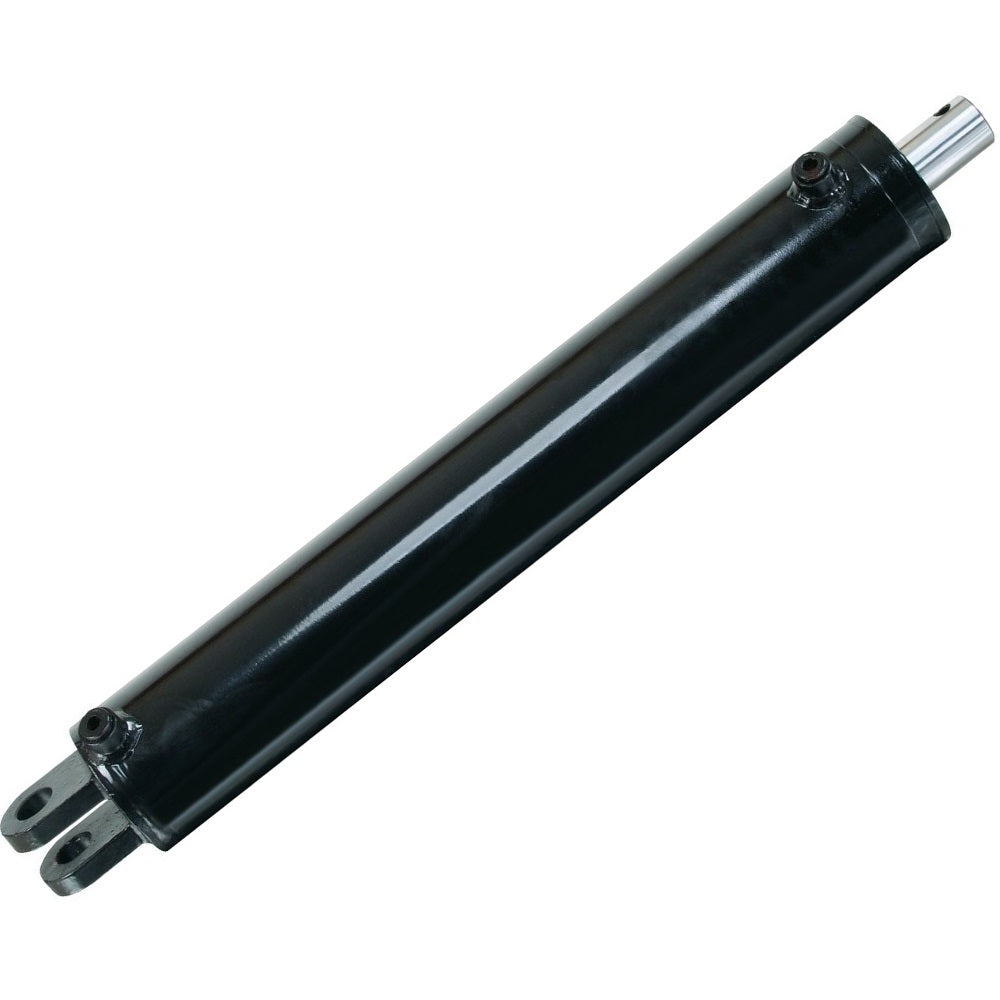

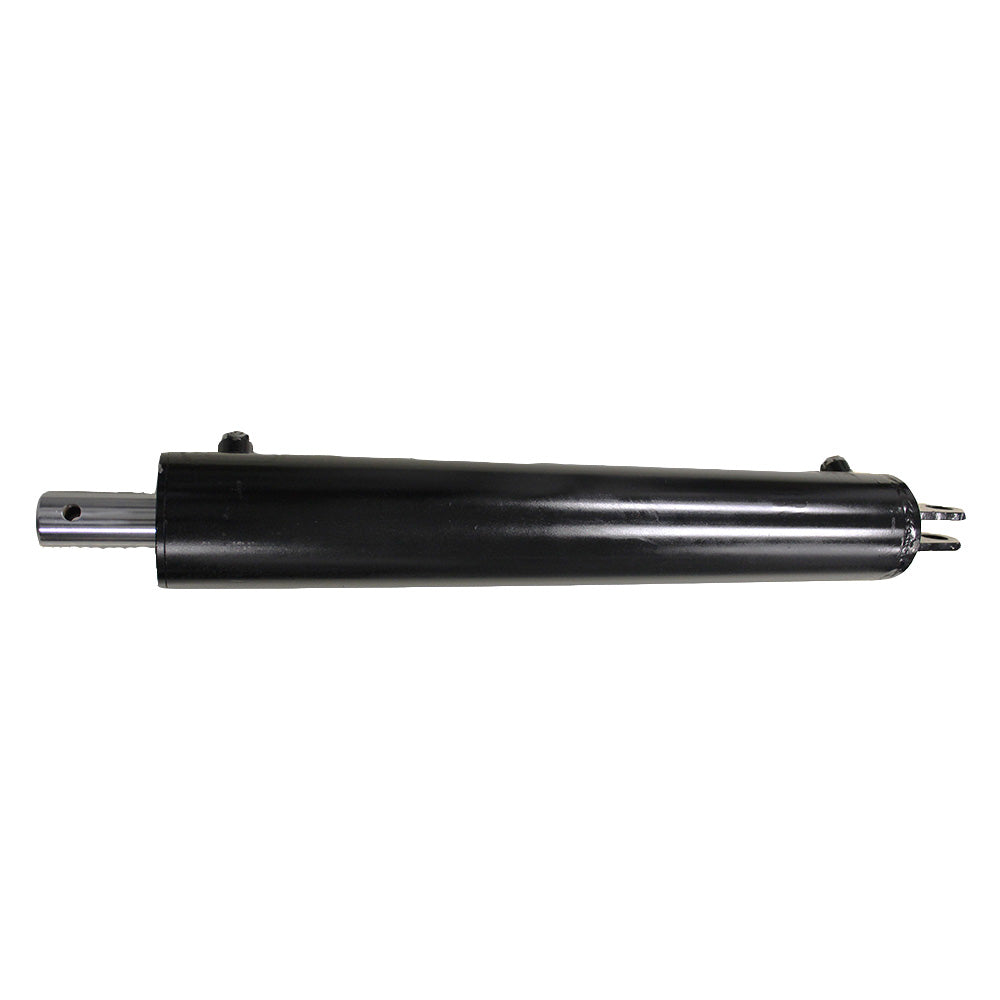

This double-acting hydraulic cylinder is a direct aftermarket replacement for MTD, Fits Cub Cadet, Troy-Bilt, and Bolens trunnion-mount log splitters in the 25-ton to 28-ton range. The cylinder powers the ram that drives the splitting wedge, providing 3500 PSI of maximum operating pressure with a 4-inch bore and 24-inch stroke. It features a double mounting clevis design and rebuildable construction.
Specifications
- Bore: 4.0" diameter
- Stroke: 24"
- Rod: 1-3/4" OD with 9/16" mounting hole for wedge mounting
- Ports: 1/2" NPT hydraulic ports

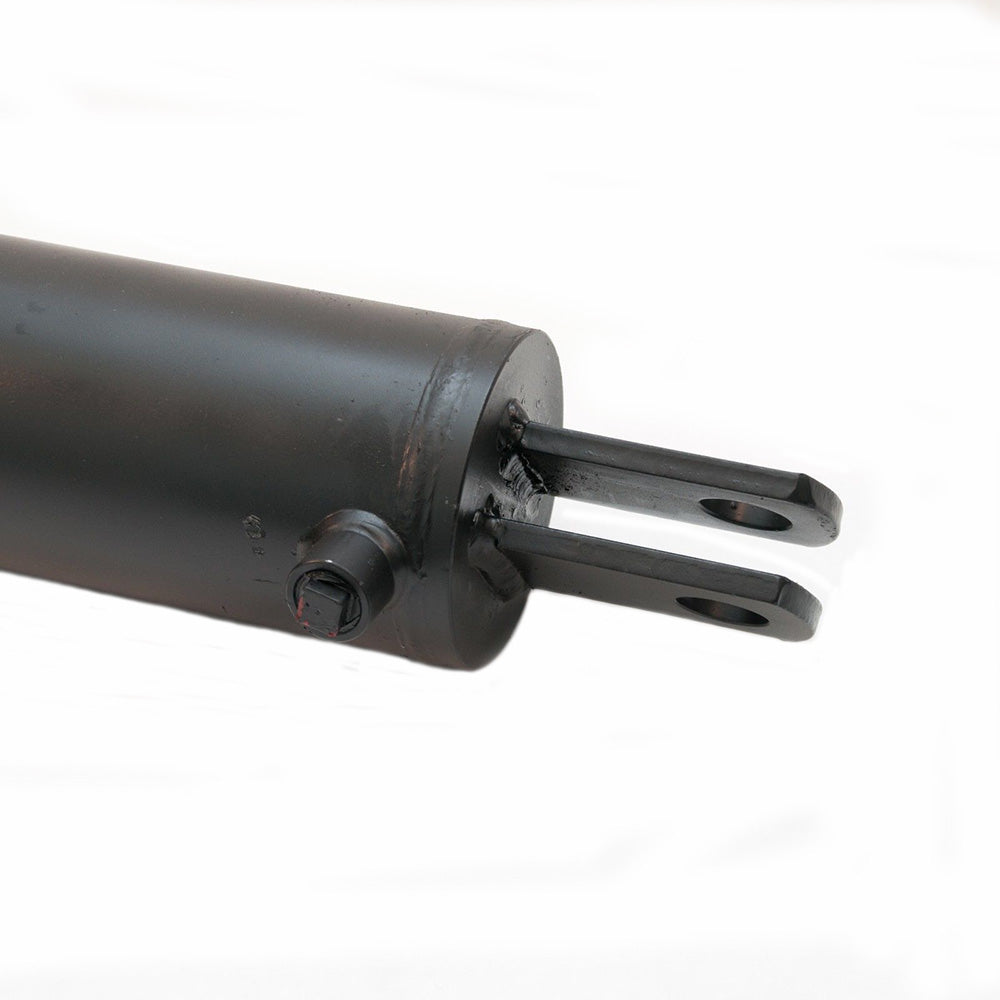

- Clevis mounting holes: 1-1/8"
- Center-to-center bolt holes: 34.5"
- Maximum operating pressure: 3500 PSI
- Action: Double-acting
- Mount style: Trunnion (double mounting clevis design)
- Construction: Rebuildable (seals replaceable)
Compatible Models
MTD / Fits Cub Cadet / Troy-Bilt / Bolens Log Splitters (25-ton to 28-ton range): 24AF510B790 21-Ton (2005), 24AF570C022 GS-27-T 27-Ton (2002), 24AF570L790 27-Ton (2005), 24AF570L790 LS-27W (2005), 24BF510B004 (2009), 24BF510B090 21-Ton (2007), 24BF510B090 LS-21WH (2007), 24BF510B790 21-Ton (2006) LS21, 24BF510E204 (2009), 24BF510E290 21-Ton (2007), 24BF550M006 (2009), 24BF550M006 (2010), 24BF570F204 (2009), 24BF570F290 27-Ton (2007), 24BF570F299 247.77641 (2009), 24BF570F299 247.77641 (2010), 24BF570L004 (2009), 24BF570L090 27-Ton (2007), 24BF570L090 LS-27WH (2007), 24BF570L099 247.77640 (2009), 24BF570L099 247.77640 (2010), 24BF570L790 27-Ton (2006) LS27
Replaces Part Number(s):
718-0769, 918-0769A
New aftermarket replacement part - not remanufactured, not used.
