UC212-39 Bearing for Universal Products
UC212-39 Bearing for Universal Products
Couldn't load pickup availability

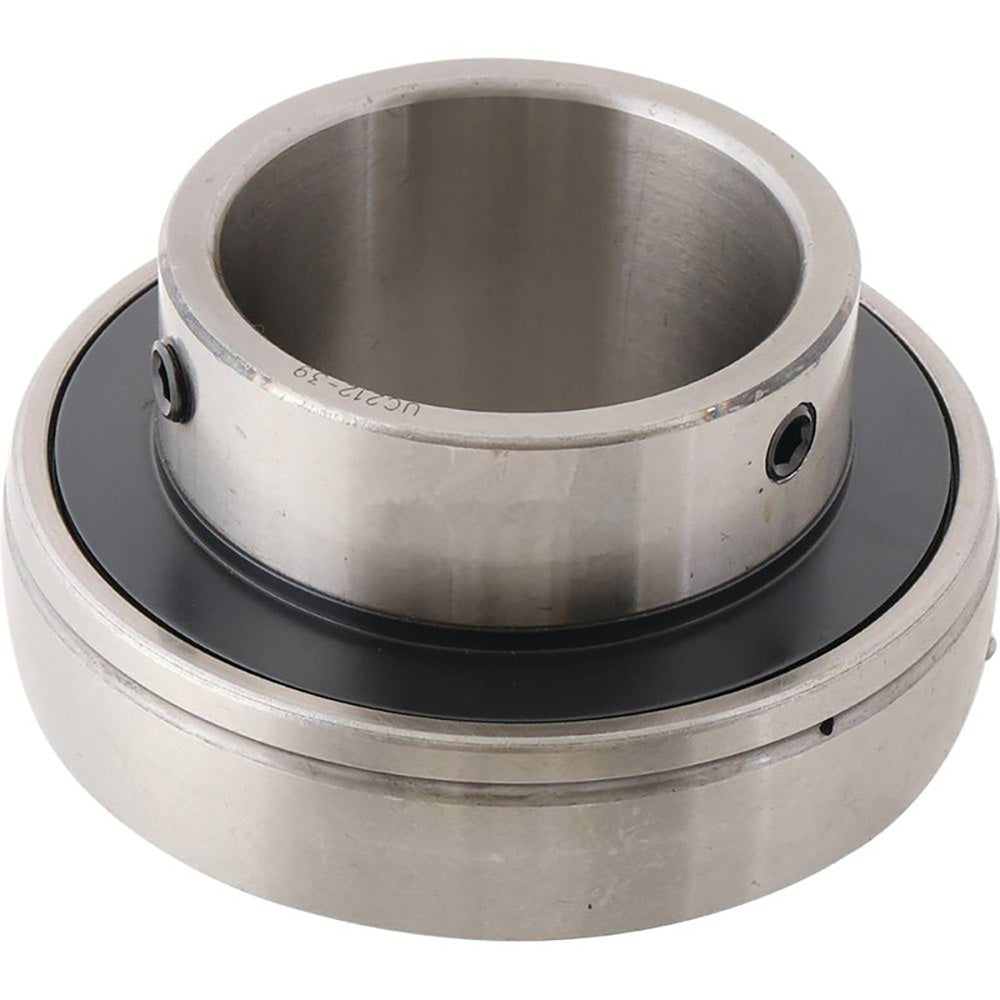

One New Aftermarket Replacement UC212-39 Insert Ball Bearing - Universal Fit for Agricultural and Industrial Equipment
The UC212-39 is a UC200 Series radial insert ball bearing with a 2-7/16 in. bore and spherical outer diameter, designed for use in pillow block housings, 2-bolt flanges, 3-bolt flanges, 4-bolt flanges, take-up units, and similar bearing housings across agricultural, construction, and industrial machinery. The inner ring is secured to the shaft via two set screws and features a wide inner ring for effective shaft support. The bearing is self-aligning to compensate for shaft misalignment and is pre-lubricated and relubricable for extended service life.
Specifications
- Bearing Type: UC200 Series Radial Insert Ball Bearing
- Bore Diameter (d): 2-7/16 in. (61.9125 mm)
- Outside Diameter (D): 4.331 in. (110 mm)
- Inner Ring Width (B): 2.563 in. (65.1 mm)
- Outer Ring Width (C): 1.063 in. (27 mm)
- Locking Method: Set Screw (two set screws on extended inner ring)
- Sealing: Double-sealed, relubricable
- Material: Chrome steel
- Outer Ring Profile: Spherical (self-aligning)
Compatible Applications
This UC212-39 insert bearing is a universal replacement suitable for agricultural machinery (tractors, harvesters, drive shafts), construction equipment, conveyor systems, material handling equipment, forestry equipment, road building equipment, and general industrial machinery. Compatible with any housing designed for a UC212 insert bearing insert.
Replaces Part Number(s):
UC212-39, HIB10-0216
New aftermarket replacement part - not remanufactured, not used.
