UC211-32 Bearing for Universal Products
UC211-32 Bearing for Universal Products
Couldn't load pickup availability

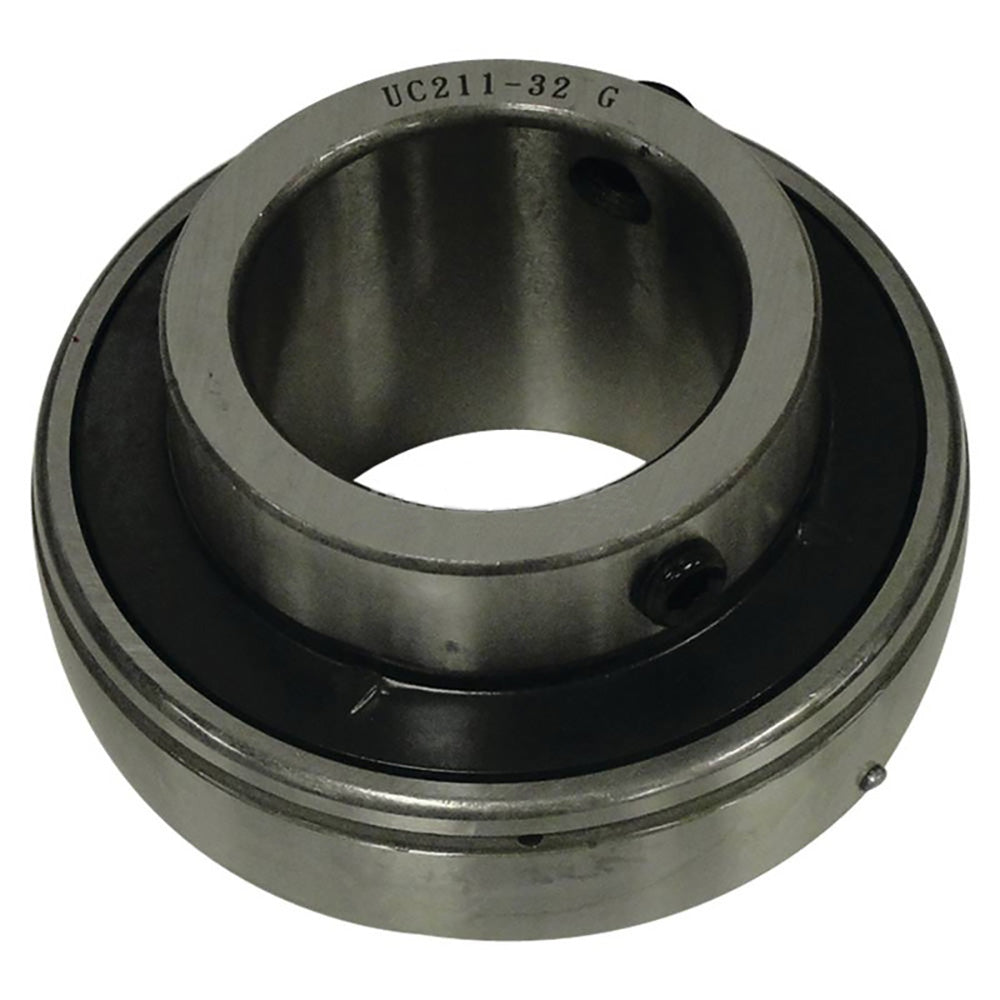

One New Aftermarket Replacement UC211-32 Insert Ball Bearing - Universal Fit
The UC211-32 is a wide inner ring insert ball bearing with a 2-inch bore, designed for use in agricultural equipment, construction equipment, conveyor systems, and general industrial machinery. It locks onto the shaft via two set screws and features a spherical outer race for self-aligning capability. The bearing includes a lubrication groove with grease fitting for field maintenance.
Specifications
- Bearing Type: Insert Ball Bearing (UC200 Series)
- Shaft (Bore) Diameter: 2 in (50.8 mm)
- Outside Diameter: 3.937 in (100 mm)
- Outer Ring Width: 0.945 in (24 mm)
- Inner Ring Width: 2.189 in (55.6 mm)
- Locking Method: Two Set Screws
- Radial Dynamic Load Capacity: 9,700 lbf (43,503 N)
- Radial Static Load Capacity: 6,610 lbf (29,670 N)
- Material: AISI 52100 Bearing Steel
- Seal Type: Contact with Slinger
- Greaseable: Yes
Compatible Applications
This is a universal-fit bearing insert used across a wide range of equipment. Common applications include tractors, harvesters, augers, driveshafts, conveyor systems, fans, and other rotating shaft assemblies in agricultural and construction machinery. Fits any equipment or assembly requiring a UC211-32 insert bearing with a 2-inch bore.
Replaces Part Number(s):
UC211-32
Aftermarket Interchange Numbers
VS-232, INS-SC-200, GY1200KRRB, YW250-2, UG232NL, UC211-200D1, YAR211-200, 479211-200
New aftermarket replacement part - not remanufactured, not used.
