UC20722 Bearing for Universal Products
UC20722 Bearing for Universal Products
Couldn't load pickup availability

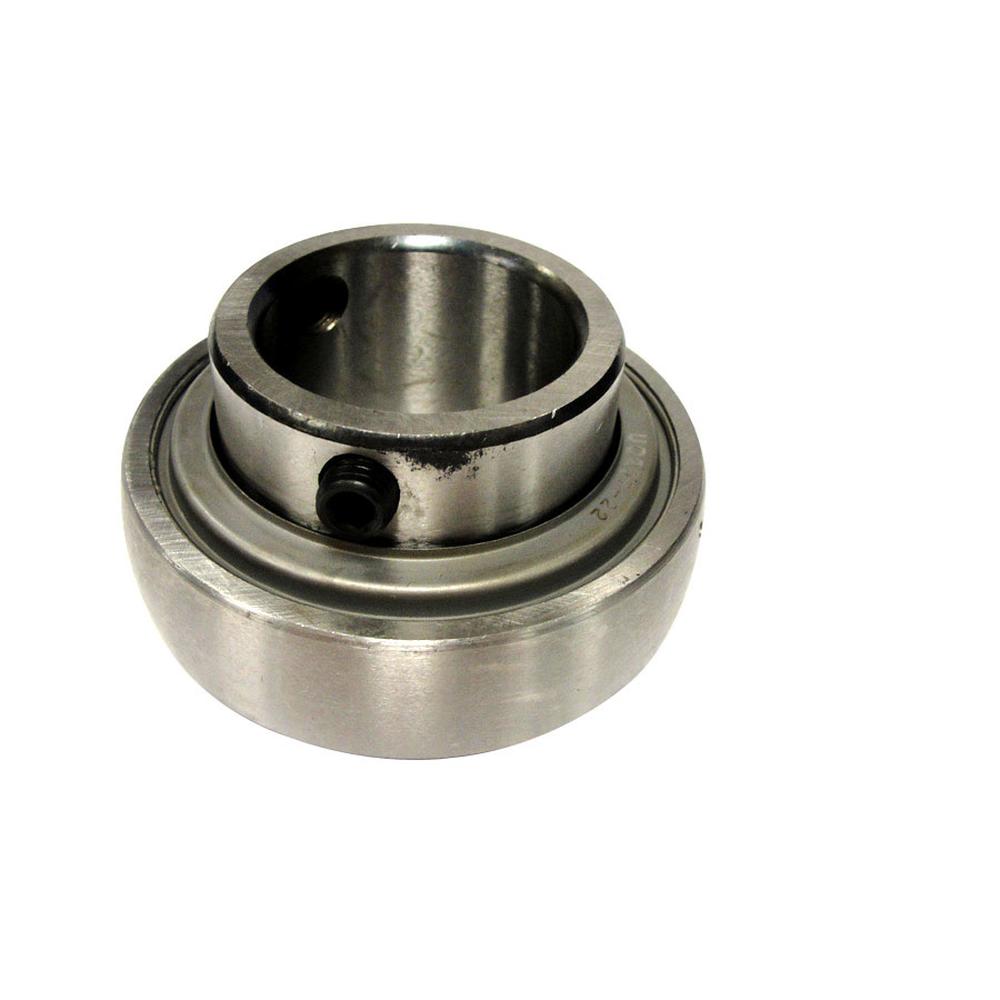

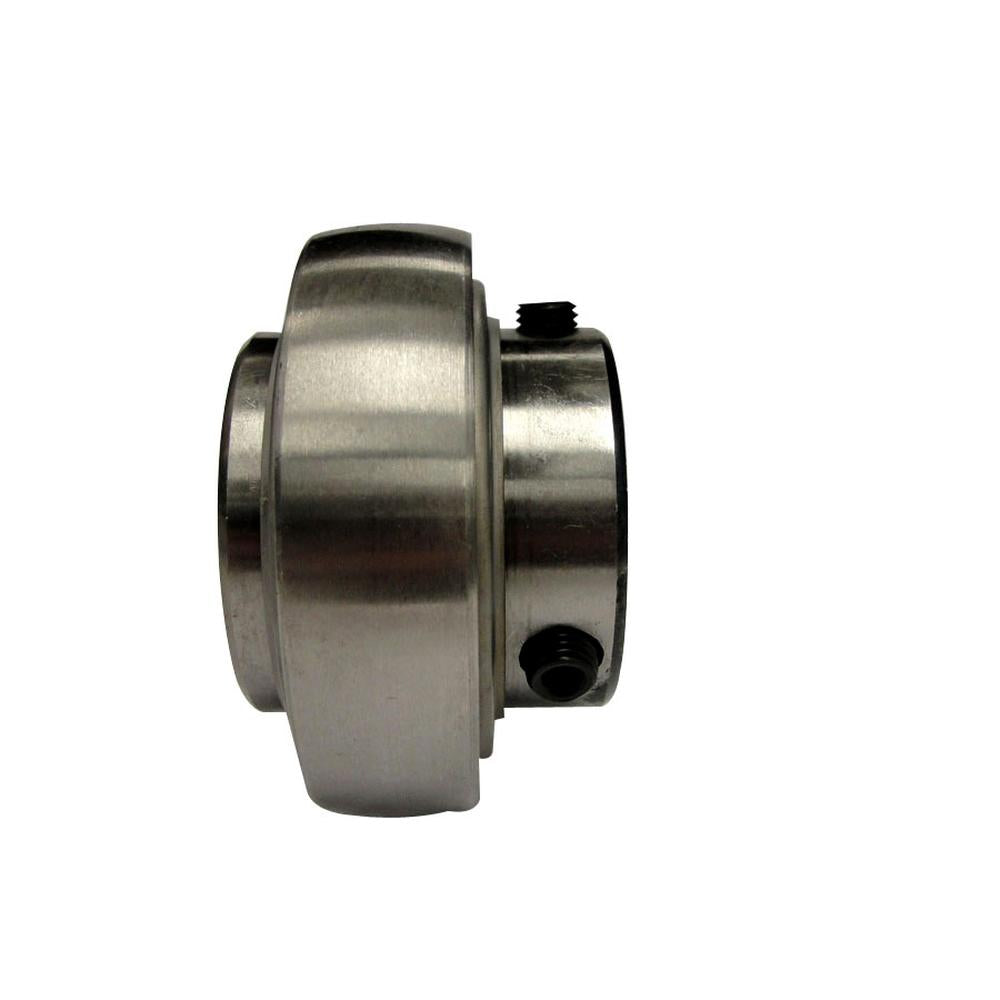

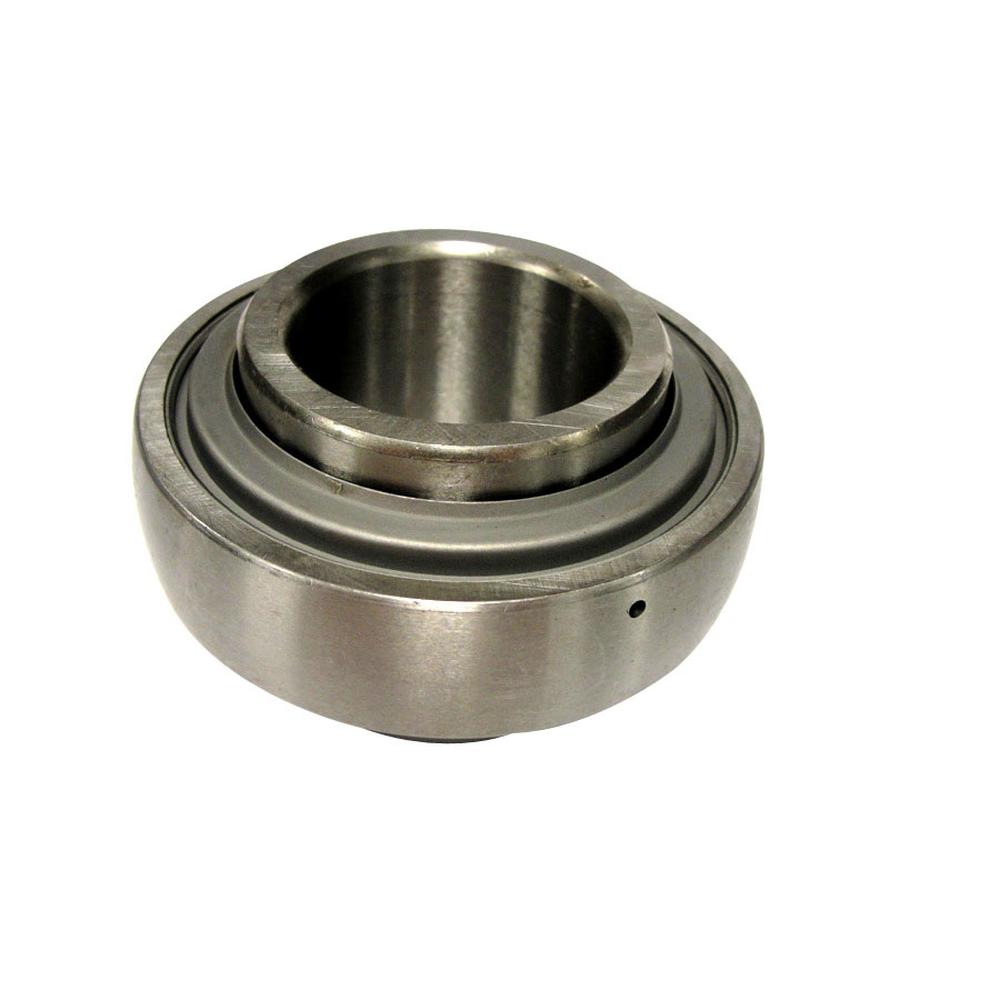

One New Aftermarket Replacement UC207-22 Insert Ball Bearing - 1-3/8" Bore
The UC207-22 (UC20722) is a standard-duty ball bearing insert used across agricultural equipment, construction machinery, conveyor systems, and other power transmission applications. It mounts to a 1-3/8" shaft via two set screws on the extended inner ring and is designed to seat into UCP pillow block, UCF 2-bolt flange, UCFL flange, and UCFC 4-bolt flange housing units. The spherical outer diameter allows for self-alignment in the housing, accommodating minor shaft misalignment during operation.
Specifications
- Bearing Type: Insert Ball Bearing (UC200 Series)
- Bore Diameter: 1-3/8" (1.375")
- Outside Diameter: 2.8346"
- Inner Ring Width: 1.6890"
- Outer Ring Width: 0.7874"
- Set Screw Thread: 5/16-24 UNF
- Locking Type: Set Screw (two screws, 120 degrees apart)
- Outer Diameter Type: Spherical (self-aligning)
- Inner Ring: Wide, bearing-grade steel
- Precision Standard: C3
- Lubrication: Pre-greased with lubrication groove access (relubricable)
- Compatible Housings: UCP, UCF, UCFL, UCFC bearing blocks
Compatible Applications
This UC200 series insert bearing is a universal industrial standard interchangeable with bearings from all major manufacturers. It is commonly used in agricultural machinery, conveying equipment, construction equipment, packaging systems, forestry equipment, and material handling systems. It is dimensionally interchangeable with bearings from SKF, NTN, IPTCI, Peer, and other UC207-22 producers.
Replaces Part Number(s):
UC20722, UC207-22
New aftermarket replacement part - not remanufactured, not used.
