One New Aftermarket Replacement UC206-20 Insert Ball Bearing - Universal Fit for Agricultural and Industrial Equipment

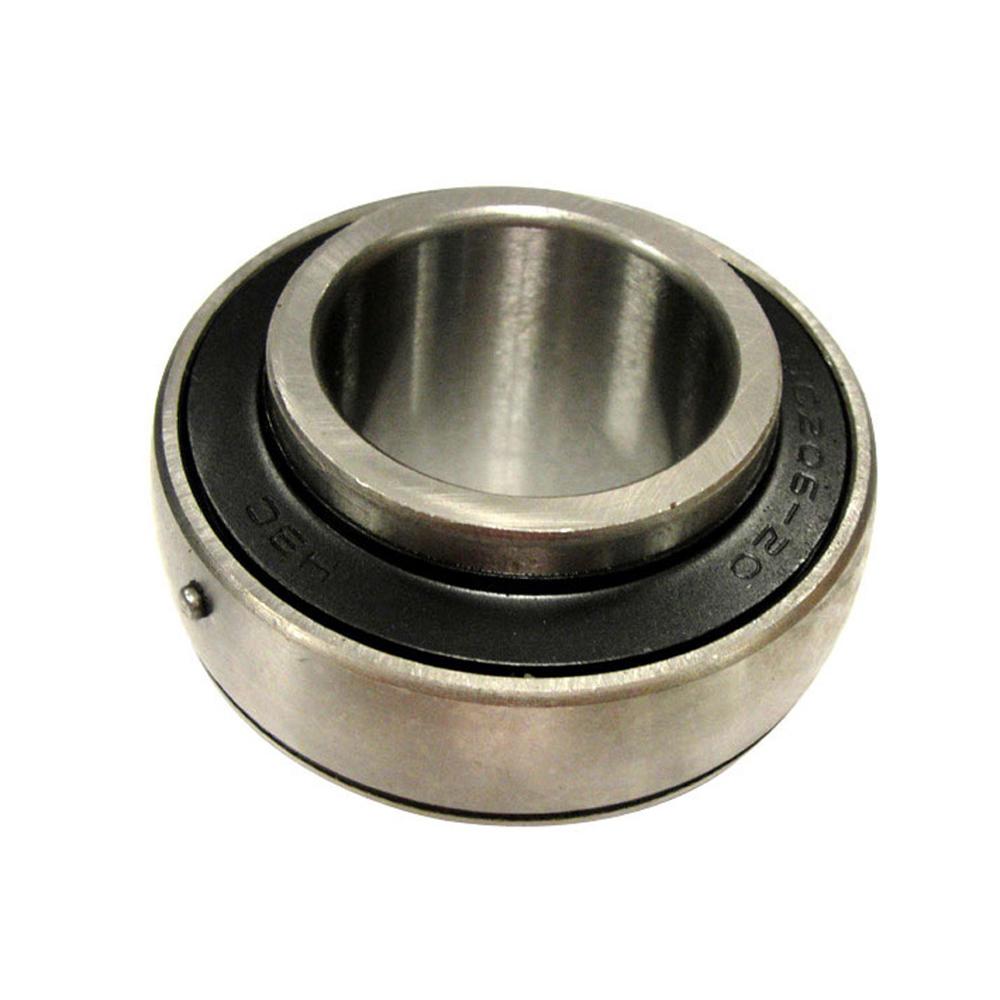

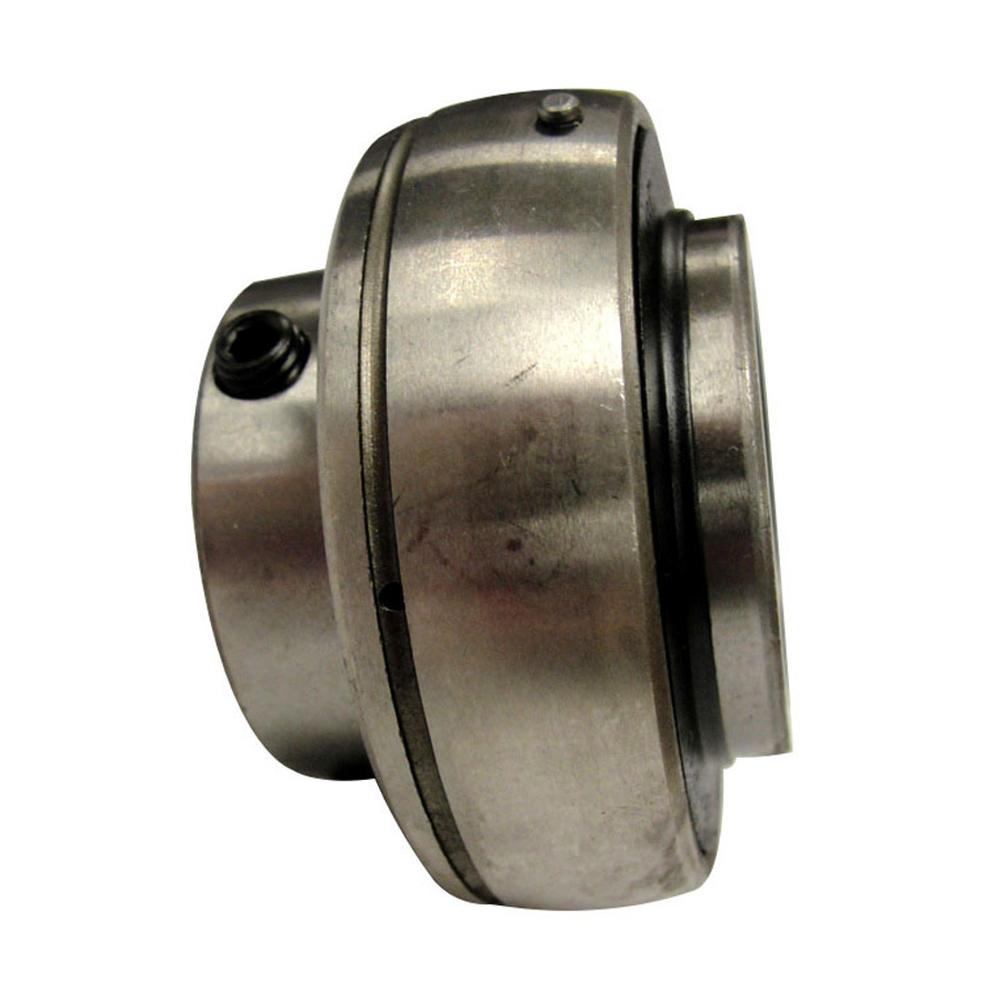

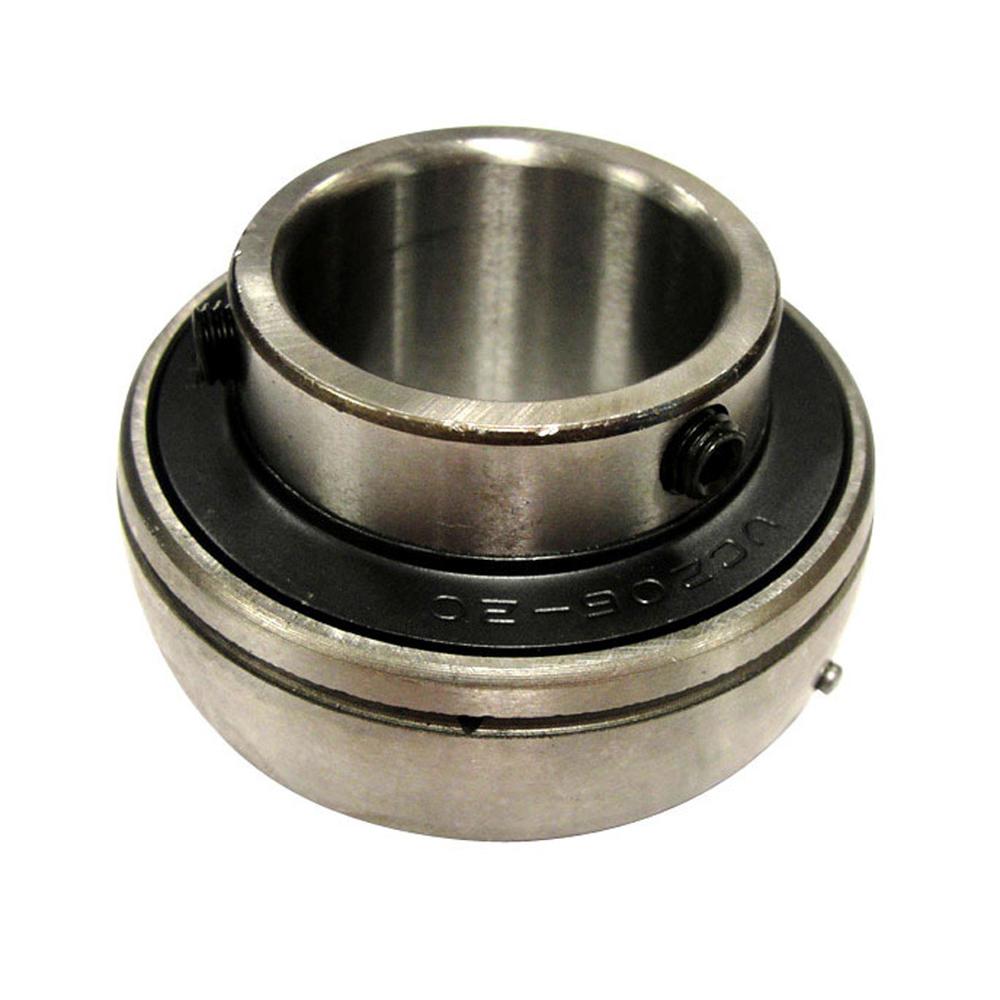

The UC206-20 is a UC200 Series insert ball bearing (bearing insert) designed to mount inside pillow block housings, flange units, take-up units, and other housed bearing assemblies. It features a wide inner ring with two set screws for secure shaft locking, a spherical outer ring for self-aligning capability, an anti-rotation pin on the outer diameter, and a lubrication groove with grease fitting access. This versatile aftermarket replacement bearing is widely used on agricultural machinery, construction equipment, conveyor systems, and other industrial applications where a 1-1/4 in. shaft bearing insert is required.
Specifications
- Bearing Type: UC200 Series Insert Ball Bearing (Set Screw Locking)
- Bore Diameter: 1-1/4 in. (31.75 mm)
- Outside Diameter: 2.4409 in. (62 mm)
- Inner Ring Width (total): 1.500 in. (38.1 mm)
- Outer Ring Width: 0.748 in. (19 mm)
- Set Screw Thread: 1/4-28 UNF
- Spherical OD for self-aligning installation
- Pre-lubricated with grease; relubricable
- Material: Bearing grade (GCr15 chrome) steel
Compatible Housing Types
The UC206-20 insert bearing is a direct replacement insert for use in UC-series housed bearing units including pillow blocks (UCP206-20), 2-bolt flanges (UCFL206-20), 3-bolt flanges (UCFC206-20), 4-bolt flanges (UCFS206-20), and take-up units (UCUT206-20). Compatible with agricultural machinery, construction equipment, conveyor systems, and general industrial equipment requiring a 1-1/4 in. bore insert bearing.
Replaces Part Number(s):
UC20620, UC206-20
Aftermarket Interchange Numbers
GY1103KRRB3 (FAF/Fafnir), LRS120S (Browning), VS220S (Browning), UC206-104D1 (NTN), SC104LFF (Dodge), UG2E20NL (LB), YAR206-104 (SKF), 123469 (Dodge), TIMUC206-20 (Timken)
New aftermarket replacement part - not remanufactured, not used.
