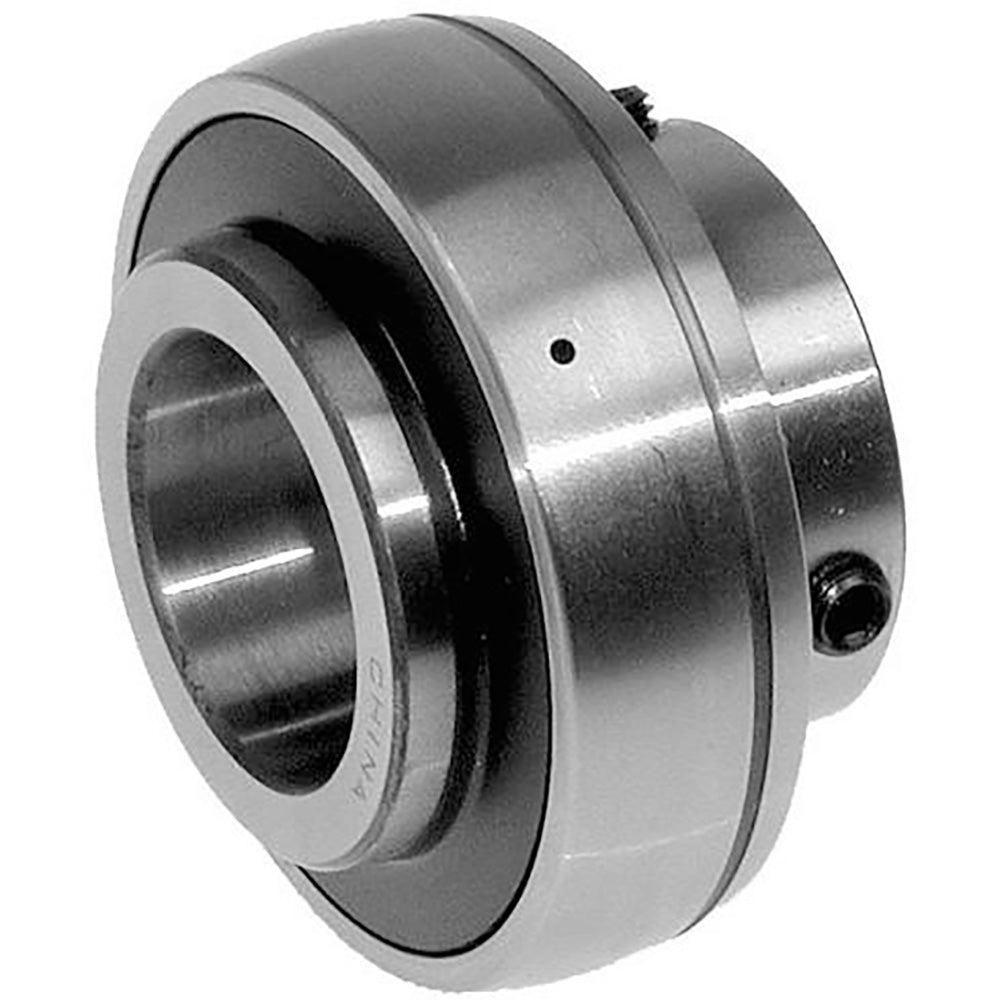

UC204-12 Bearing for Universal Products
UC204-12 Bearing for Universal Products
Couldn't load pickup availability
One New Aftermarket Replacement UC204-12 Radial Insert Ball Bearing - Universal Fit
The UC204-12 is a radial insert ball bearing (UC200 series) with a 3/4-inch bore and set screw locking, designed to mount directly onto a shaft inside a pillow block, flange block, take-up unit, or similar housed bearing assembly. It features two set screws on the extended end of the inner ring used for holding onto a shaft. This UC204-12 insert bearing is self-aligning for standard load capacity. UC204-12 insert ball bearings are used in a range of applications including agricultural machinery, conveying equipment, construction equipment, packaging, forestry, aggregate, conveyor systems, and more.
Specifications
- Bore Diameter: 3/4 in (0.750 in)
- Outside Diameter: 1.85 in (47 mm)
- Inner Ring Width: 1.22 in
- Outer Ring Width: 0.630 in
- Bearing Series: UC200
- Locking Device: Set Screw (1/4-28 UNF)
- Seal Type: Contact Seal, Two Seals
- Bearing Material: Chrome Steel (AISI 52100)
- Pre-lubricated with grease; relubricable
- Radial Dynamic Load Capacity: approx. 2,890-2,900 lbf
- Radial Static Load Capacity: approx. 1,410-1,500 lbf
- ABEC/ISO Rating: ABEC #1 / ISO P0
Compatible Applications
The UC200 series insert bearings are widely used as replacement bearings for pillow blocks, 2-bolt flanges, 3-bolt flanges, 4-bolt flanges, take-up units, and many more. Compatible with agricultural equipment, construction machinery, conveyor systems, and general industrial machinery.
Replaces Part Number(s):
UC204-12, HIB10-0200
New aftermarket replacement part - not remanufactured, not used.
