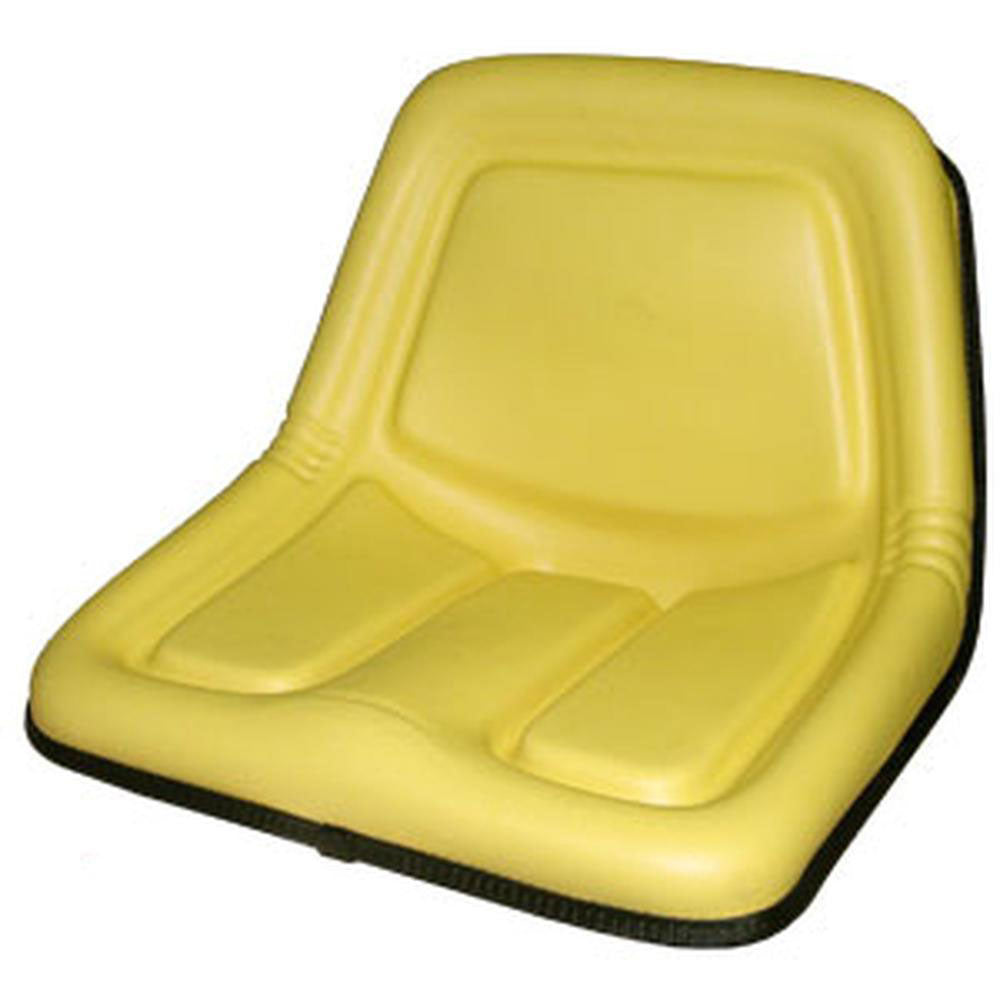

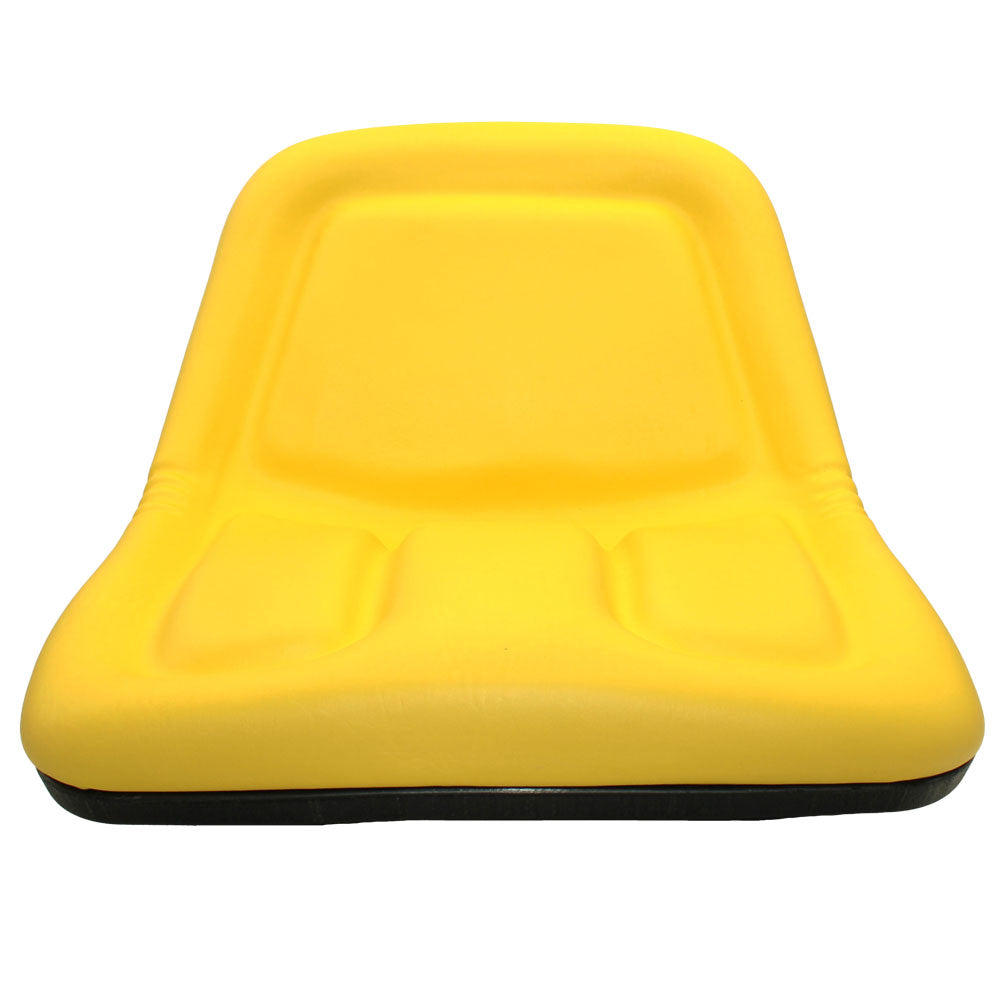

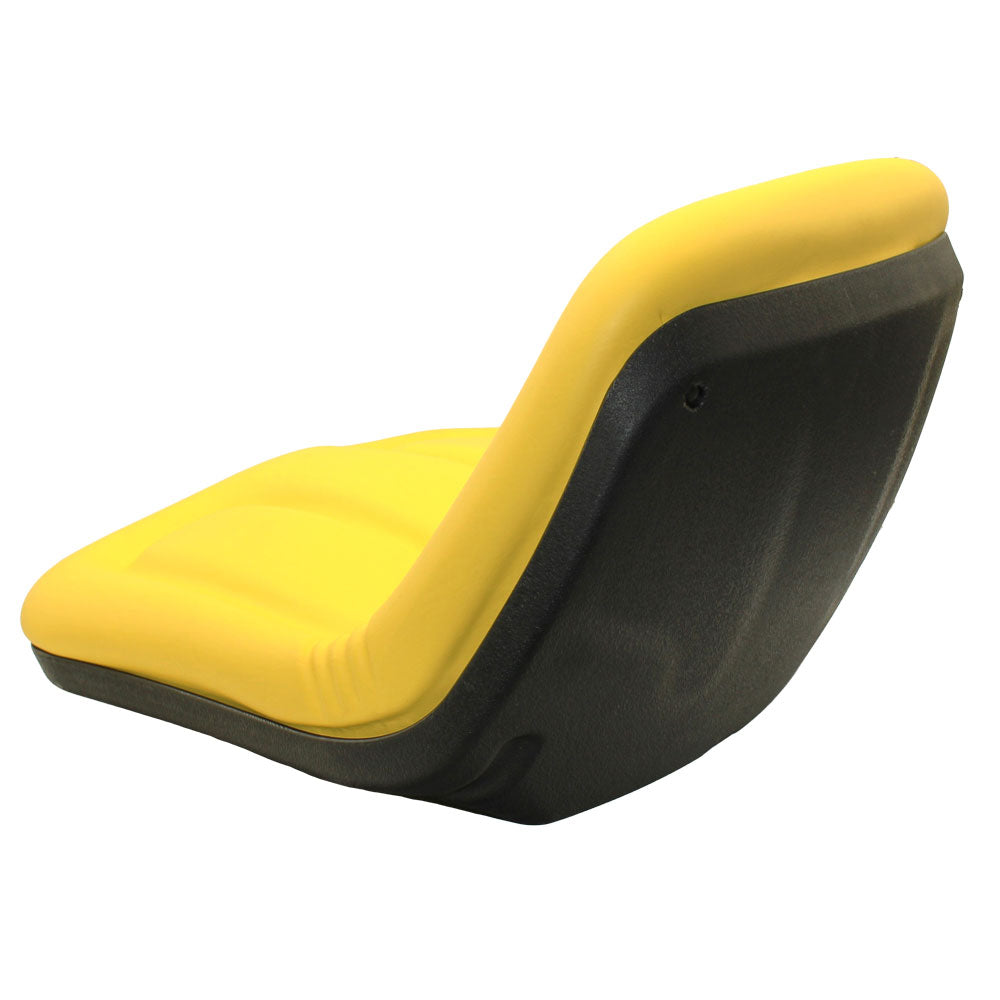

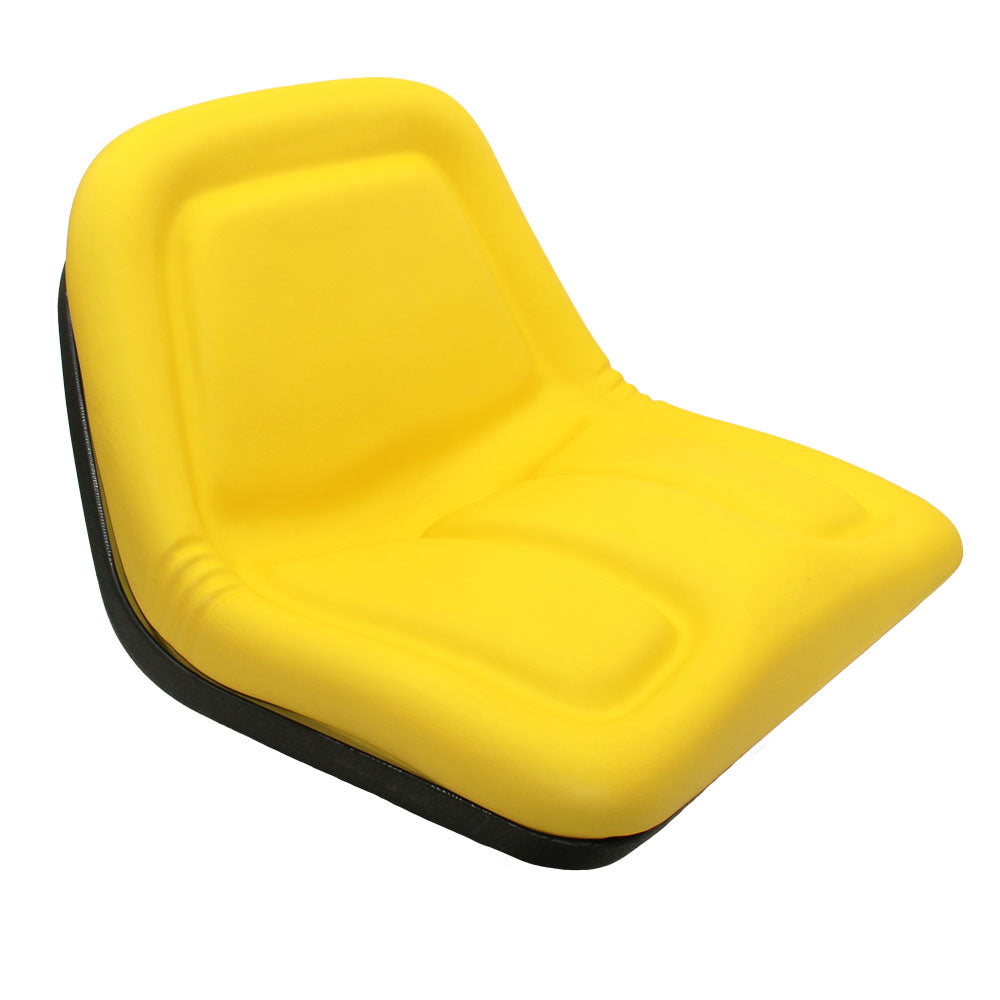

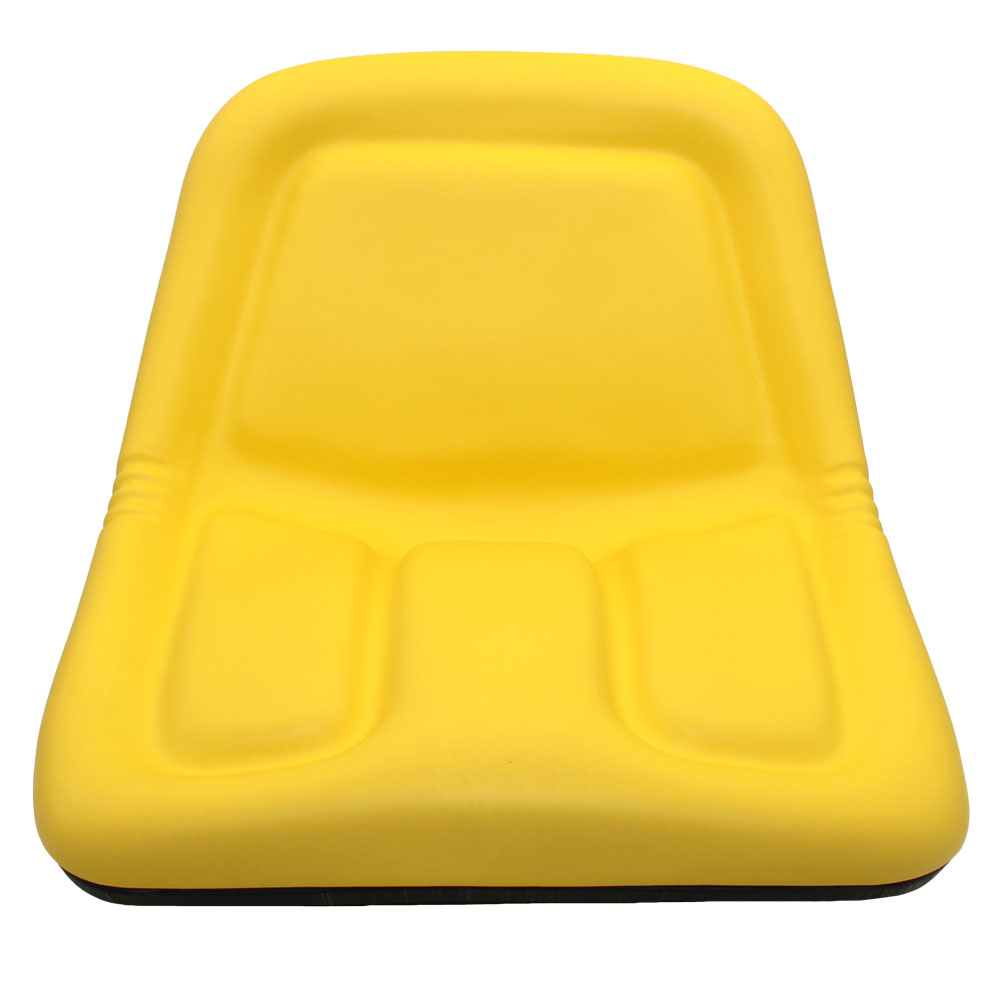

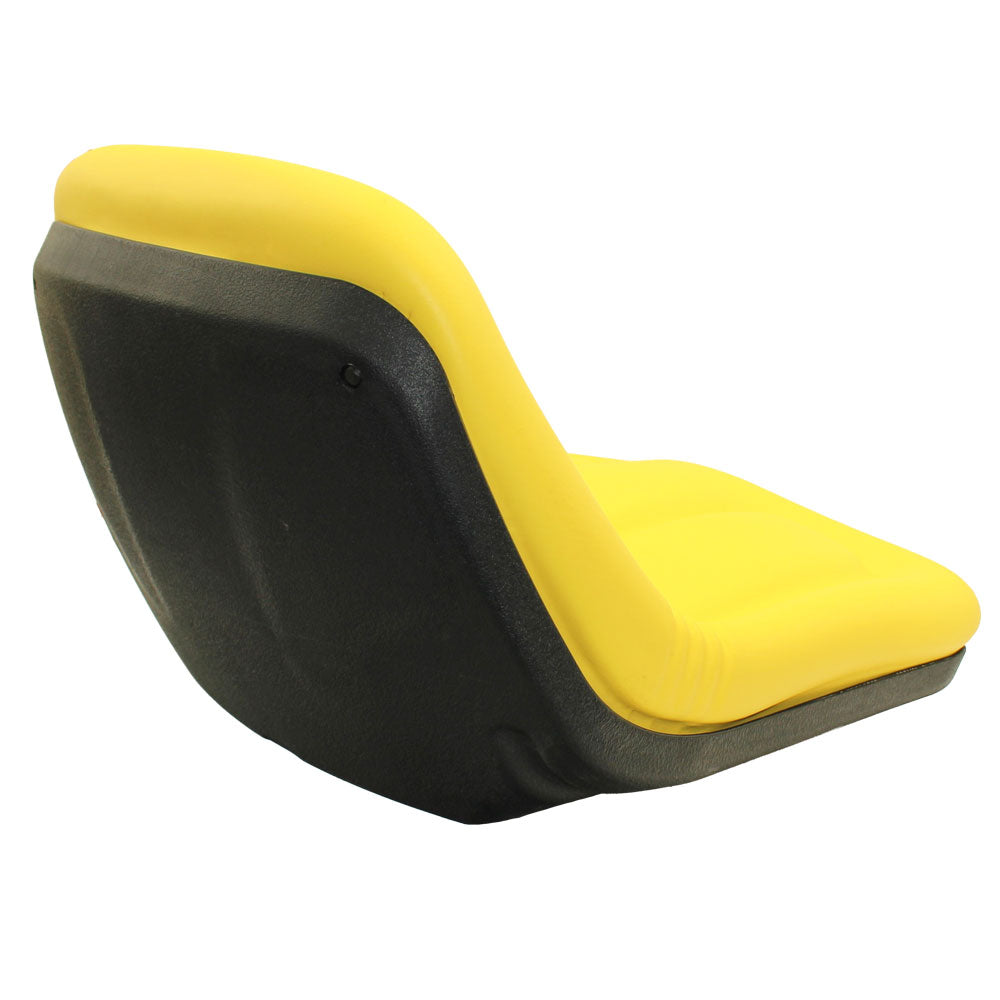

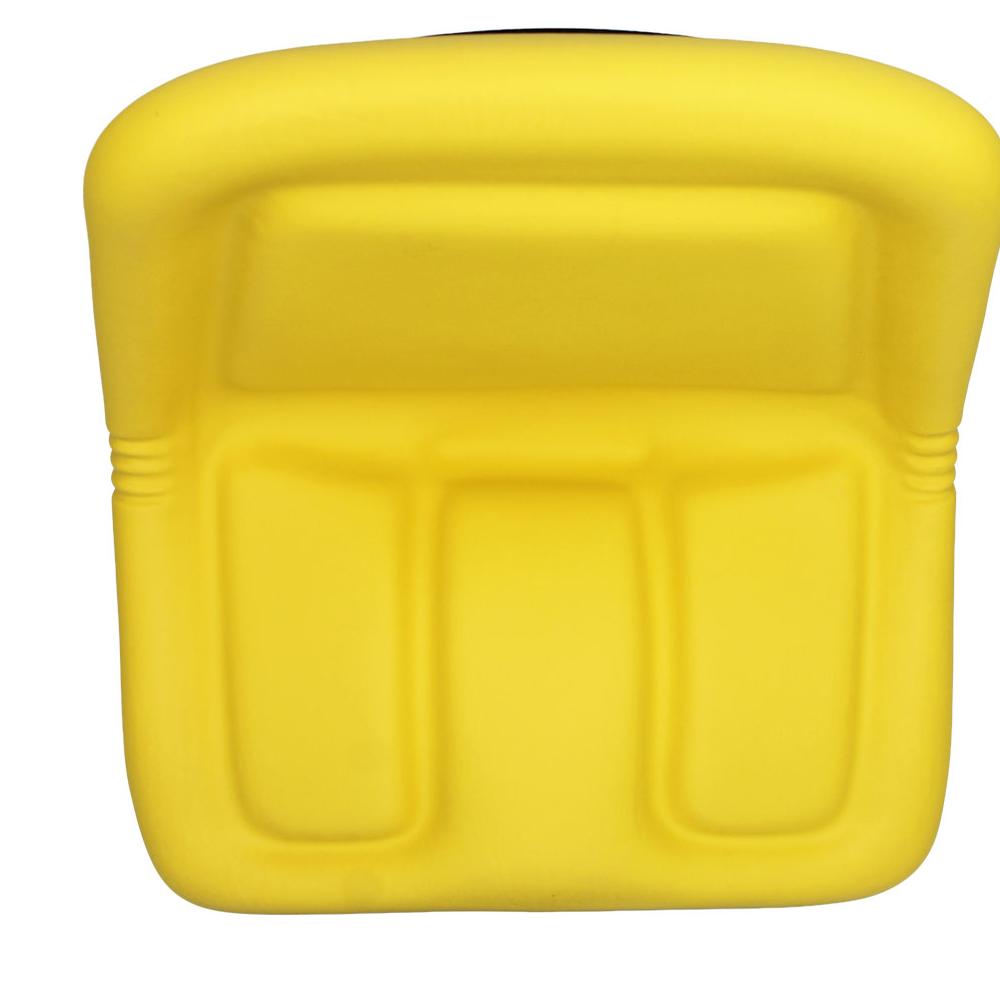

TY15863 Yellow High-Back Seat Assembly Fits John Deere AMT622 AMT626 B1TY15863

TY15863 Yellow High-Back Seat Assembly Fits John Deere AMT622 AMT626 B1TY15863

£91.00 GBP
£91.00 GBP
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement High-Back Seat Assembly


Fits John Deere All Material Transport Vehicle Models:
AMT622, AMT626

Fits John Deere Riding Lawn Mower Models:
316 (w/ Fits Onan Engine and Standard Suspension),
318 (with Standard Suspension),
322 (with Standard Suspension),
330,
332 (SN 475,001 and Up with Standard Suspension),
420 (with Standard Suspension),
430

Tech Info:
No Drain Hole
Heavy-Duty, Molded Yellow, Vinyl Cover for Durability
One to Two Inches of High Resiliency Foam Padding for Comfort
Poly Base

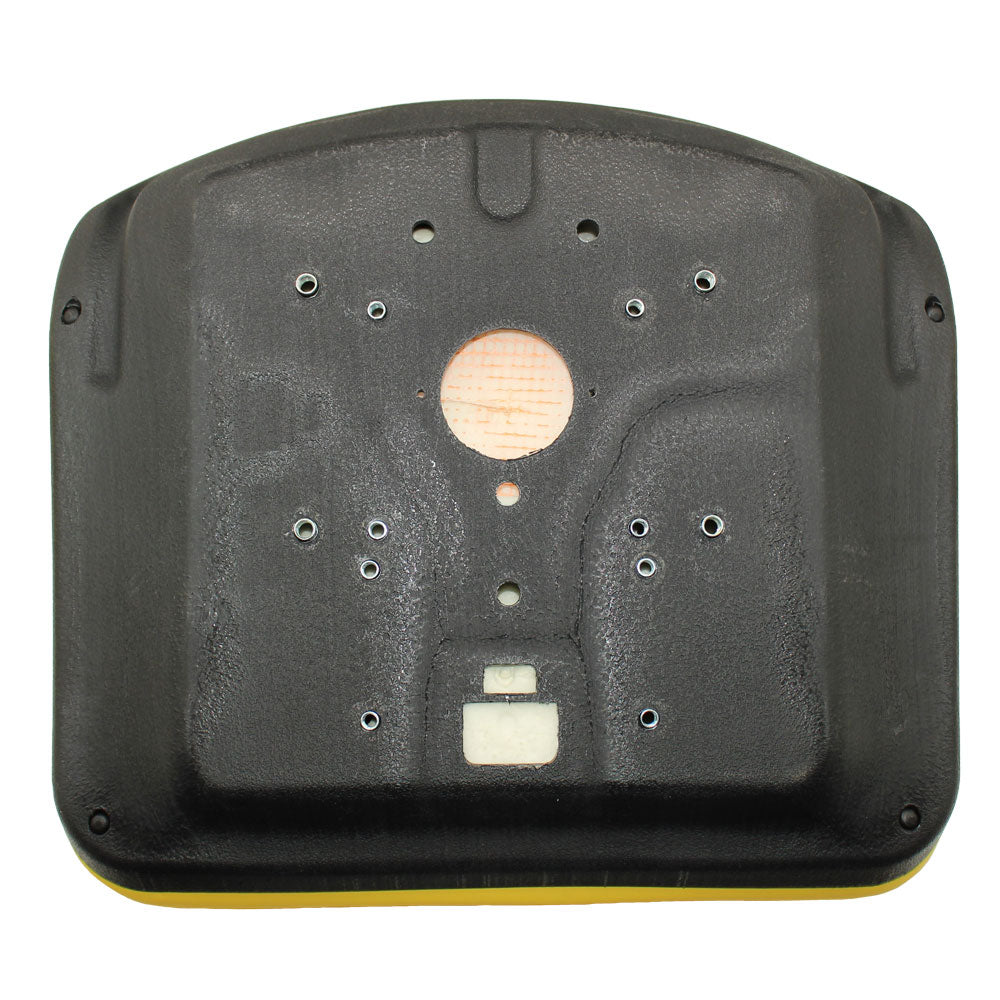

Installs Easily at Four Bolting Points for More Rigidity

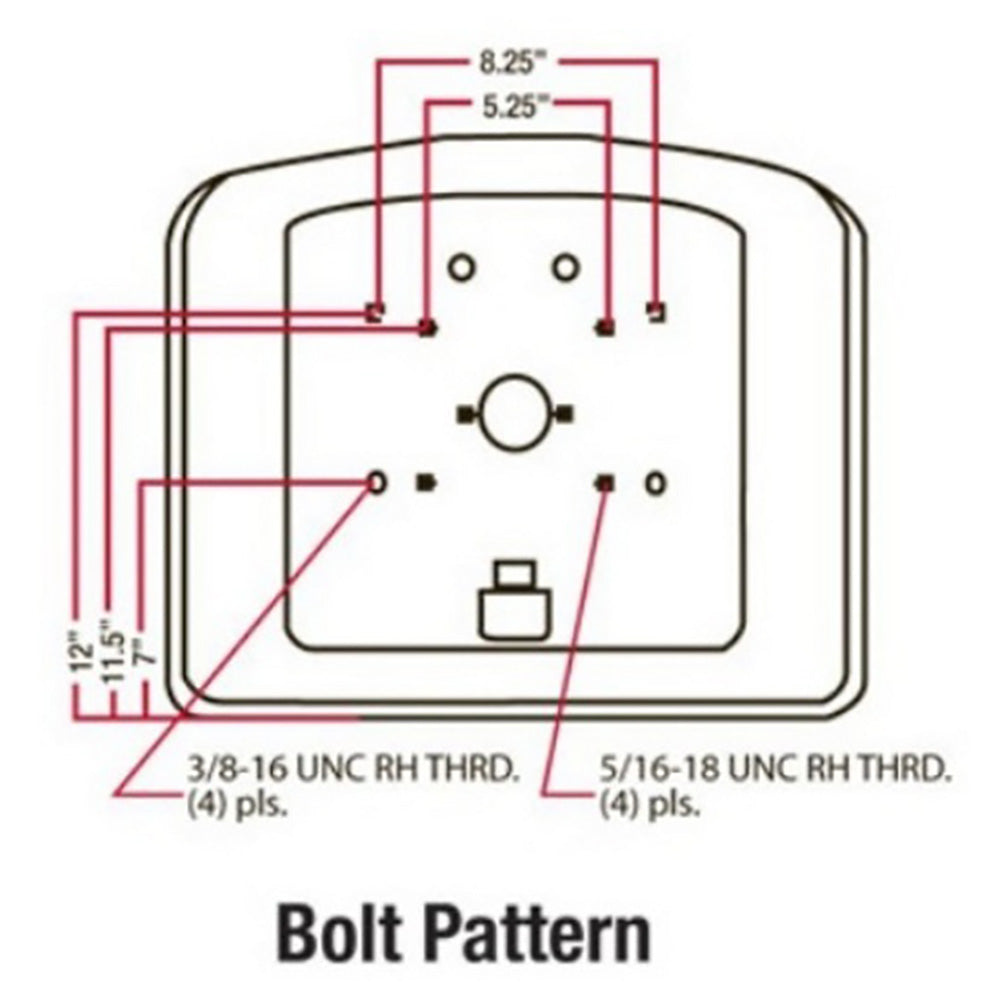

Bolt Pattern:
8-1/4-inch W x 5-inch D w/ 3/8-inch Threads
5-1/4-inch W x 4-1/2-inch D w/ 5/16-inch Threads

Replaces Part Numbers: TY15863, AM117924, B1AM117924, B1TY15863, AM103284, AM105898, AM39582, ET12564, MG675408, MG861683

Models This Part Fits:

STX38, 4475, Fits Gator: 4X2 TURF, 185, 175, 180, 318, 420, 375, 570, 170, 5575, 3375, 430, STX30

Additional Information:

Length (front to back): 23.5 in Width: 21 in Height: 10.4 in No drain hole Bolt Pattern: 8-1/4-inch W x 5-inch D w/3/8-inch threads 5-1/4-inch W x 4-1/2-inch D w/5/16-inch threads Heavy-duty, molded yellow, vinyl cover for durability One to two inches of high resiliency foam padding for comfort Poly base Installs easily at four bolting points for more rigidity ***SEE TY15863 FOR DIFFERENT BOLT PATTERN (MORE BOLT HOLES)

Reference Numbers:

TY15863, AM103284, AM105898, AM39582, ET12564, MG675408, MG861683
