TX12366/14384/12295 FUEL LEVEL SENDER FOR LONG TRACTOR
TX12366/14384/12295 FUEL LEVEL SENDER FOR LONG TRACTOR
Couldn't load pickup availability

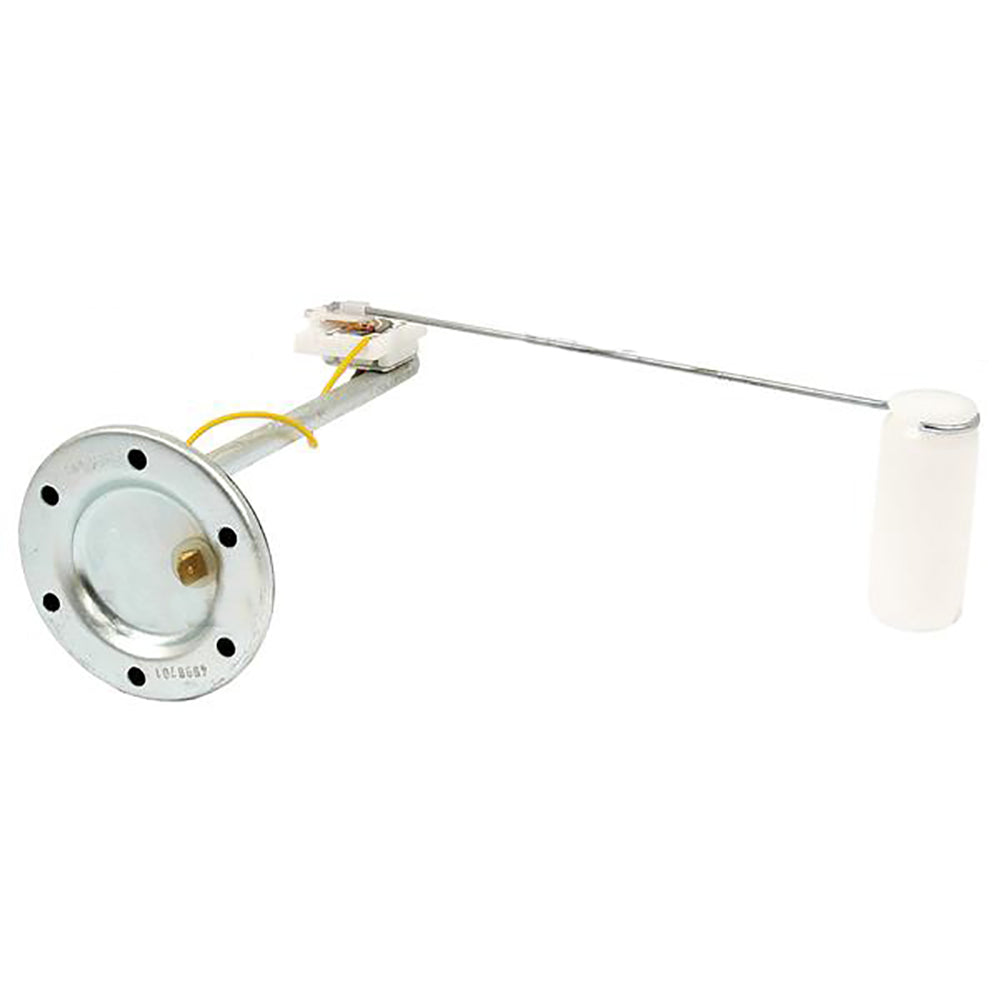

One New Aftermarket Replacement Fuel Level Sender for Long, Oliver, White, Allis Chalmers, and Fiat Tractors

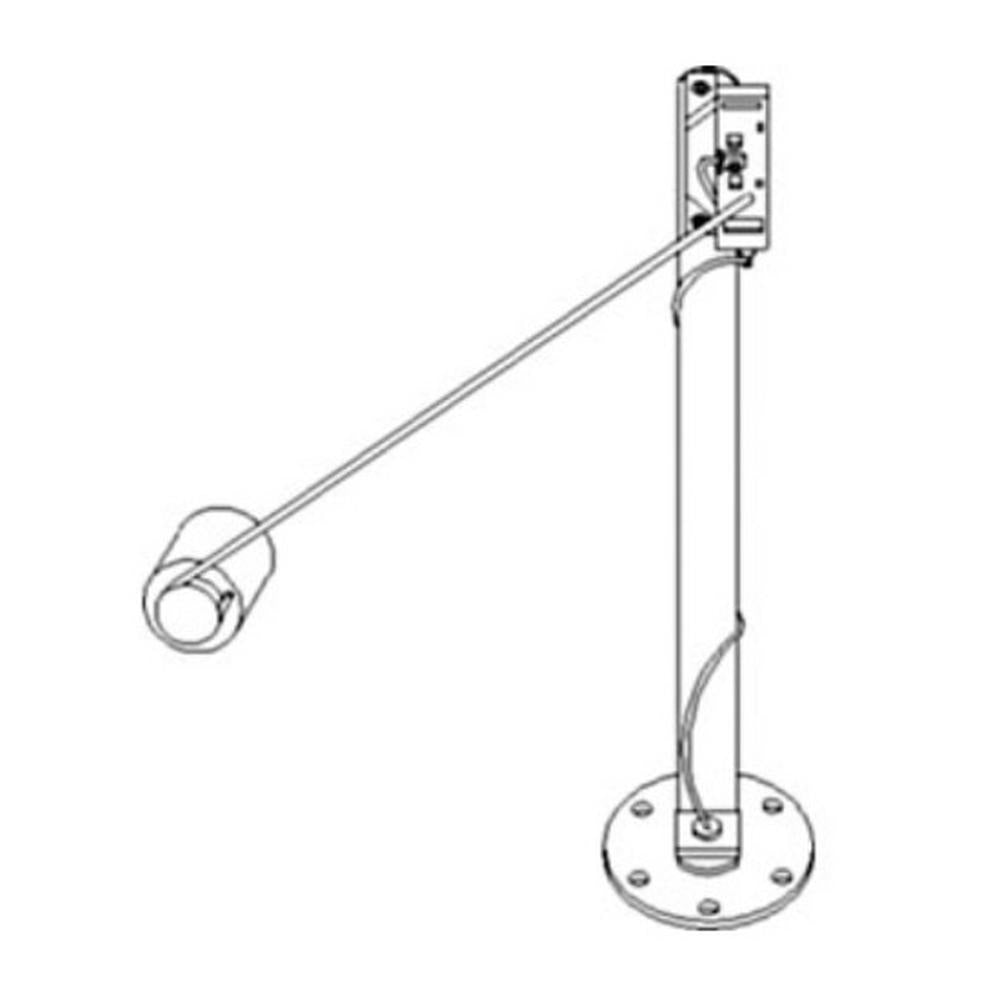

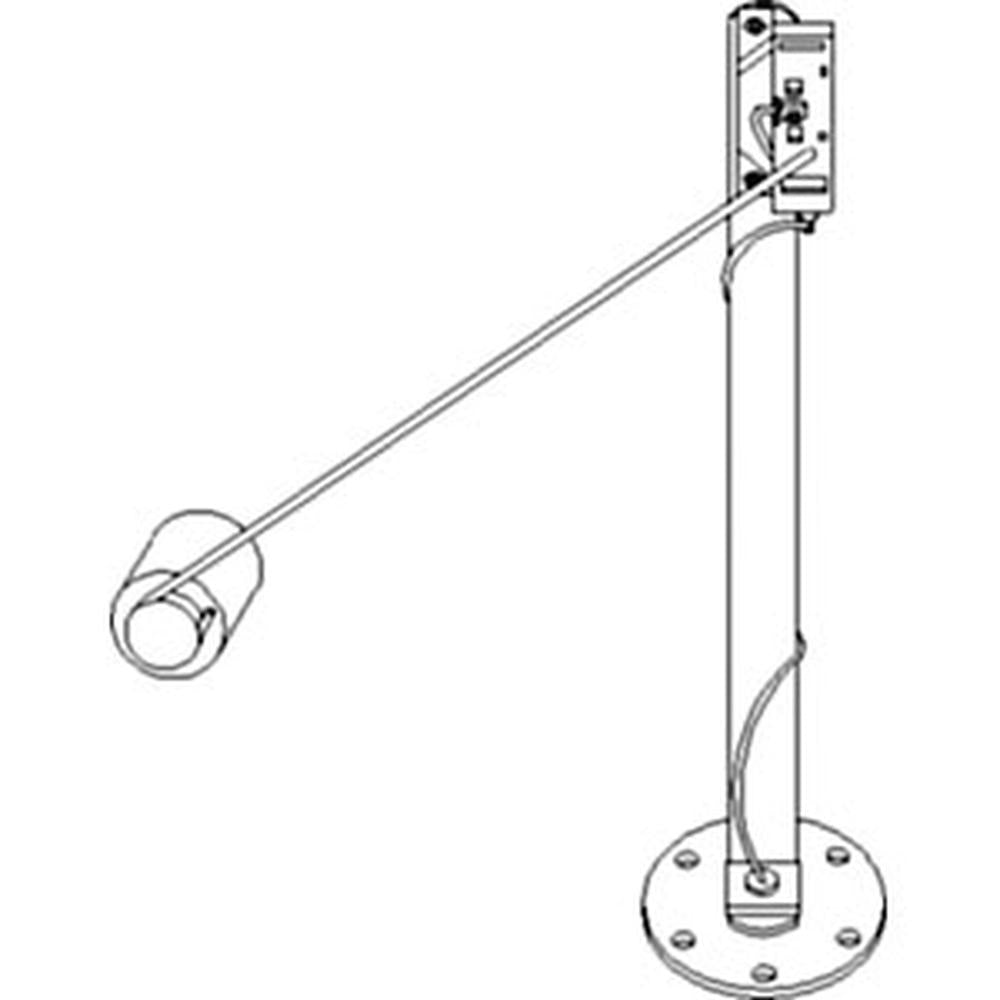

This fuel sending unit (also known as a fuel level sender) mounts in the fuel tank and sends a variable resistance signal to the dash-mounted fuel gauge, giving the operator an accurate reading of remaining fuel. Resistance range: 317 ohms empty to 5 ohms full. 12-volt system. Fits a wide range of Long, Oliver, White, and Allis Chalmers (AC) tractors built on the same Fiat-derived platform.
Specifications
- Voltage: 12V
- Resistance: 317 ohms (Empty) / 5 ohms (Full)
Compatible Models
Long Tractor: 260C, 310, 310C, 310DT, 320, 350, 350DT, 360, 360C, 360DT, 445, 445DT, 445SD, 445V, 460, 460DT, 460SD, 460V, 550, 550DT, 560, 560DT, 560DTE, 610, 610C, 610DT, 610DTE, 2260, 2310
Oliver / White Oliver: 1250 (s/n 360745 and later), 1255 (s/n 303397 and later), 1265, 1270, 1355 (s/n 503289 and later), 1365, 1370, 2-50, 2-60
Allis Chalmers: 5040, 5045, 5050
Fiat: 450, 480, 500, 540, 550, 600, 640
Universal Tractors: 300, 320, 340, 350, 445, 500, 530, 550, 640, 1033
Note: Serial number restrictions apply to Oliver models 1250, 1255, and 1355 -- see fitment details above.
Replaces Part Number(s):
72091642, 30-30544292, 676887A, 5199933, TX12366, TX12295, TX14384, 31-2905050, 4243893, 4998701, 04998701, 4988620, 4180589
Aftermarket Interchange Numbers
Sparex S.62253; AGCO 5199933; Case IH 5199933, 4243893, 4998701
New aftermarket replacement part - not remanufactured, not used.
