TX10173 CONNECTING ROD FOR LONG TRACTORS

TX10173 CONNECTING ROD FOR LONG TRACTORS

£98.00 GBP
£98.00 GBP
Sale Sold out
Shipping calculated at checkout.

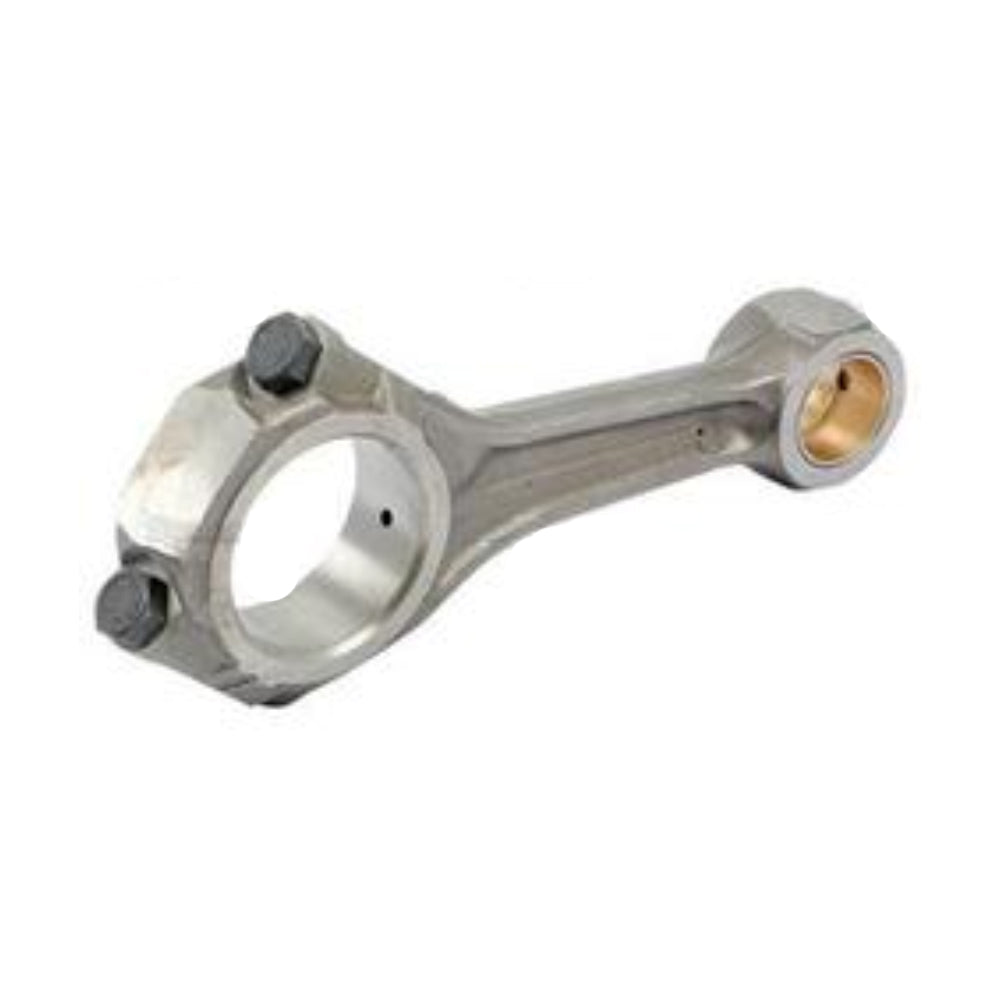

One New Aftermarket Replacement Connecting Rod Assembly with Bushing for Long, Fiat, Oliver, and White Tractors

This connecting rod assembly includes the rod, bolts, and small end bushing, and fits the Fiat-derived engine used across Long, Fiat, Oliver, and White tractor lines. The connecting rod links the piston to the crankshaft, converting the linear motion of the piston into rotational power. It features a 32mm wrist pin bore. This is a direct aftermarket replacement for the original connecting rod assembly used in these tractors.

Specifications

  • Small end (wrist pin) bore diameter: 32mm
  • Center-to-center length: 182.21mm
  • Housing bore diameter: 62.41mm
  • Width: 35.00mm
  • Includes: connecting rod, bolts, and small end bushing

Compatible Models

Long: 260C, 300, 310, 310C, 310DT, 320, 340, 350, 353, 360, 360C, 445, 445DT, 445SD, 445V, 446, 453, 460, 460DT, 460SD, 460V, 466, 470, 480, 510, 510DT, 530, 533, 540, 550, 550DT, 560, 560DT, 560DTE, 600, 610, 610C, 610DT, 640, 643, 666, 670, 680, 703, 766, 850, 900, 980, 1000, 2260, 2310, 2360, 2460, 2510, 2510DTC, 2510SD, 2510SD-DTC, 2610, 2610DT, 2610SD, 2610SD-DTC, 5040, 5045, 5050

Fiat: 450, 480, 500, 540, 550, 600, 640, 680, 766, 900, 980, 1000

Oliver: 1250A, 1255, 1265, 1270, 1355, 1365, 1370

White: 2-50, 2-60

Universal (UTB): 300, 320, 340, 350, 500, 533, 640, 643, 650, 703, 766, 850, 980, 1033

Replaces Part Number(s):

TX10173, ENL80-0407, 72091158, 4775229, 4698727, 4763918, 4637680, 676805AS, 67805AS, 651885, 115 03 013, 11503013, S61994

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

353, 5040, 460V, 1000, 340, 460DT, 310C, 300, 1250A, 610, 2510SD-DTC, 2610, 360, 460SD, 550DT, 450, 1365, 350, 560DT, 470, 5050, 533, 600, 610DT, 445, 1270, 445V, 260C, 2510DTC, 666, 2610SD-DTC, 2-50, 320, 766, 550, 643, 1370, 445DT, 453, 900, 500, 850, 560, 480, 680, 1265, 360C, 980, 460, 610C, 446, 560DTE, 2510, 670, 466, 510, 5045, 2260, 2610DT, 445SD, 2-60, 1033, 640, 510DT, 2510SD, 2310, 310DT, 1255, 703, 1355, 530, 2610SD, 540, 310

Reference Numbers:

651885, 115 03 013, 11503013, 72091158, TX10173, S61994, 4775229, 4698727, 4763918, 4637680, 676805AS, 67805AS
