Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap Fits Massey Harris

Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap Fits Massey Harris

£67.00 GBP
£67.00 GBP
Sale Sold out
Shipping calculated at checkout.

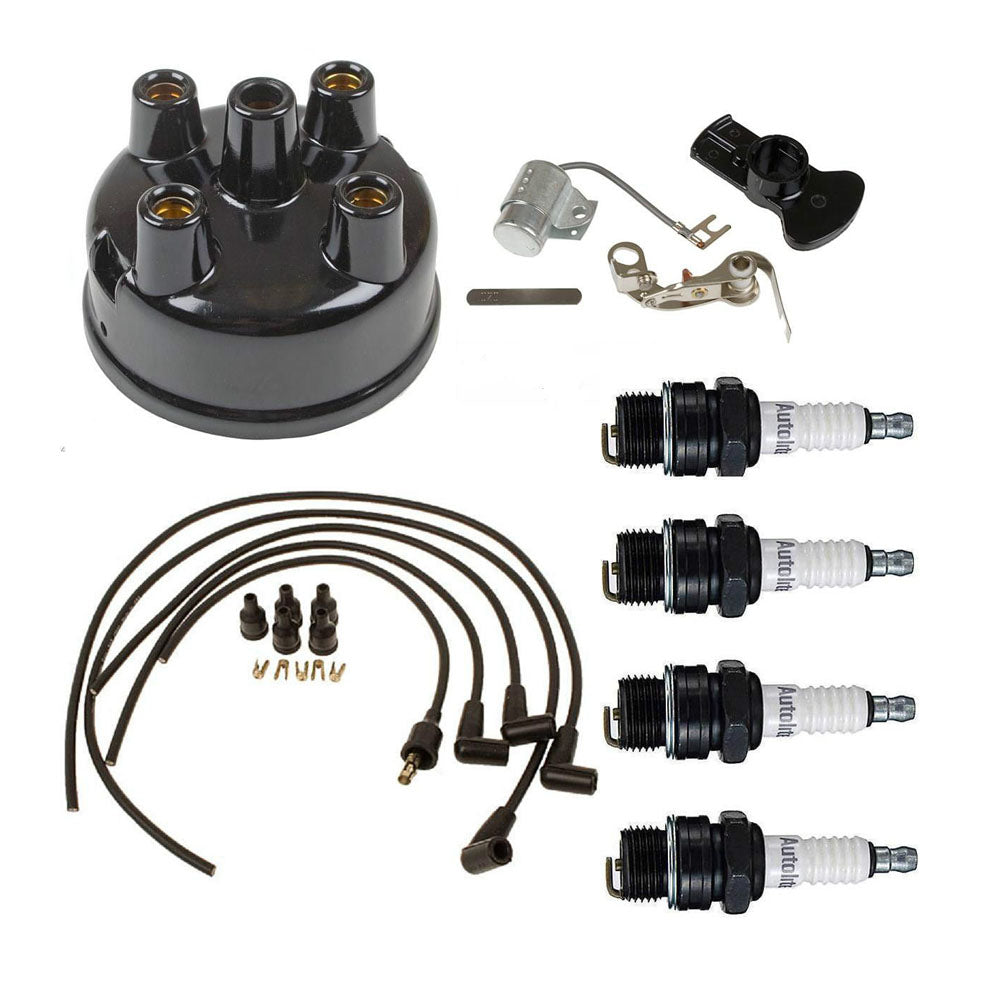

One New Aftermarket Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap

Tech Info:

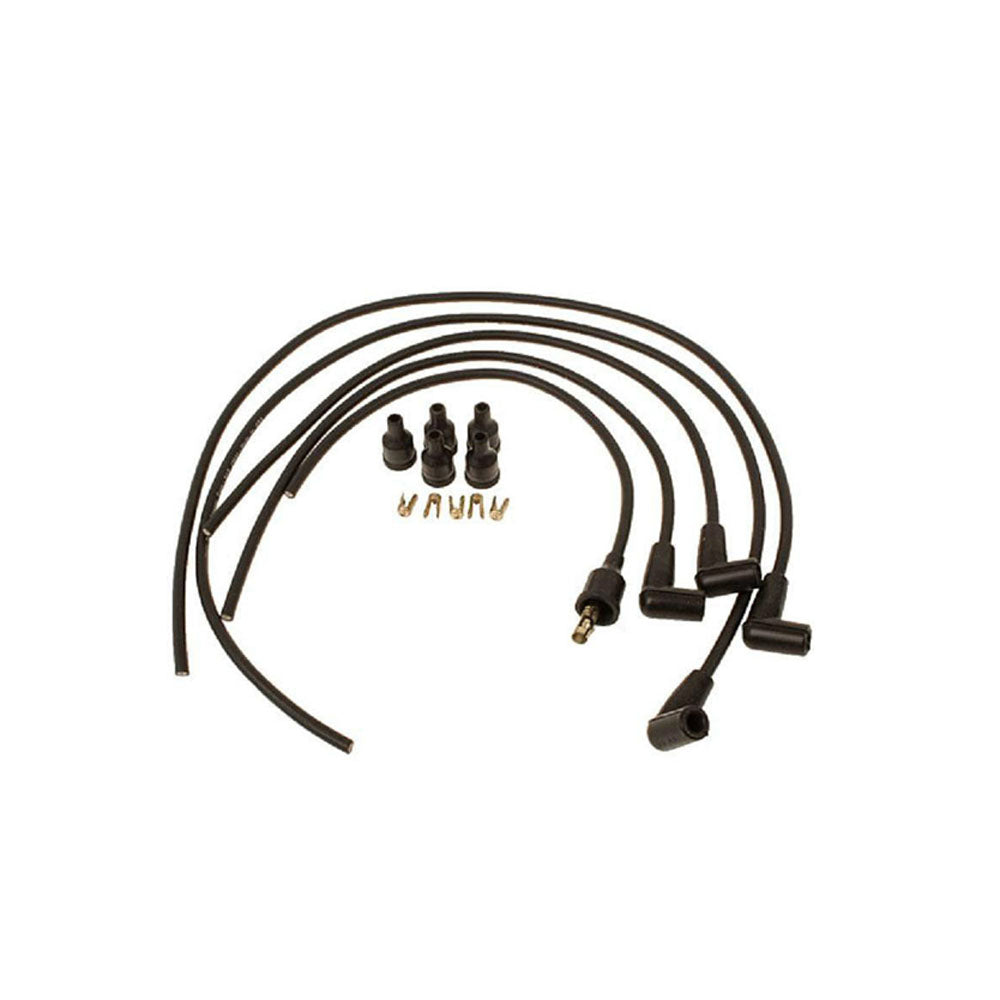

 -(1) 4 Cylinder Spark Plug Wiring Set
 -These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots.
 -Note: You must cut the wires to length and crimp the ends with a crimping tool.
 -Wire lengths are approximately;
 -(2) 24-3/4" spark plug wires
 -(1) 29-3/4" spark plug wire
 -(1) 34-1/2" spark plug wire
 -(1) 23-1/2" long coil wire.
 --The coil wire is made from excess wire left over from the spark plug wire.
 -

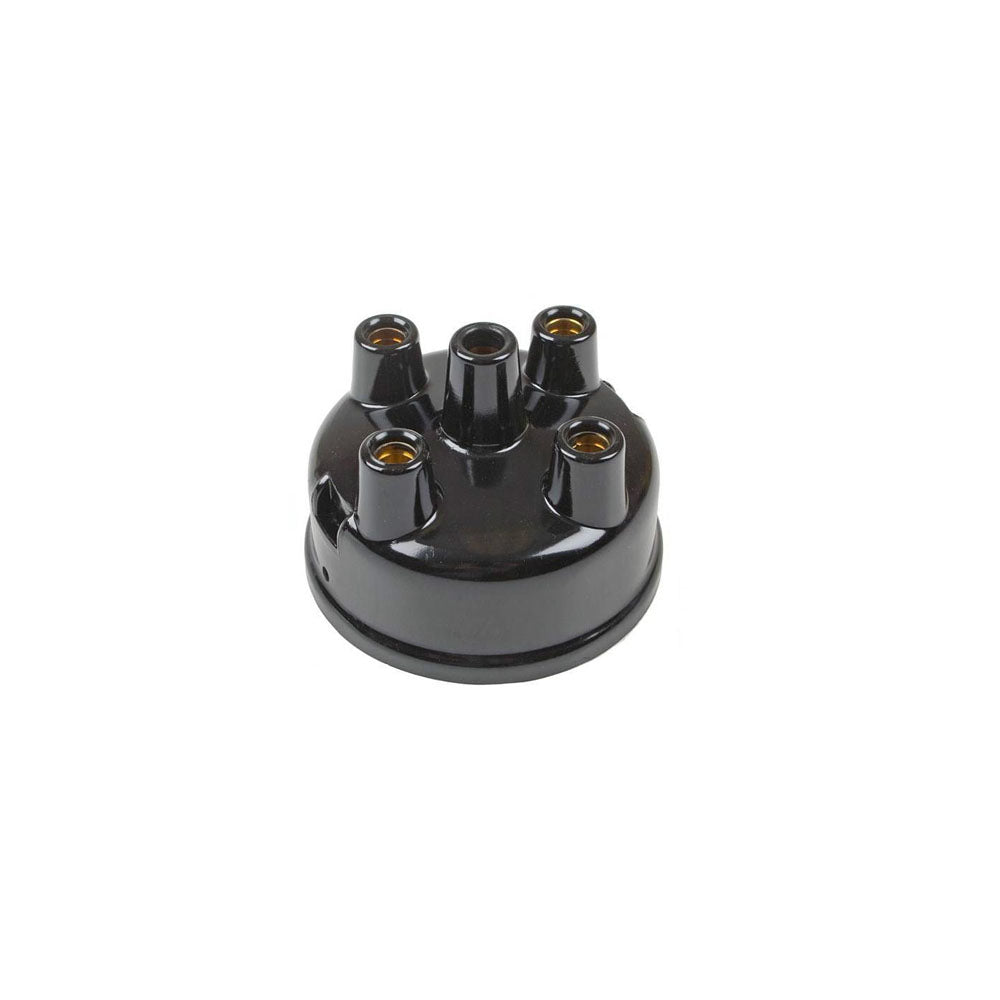

 -(1) Distributor Cap
 -Posts: 5
 -Replaces Part Number(s): 1500831V91, 1500831M91
 -

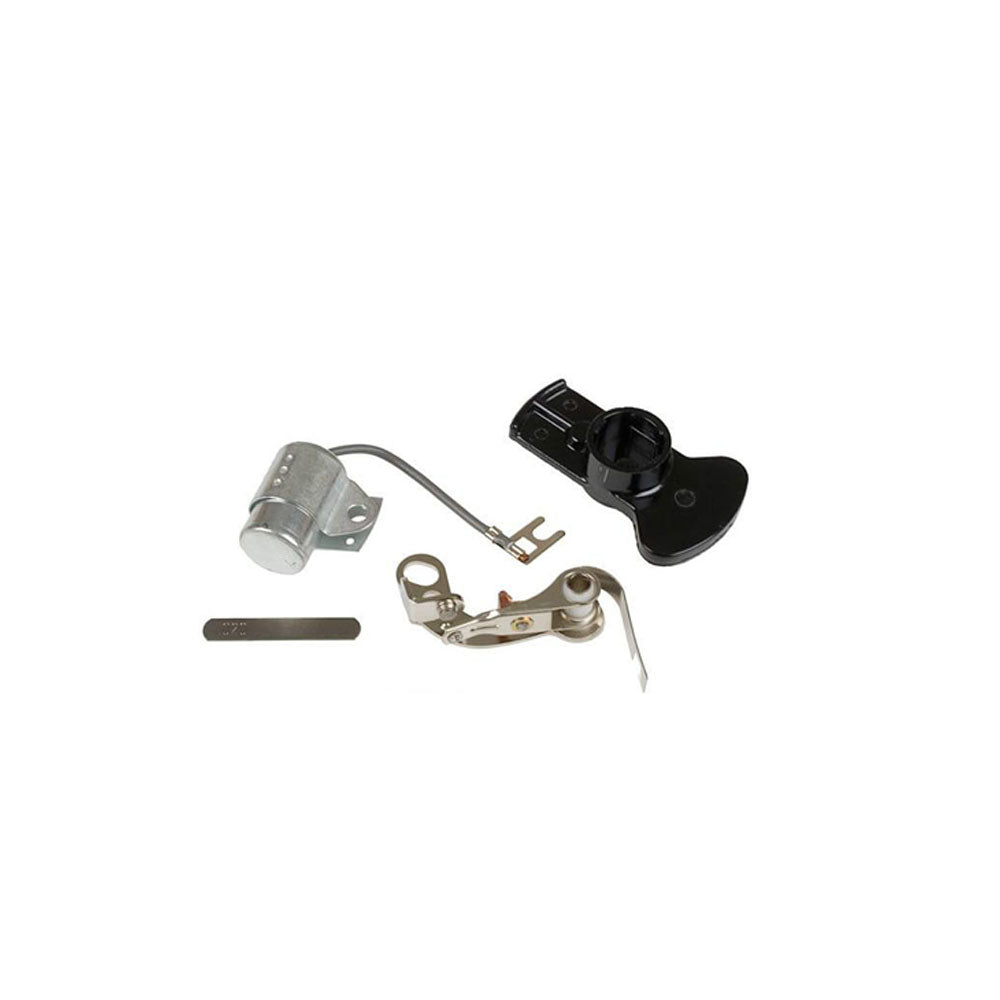

 -(1) Ignition Tune-Up Kit
 -Includes: Points, Condenser, Rotor
 -Fits Autolite Distributor
 -Replaces Part Number(s): 1508770M91, 1500293M1, 1508810M91
 -

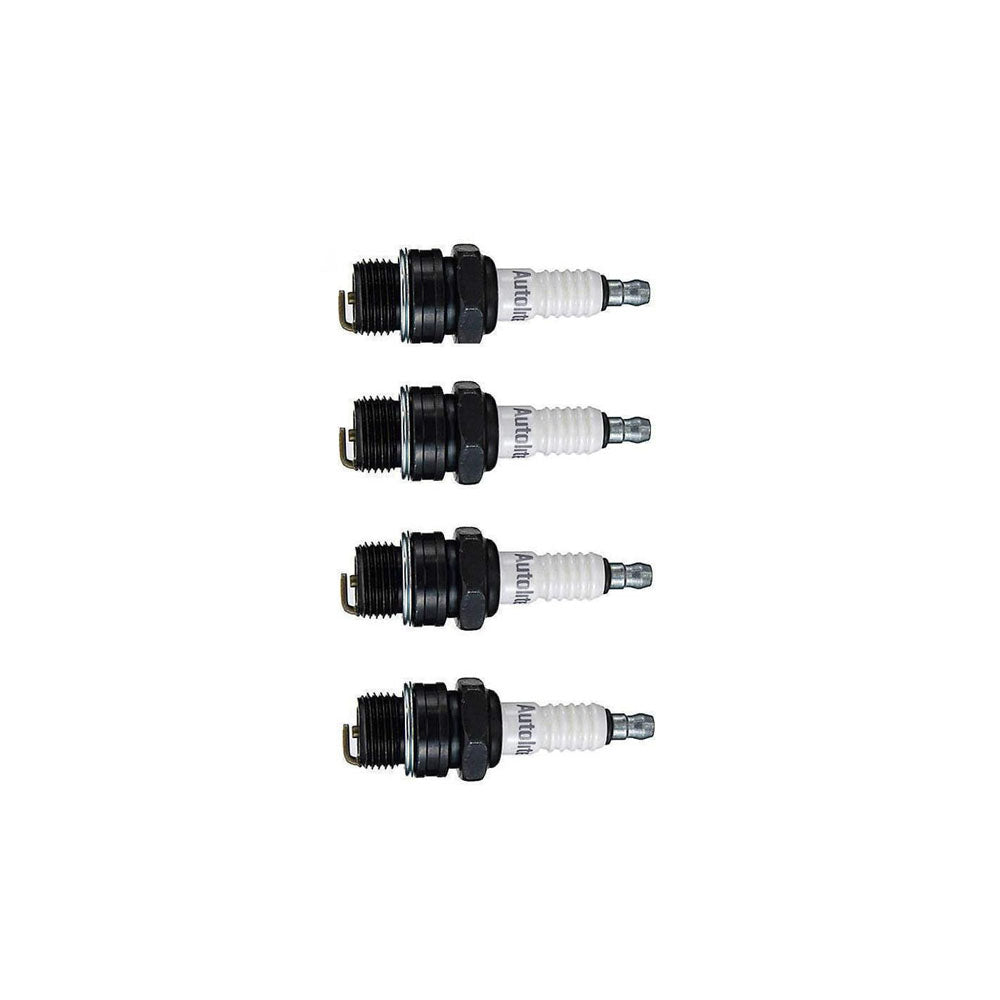

 -(4) Spark Plugs
 -Thread Size: 18mm
 -Hex Size: 13/16" (20.6mm)
 -Reach: 12mm (.472")
 -Gap: .028" (0.7mm)
 -Heat Range: 2
 -Resistor: No
 -Thread Pitch: 1.5mm

Made to Fits Massey Harris:
 Tractor Models: MH 11
 Replaces Part Number(s): 1508770M91, 1500293M1, 1508810M91, 1500831V91, 1500831M91

Models This Part Fits:

555, 303, 23, 44 SPECIAL, MF COLT, 444, 22K, 44, 30K, 21, 101 JR, 555K, 44 SPECIAL K, 44-6K, 33, 333, 23K, 30, 402, MH 11, 444K, 22, 55

Additional Information:

(1) 4 Cylinder Spark Plug Wiring Set These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots. Note: You must cut the wires to length and crimp the ends with a crimping tool. Wire lengths are approximately; (2) 24-3/4" spark plug wires (1) 29-3/4" spark plug wire (1) 34-1/2" spark plug wire (1) 23-1/2" long coil wire. -The coil wire is made from excess wire left over from the spark plug wire. (1) Distributor Cap Posts: 5 Replaces Part Number(s): 1500831V91, 1500831M91 (1) Ignition Tune-Up Kit Includes: Points, Condenser, Rotor Fits Autolite Distributor Replaces Part Number(s): 1508770M91, 1500293M1, 1508810M91 (4) Spark Plugs Thread Size: 18mm Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Gap: .028" (0.7mm) Heat Range: 2 Resistor: No Thread Pitch: 1.5mm

Reference Numbers:

1508770M91, 1500293M1, 1508810M91, 1500831V91, 1500831M91

Product Sub Group:

Ignition Components
View More: Ignition Components Replacement Parts
