Tune-Up Kit Fits Case VA VAC VAI VAO 200B 300 350 400 450 500 530 600 700 Tracto

Name: Tune-Up Kit Fits Case VA VAC VAI VAO 200B 300 350 400 450 500 530 600 700 Tracto
SKU: AY-ELI80-0059_2
Price: 56.0 USD
Availability: InStock

Tune-Up Kit Fits Case VA VAC VAI VAO 200B 300 350 400 450 500 530 600 700 Tracto

£56.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

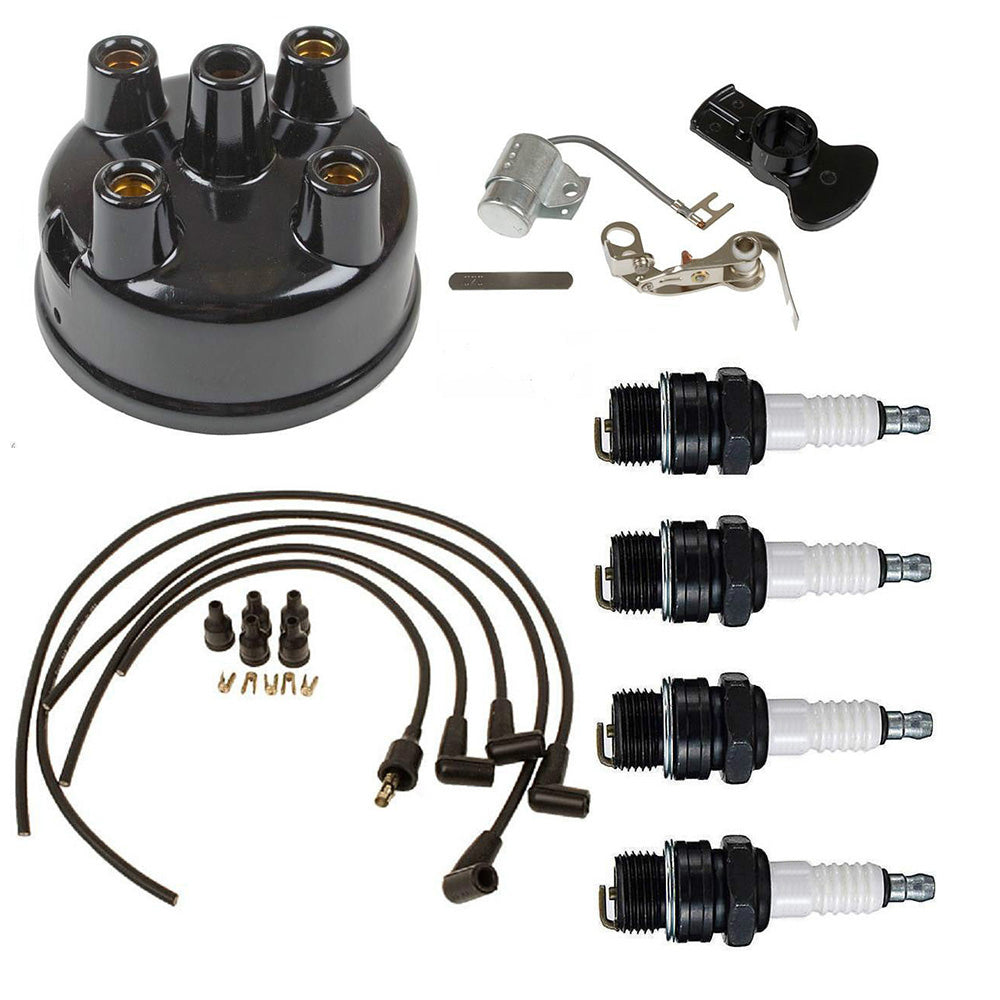

(1) New Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap

Kit Includes:
Tune-Up Kit, Spark Plugs x4, 4Cylinder Spark Plug Wiring Set, and Distributor Cap:

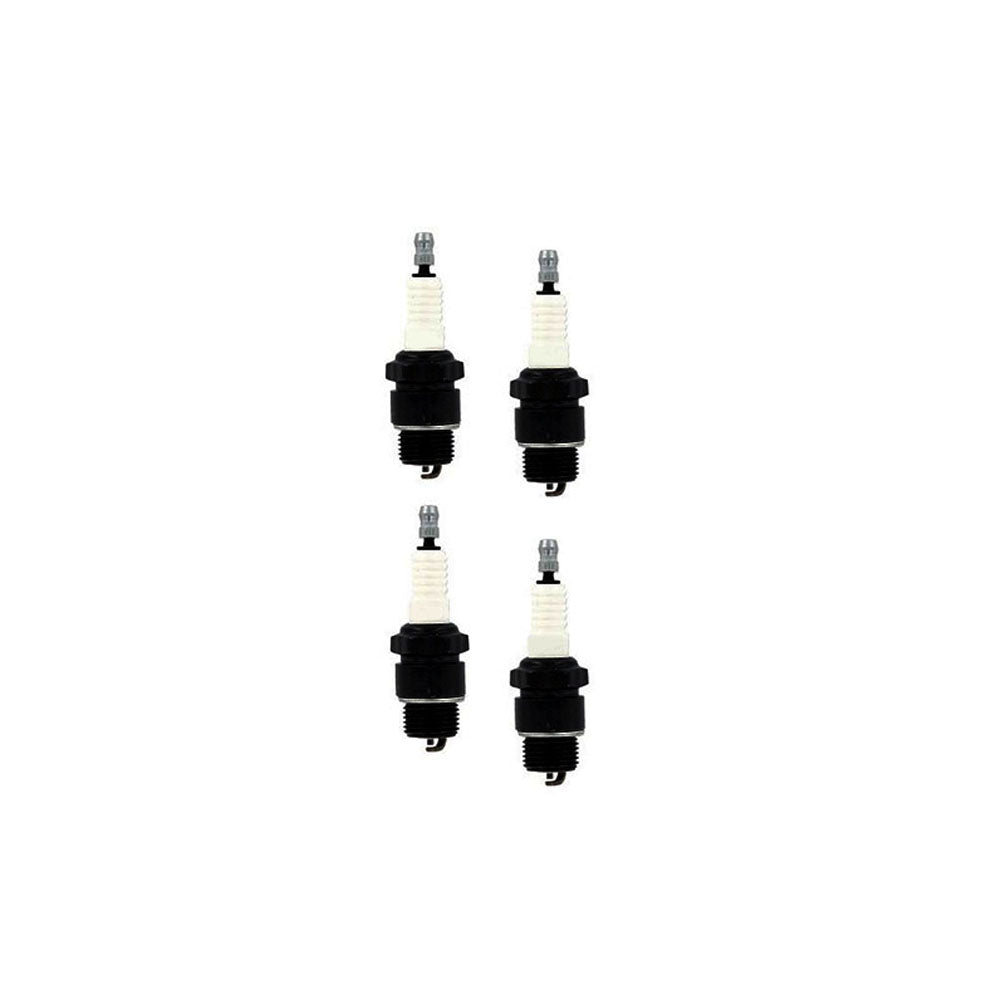

Spark Plug:
M18-1.50mm thread
1/2" Thread reach
7/8" Hex
Preset Gap 0.034"
Medium hot
Power tip / Non-Resistor

Note: Check spark plug specifications before ordering as some models may use more than one type.

Replaces Part Numbers:
Fits Autolite: 3116
Fits Champion: D15, D15Y, D18, D18Y, RD15Y, RD18Y

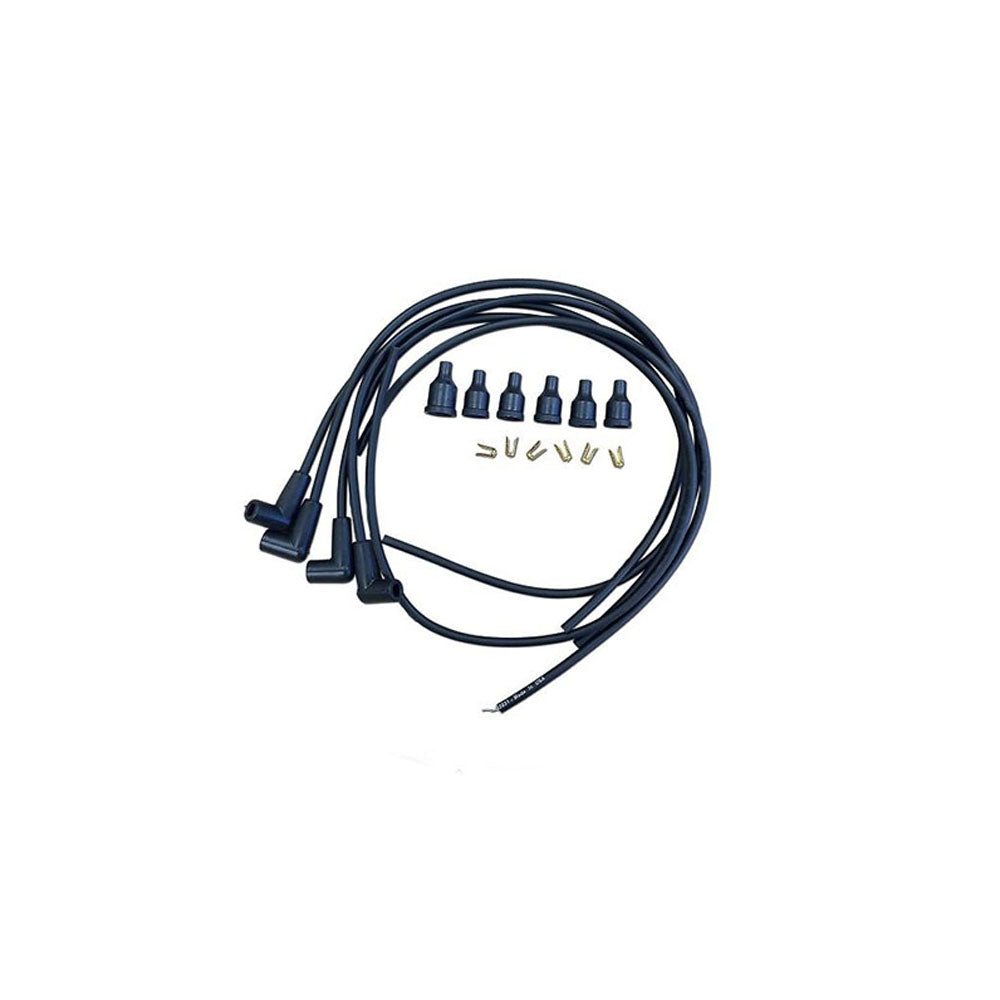

Spark Plug Wire Set

Fits 4-cylinder models with 90 degree boots.
Premium united packard wire.
Graphite carbon core with waterproof silicone outer jacket.
Cut to length
Highest quality on the market.
Note: Use with electronic ignitions.

Use with the following electronic ignitions:
EIGN01, EIGN03, EIGN04, EIGN15, EIGN16, EIGN19

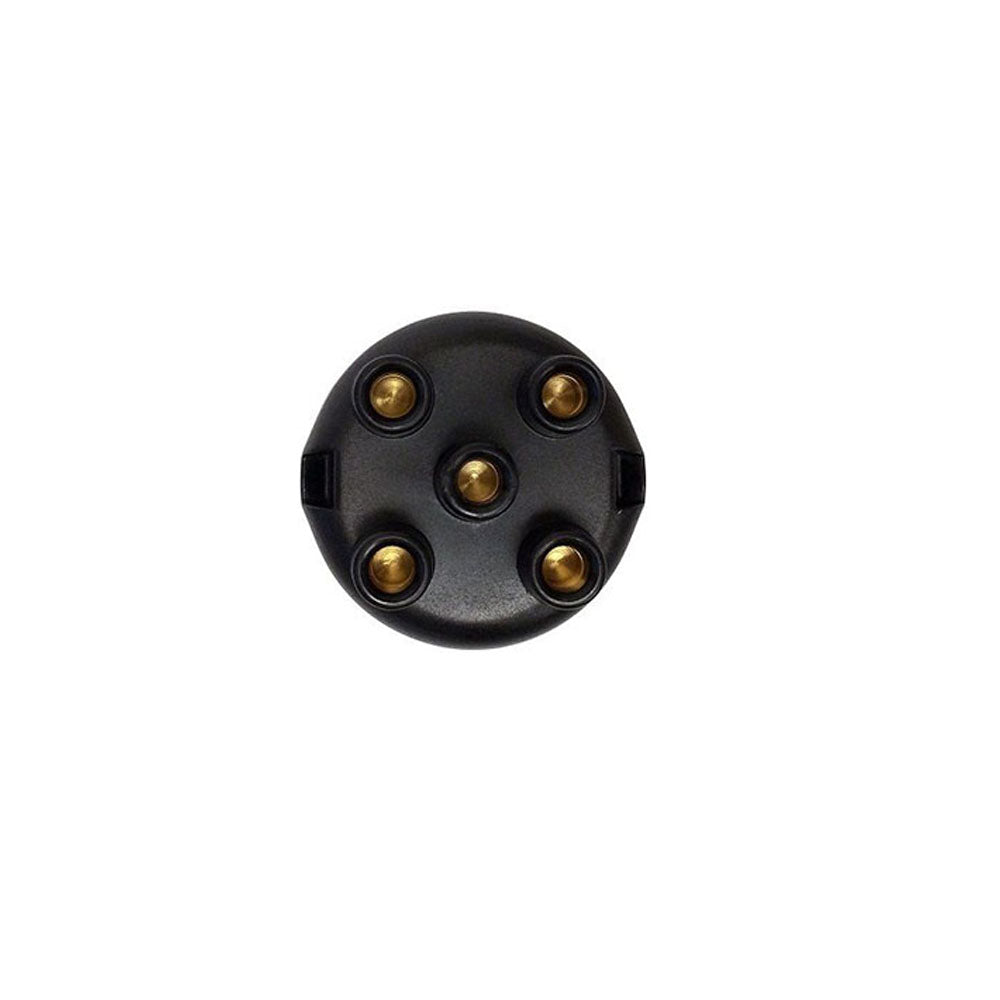

Distributor Cap

This cap fits Prestolite / Autolite distributors only, with clip held cap.
This distributor cap does NOT fit Model IBT, IGW, or IGZ distributors.
3-3/8" outside diameter
Please measure before ordering

Also fits Some Fits Massey Harris clipper combine using 4-cylinder Flathead Continental
Fits Earthmaster Model C and CH
Fits Silver King models 42 through 720
Fits Brockway 49G
C26 Intercontinental
Long model A & AW tractors built in Tarboro N.C.
Many Lincoln welders with F124, F140, F162 and F163 cubic inch flathead Continental engines

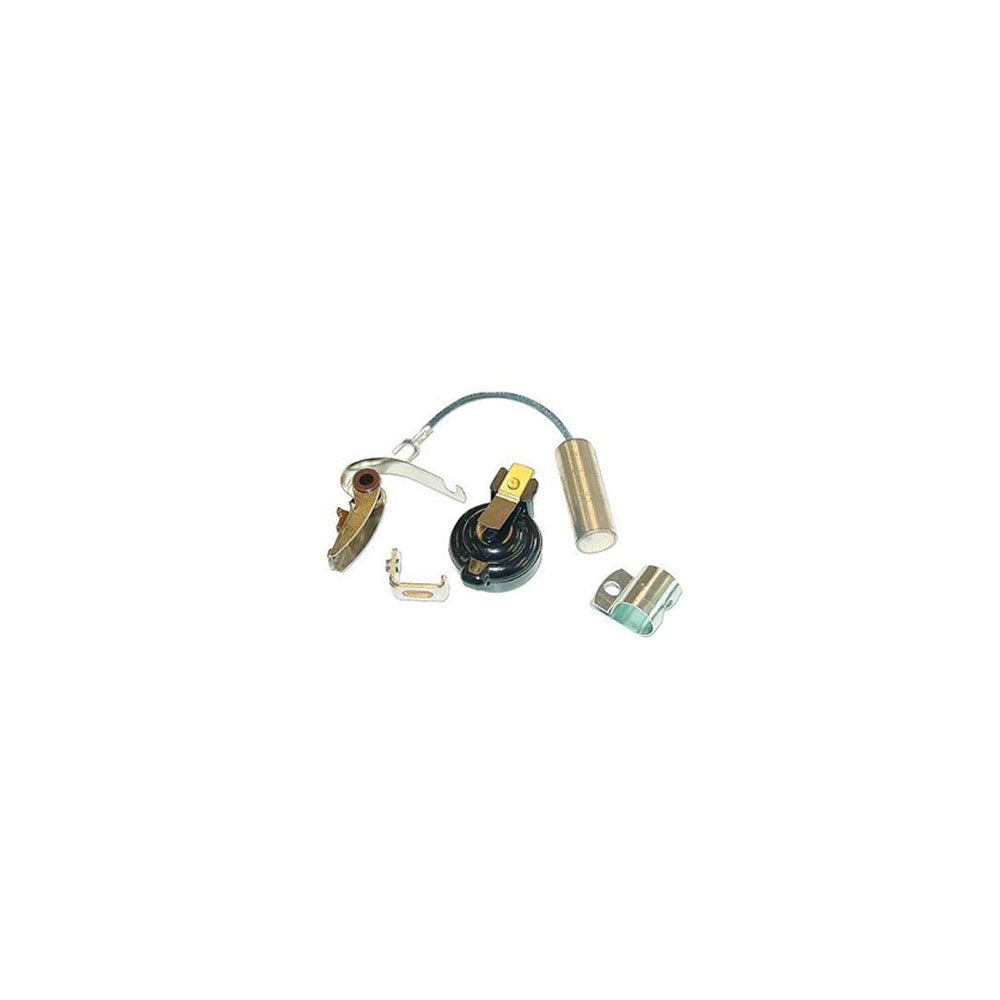

Ignition Tune-Up Kit with rotor
Kit includes:
point set
0.020" point gap
vibration resistant condenser
rotor
Only fits distributors with 3-3/8" outside diameter cap

Only fits listed tractor models with Autolite distributor. Please note that this will not fit Model IGZ or IGW distributors.

Fits Massey Harris clipper combine using 4-cylinder Flathead Continental
Fits Earthmaster Model C and CH.
Fits Silver King models 42 through 720
Fits Brockway 49G
C26 Intercontinental
Long model A & AW tractors built in Tarboro N.C.
Many Lincoln welders w/ F124, F140, F162 & F163 c.i.d. flathead Continental engines

Models This Part Fits:

901, H, HV, W-4, 700, Super C, B, 801, 9N, Super AV, 600, 621, Super W-4, 651, 2N, 701, Super HV, NAA, Super W-6, Super M, 671, AV, 900, M, O-4, 800, OS-4, OS-6, 8N, A, 601, Super H, BN, C, 641, 501, W-6, 2000, 681, O-6, 661, Super A, 4000

Additional Information:

Kit Contains: (4) Spark Plugs Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number(s): G44840, 4012405C (1) Cylinder Spark Plug Wiring Set Current Stock from Pheon has Copper Core ALL 4-CYL (1939-1964) Wire Dimensions: Wire Diameter: 1/4'' With Cap: 5/8'' Length: 30'' Cap Dimensions: Length: 1 3/8'' Diameter: 3/4 Metal Pieces: Length: 3/4'' Width: 1/4'' Height: 1/2'' Replaces Part Numbers: 66442, 9N12259B, S66442 (1) Distributor Cap Replaces Part Number(s): A8368, A8638, IG1324D, IG1324H, IG1324J (1) Ignition Tune-Up Kit with Rotor Kit Contains: Point Set, Vibration Resistant Condenser & Rotor. Point Gap: 0.020" Only fits Distributors with 3-3/8" OD Cap. PLEASE NOTE: This Kit will NOT fit model IGZ or IGW Distributors Replaces Part Numbers: IGW30280S
