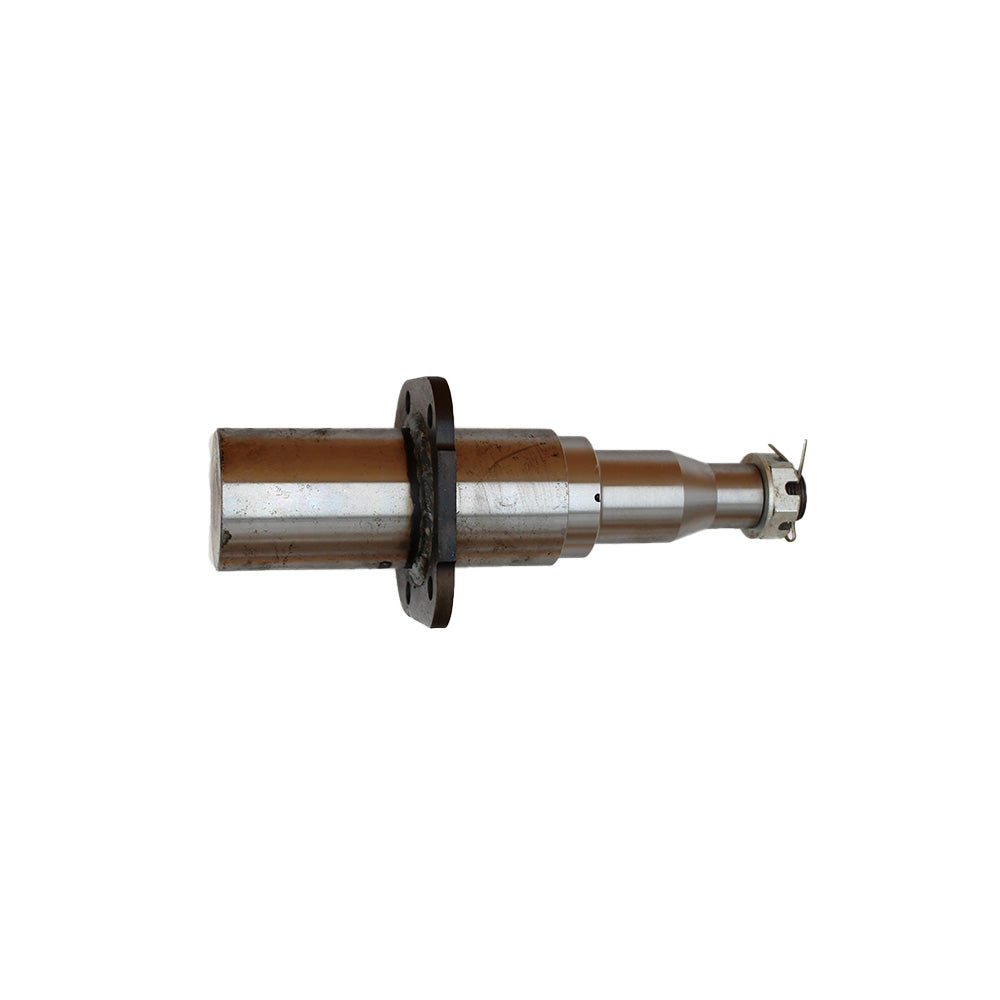

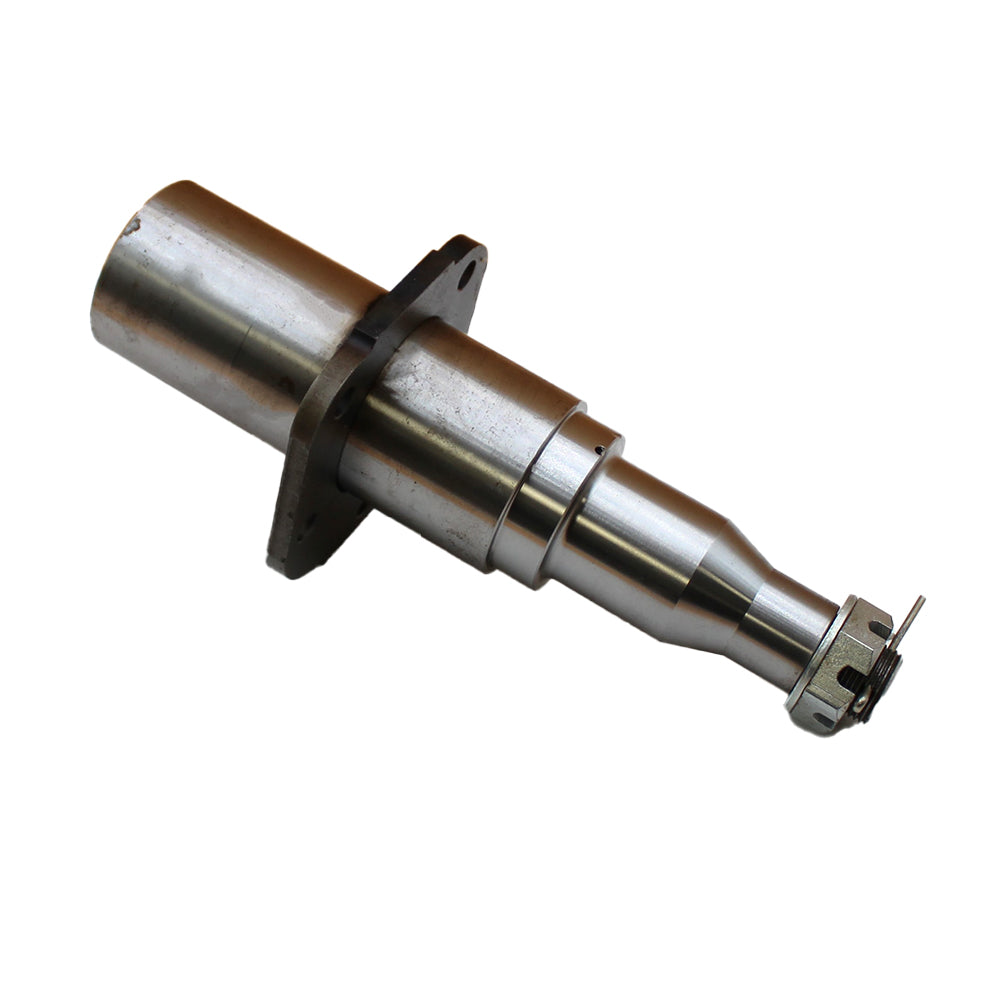

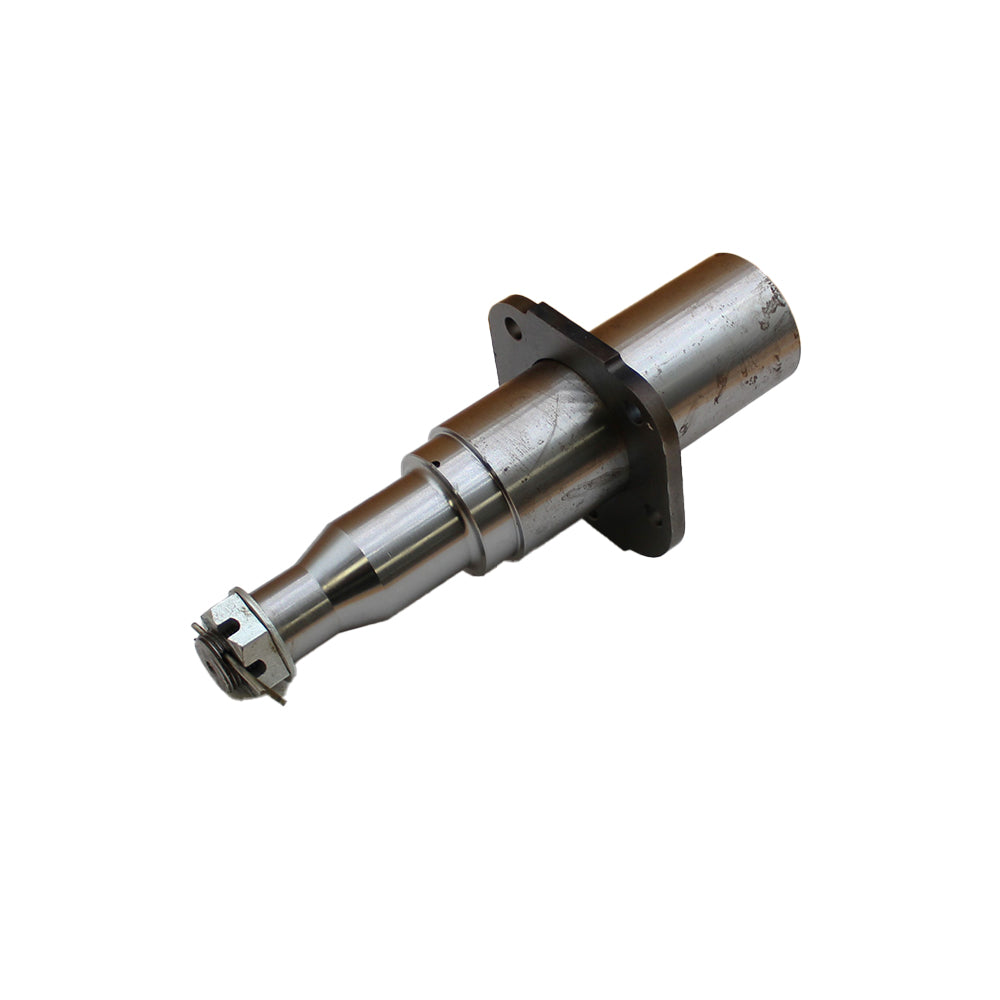

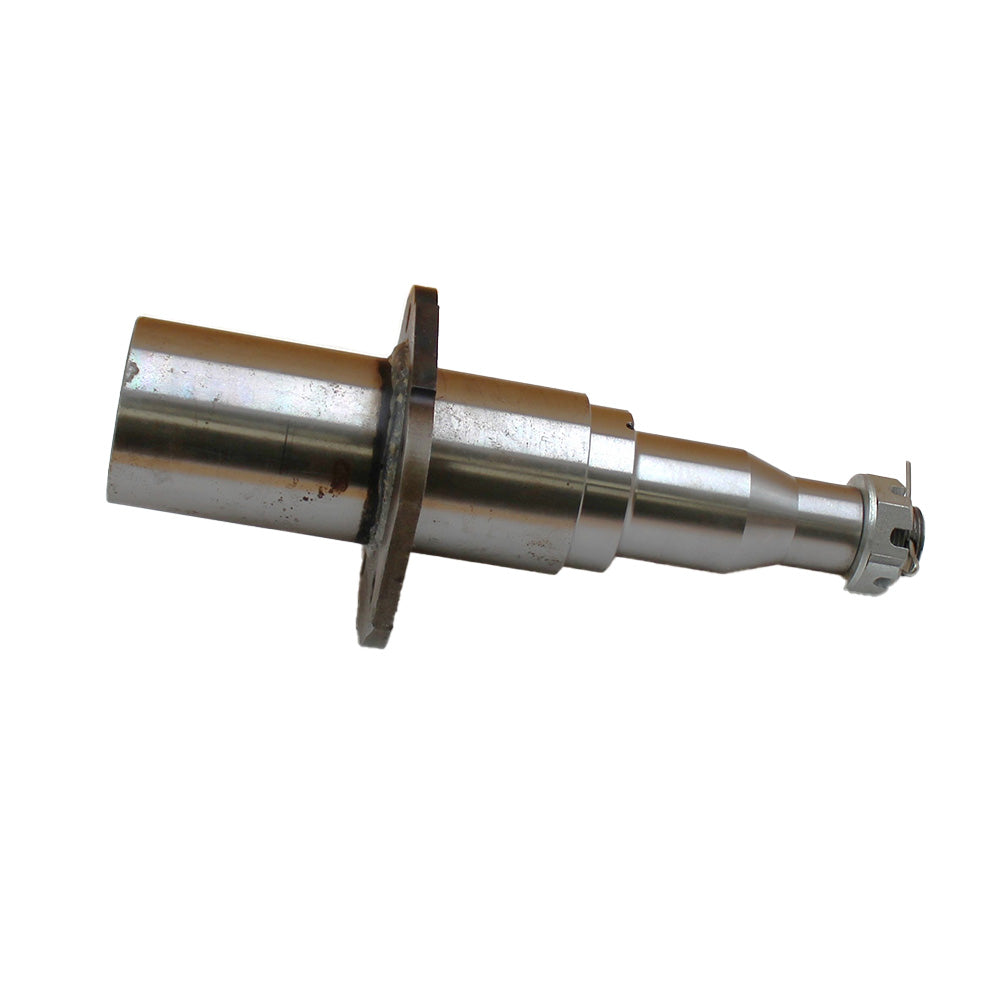

Trailer Axle Spindle W/ Brake flange, Nut & Washer Fits Universal Products

Trailer Axle Spindle W/ Brake flange, Nut & Washer Fits Universal Products

£71.00 GBP
£71.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Trailer Axle Spindle W/ Brake flange, Nut & Washer

Tech Info:
 -EZ Lube style (includes grease fitting to grease bearings, right on the end of the spindle
 -
 -11 inches Long
 -4 1/2 inches wide (Bracket)
 -2 1/2 inch on the bottom
 -Top is 7/8 inch
 -7 1/2 inches long above bracket
 -3 1/2 inches below bracket
 -Weld end part is 2 1/2"" Diameter Shaft
 -
 -This spindle has standard 1" Threads.
 -Uses 14125A (1.25") outer bearing
 -Uses 25580 (1.75") inner bearing
 -Uses 10-36 (2.25") grease seal
 -
 -***Used on #42 #6000 #7000 Axles***

Fits Universal Products:
 Replaces Part Number(s): 25042FZ

Additional Information:

EZ Lube style (includes grease fitting to grease bearings, right on the end of the spindle 11 inches Long 4 1/2 inches wide (Bracket) 2 1/2 inch on the bottom Top is 7/8 inch 7 1/2 inches long above bracket 3 1/2 inches below bracket Weld end part is 2 1/2"" Diameter Shaft This spindle has standard 1" Threads. Uses 14125A (1.25") outer bearing Uses 25580 (1.75") inner bearing Uses 10-36 (2.25") grease seal ***Used on #42 #6000 #7000 Axles***

Reference Numbers:

25042FZ
