Tie Rod - RH Fits John Deere 4720 4520 4310 3520 4300 4600 4200 3120 4700 4500

Name: Tie Rod - RH Fits John Deere 4720 4520 4310 3520 4300 4600 4200 3120 4700 4500
SKU: FRT40-0090_2
Price: 41.0 USD
Availability: InStock

Tie Rod - RH Fits John Deere 4720 4520 4310 3520 4300 4600 4200 3120 4700 4500

£41.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

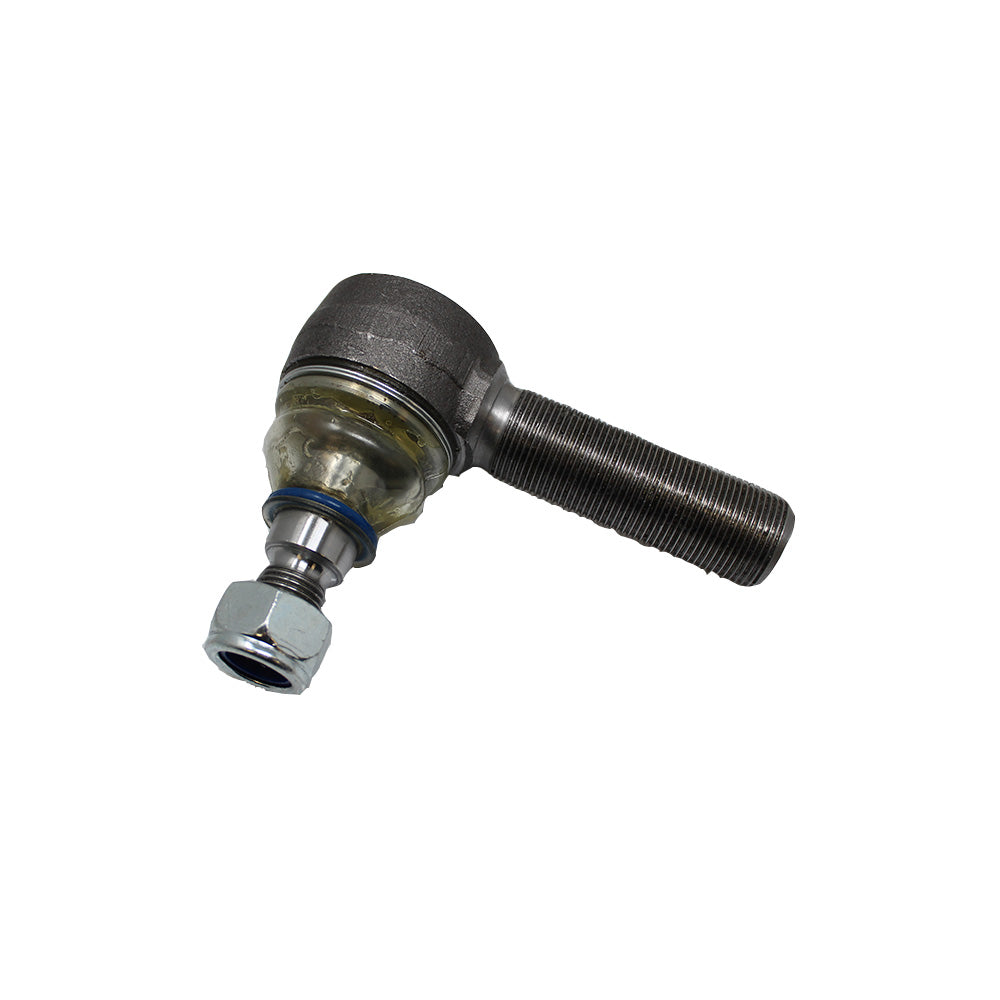

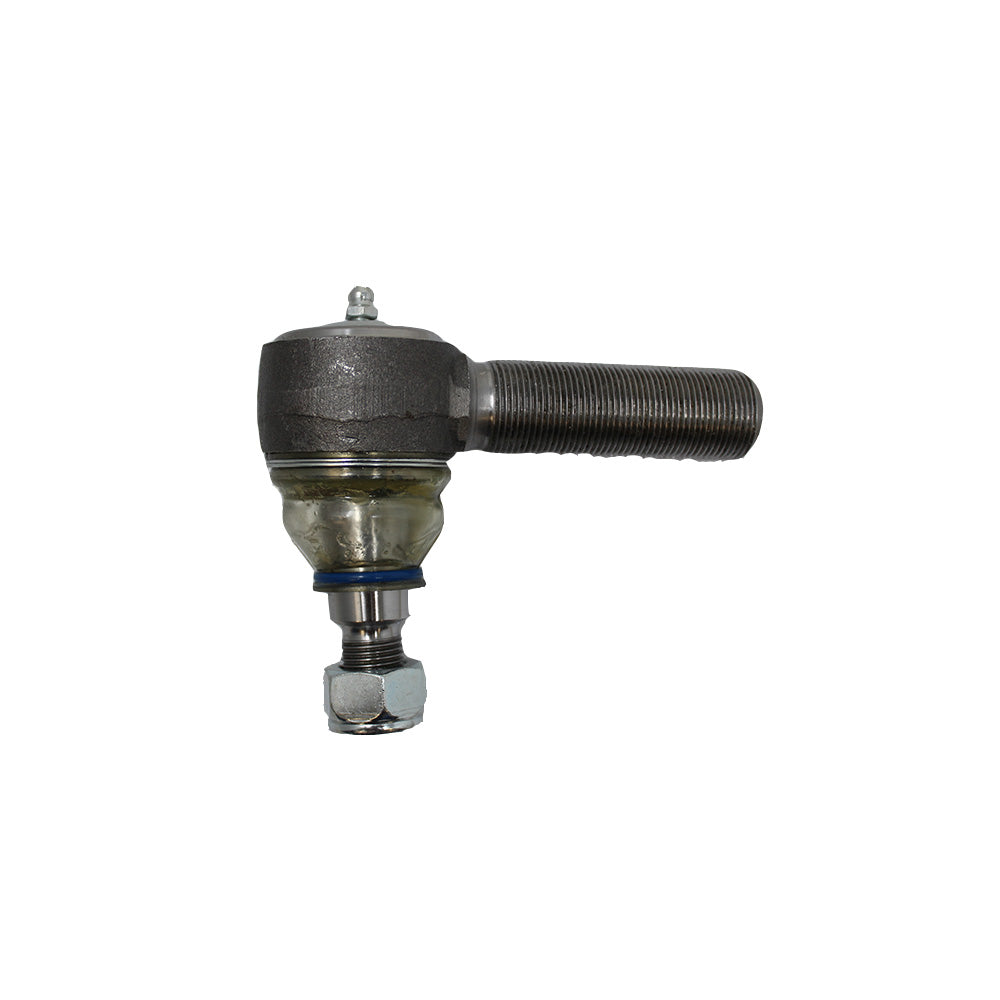

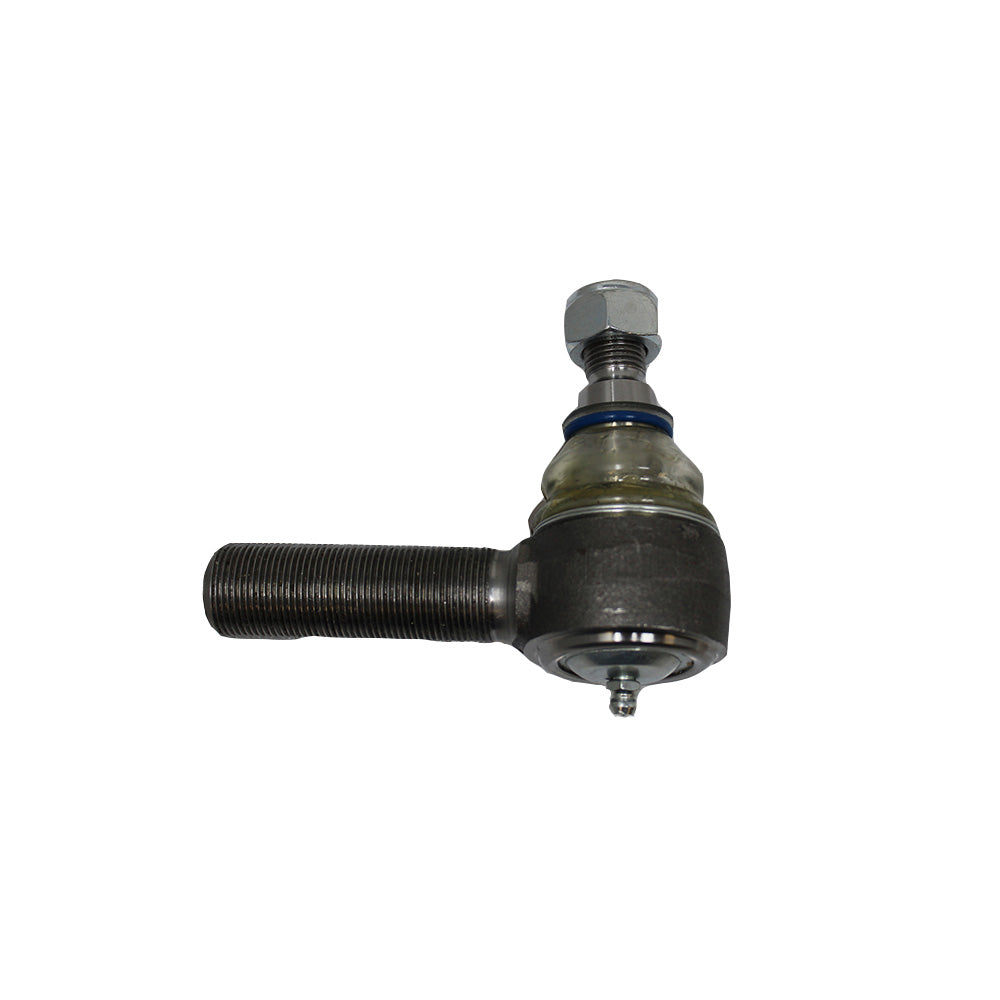

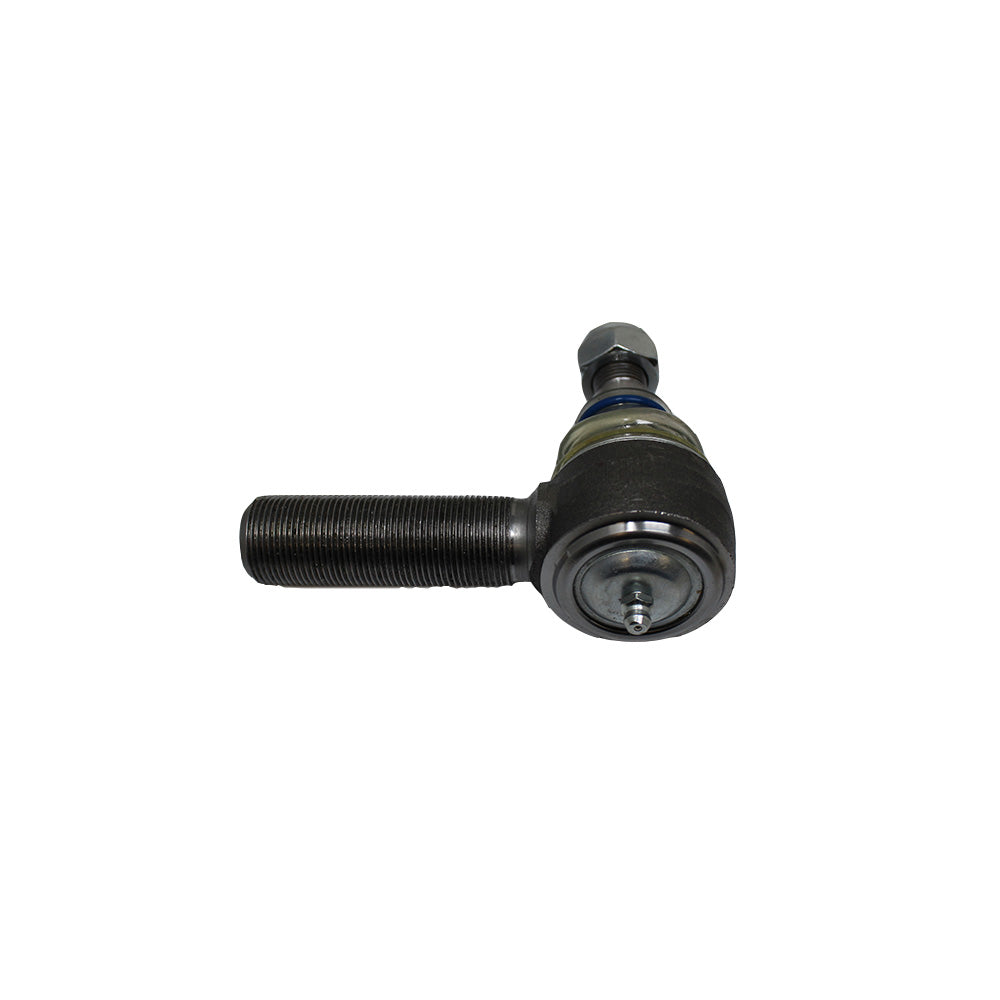

One New Aftermarket Replacement RH Tie Rod End (metric threads)

Fits John Deere Models:
110, 3033R, 3038R, 3039R, 3045R, 3046R, 3120, 3203, 3320, 3520, 3720, 4044M, 4044R, 4049M, 4049R, 4052M, 4052R, 4066M, 4066R, 4105, 4120, 4200, 4210, 4300, 4310, 4320, 4400, 4410, 4500, 4520, 4600, 4610, 4700, 4710, 4720

Specifications:
Thread: M24 x 1.5

Length of Ball Joint (from End to Center) 3.87"
Bottom of Taper (going up on Ball Joint): 0.880"
Top of Taper: 0.768"

Metric Threads. Early S/N machines have Standard SAE Threads.

Replaces Part Number: LVA14959

Models This Part Fits:

4052R, 110, 4049R, 3045R, 4066R, 4520, 4049M, 4120, 4700, 3039R, 4310, 4600, 3520, 4610, 4400, 3203, 3046R, 4710, 3320, 4210, 4300, 4052M, 4044M, 3120, 4500, 3720, 4720, 4320, 3033R, 4105, 4200, 4410, 3038R, 4044R, 4066M

Additional Information:

Thread: M24 x 1.5 Length of Ball Joint (from End to Center) 3.87" Bottom of Taper (going up on Ball Joint): 0.880" Top of Taper: 0.768" Metric Threads Early S/N machines have Standard SAE Threads
