Tie Rod Assembly Fits Allis Chalmers D14 D15 D17 D19 170 175 180 185 190 200

Name: Tie Rod Assembly Fits Allis Chalmers D14 D15 D17 D19 170 175 180 185 190 200
SKU: 70254660_3
Price: 66.0 USD
Availability: InStock

Tie Rod Assembly Fits Allis Chalmers D14 D15 D17 D19 170 175 180 185 190 200

£66.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

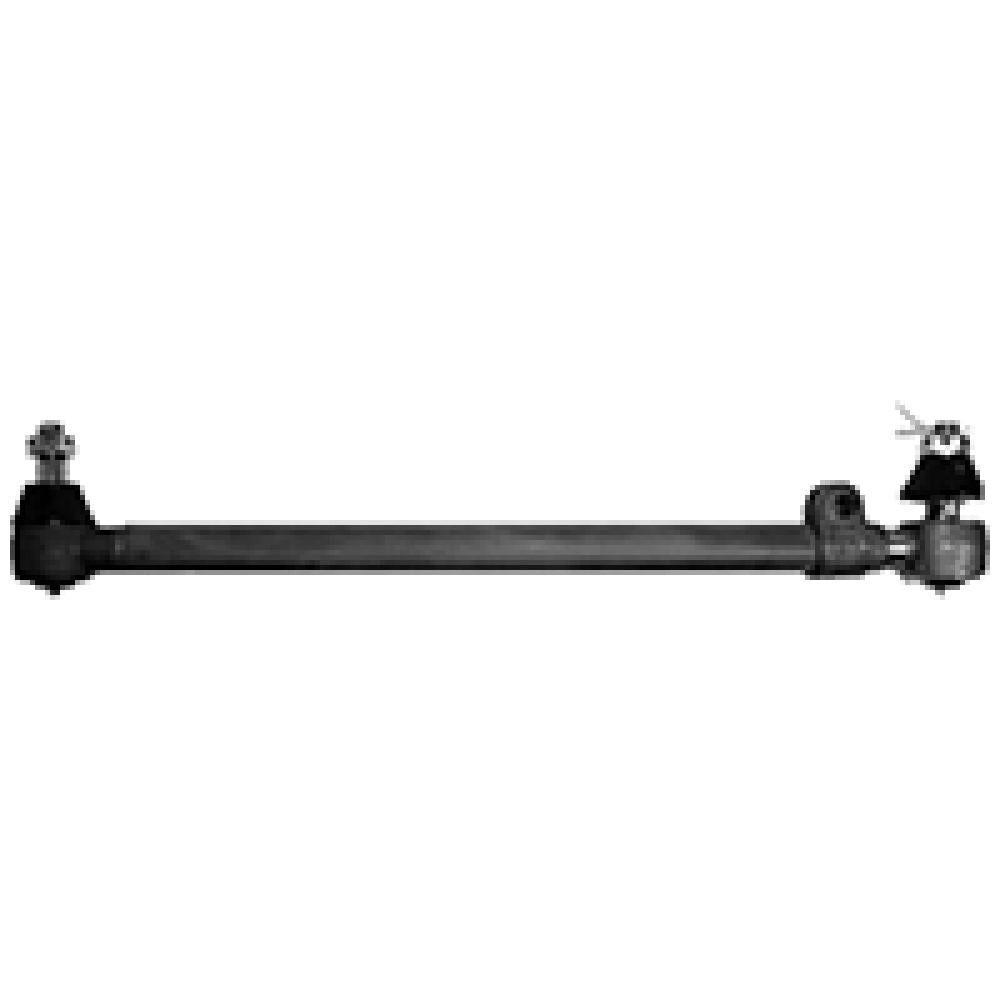

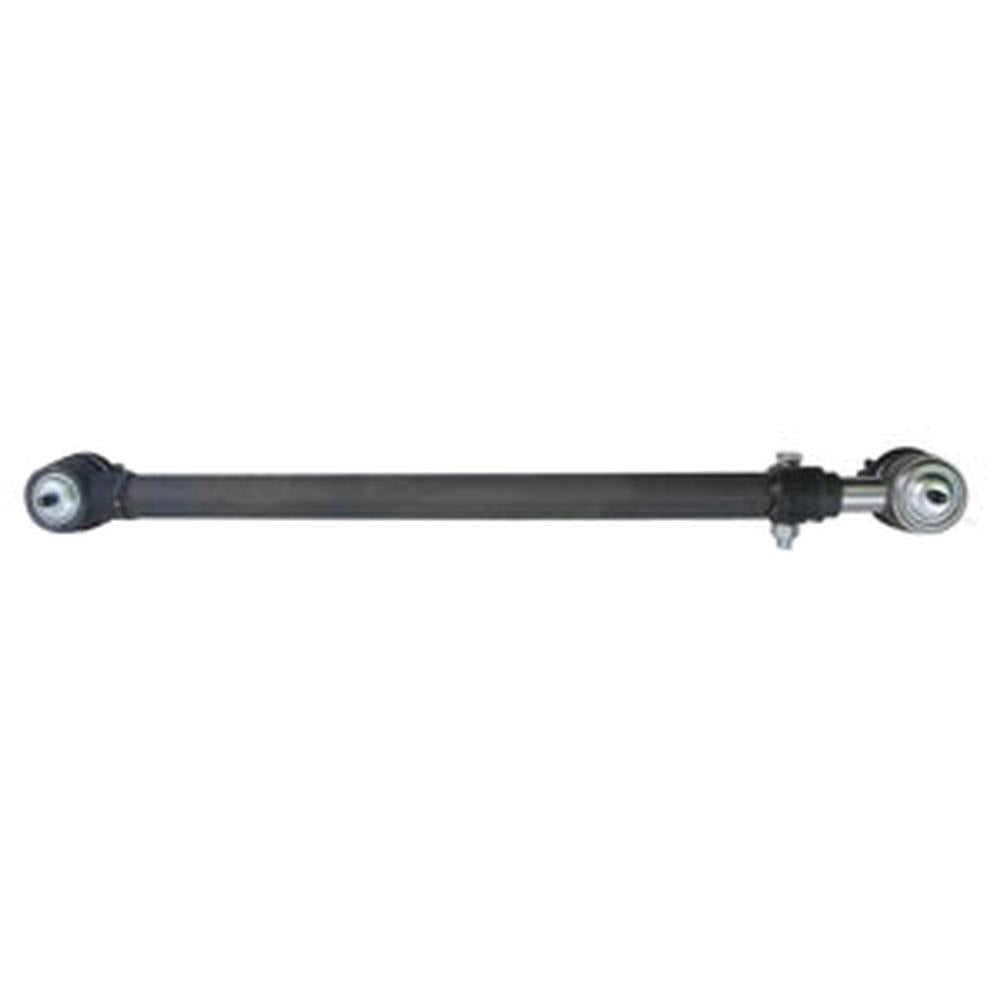

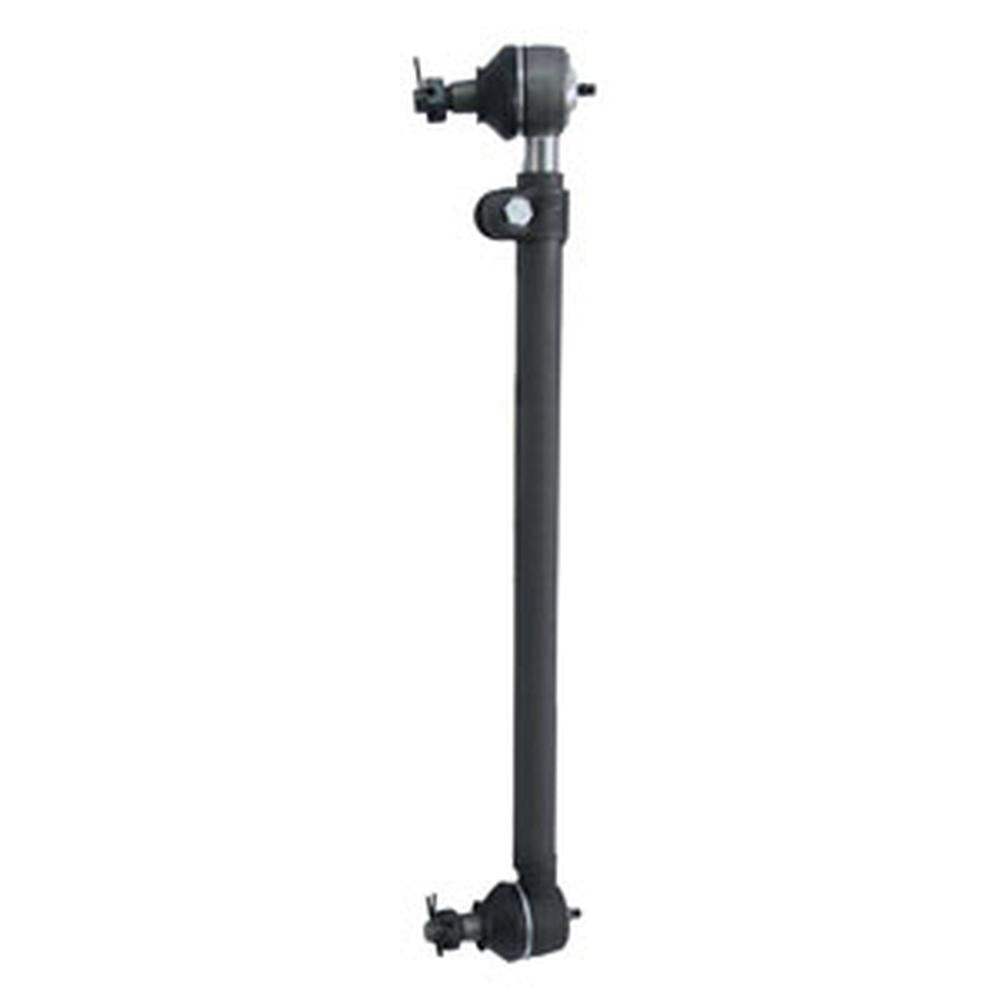

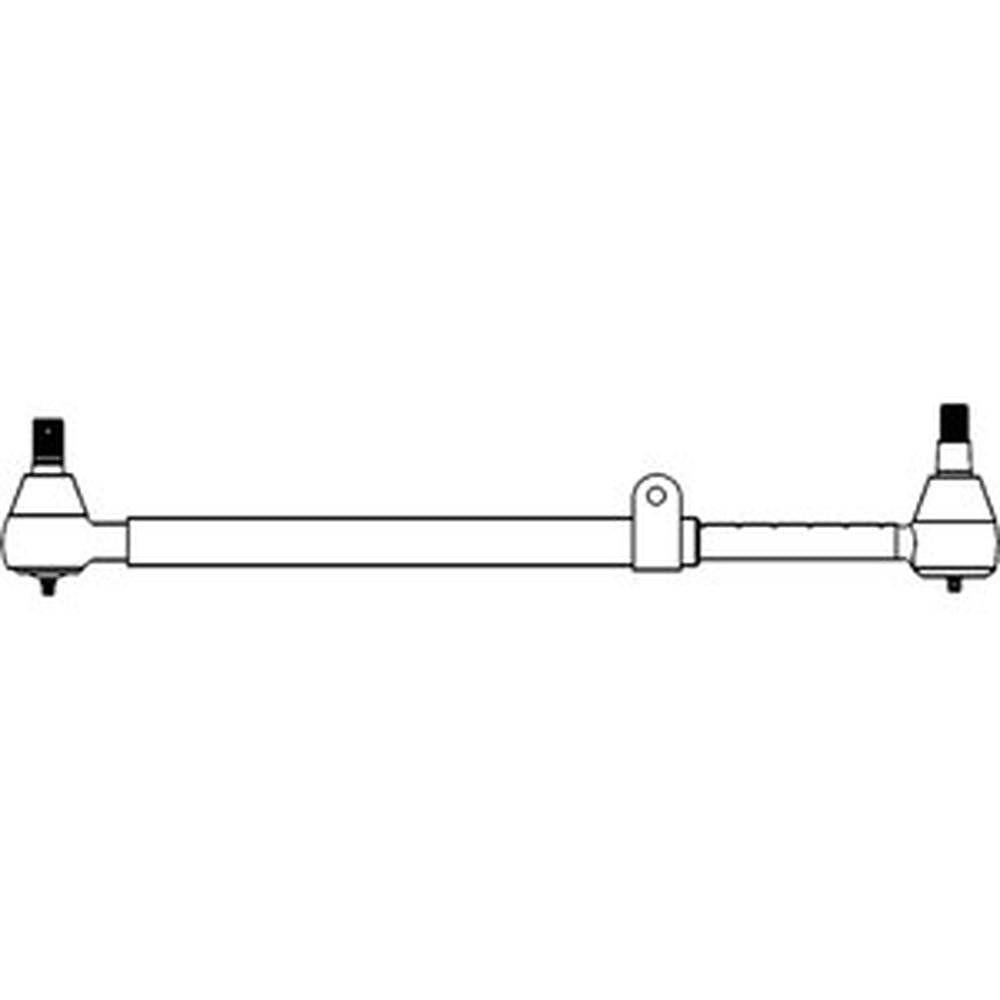

One New Aftermarket Replacement Tie Rod Assembly that fits Fits Allis Chalmers Models: D14, D15, D17, D19, 170, 175, 180, 185, 190, 200

Tech Info:

Adjustable from 19" up to 31" long. (pin to pin).

PAINT AND COLORS VARY.

Replaces Part Numbers: 70254660, 254660

Models This Part Fits:

WD45, 190XTIII, 185, D14, 180, WD, D19, D17, 190, D15, 190XT III, 175, 190XT, CA, 170, 200

Additional Information:

The inside tie rod measures 16-3/8" long from the grease fitting to the end 0.782" diameter rod Outer tube is 17-3/8" long from the grease fitting to the end 1.56" tube outside diameter The tie rod end tapers from 0.660" to 0.735" Extended length with tie rod inserted 3 1/4 inches is 30 1/2 inches.(measurement from tie rod center to tie rod center) Collapsed it is 18 3/4 inches. (measurement from tie rod center to tie rod center)

Reference Numbers:

70254660, 70254661, 70254662, 70254662V, 254661, 70249418, 70250141, 70250142, 250141, 250142, 225279, 249418, 70225279, 70227481, 70254661, 70254662, 227481, 225280, 254662, 70222084, 222084, 70225280, 70254660, 70250141, 70254661, 70227830, 70254662, 70253249, 70247836, 70235789, 70249418
