One New Aftermarket Replacement Electric Temperature Gauge for John Deere (JD) Tractors and Combines

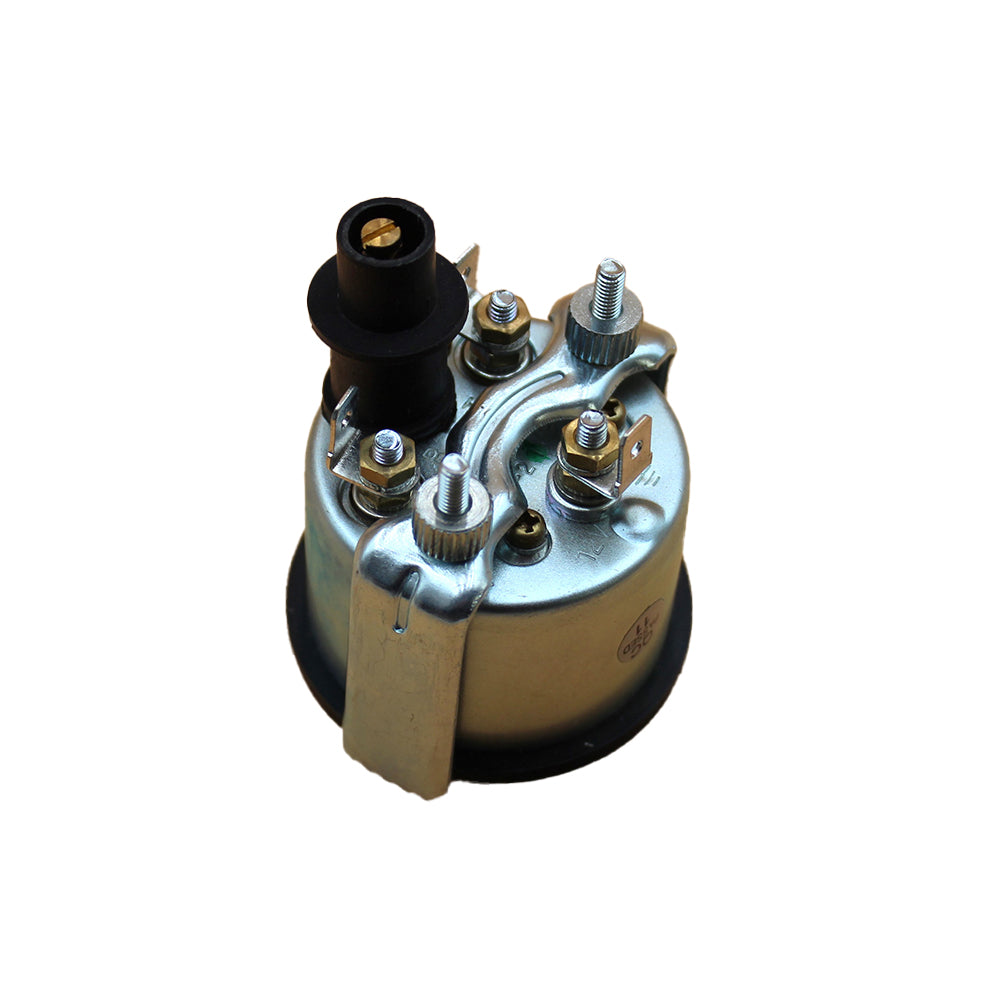

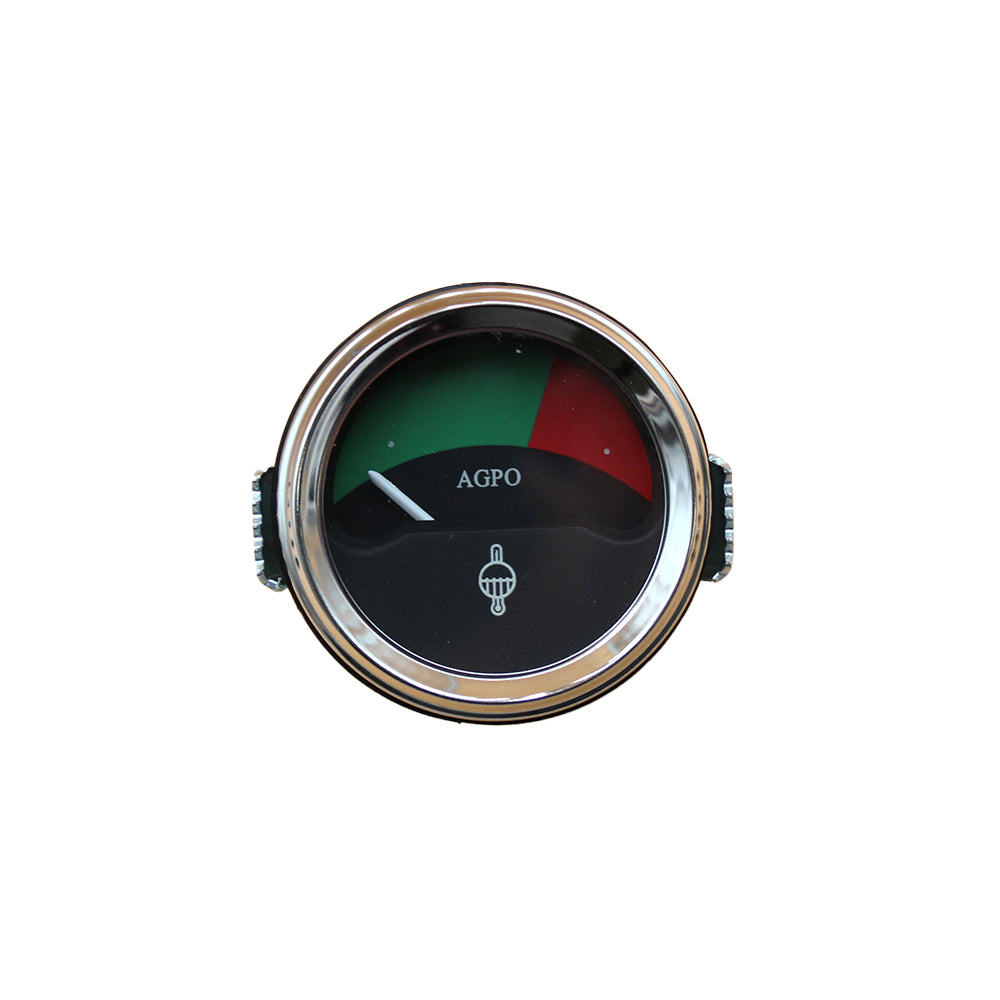

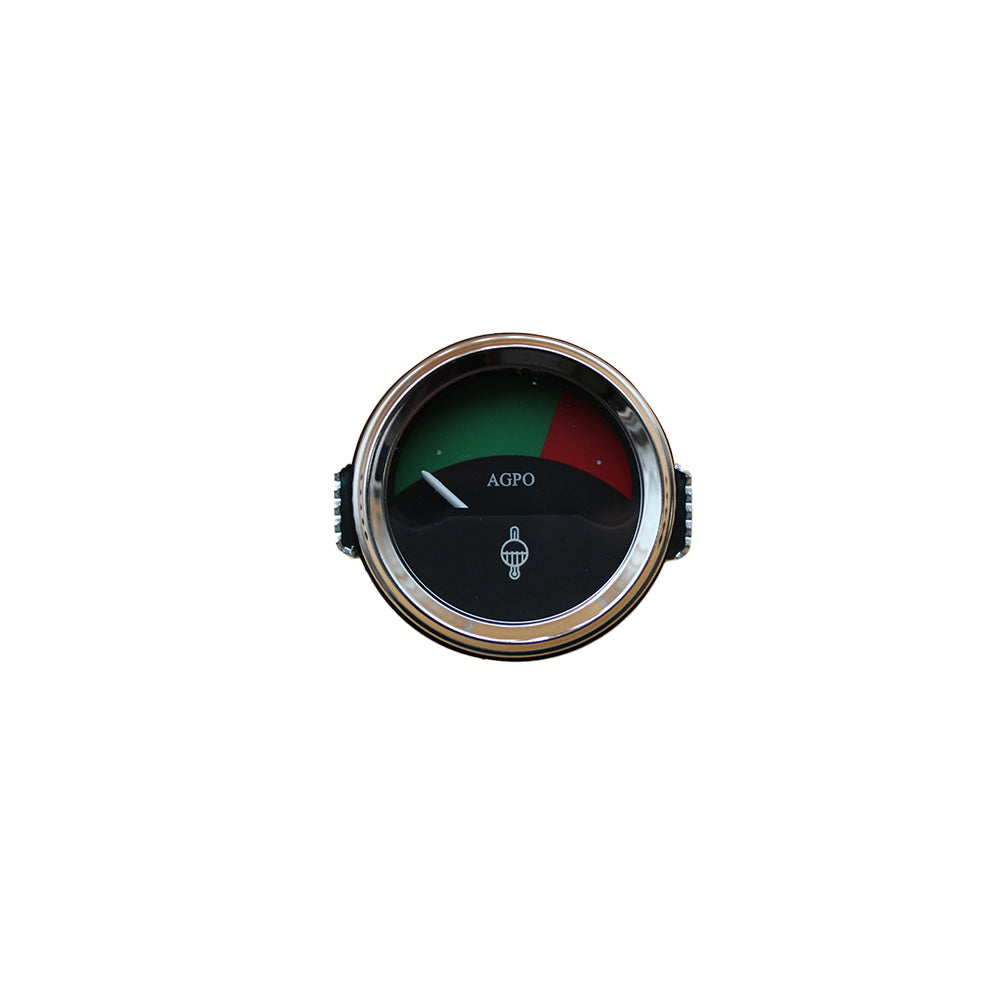

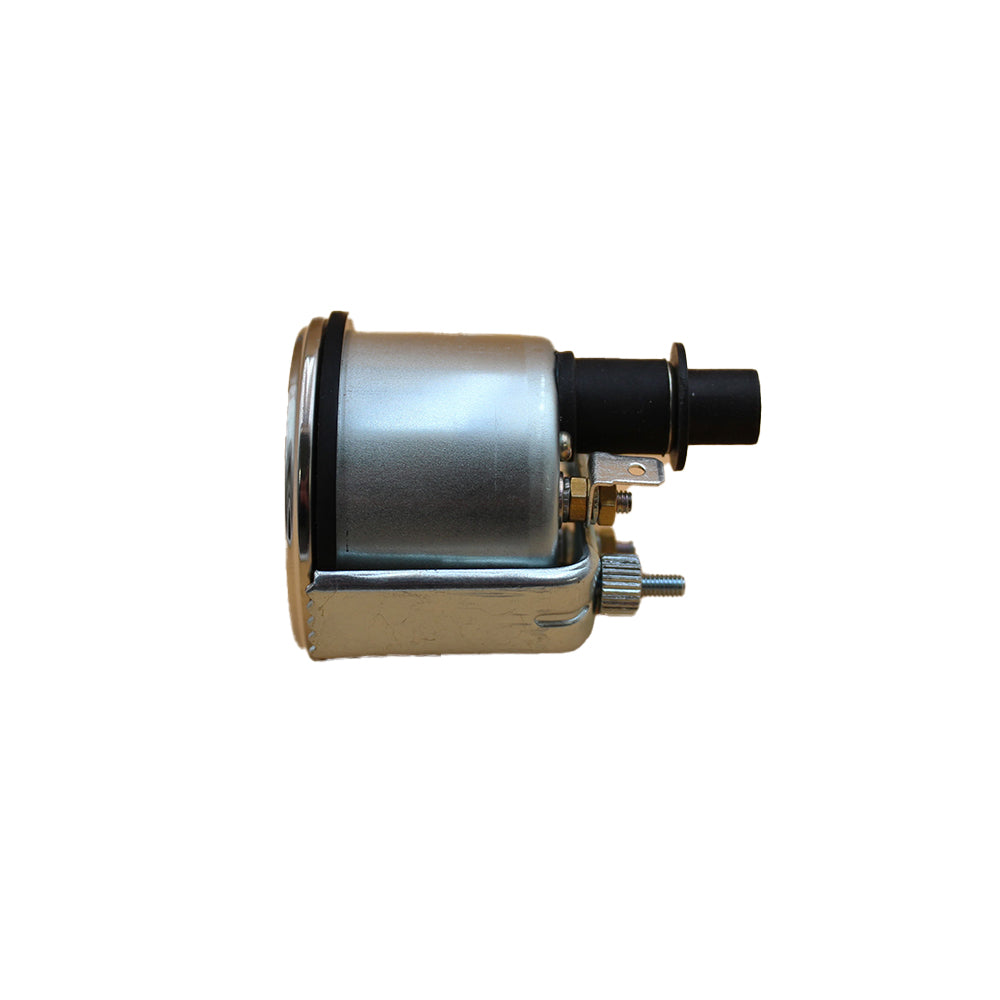

This electric coolant temperature gauge replaces OEM part number AL24526 and mounts in the instrument panel of a wide range of John Deere (JD) tractors and combines. It features a chrome bezel and installs via a two-post mounting bracket. Monitors engine coolant temperature to protect against overheating.

Specifications

Type: Electric Temperature Gauge
Bezel: Chrome
Mounting: Two-Post Mounting Bracket

Compatible Models

Note: Several tractor models require a minimum serial number of 268527 or higher. The 2040 fits serial numbers up to 349999 only. Verify your serial number before ordering.

John Deere Tractors: 820 (3-cyl.), 830 (3-cyl., SN: 268527 and up), 920, 930 (SN: 268527 and up), 1020, 1030 (SN: 268527 and up), 1120, 1130 (SN: 268527 and up), 1630 (SN: 268527 and up), 1830 (SN: 268527 and up), 2020, 2030 (SN: 268527 and up), 2035, 2040 (SN: 268527 - 349999), 2120, 2130 (SN: 268527 and up), 2135, 2240 (SN: 268527 and up), 2840 (SN: 268527 and up), 3030 (SN: 268527 and up), 3120, 3130 (SN: 268527 and up)

John Deere Compact Tractors: 1020, 1030, 1120, 1130, 1630

John Deere Combines: 925, 930, 932, 935, 942, 945, 952, 955, 965, 965H, 968H, 975, 975HY4, 985, 985HY4, 1032, 1042, 1052, 1055, 1065, 1068H, 1072, 1075, 1075H4, 1085, 1085H4, 1130, 1133, 1144, 1155, 1157, 1158, 1165, 1166, 1166H4, 1169, 1169H4, 1174, 1174H4, 1177, 1177H4, 1177HY4, 1185, 1188, 1188H4, 4425, 4435, 4435 Hydro

Replaces Part Number(s):

AL24526, AV103903, CV103903

Aftermarket Interchange Numbers

TP-AL24526 (TISCO)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1155, 1188, 4435, 968H, 1144, 1055, 975, 1085, 965H, 2040, 930, 2030, 985HY4, 2120, 1075, 4435 Hydro, 2130, 1169, 1177, 955, 1075H4, 1157, 1169H4, 4425, 1120, 1630, 1185, 935, 1072, 1174H4, 1133, 1174, 1166H4, 1177H4, 1188H4, 3030, 3135, 1068H, 2135, 1165, 1166, 2240, 975HY4, 1177HY4, 1042, 1030, 830, 3120, 985, 1158, 1020, 2840, 1830, 3130, 945, 1085H4, 2020, 925, 1130, 965, 1032, 820, 920, 952, 942, 2035, 1065, 932, 1052
