T204083 Cutting Edge, Outer Center Fits John Deere
T204083 Cutting Edge, Outer Center Fits John Deere
Regular price
£206.00 GBP
Regular price
Sale price
£206.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

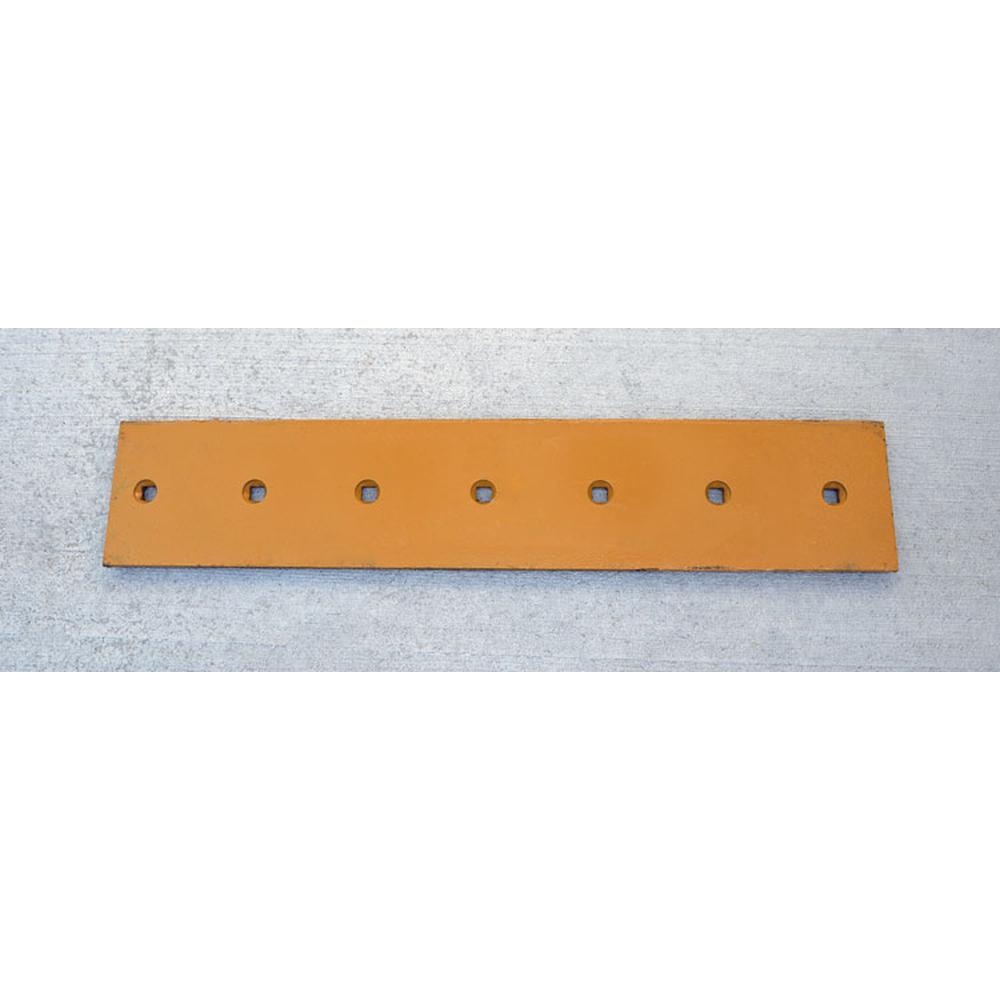

One New Aftermarket Replacement T204083 Cutting Edge, Outer Center for John Deere (JD) 750-Series Crawler Dozers
This outer center cutting edge mounts on the dozer blade of John Deere 750-Series crawler dozers equipped with the Power Angle Tilt (PAT) blade. It is a Dura-Max style double-beveled, heat-treated cutting edge designed for the 156-inch (3,962 mm) PAT blade. Two T204083 outer center segments are used per blade, flanking one inner center cutting edge (T204082). The edge bolts directly to the blade using standard plow bolts and hex nuts.
Specifications
- Width: 8 in. (203.2 mm)
- Thickness: 0.75 in. (19.05 mm)
- Length: 40.88 in. (1,038.25 mm)
- Hole Quantity: 7
- Hole Size: 0.851 in. (21.62 mm)
- Hole Spacing: 6 in. center to center
- End to First Hole: 1.937 in.
- Blade Style: Double Bevel
- Finish: Heat Treated
- Weight: approx. 63 lbs.
- Hardware Required: (7) 3/4 in. x 2-1/2 in. plow bolts and (7) 3/4 in. hex nuts (sold separately)
Compatible Models
John Deere 750 Series Crawler Dozers (156-in. PAT Blade): 750J, 750K, 750L
Note: Two (2) T204083 outer center cutting edges are required per 156-in. PAT blade. Confirm blade length and style before ordering.
Replaces Part Number(s):
T204083
New aftermarket replacement part - not remanufactured, not used.
