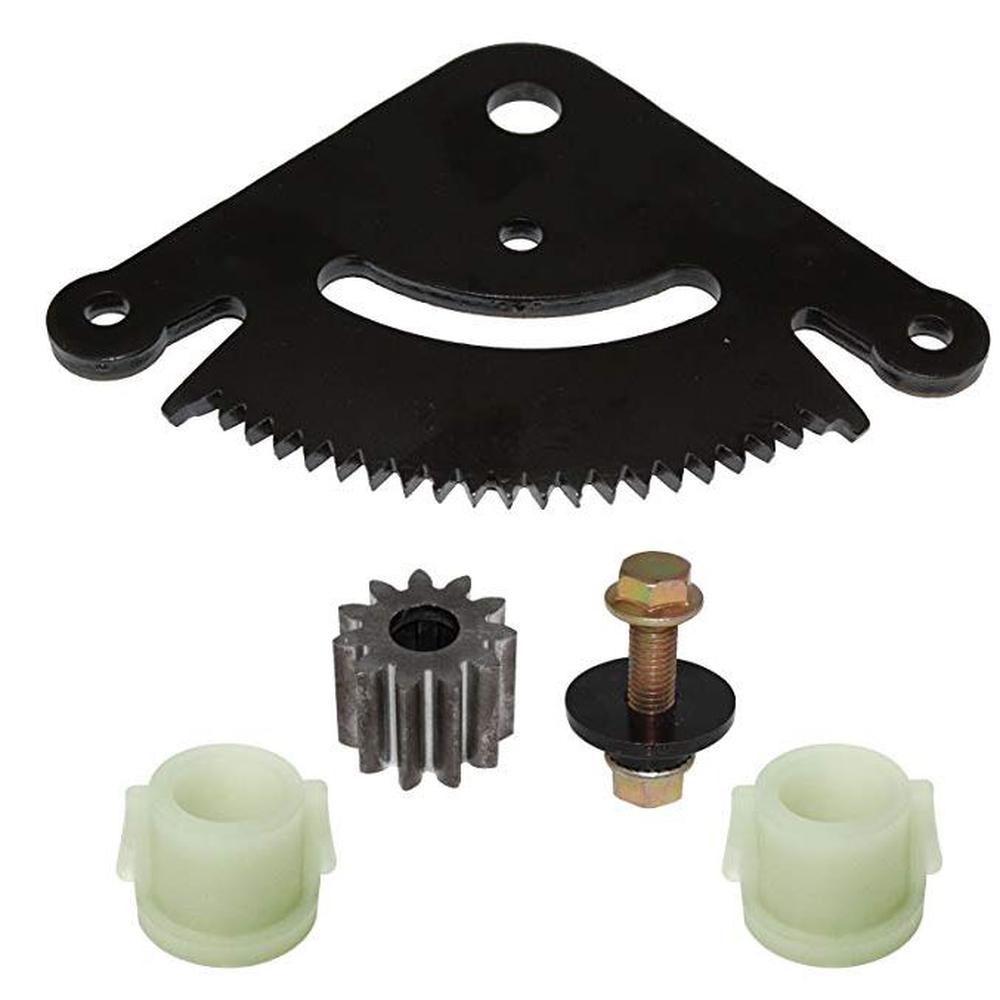

Steering Sector Pinion Gear w/Bushings Fits John Deere 102 105 115 125 135 145

Models This Part Fits:

LA115, LA115 LA120 LA125, LA120, LA125, LA130 LA13, LA130 LA135 LA140 LA145

Additional Information:

Kit Contains: (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (2) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400

Reference Numbers:

14M7400, GX20053, GX21924BLE, UC13360, 19M7835, GX21994

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Other Steering Components
View More: Other Steering Components Replacement Parts
