Steering Sector & Gear Kit Fits John Deere Fits JD LA100 LA105 LA110 LA120 LA125

Name: Steering Sector & Gear Kit Fits John Deere Fits JD LA100 LA105 LA110 LA120 LA125
SKU: AY-FRN30-0016_2
Price: 41.0 USD
Availability: OutOfStock

Steering Sector & Gear Kit Fits John Deere Fits JD LA100 LA105 LA110 LA120 LA125

£41.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Steering Sector & Gear Kit Fits John Deere Tractor Models: LA100, LA105, LA110, LA120, LA125, LA130, LA135, LA140, LA145, LA150, LA155, LA165, LA175, 102, 115, 125, 135, 145, 155C, 190C, 105, X105, X115, X125, X130R, X135, X145, X165, X155R, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170.

Will Also Fits John Deere Lawn Tractors: 92H, 107H, 107S, S240.

Tech Info:

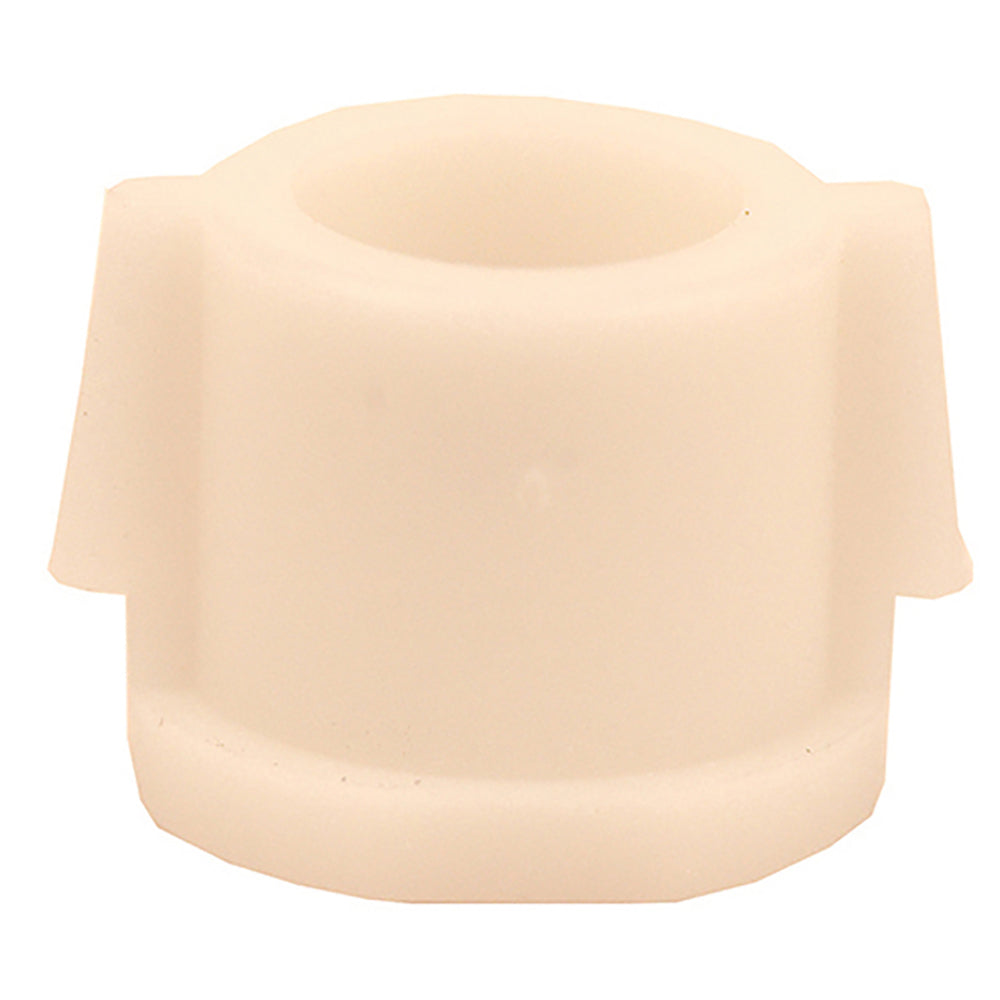

Steering Shaft Bushing-

- Inside Diameter: .625"

- Outside Diameter: .900"

- Height: .870"

- Flange OD: 1"

Please Note: Hardware Kit to Mount Steering Sector Gear.

Replaces Part Number: FRN30-SECTOR, GX21994, 20225, M153513KIT, GX20053, GX25785.

Models This Part Fits:

G110, L100, L105, L107, L108, LA100, LA105, LA110, LA120, LA125, LA130, LA135

Additional Information:

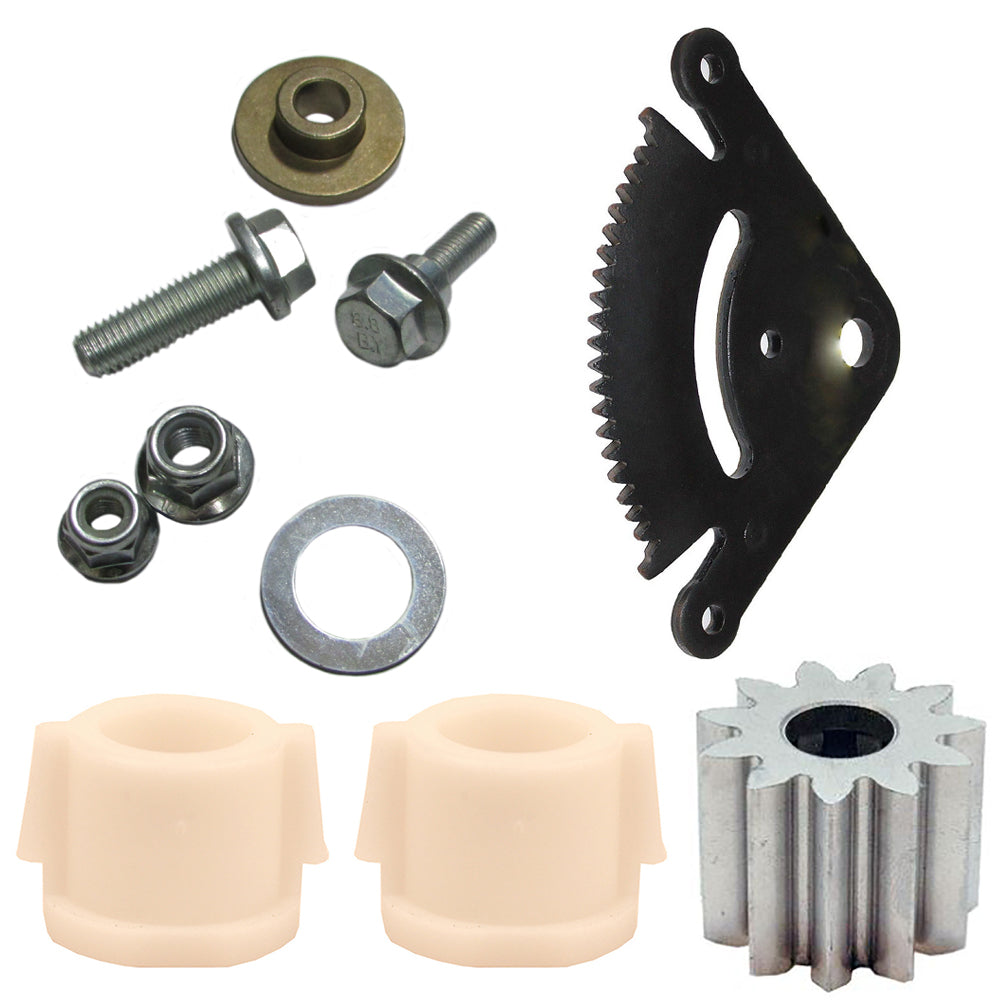

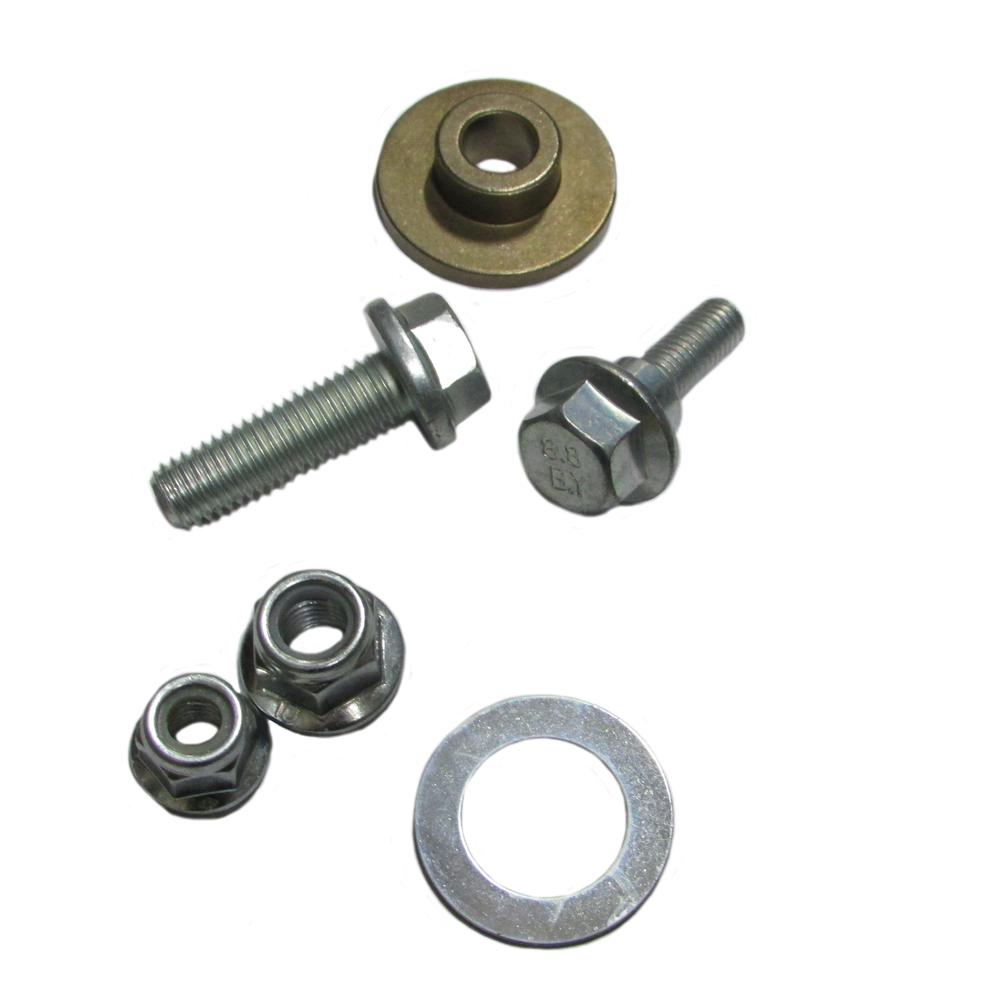

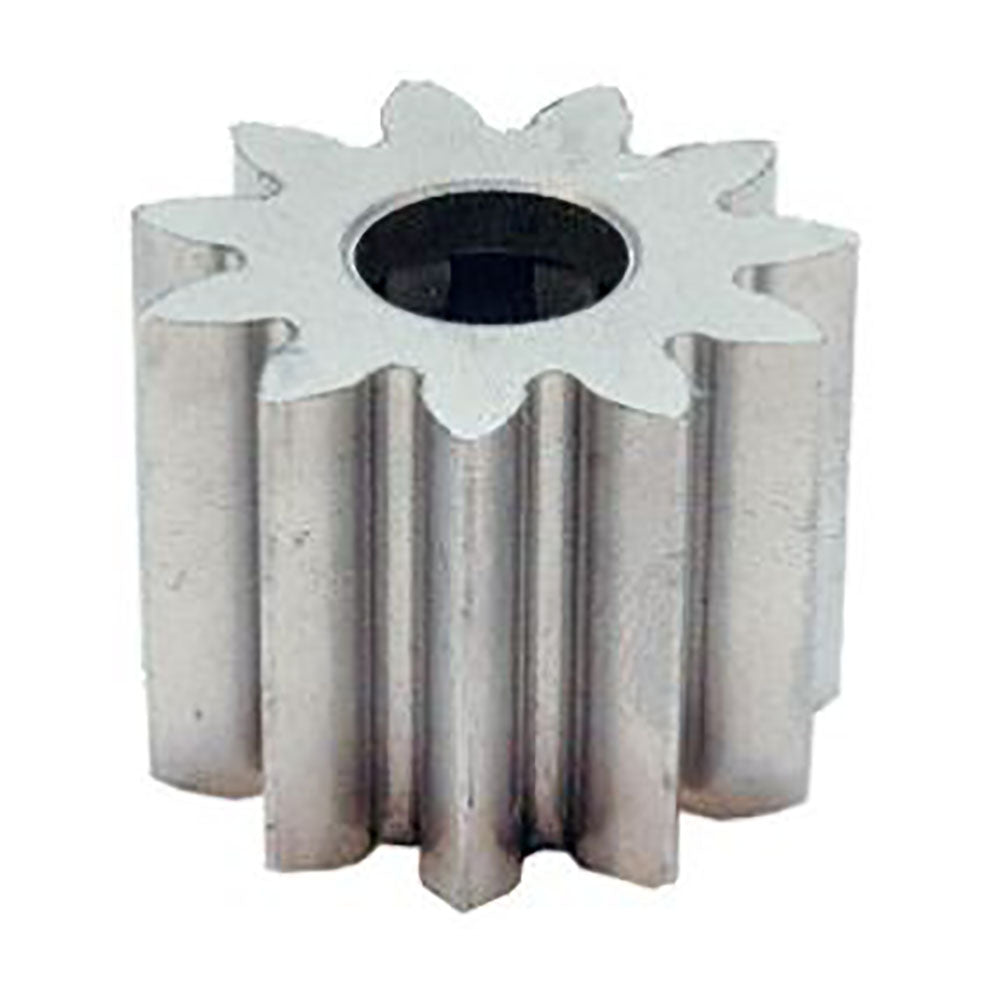

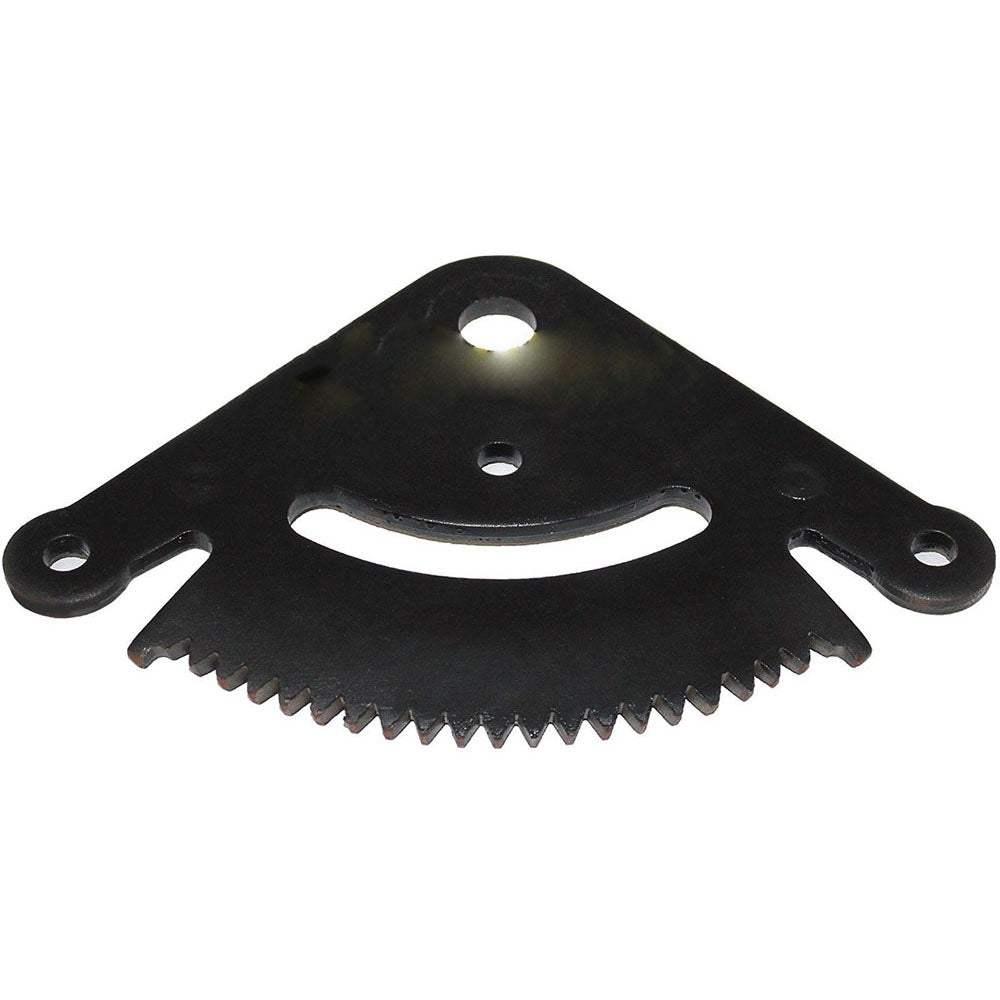

Kit Contains: (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (1) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400 (1) Hexagonal Lock Nut - M10 10mm x 1.25mm Pitch Width Across Flats: 17mm Wrench Height: 7mm Replaces Part Number(s): 14M7455 (1) Locking Flange Nut Thread Size: 8mm Pitch: NC Thread Style: Right Hand Replaces Part Number(s): 14M7396 (1) Shoulder Bolt Thread Size: 8mm Length: 1.1” Replaces Part Number(s): M153513 (1) Flat Washer ID: .781" OD: 1.25" Thickness: .036" Material: Steel Replaces Part Number(s): 24M7053 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994
