Steering Sector Drag Link Kit Fits John Deere LA100 LA105 LA110 LA115 LA120

Name: Steering Sector Drag Link Kit Fits John Deere LA100 LA105 LA110 LA115 LA120
SKU: AY-FRN30-0033
Price: 95.0 USD
Availability: InStock

Steering Sector Drag Link Kit Fits John Deere LA100 LA105 LA110 LA115 LA120

£95.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Steering Repair Kit

Fits John Deere Models:
LA100
LA105 1GXD110E BEFOR SERIAL #700000
LA110 1GXD110E BEFOR SERIAL #700000
LA115 1GXD110E BEFOR SERIAL #700000
LA120 1GXD110E BEFOR SERIAL #700000
LA130 1GXD110E BEFOR SERIAL #700000

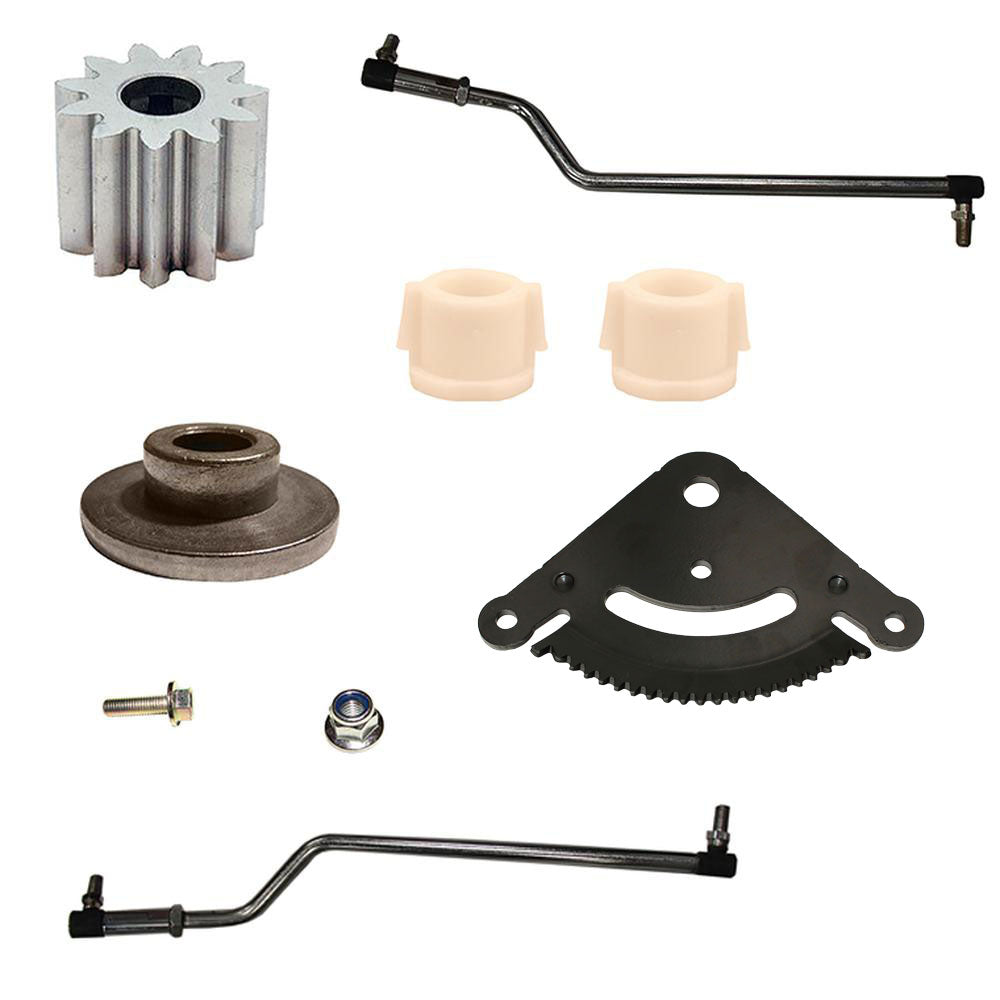

Kit Contains:

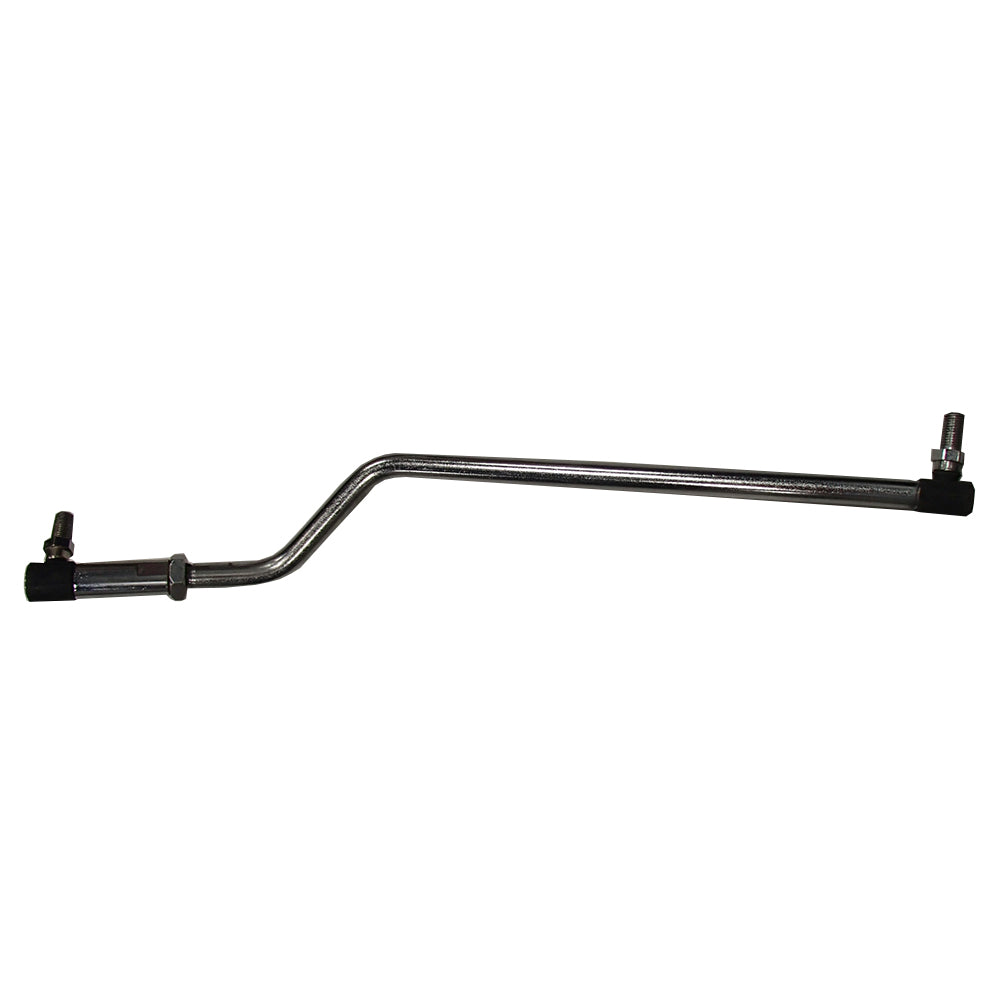

1-Left Drag Link

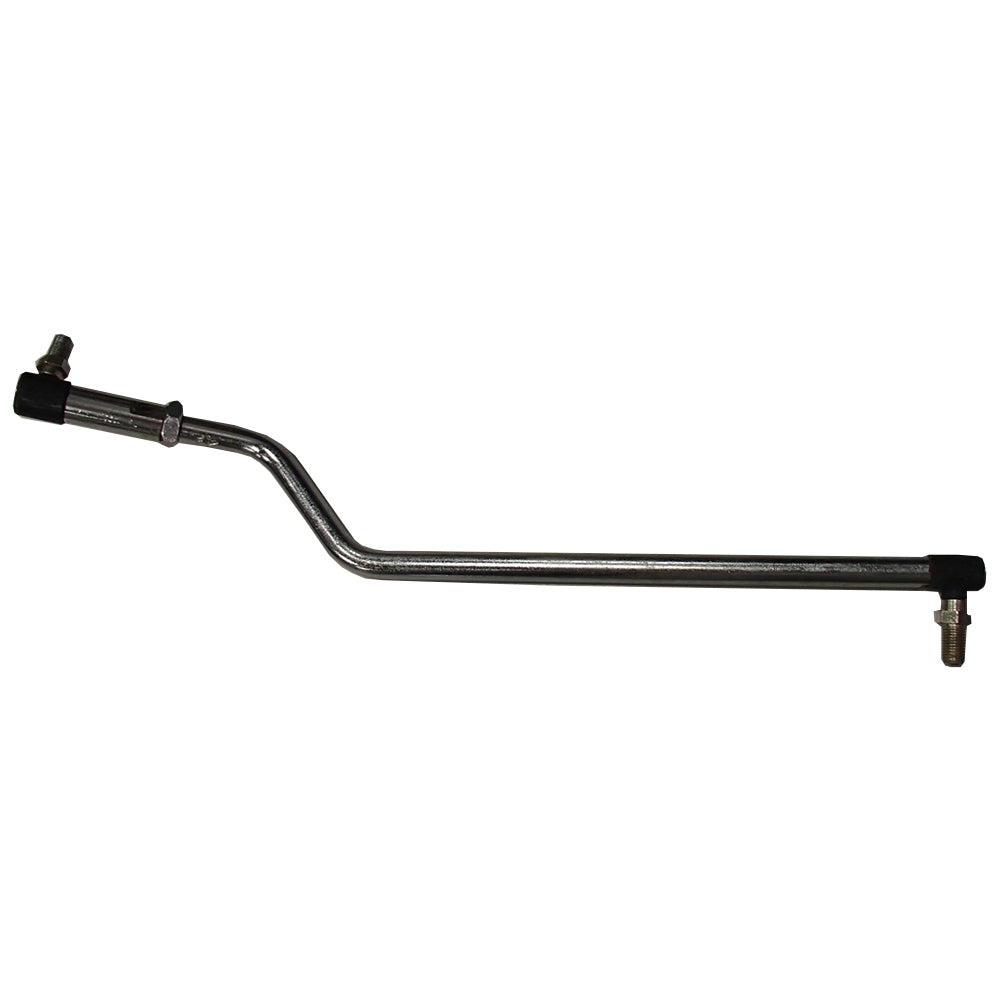

1-Right Drag Link

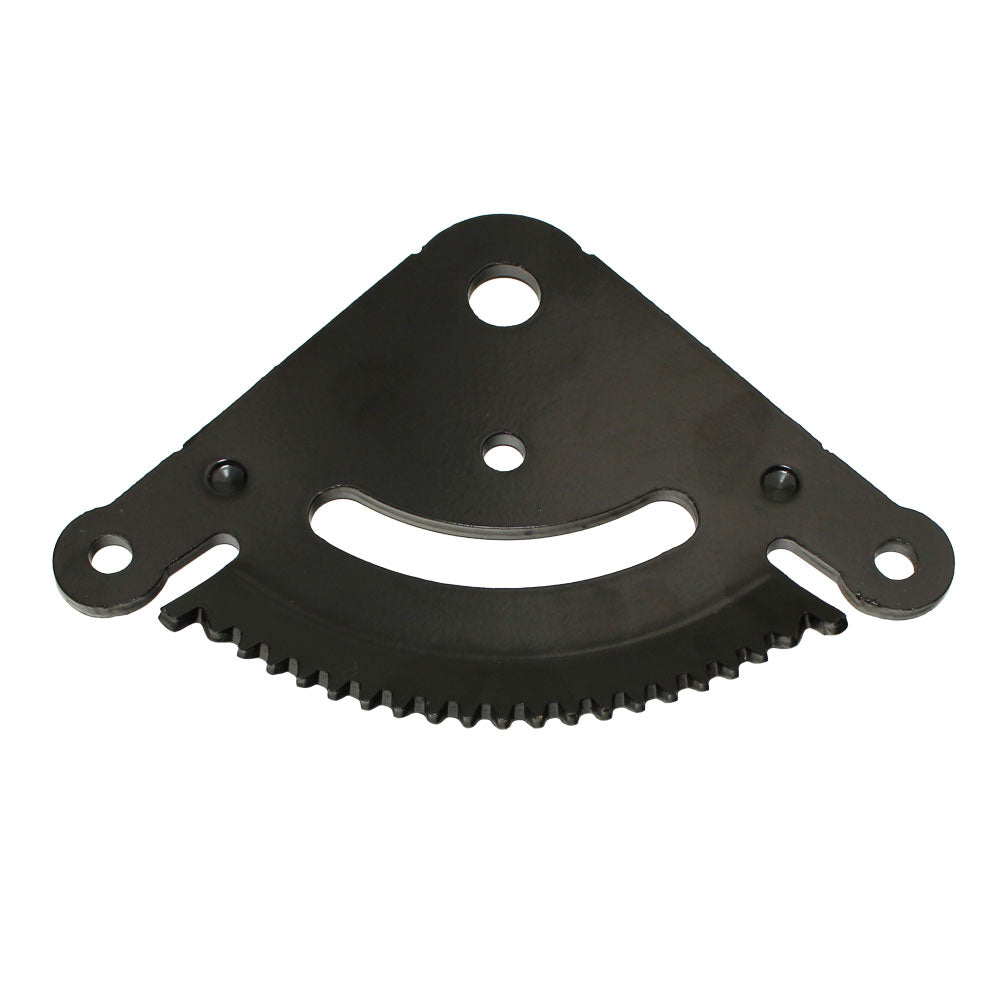

1-Sector Gear

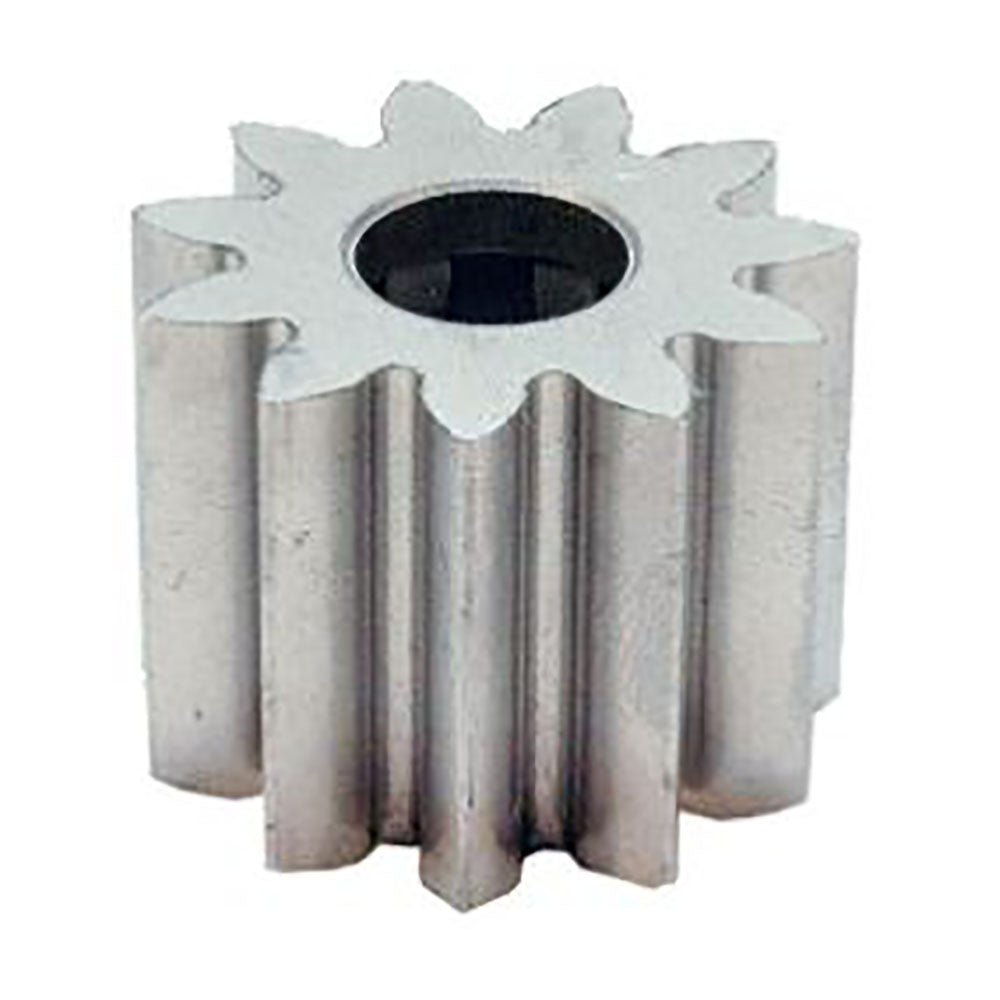

1-Pinion Gear

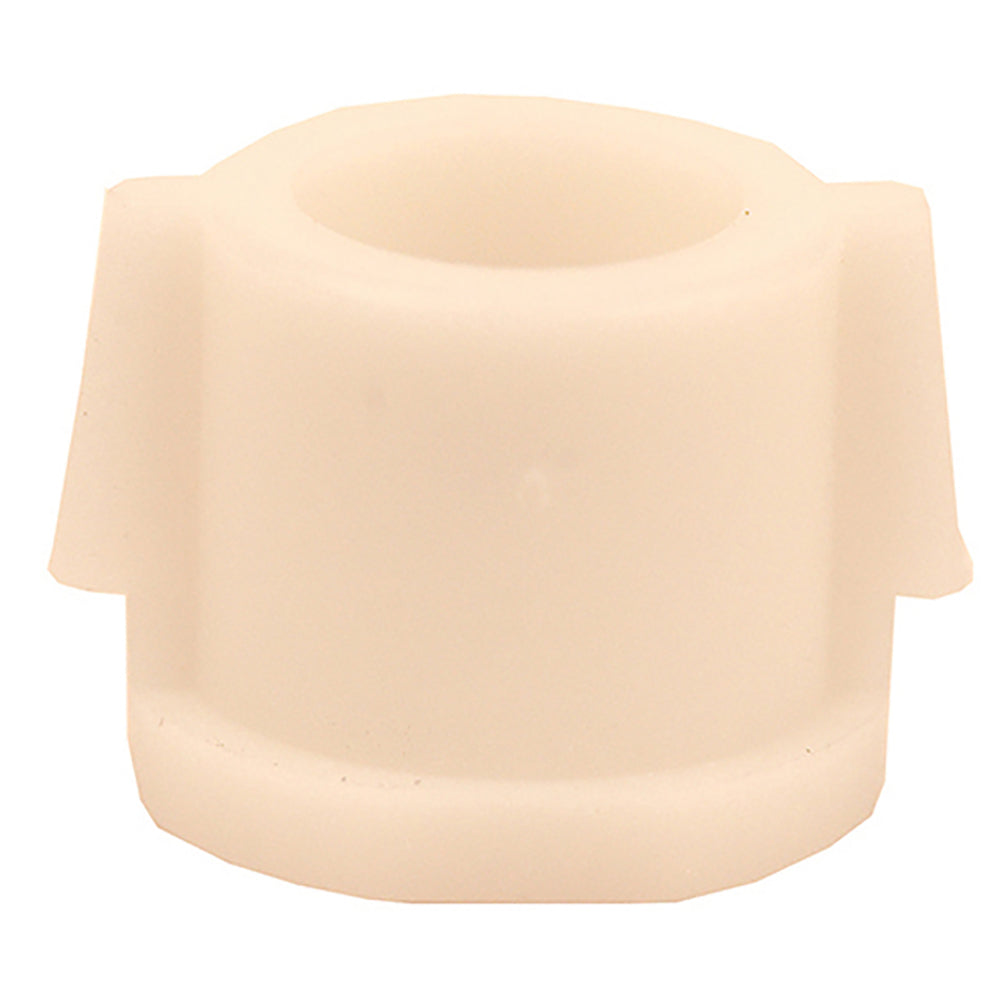

2-Steering Shaft Bushings

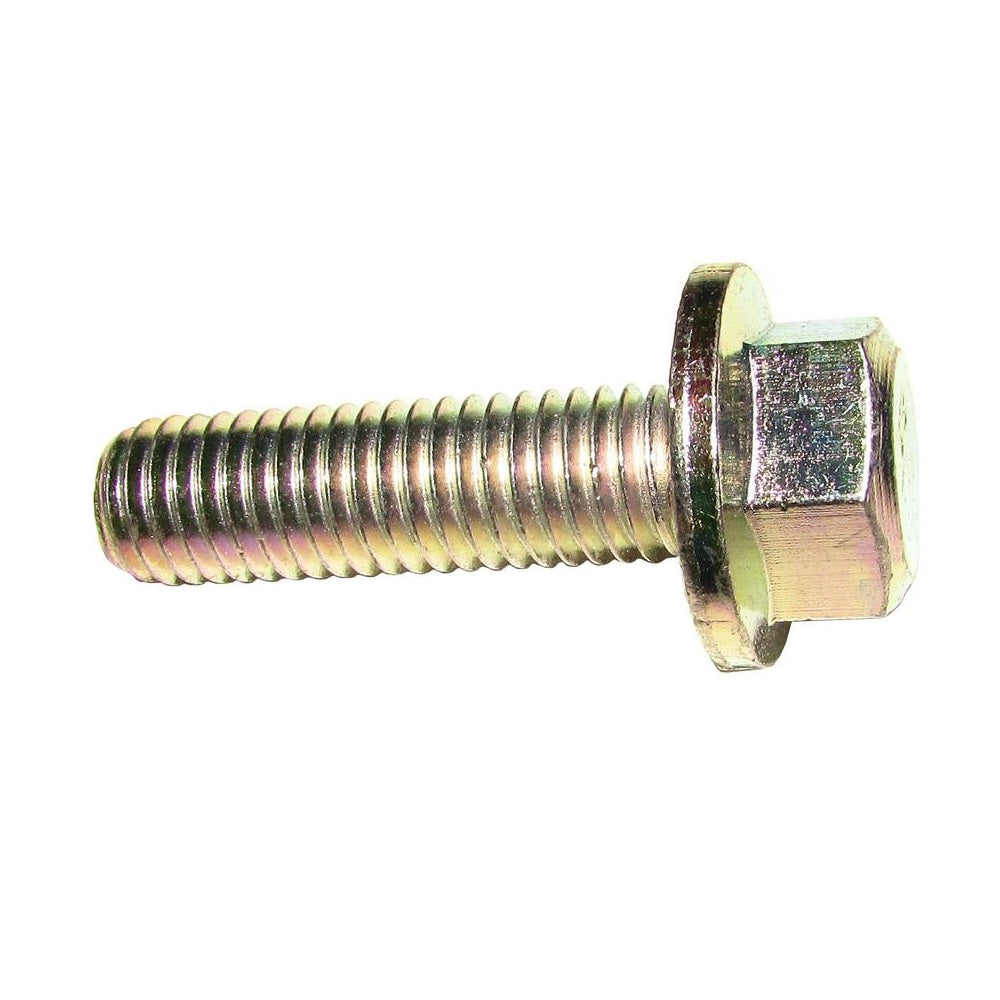

1-Bolt

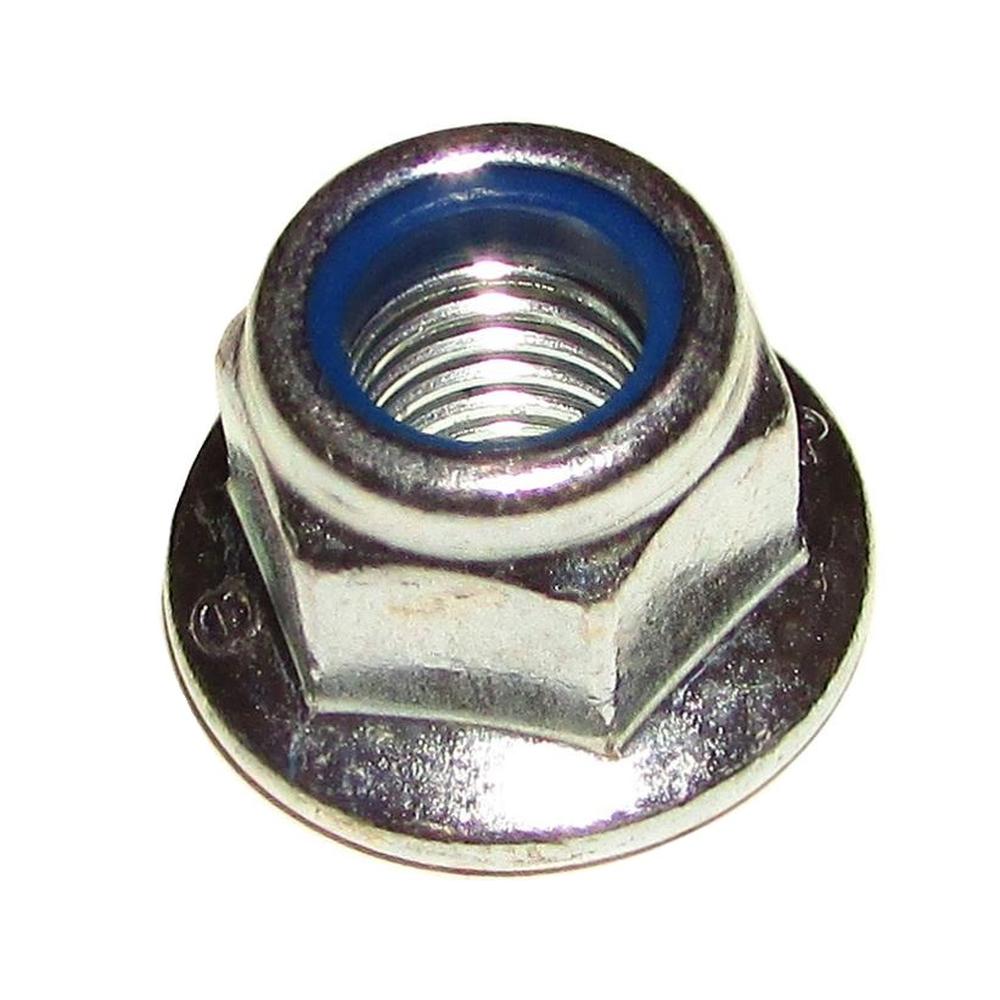

1-Locknut

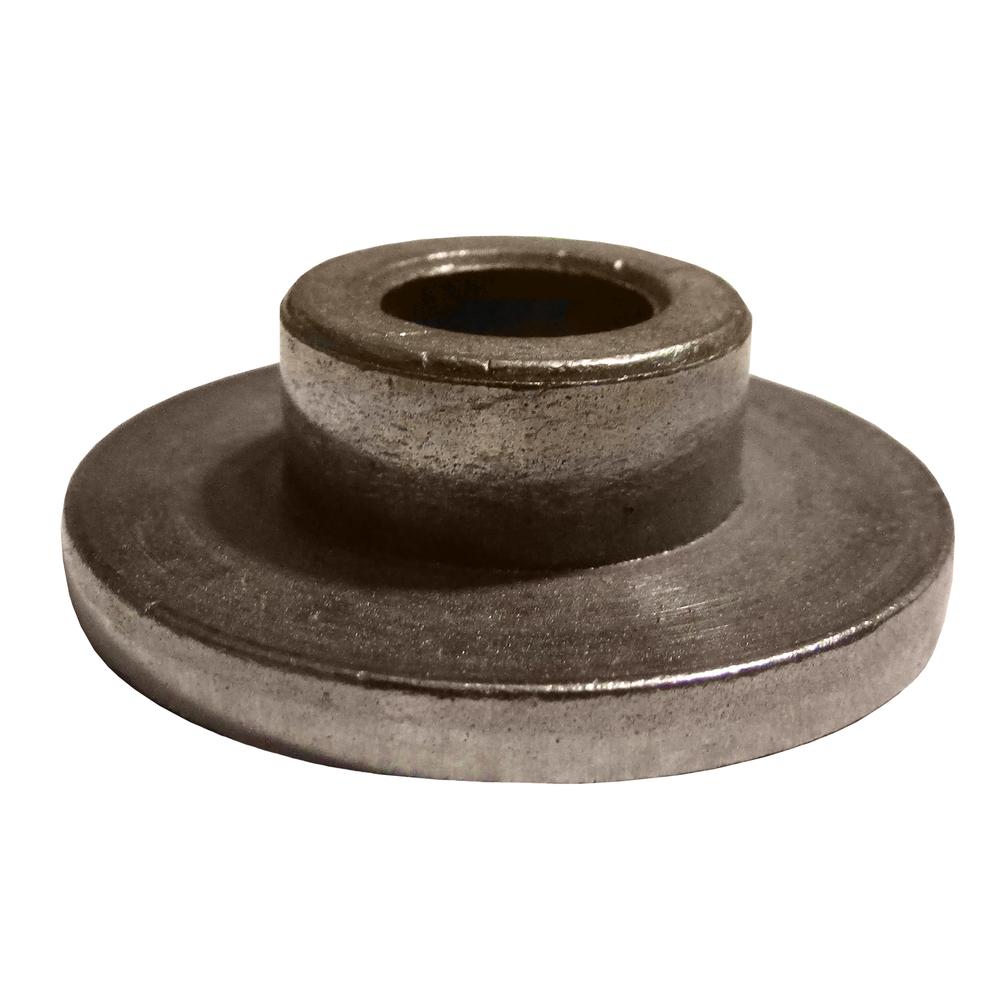

1-Spacer Bushing

Models This Part Fits:

190C, D105, LA105, D160, LA115, 115, D130, D120, D170, GX21924BLE, GX20053, X125, LA135, LA120, D100, 125, 145, 102, LA145, 135, D140, X165, 155C, LA100, 105, LA140, D150, X145, X130R, D125, LA165, LA130, D110, LA175, GX21994, D155, GY21250, LA110, X155R, X110, LA150

Additional Information:

(1) Left Hand Adjustable Draglink Left Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY20770, GY21250 (1) Right Hand Adjustable Draglink Right Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY21251, GY20771 (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400
