Steering Kit Fits John Deere Tractor LA100 LA105 LA110 LA120 LA125 LA130 LA135

Name: Steering Kit Fits John Deere Tractor LA100 LA105 LA110 LA120 LA125 LA130 LA135
SKU: AY-FRN30-0014_2
Price: 100.0 USD
Availability: OutOfStock

Steering Kit Fits John Deere Tractor LA100 LA105 LA110 LA120 LA125 LA130 LA135

£100.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

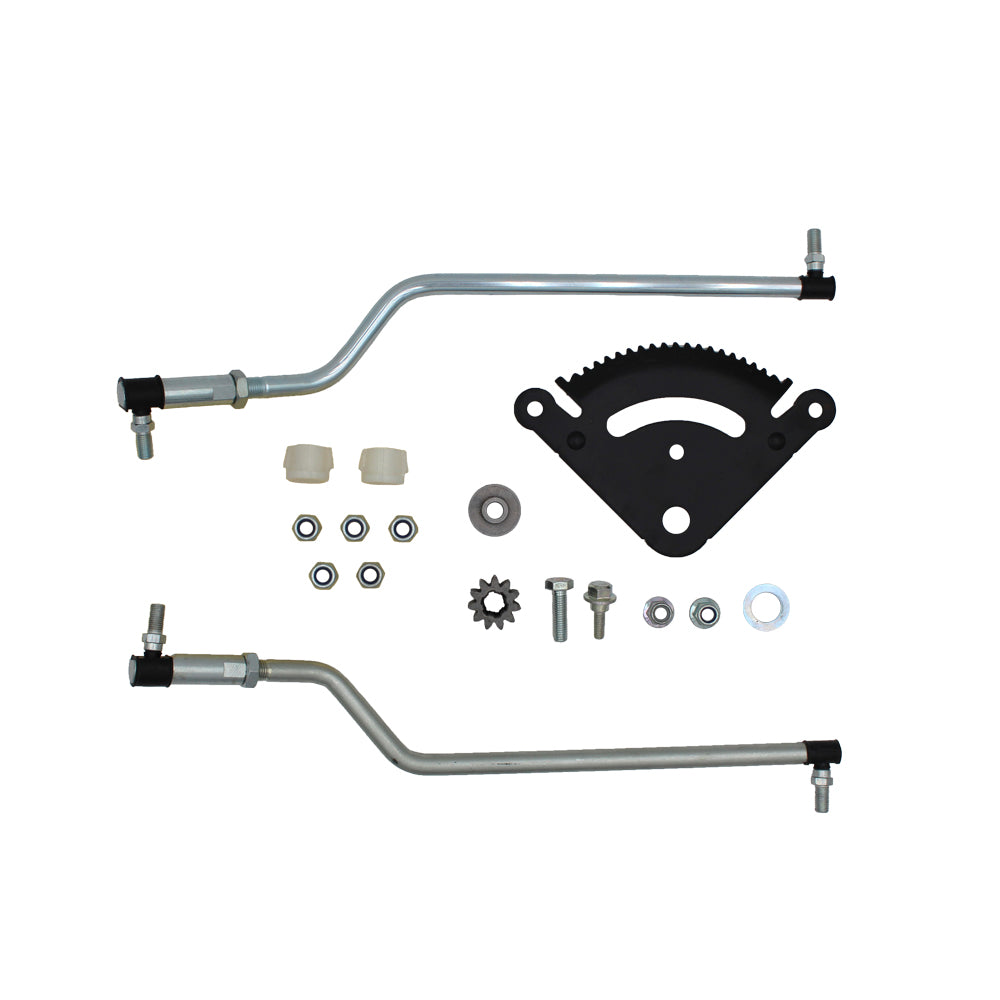

One New Aftermarket Replacement Steering Sector with Drag Link Kit

Fits John Deere Lawn Tractor Models:
LA100, LA105, LA110, LA120, LA125, LA130, LA135

Kit Includes:
(1)- Steering Sector gear
(1)- RH Drag Link
(1)- LH Drag Link
(1)- Pinion Gear
(1)- Steering Gear Hardware
(2)- Steering Shaft Bushings
(4)- Lock Nuts, (10mm x 1.25mm Pitch)

Replaces Part Numbers:
GX25785, GY20771, GY21251, 13340, GY20770, GY21250, GX20053, GX20053, 14M7396, M153513, 20225, GX21994, GX21994, 14M7455.

Models This Part Fits:

LA150, LA140, D170, 145, D105, 115, D100, X135R, LA115, 125, 107S, 102, D130, D110, D160, 155C, D120, X125, 92H, LA100, LA125, LA110, D155, LA175, X155R, X105, 105, 107H, LA120, S240, X130R, LA105, D150, LA130, X165, D140, 190C, X145, 135, LA165, D125, X115R

Additional Information:

(1) Left Hand Adjustable Draglink Left Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY20770, GY21250 (1) Right Hand Adjustable Draglink Right Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY21251, GY20771 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Flat Washer ID: .781" OD: 1.25" Thickness: .036" Material: Steel Replaces Part Number(s): 24M7053 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400 (5) Hexagonal Lock Nut - M10 10mm x 1.25mm Pitch Width Across Flats: 17mm Wrench Height: 7mm Replaces Part Number(s): 14M7455 (1) Locking Flange Nut Thread Size: 8mm Pitch: NC Thread Style: Right Hand Replaces Part Number(s): 14M7396 (1) Shoulder Bolt Thread Size: 8mm Length: 1.1” Replaces Part Number(s): M153513
