808/00246-SET - Steering Assembly

808/00246-SET - Steering Assembly

£50.00 GBP
£50.00 GBP
Sale Sold out
Shipping calculated at checkout.

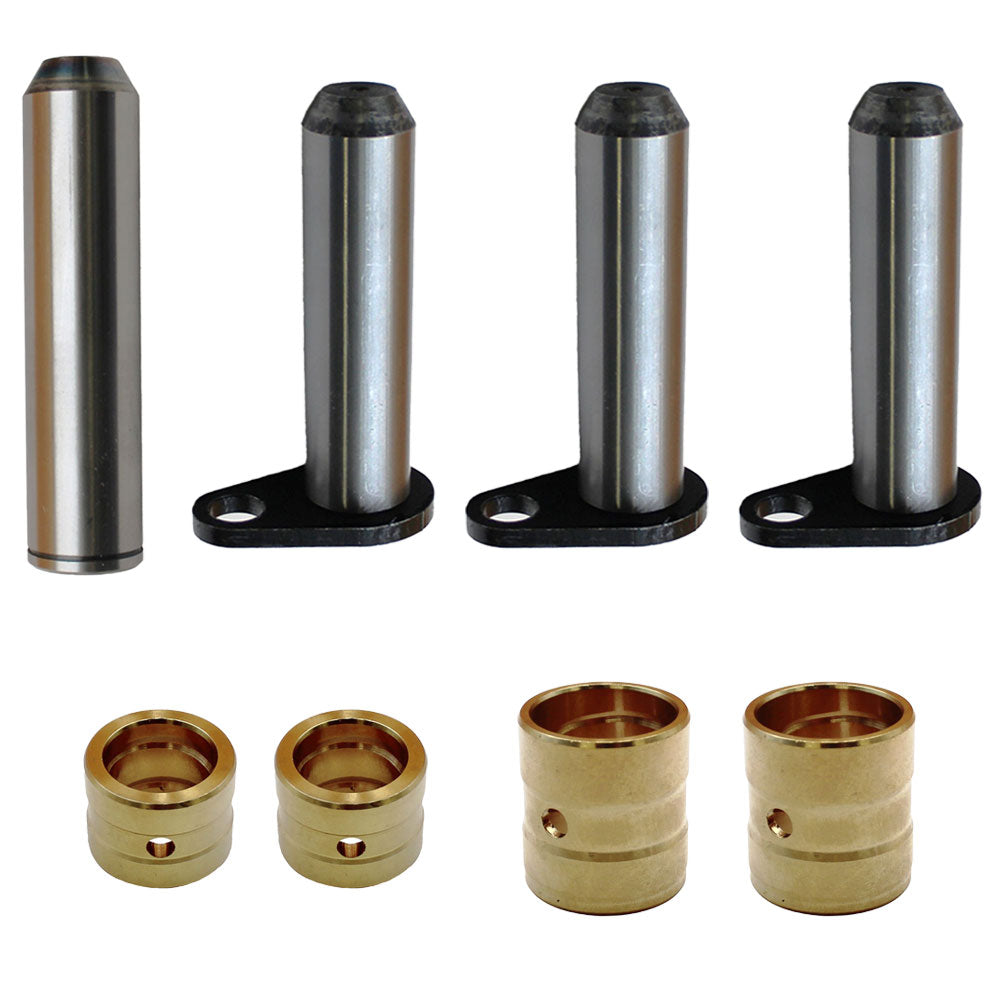

One New Aftermarket Steering Assembly

Tech Info:
 -Kit Contains:
 -(2) Bushings
 -Length: 1.06" (27 mm)
 -O.D.: 1.38" (35 mm)
 -I.D.: 0.98" (25 mm)
 -Replaces Part Number: 808/00246, 808-00246, 80800246
 -
 -(2) Bushings
 -Length: 1.30" (33 mm)
 -O/D: 1.18" (30 mm)
 -I/D: 0.98" (25 mm)
 -Replaces Part Number: 808/00253, 808-00253, 80800253
 -
 -(1) Pivot Pin
 -Replaces Part Number(s): 811/70018, 811-70018, 81170018, 811/70012, 811-70012, 81170012
 -
 -(3) Steering Joint Pivot Pins
 -Total Length: 4.10" (104.14 mm)
 -Biggest Finished Diameter: 1.00" (25.40 mm)
 -Length of the Biggest Finished Diameter: 3.70" (93.98 mm)
 -Number of Holes in the Lip or Head: 1
 -Biggest Diameter of the Hole in the Lip or Head: 0.50" (12.70 mm)
 -Center Distance of the Holes in the Lip or Head: 1.20" (30.48 mm)
 -Replaces Part Number: 911/22800, 911-22800, 91122800

Made to Fits JCB:
 Backhoe Models: 3C, 3CX, 3D, 3DX, 4C, 4CN, 4CX, 214, 215, 216, 217 Series Models: 1400B, 1550B, 1600B, 1700B
 Replaces Part Number(s): 808/00246, 808-00246, 80800246, 808/00253, 808-00253, 80800253, 811/70018, 811-70018, 81170018, 811/70012, 811-70012, 81170012, 911/22800, 911-22800, 91122800

Models This Part Fits:

Steering Axle Assemblies

Additional Information:

Kit Contains: (2) Bushings Length: 1.06" (27 mm) O.D.: 1.38" (35 mm) I.D.: 0.98" (25 mm) Replaces Part Number: 808/00246, 808-00246, 80800246 (2) Bushings Length: 1.30" (33 mm) O/D: 1.18" (30 mm) I/D: 0.98" (25 mm) Replaces Part Number: 808/00253, 808-00253, 80800253 (1) Pivot Pin Replaces Part Number(s): 811/70018, 811-70018, 81170018, 811/70012, 811-70012, 81170012 (3) Steering Joint Pivot Pins Total Length: 4.10" (104.14 mm) Biggest Finished Diameter: 1.00" (25.40 mm) Length of the Biggest Finished Diameter: 3.70" (93.98 mm) Number of Holes in the Lip or Head: 1 Biggest Diameter of the Hole in the Lip or Head: 0.50" (12.70 mm) Center Distance of the Holes in the Lip or Head: 1.20" (30.48 mm) Replaces Part Number: 911/22800, 911-22800, 91122800

Reference Numbers:

808/00246, 808-00246, 80800246, 808/00253, 808-00253, 80800253, 811/70018, 811-70018, 81170018, 811/70012, 811-70012, 81170012, 911/22800, 911-22800, 91122800
