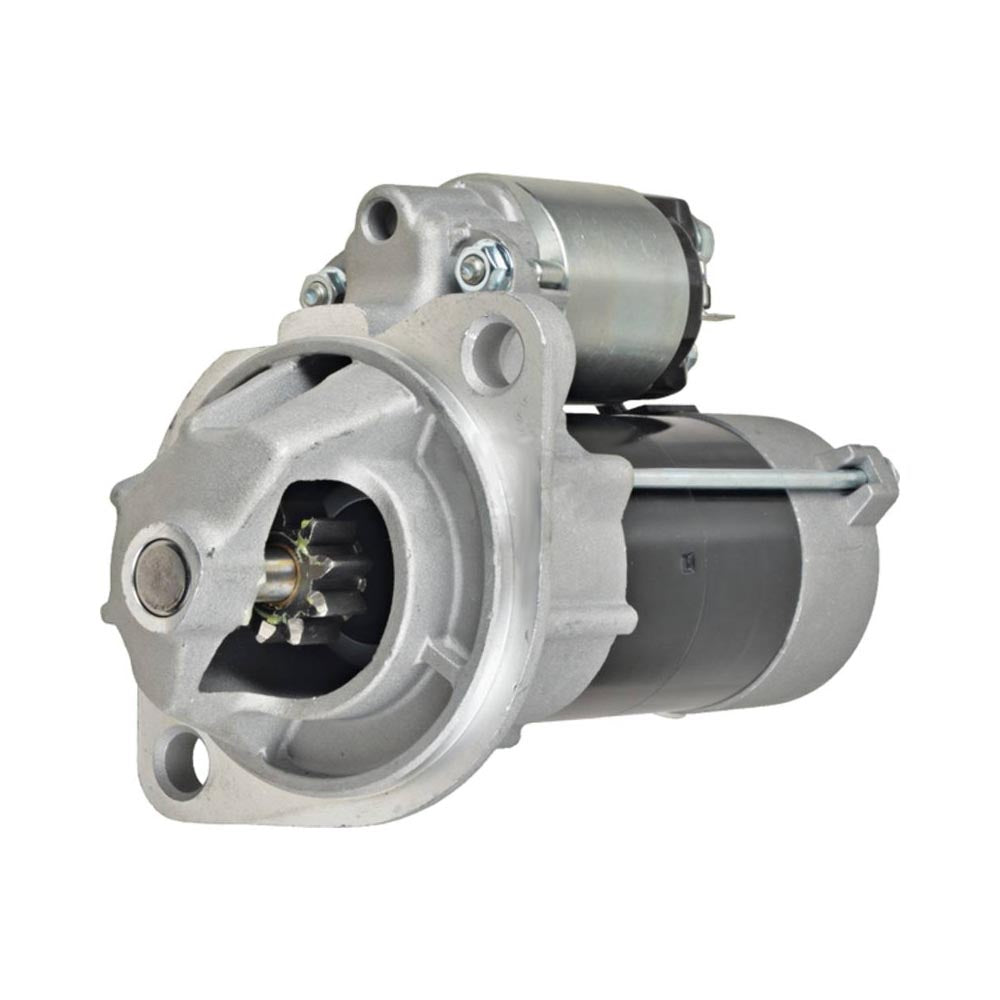

STARTER for YANMAR MARINE ENGINE 2TN66E 3TNA72 3TNE74 228000-5750
STARTER for YANMAR MARINE ENGINE 2TN66E 3TNA72 3TNE74 228000-5750
Couldn't load pickup availability
One New Aftermarket Replacement Starter for Yanmar (Yanmar Marine) Diesel Engines 2TN66E, 3TNA72, 3TNE74
This aftermarket replacement starter is a direct-Fits Denso PLGR-type unit for Yanmar marine diesel engines. It replaces the original Fits Denso-style permanent magnet starter on 2TN66E, 3TNA72, and 3TNE74 engine applications spanning the 1995-1998 production years.
Specifications
- Voltage: 12V
- Power: 0.9 kW
- Rotation: Clockwise (CW)
- Starter Type: PLGR (Permanent Magnet, Gear Reduction)
- Number of Teeth: 9
- Gear OD: 1.138 in / 28.9 mm
- Mounting Ear Holes: 13.0 mm Unthreaded
- Battery Stud: M8-1.25 Threaded
- Switch Terminal: Blade type
Compatible Models
Yanmar Marine Engines: 2TN66E, 3TNA72 (1995-1998), 3TNE74 (1995-1998)
Replaces Part Number(s):
91-29-5602, S114-624, S114-655, S114-655A, 9722809-575, TG428080-5751, 11925-77010, 119631-77010, 104-264, 104-415, 190-036, 228000-5750, LRS01561, SHI0144, SND0746, 19749, 19751
Aftermarket Interchange Numbers
Fits Denso: 228000-5750, 9722809-575 | Hitachi: S114-624, S114-655, S114-655A | Lester: 19749, 19751 | Arrowhead: SND0746 | Yanmar OEM: 119255-77010, 119631-77011 | Quicksilver: 8M6007441
New aftermarket replacement part - not remanufactured, not used.
