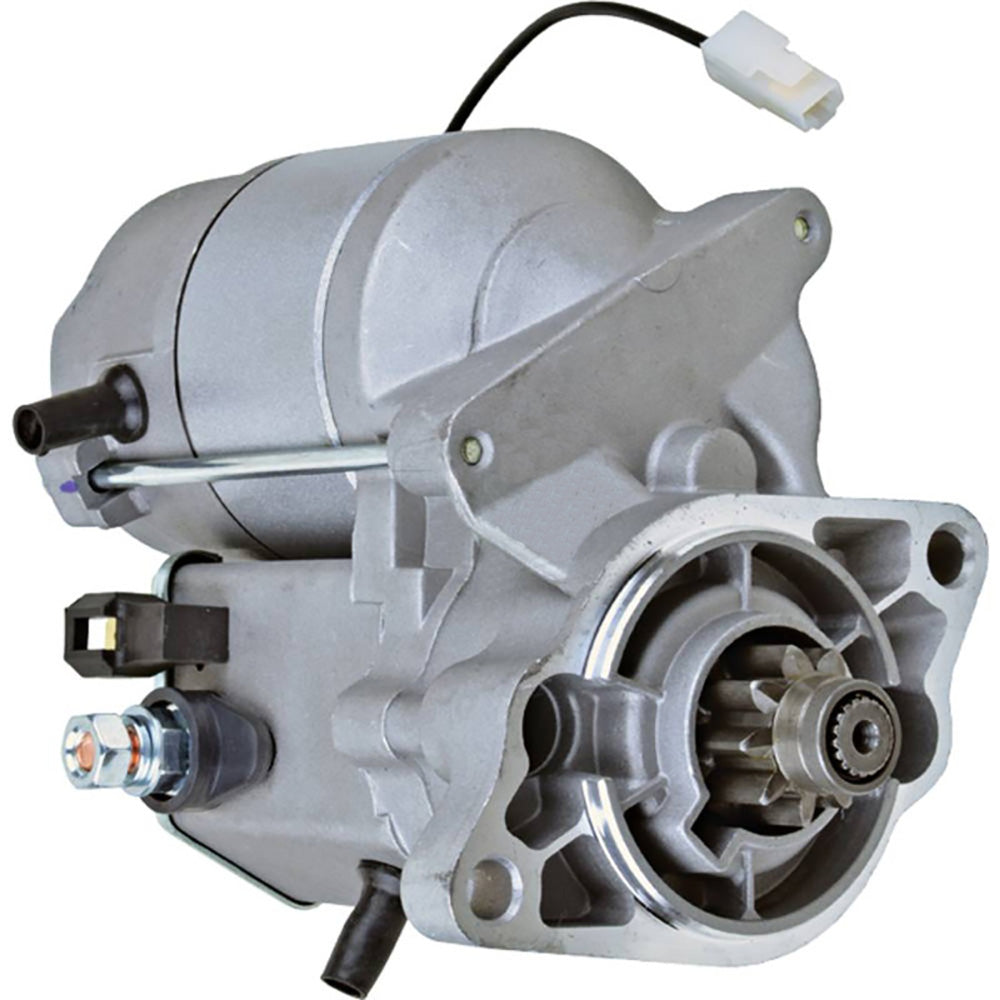

Starter Fits Kubota D1005 Engine Steiner 230 All 16612-63011; 410-52078
Starter Fits Kubota D1005 Engine Steiner 230 All 16612-63011; 410-52078
Couldn't load pickup availability
One New Aftermarket Replacement Starter Fits Kubota D1005 Engine, Steiner 230, Fits Grasshopper 928D, and Gravely PM460
This 12-volt OSGR starter replaces the Fits Denso-style OEM unit on Fits Kubota D1005 and D905B diesel engines as used in Steiner 230 tractors, Fits Grasshopper 928D zero-turn mowers, and Gravely PM460 lawn tractors. It also fits a wide range of Fits Kubota-powered Fits Toro, Fits Bobcat, and Fits Case IH equipment. Clockwise rotation, 9-tooth pinion drive.
Specifications
- Voltage: 12V
- Power: 1.0 kW
- Rotation: Clockwise (CW)
- Starter Type: OSGR (Off-Set Gear Reduction)
- Teeth: 9
- Length: 7-3/8 in.
- OE Manufacturer Style: Fits Denso/Nippondenso
Compatible Models
Fits Kubota: D1005 Engine (1988-On), D905B Engine (1992-On), F2880, F2880E, F3680
Steiner: 230 (Fits Kubota 28 HP)
Fits Grasshopper: 928D (Fits Kubota 28 HP)
Gravely: PM460
Fits Toro: Groundmaster 228D, Groundmaster 328D, Groundmaster 3500-D, Groundmaster 7200, Reelmaster 3100-D, Reelmaster 5200-D, Reelmaster 6500-D
Fits Bobcat: B200 (2002-2006), B250 (2002-2006)
Fits Case IH: 460 Trencher (1994-2001), 1825B Uni-Loader (1997-1999)
Ingersoll Rand: BL-275 Loader Backhoe (2002-2006)
Gehl: Skid Steer (Fits Kubota-powered)
Replaces Part Number(s):
16612-63011, 16612-63012, 37560-63010, 37560-63011, 37560-63012, 228000-0790, 228000-0791, 228000-0980, 228000-0981, 228000-6770, 228000-6771, 9722809-079, 9722809-098, 98-9705, 410-52078
Aftermarket Interchange Numbers
SND0474, SND0289, 17028, 18400, 19882, 91-29-5450, 110447, STR-8110, 191-2229, 69044, 13889, 49-5803, 70-913-60N, JS730, 435-277, 1900-0117
New aftermarket replacement part - not remanufactured, not used.
