Standard T-Seal Fits Universal Products Replaces TP-039-L

Standard T-Seal Fits Universal Products Replaces TP-039-L

£22.00 GBP
£22.00 GBP
Sale Sold out
Shipping calculated at checkout.

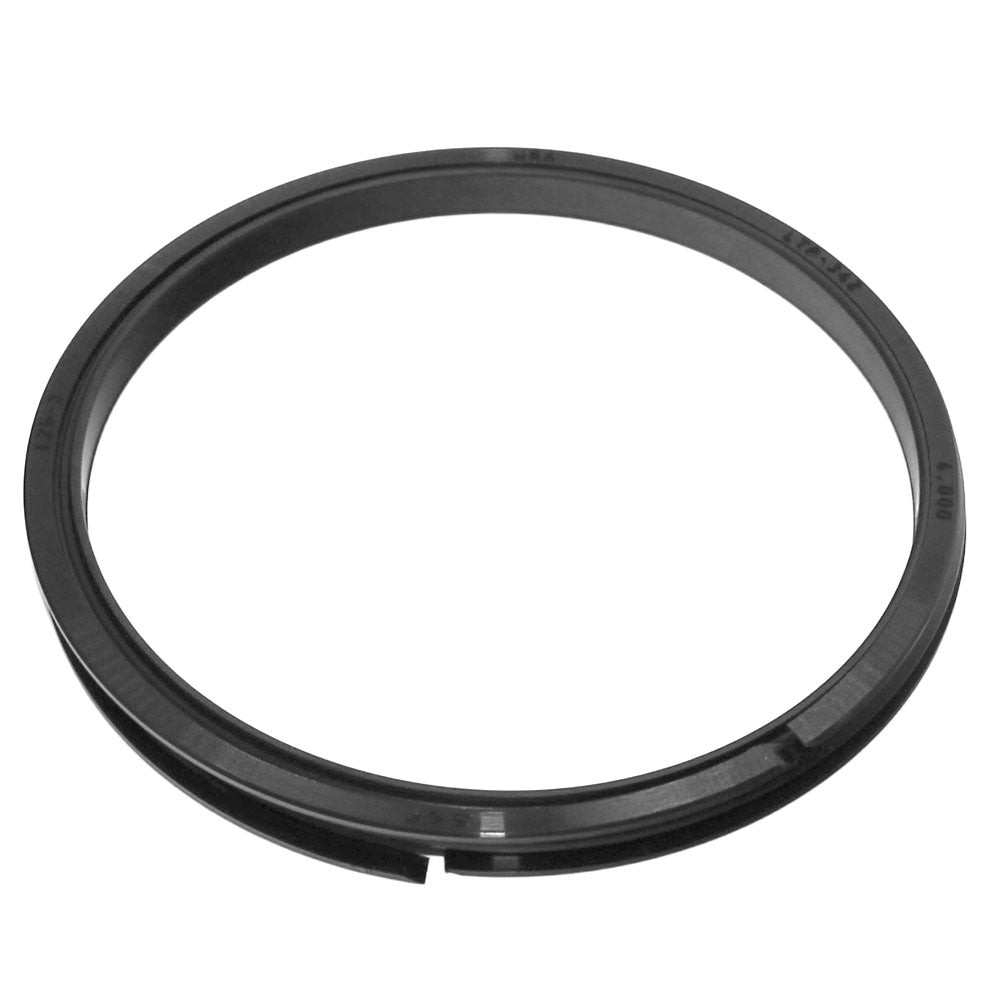

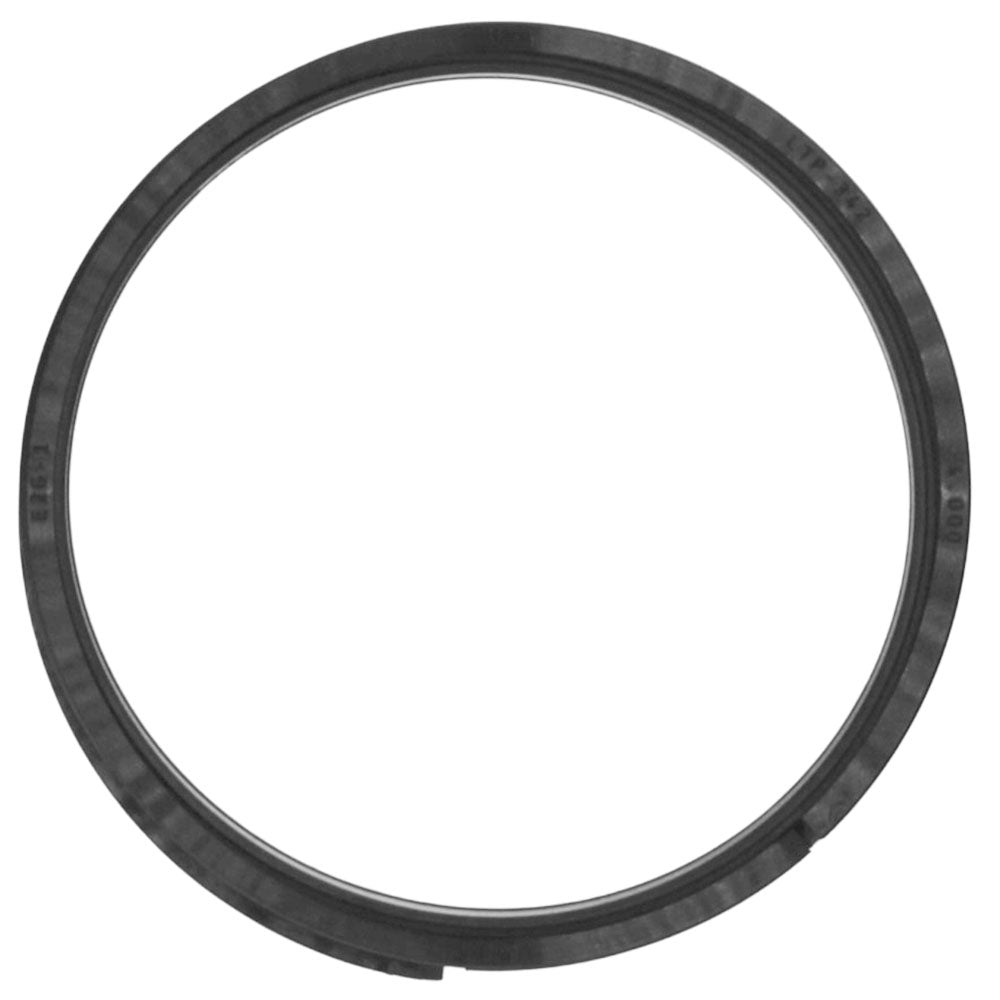

One New Aftermarket Standard T-Seal

Tech Info:
 -Type: Piston T-Seal
 -Bore Diameter: 4.00"
 -Inner Diameter: 3-5/8"
 -Height: 0.28"

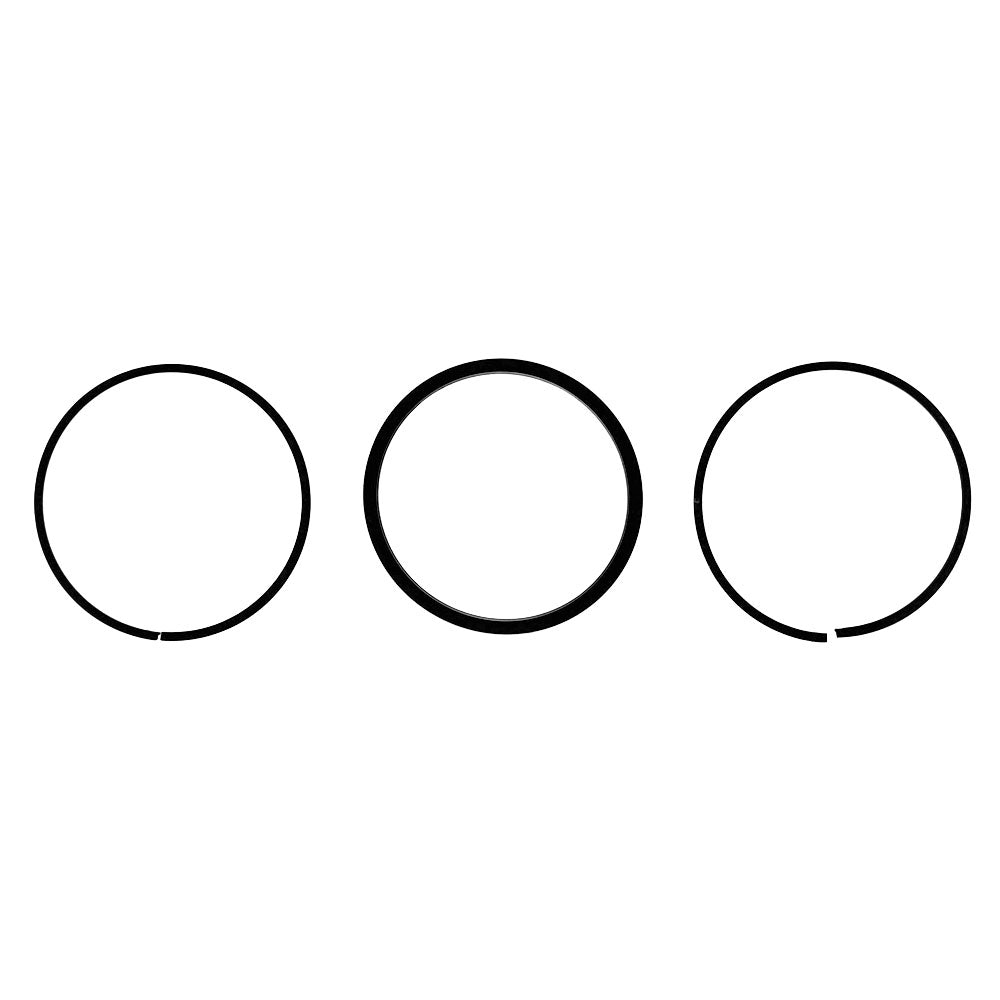

 -Material: Buna-N (NBR Rubber) + Hard Plastic Backups
 -Pressure Range: 0 to 5,000 PSI
 -Temp Range: -35 Degrees F to 220 Degrees F
 -Speed: 3 Ft./Sec.
 -Groove Diameter: 3.628"
 -Groove Width: .280"

Made to Fit Universal Products:
 Other (Misc) Models: Front-End Loader Attachments, Backhoe Loaders, Bale Processors, Excavators, Forklifts, Skid-Steer Loaders, Dump Trailers, Agricultural Implements
 Model Breaks: Hydraulic Cylinders Requiring a 4.00" Bore, 3.628" Groove Diameter, 0.280" Groove Width, and TP-Style Bi-Directional Piston Seal Design
 Replaces Part Number(s): TP-039-L

Models This Part Fits:

Bale Processors, Backhoe Loaders, Excavators, Agricultural Implements, Forklifts, Dump Trailers, Front-End Loader Attachments, Skid-Steer Loaders

Additional Information:

Type: Piston T-Seal Bore Diameter: 4.00" Inner Diameter: 3-5/8" Height: 0.28" Material: Buna-N (NBR Rubber) + Hard Plastic Backups Pressure Range: 0 to 5,000 PSI Temp Range: -35 Degrees F to 220 Degrees F Speed: 3 Ft./Sec. Groove Diameter: 3.628" Groove Width: .280"

Reference Numbers:

TP-039-L
