Spindle 527292R92 Fits Case 2500A 574 584 585 595

Spindle 527292R92 Fits Case 2500A 574 584 585 595

£252.00 GBP
£252.00 GBP
Sale Sold out
Shipping calculated at checkout.

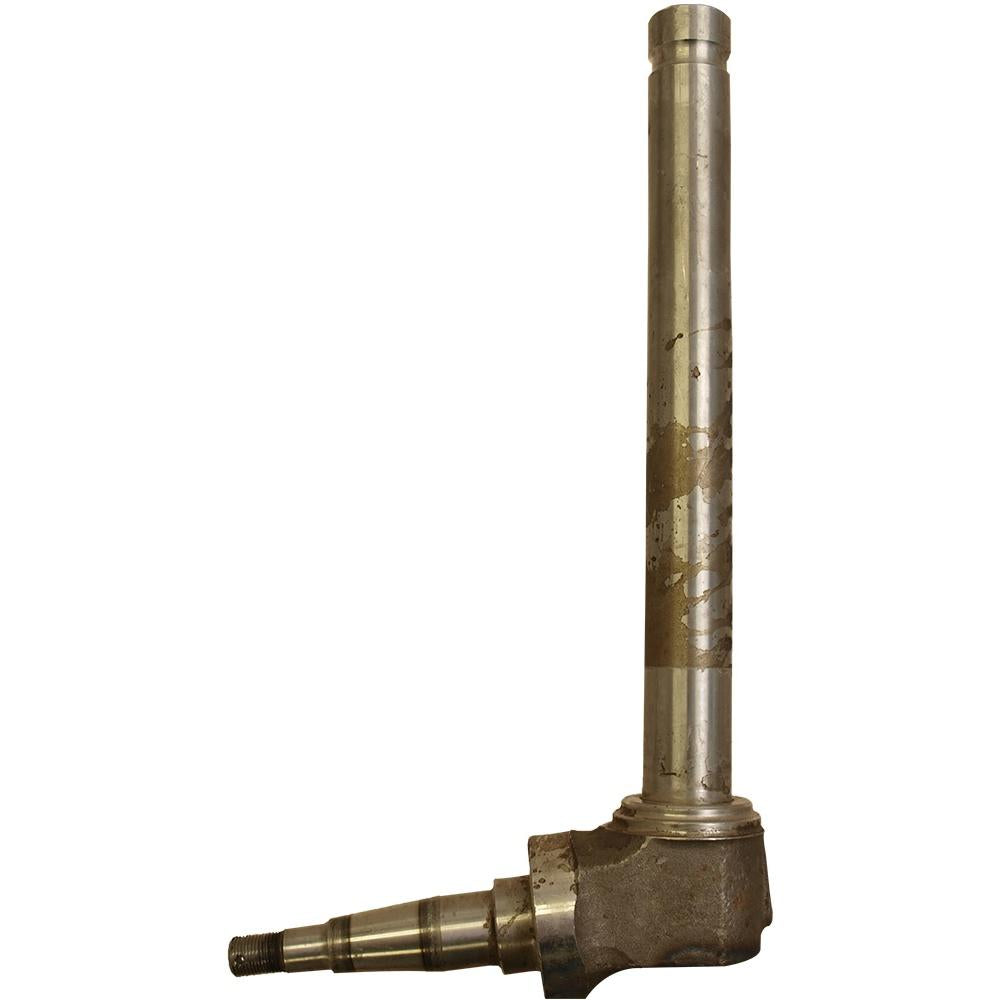

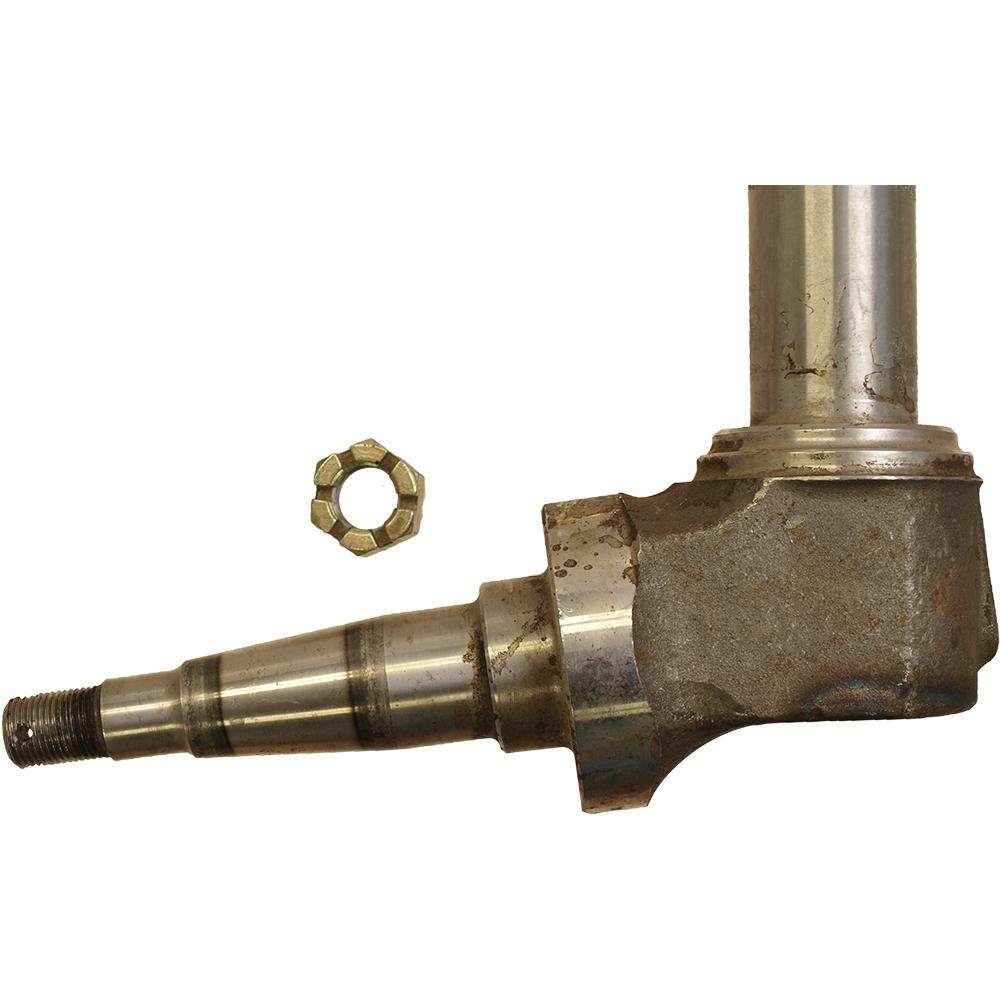

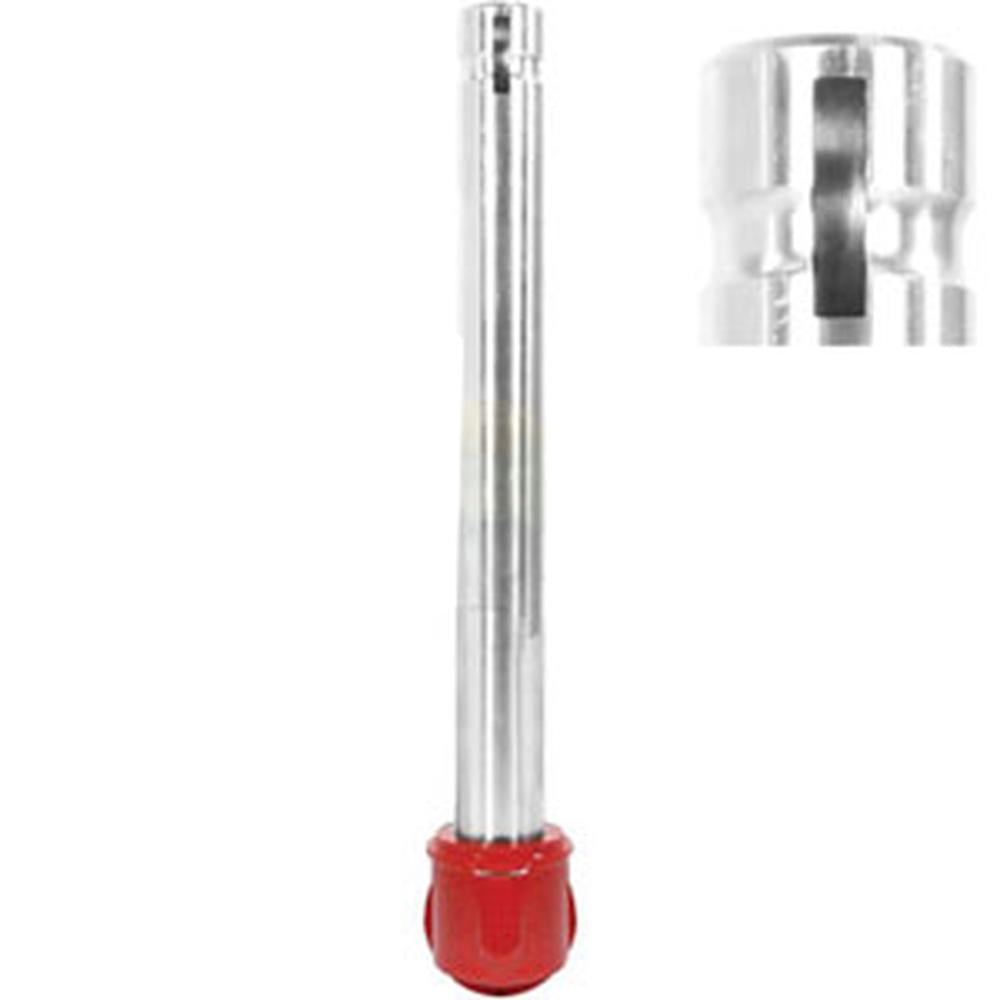

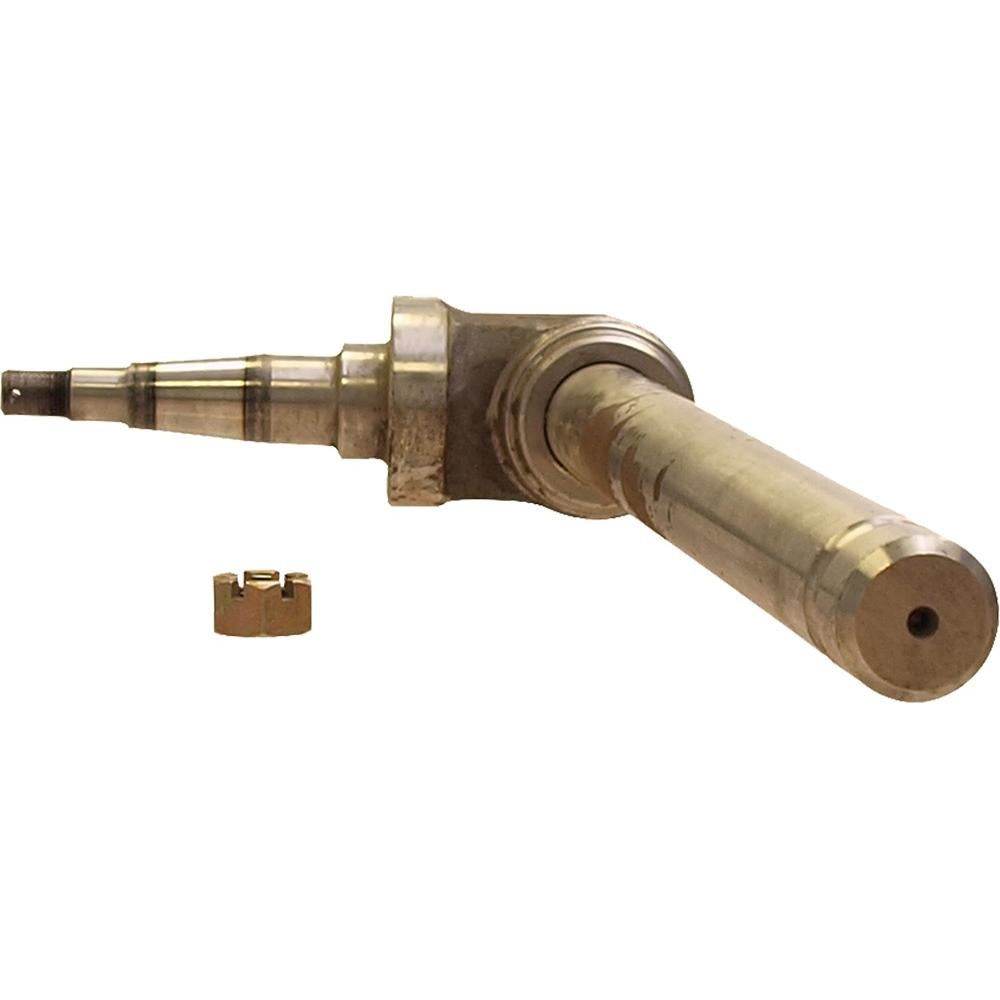

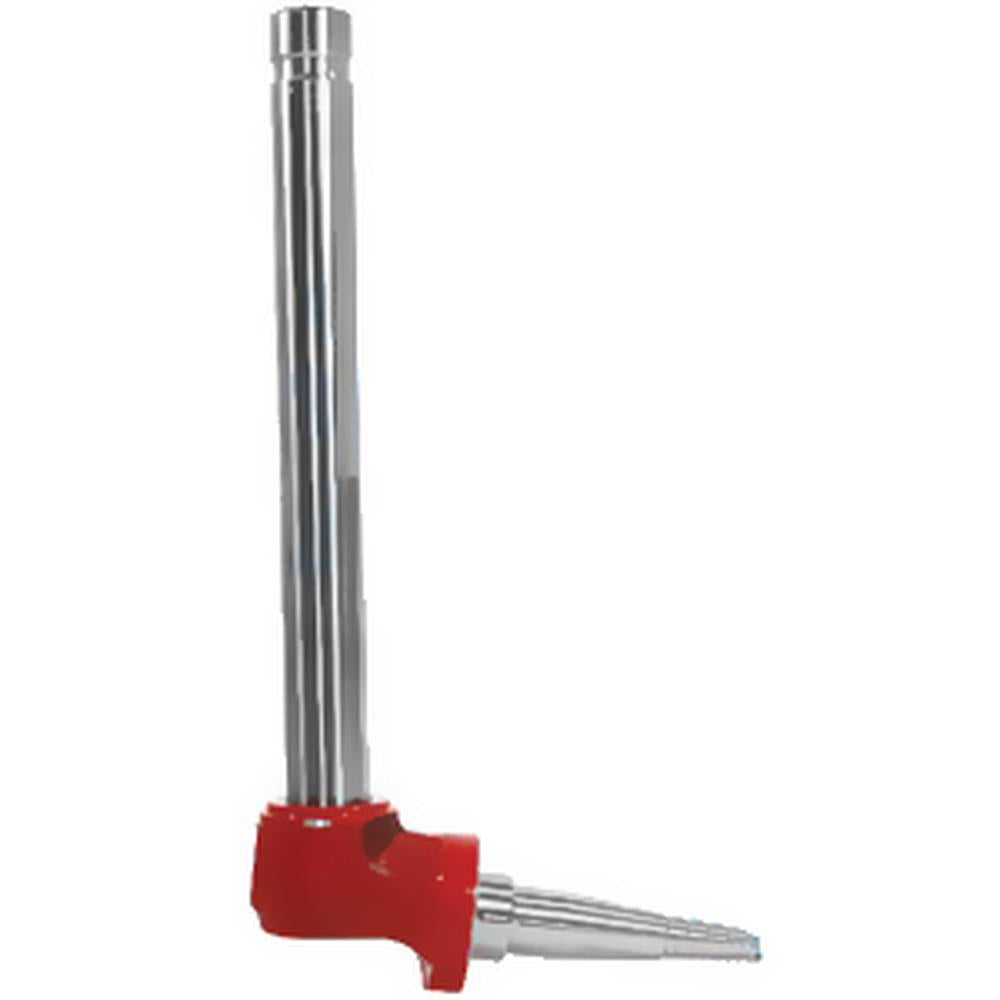

One New Aftermarket Replacement Front Axle Spindle Fits International Harvester (Fits Case IH) Tractors

This high-clearance front axle spindle fits the adjustable straight front axle (52-82 inch tread width) on a wide range of Fits International Harvester and Fits Case IH utility tractors. It serves as a direct replacement for both the left-hand and right-hand positions -- one part number covers both sides. The spindle mounts in the front axle knuckle and carries the wheel hub on its shaft, making it a critical steering and front-end component.

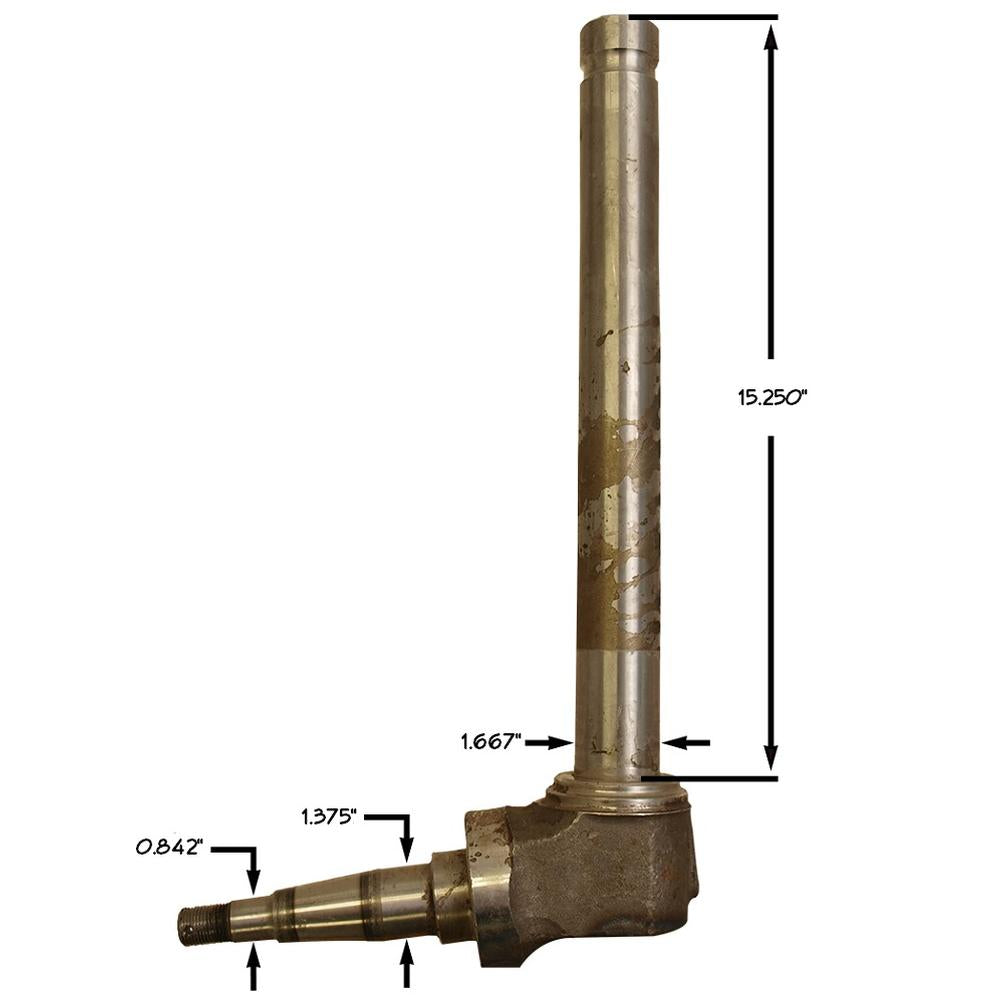

Specifications

  • Application: Left Hand or Right Hand (single part fits both sides)
  • Shaft Length: 15.250"
  • Shaft Diameter: 1.667"
  • Large Race (Inner Bearing): 1.375"
  • Small Race (Outer Bearing): 0.842"
  • Axle Type: Adjustable Front Axle - Straight (High Clearance)
  • Tread Width Range: 52-82 inches

Compatible Models

Fits International Harvester / Fits Case IH Tractors: 238, 248, 258, 385, 395, 454, 474, 475, 484, 485, 485XL, 495, 495XL, 574, 584, 585, 585XL, 595, 595XL, 674

Fits International Harvester / Fits Case IH Backhoe Loader: 2500A

Replaces Part Number(s):

527292R92, 527292R91

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

674, 584, 484, 474, 495, 2500A, 248, 454, 495XL, 574, 595XL, 385, 595, 585XL, 238, 585, 485, 485XL, 258, 395, 475

Additional Information:

Left Hand or Right Hand Side Shaft Length: 15.250" Shaft Diameter: 1.667" Large Race: 1.375" Small Race: .842"

Reference Numbers:

527292R92, 527292R91
