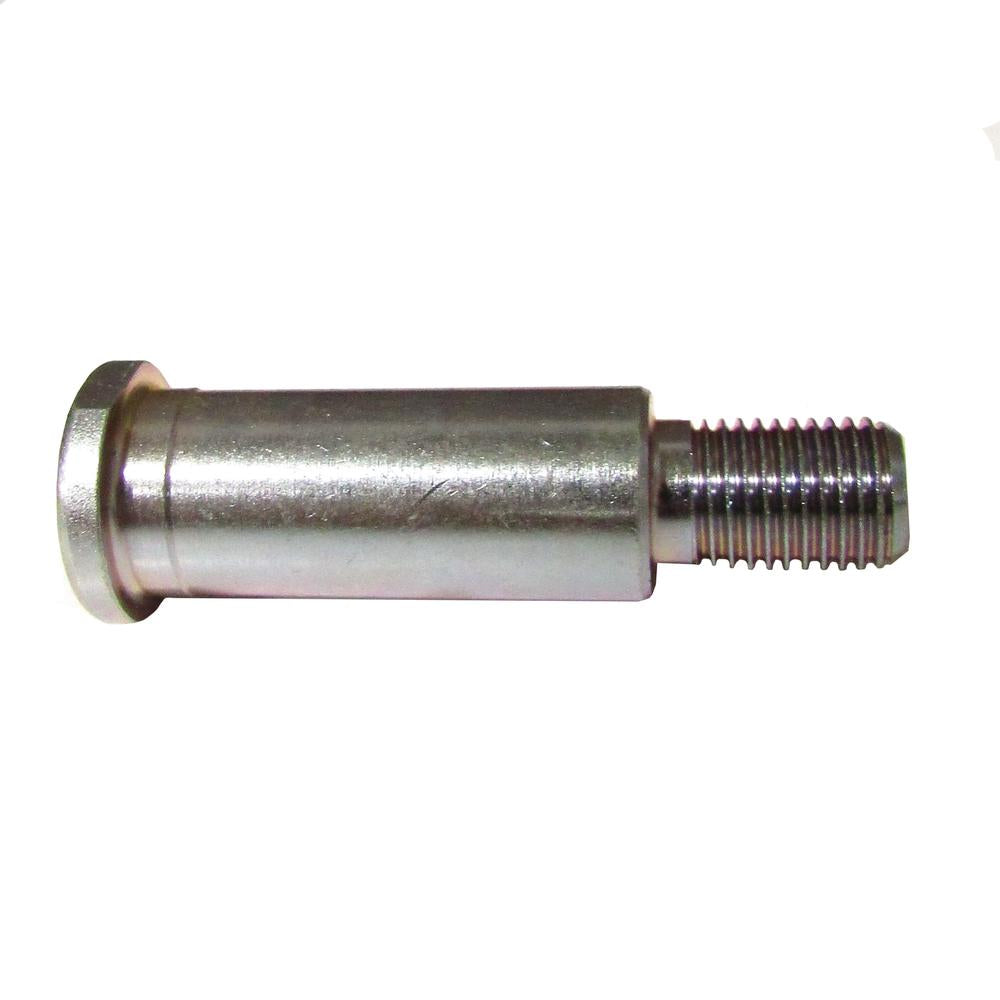

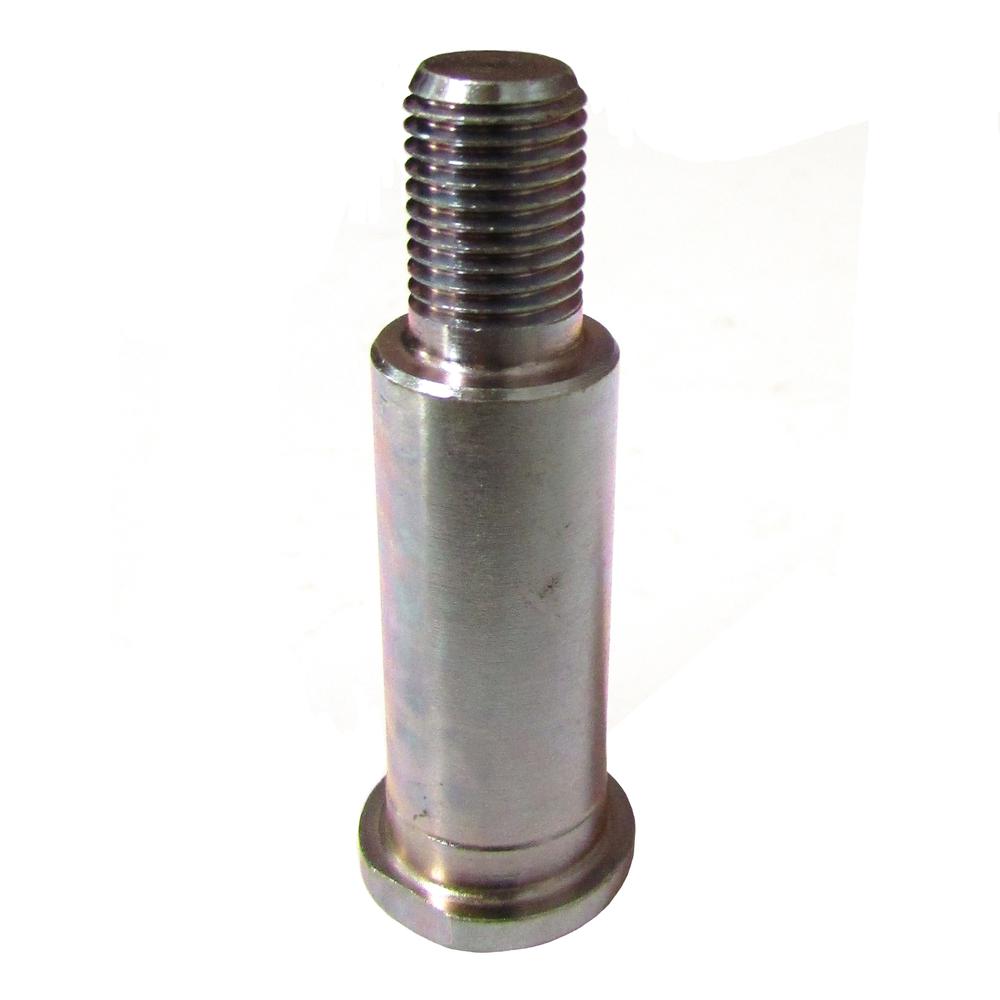

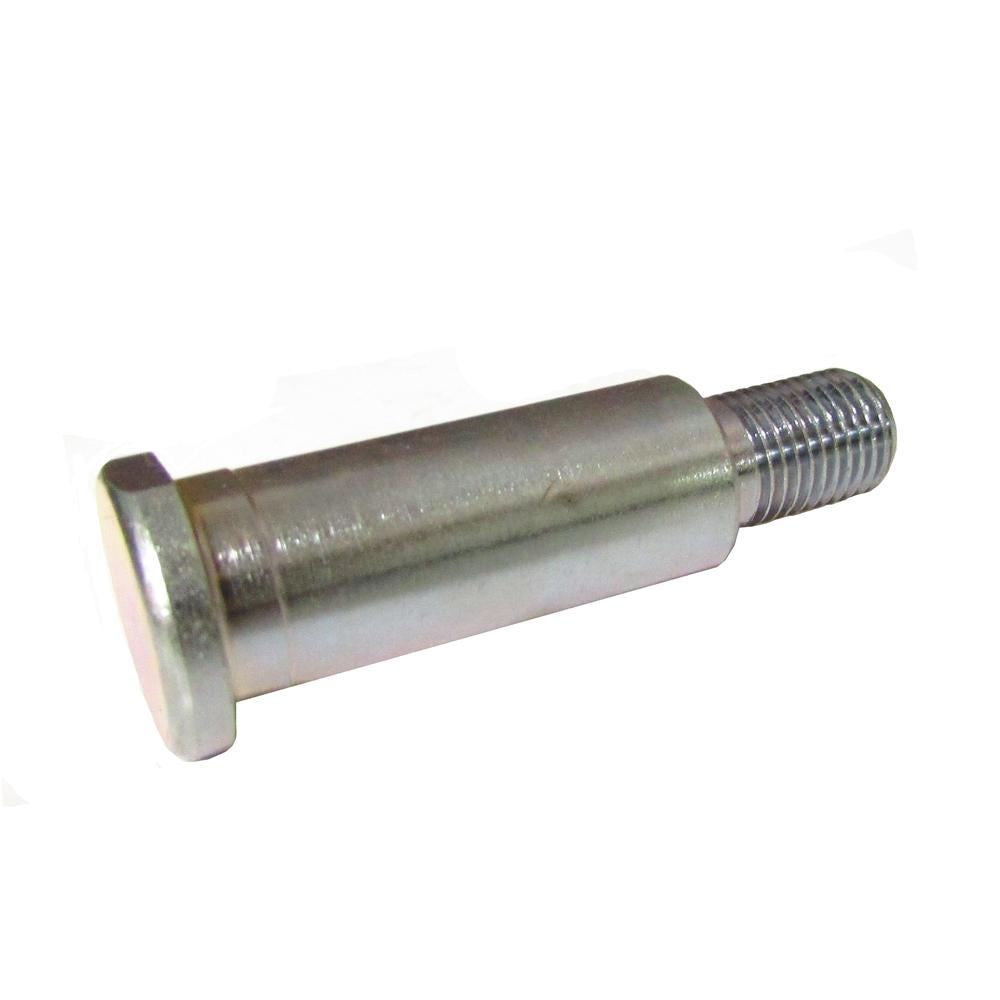

Seat Shock Mounting Bolt Fits FARMALL 200 230 300 350 400 450 460 560 660 C H M

Name: Seat Shock Mounting Bolt Fits FARMALL 200 230 300 350 400 450 460 560 660 C H M
SKU: SEN10-0129
Price: 19.0 USD
Availability: InStock

Seat Shock Mounting Bolt Fits FARMALL 200 230 300 350 400 450 460 560 660 C H M

£19.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One Brand New Aftermarket Replacement

Seat Shock Mounting Bolt

Fits IH Fits FARMALL Models: C, H, M, Super C, Super H, Super M, 300, 350, 400, 450 (with standard seat, using STP shocks: IHS329, IHS347, IHS465, MHS044) ], [ Fits FARMALL Rowcrop: 460, 560 (with standard seat, using STP shocks: IHS329, IHS347, IHS465, MHS044

Tech Info:

w/ Monroe Easy Ride Seat

It is a 7/16 - 20 NF thread and measures .625" shoulder and 2.380" overall length.

***Some Fits FARMALL with standard seat, using STP shocks (IHS329, IHS347, IHS465, MHS044)

Replaces Part Number: 351751R1

Models This Part Fits:

570, 560, 22, NAA, Super H, BIG, SUPER MTA, H, 200, 55, BF, 550, C, WC, SUPER M, 70, WD, WF, 460, General, U, A, NAA JUBILEE, 8N, 555, SUPER H, 333, Super MTA, 230, 400, 444, Super C, 80, 350, Mustang (23), 44, MUSTANG, 9N, RC, R, Challenger, 300, Super MDTA, SUPER C, B, BG, 660, 33, Jubilee, Super M, 60, WD45, CA, 2N, 450, 30, Super WD6TA, 90, M
