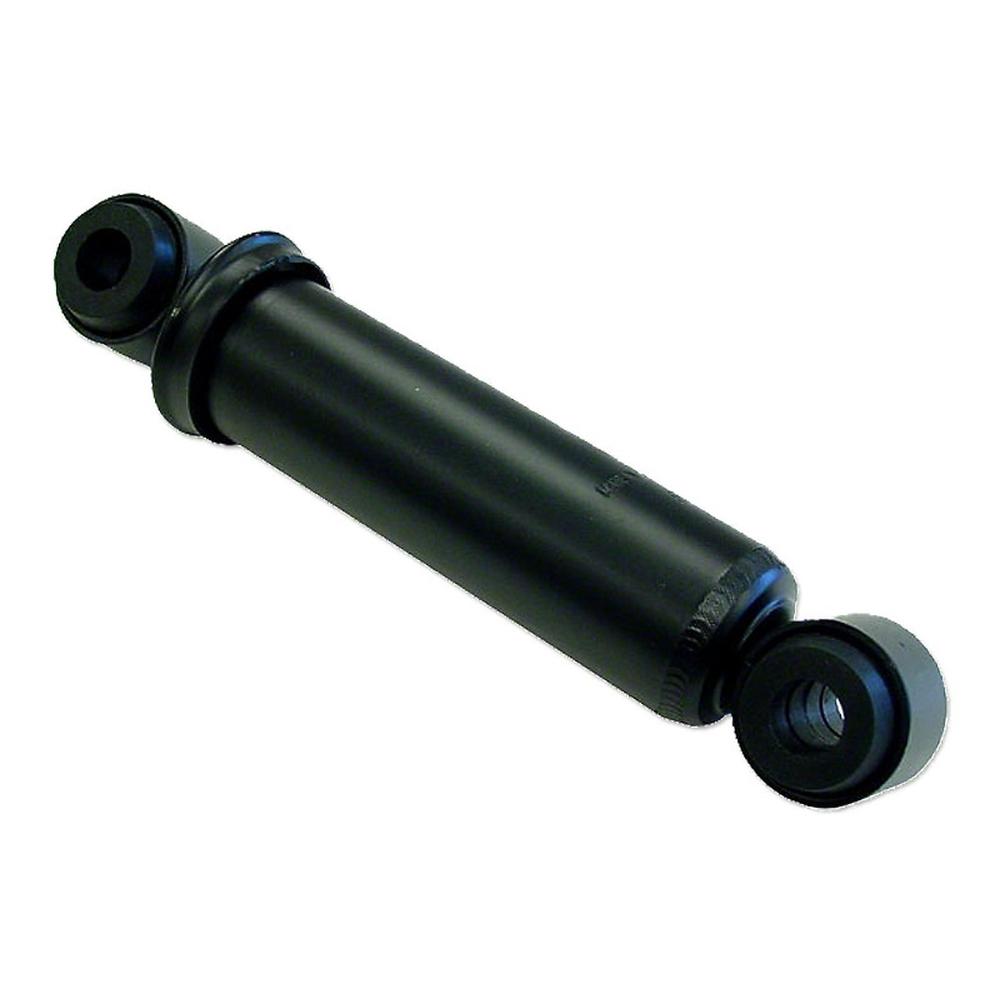

RE62234-BSHNGS Seat Shock Absorber Fits John Deere 1020 1520 2020 2030 2140 4020

Name: RE62234-BSHNGS Seat Shock Absorber Fits John Deere 1020 1520 2020 2030 2140 4020
SKU: SEN10-0007
Price: 110.0 USD
Availability: InStock

RE62234-BSHNGS Seat Shock Absorber Fits John Deere 1020 1520 2020 2030 2140 4020

£110.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Seat Shock Absorber Fits John Deere Tractors and Industrial Equipment

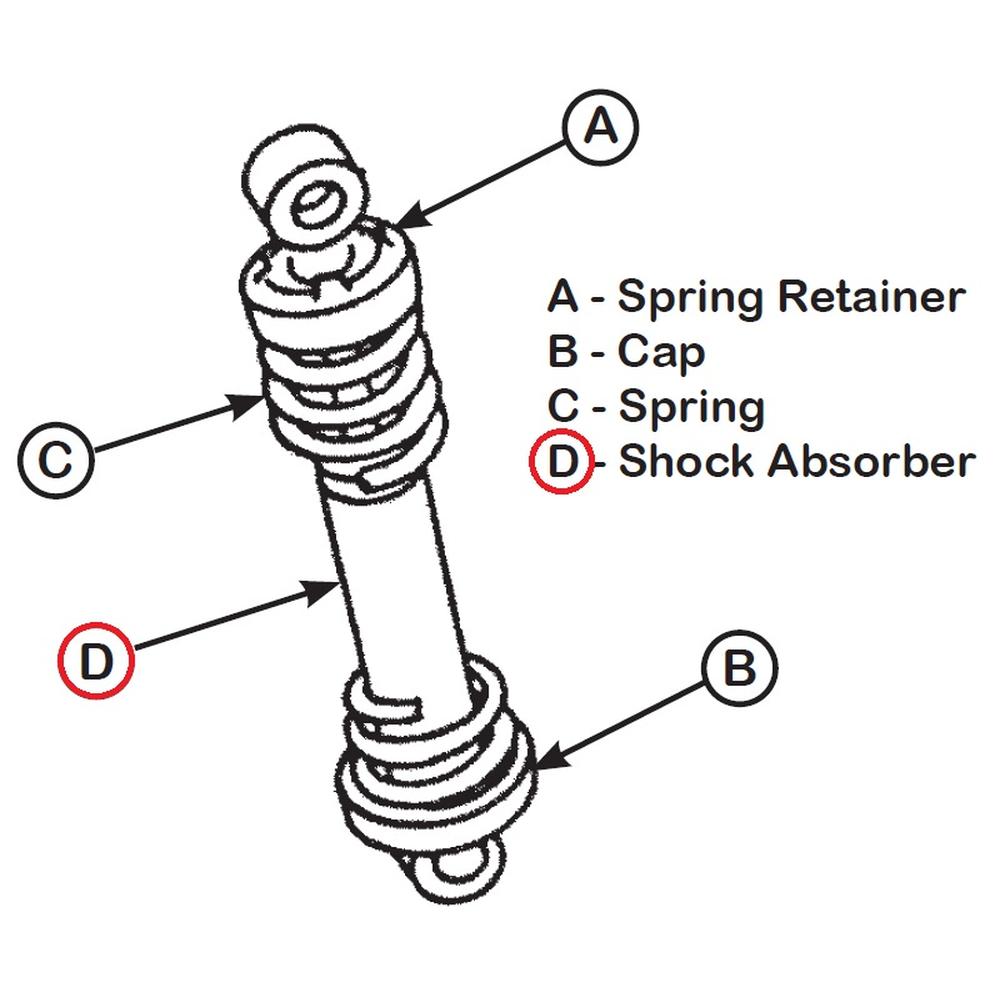

This aftermarket replacement seat shock absorber is Fits John Deere Deluxe Seat and is designed to restore ride comfort and operator support on a wide range of Fits John Deere tractors and industrial machines. The shock absorber mounts within the seat suspension assembly and is supplied complete with bushings. Note serial number restrictions on select models before ordering.

Specifications

Collapsed Length (center-to-center): 7-5/8" (7.625")
Extended Length (center-to-center): 10-1/2" (10.50")
Includes bushings
Fits Deluxe Seat

Compatible Models

Fits John Deere (Fits JD) Tractors: 1020, 1030, 1035, 1520, 1635, 2010, 2020, 2030, 2035, 2130, 2135, 2140 (S/N 430000 and up), 2350, 2440 (up to S/N 340999), 2510, 2520, 2550, 2630, 2640 (up to S/N 340999), 2750, 2940, 2950, 3010, 3020, 3040 (S/N 430000 and up), 3130, 3135, 3140 (S/N 430000 and up), 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4350, 4430, 4440, 4445, 4450, 4455, 4520, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 4840, 4850, 4955, 4960, 5010, 5020, 6030, 7020, 7520, 8430, 8630

Fits John Deere Industrial Models: 300, 300B, 301, 301A, 302, 302A, 310, 310A, 310B, 400, 401, 401B, 401C, 401D, 570, 570A, 600, 670, 670A, 672, 690, 690A, 700, 760, 770, 770A, 770Ah, 772A

Replaces Part Number(s):

RE62234, RE62234-BSHNGS, AR27572, AR27572-BSHNGS, JDS807S

Aftermarket Interchange Numbers

Fits Delco / Delphi 5527273

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

4020, 2520, 1030, 2140, 3010, 4455, 1020, 4450, 4430, 302A, 400, 690, 401D, 4620, 5010, 4640, 4520, 4055, 4030, 4050, 4840, 2035, 772A, 4010, 2030, 4000, 2950, 1520, 300, 3135, 8430, 2510, 4630, 570, 401C, 600, 7020, 2750, 2010, 2135, 302, 2550, 4650, 690A, 8630, 401B, 2440, 4440, 5020, 4320, 2020, 2630, 770, 4230, 300B, 670A, 1635, 301A, 670, 310B, 2350, 2130, 3140, 4040, 3130, 3040, 7520, 2640, 6030, 310A, 4255, 4250, 770A, 2940, 301, 4850, 401, 310, 4240, 3020
