SEM G109417 Fits Case Replacement Hydraulic Seal kit
SEM G109417 Fits Case Replacement Hydraulic Seal kit
Couldn't load pickup availability

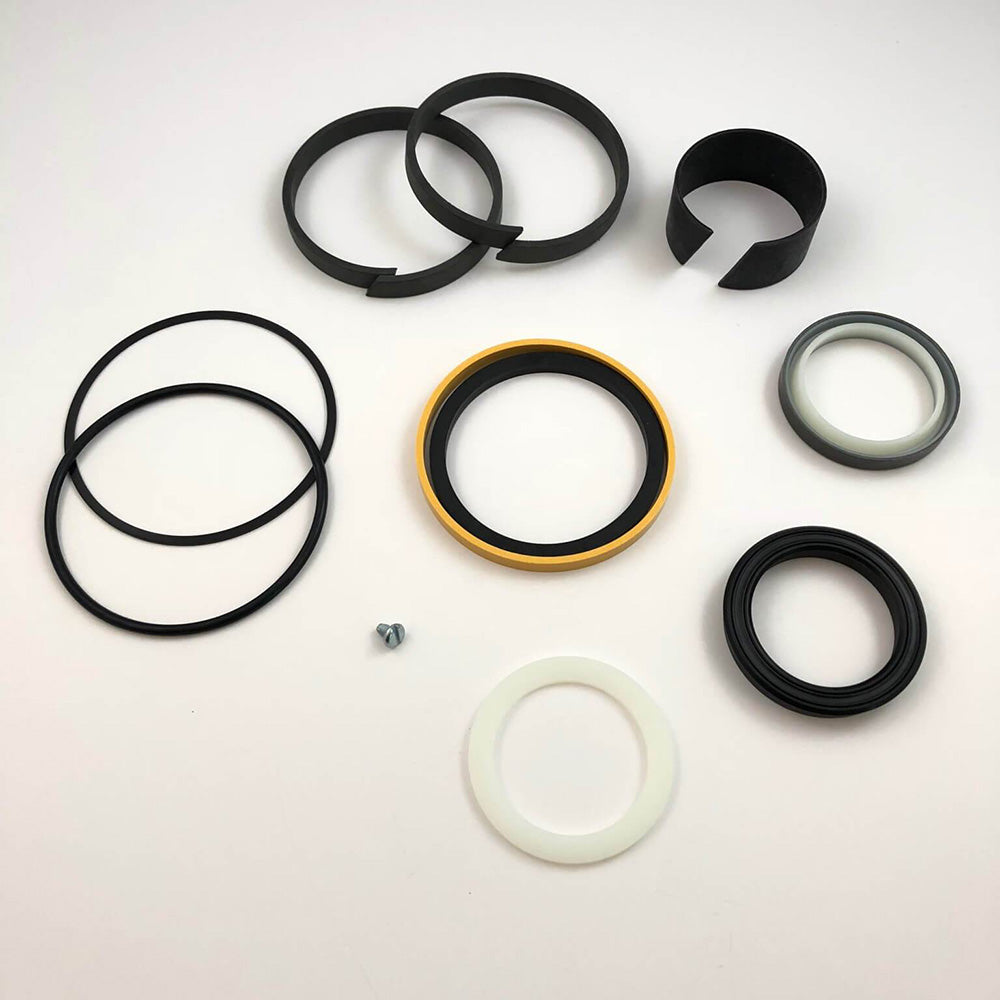

One New Aftermarket Replacement Hydraulic Cylinder Seal Kit for Case Construction and Crawler Equipment
This hydraulic cylinder seal kit replaces OEM part number G109417 and is designed to rebuild and reseal hydraulic cylinders on a wide range of Case (formerly Case/International Harvester) construction, crawler, and loader backhoe equipment. The kit fits cylinders with a 1.75" rod diameter and 3.25" bore, and includes seals for ripper cylinders (G101214, G101215), steering cylinders (G106342, G106343), and boom cylinders (G106168, G101177, G105400).
Specifications
- Rod Diameter: 1.75"
- Bore: 3.25"
- Includes: 10 hydraulic cylinder seals and hardware (11-piece kit)
- Piston Style: 1-piece
Compatible Models
Case Crawler Tractors: 650 (1/90-12/91), 850D, 855D (1/85-12/94)
Case Wheel Loaders: W30 (1/82-12/89)
Case Construction King Loader Backhoes: 580B, 580D (1/83-12/89), 580E, 580G
Case Super-E Construction King Loader Backhoes: 580SD, 580SE (1/83-12/87)
Case Backhoes: 35C, 35C WL (1/88-12/94)
Note: Date ranges reflect known production periods for specific cylinder applications. Verify fitment against your machine's cylinder part number before ordering.
Replaces Part Number(s):
G109417, G109417-A, g109417, g109417-A
Aftermarket Interchange Numbers
G102403, G105547, 1543265C1
New aftermarket replacement part - not remanufactured, not used.
