4BC3064 Pump Motor 12V 160 Amp Reversible Internal Spline DC

4BC3064 Pump Motor 12V 160 Amp Reversible Internal Spline DC

£716.00 GBP
£716.00 GBP
Sale Sold out
Shipping calculated at checkout.

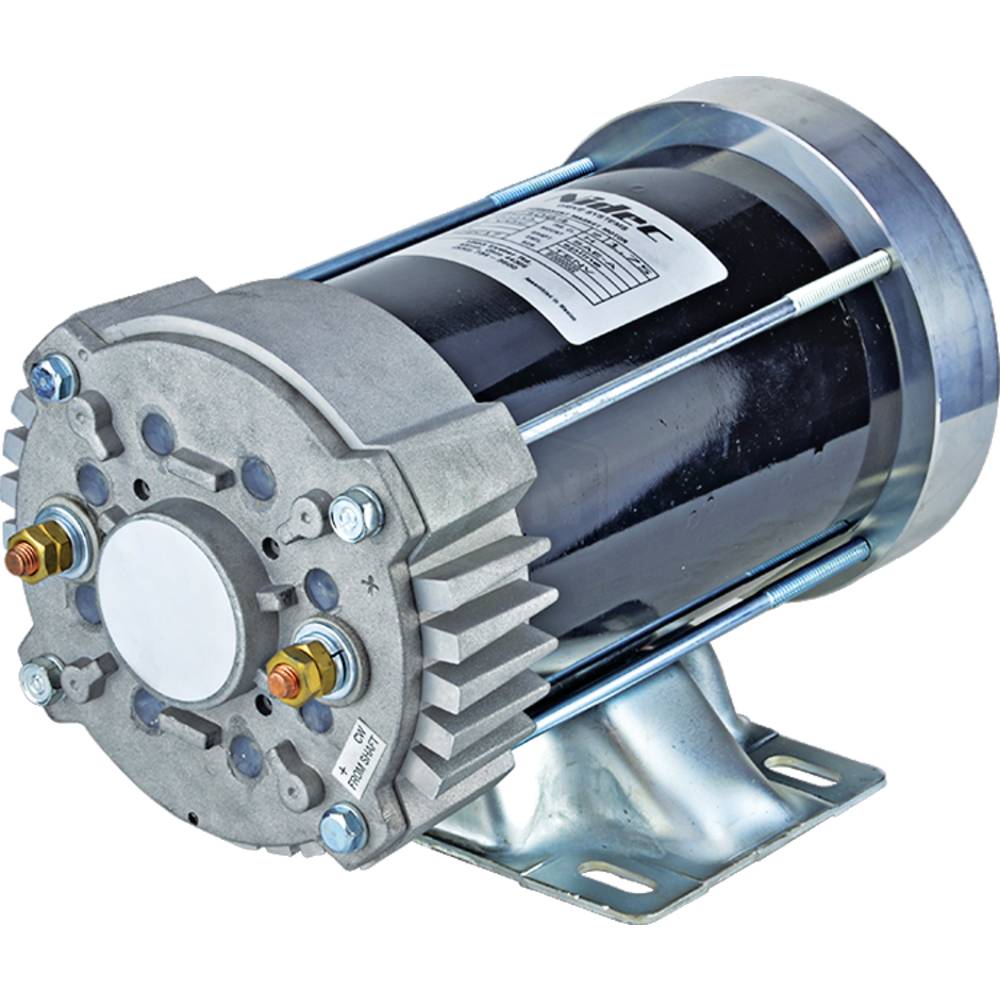

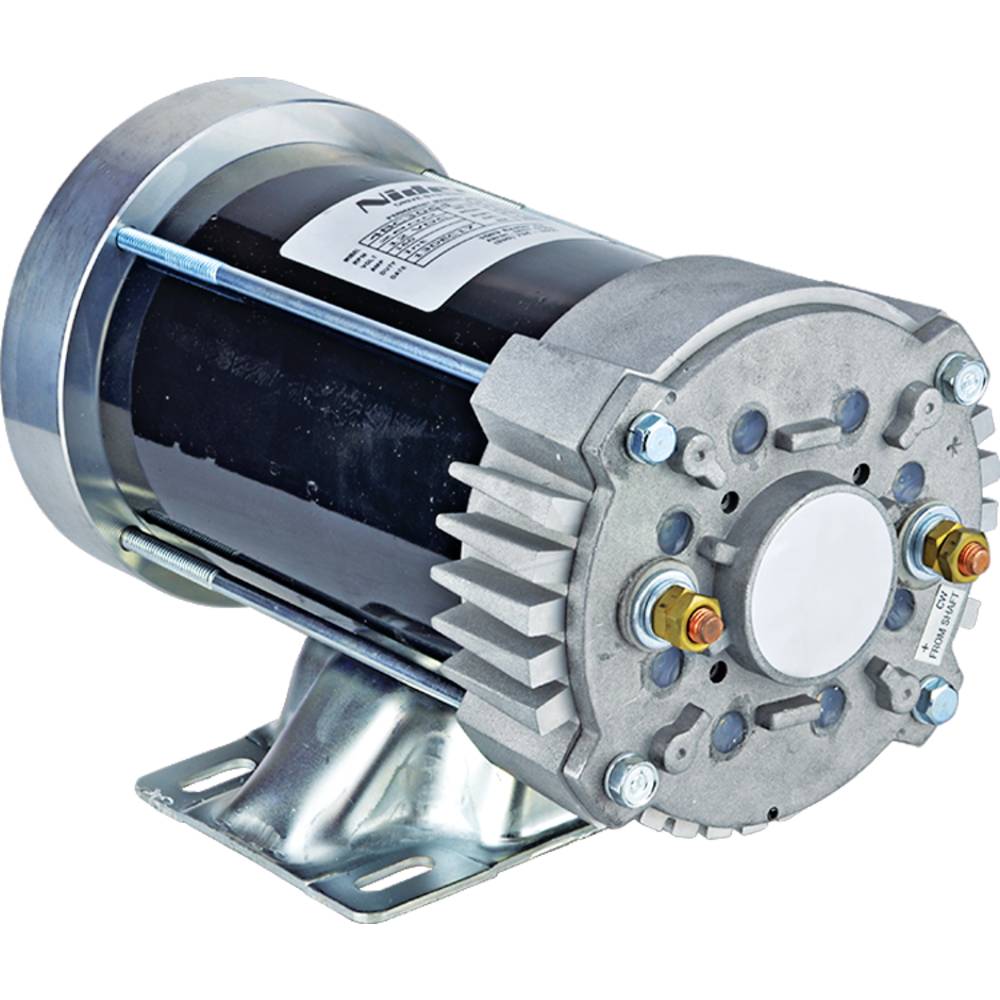

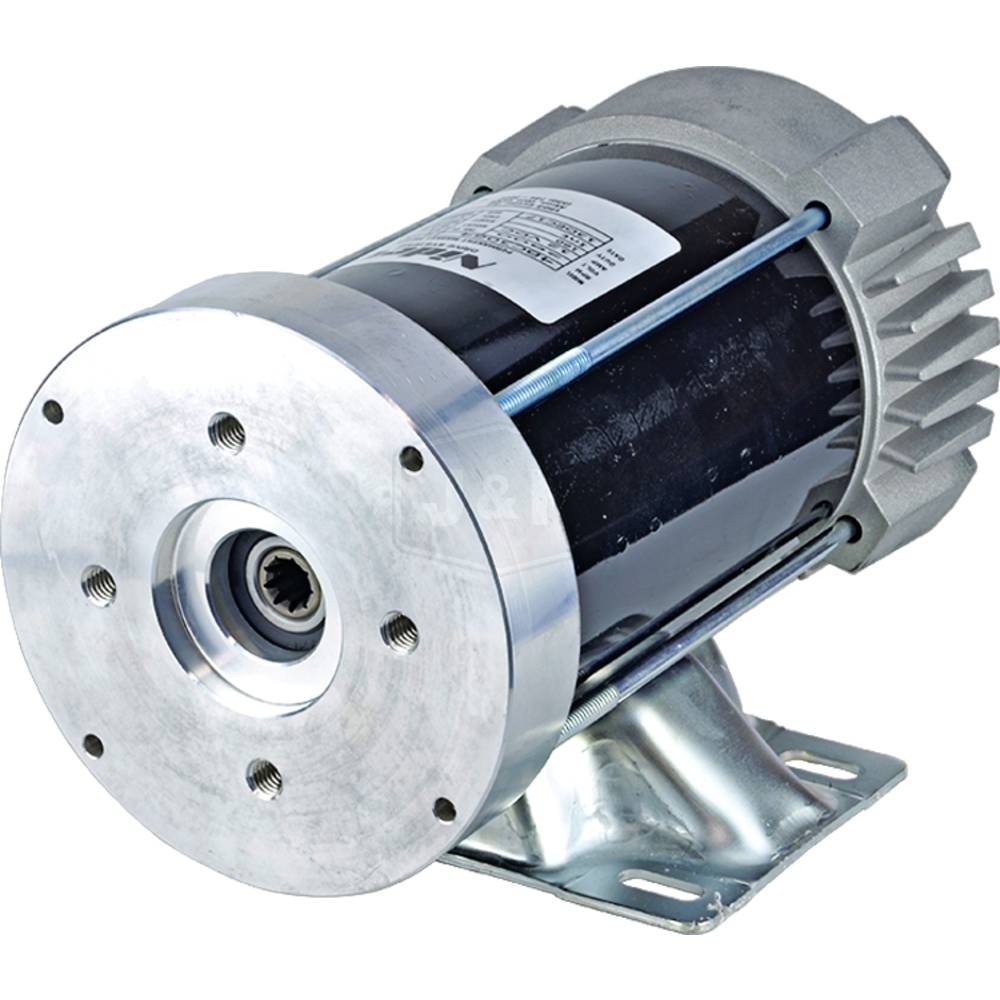

This is a twelve volt direct current pump motor, the electric motor that drives a hydraulic gear pump in a direct current power unit. It is built to the 4BC3064 pattern, rated about one hundred sixty amps at twelve volts, reversible, with an internal spline drive.

Specifications

  • Component: DC pump motor
  • Voltage: 12 volt
  • Rating: About 160 amp, about 2 HP
  • Drive: Internal spline, reversible
  • Type: Aftermarket replacement

Replaces part numbers

  • 4BC3064
  • 4BC3086

Match the power unit

This motor is sold by its specification and the 4BC3064 pattern; match the voltage, the spline drive and the terminal layout to your original power unit motor before ordering.

Aftermarket replacement part. Not manufactured by, sponsored by or affiliated with any equipment maker named here. All makes, models and numbers are listed for reference only.

Additional Information:

VOLT: 12, AMPS: 160, RPM: 2800, CONDITION: New, OD: 116.800 mm, OD: 4.598", LENGTH: 242.900 mm, LENGTH: 9.563", TERMINAL 2 SIZE: 5/16-24, TERMINAL 3 SIZE: 5/16-24, SHAFT: Internal Spline, CURRENT TYPE: DC, Arrowhead: 4BC3064; Scott/Imperial Electric: 4BC03086, 4BC3064, 4BC3086

Reference Numbers:

SCO-4BC3064
