SBBSKIT03 Spindle Bushing Kit Fits Ford 3000 3600 3610 3910 4100 Tractors

Name: SBBSKIT03 Spindle Bushing Kit Fits Ford 3000 3600 3610 3910 4100 Tractors
SKU: AY-FRB10-0016_2
Price: 32.0 USD
Availability: InStock

SBBSKIT03 Spindle Bushing Kit Fits Ford 3000 3600 3610 3910 4100 Tractors

£32.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Spindle Bushing and Bearing Kit

Fits Ford Tractor Models Without Cabs:
2000, 2310, 2600, 2610, 2810, 2910, 3000, 3600, 3610, 3910, 4100

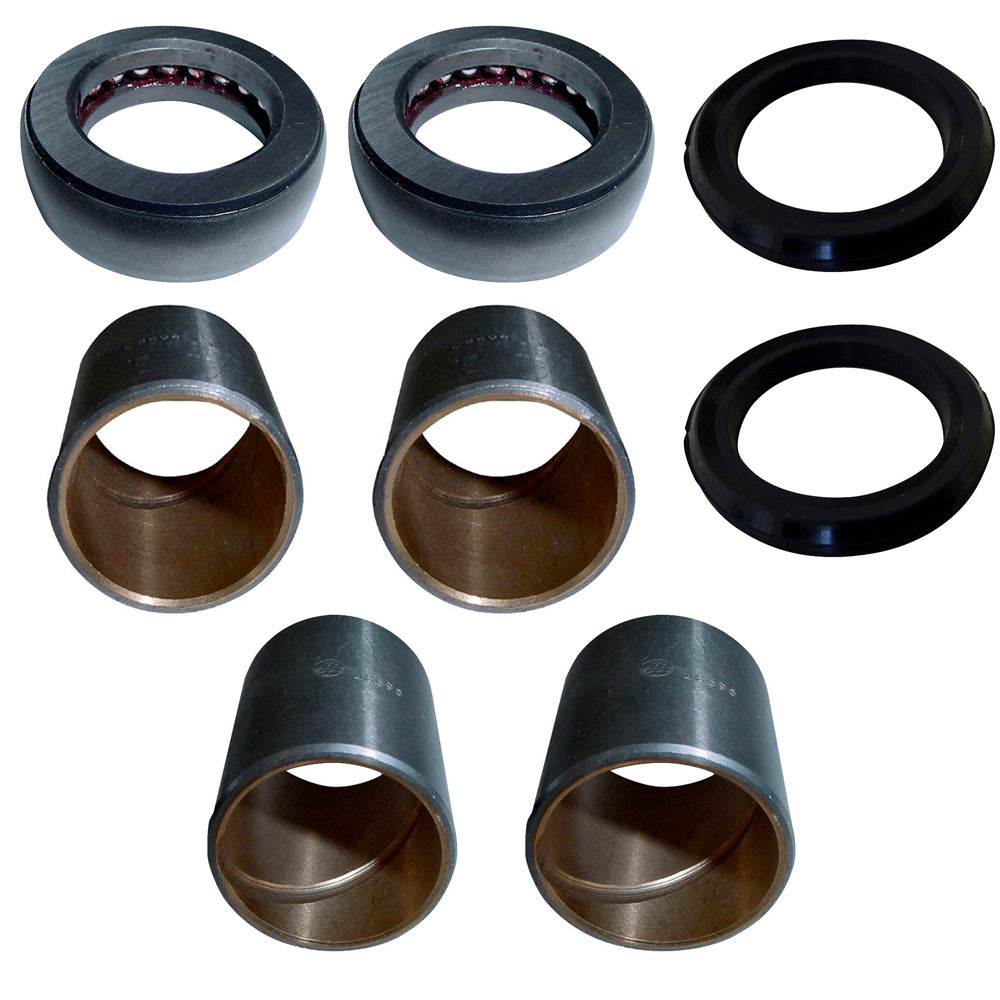

Kit Includes:

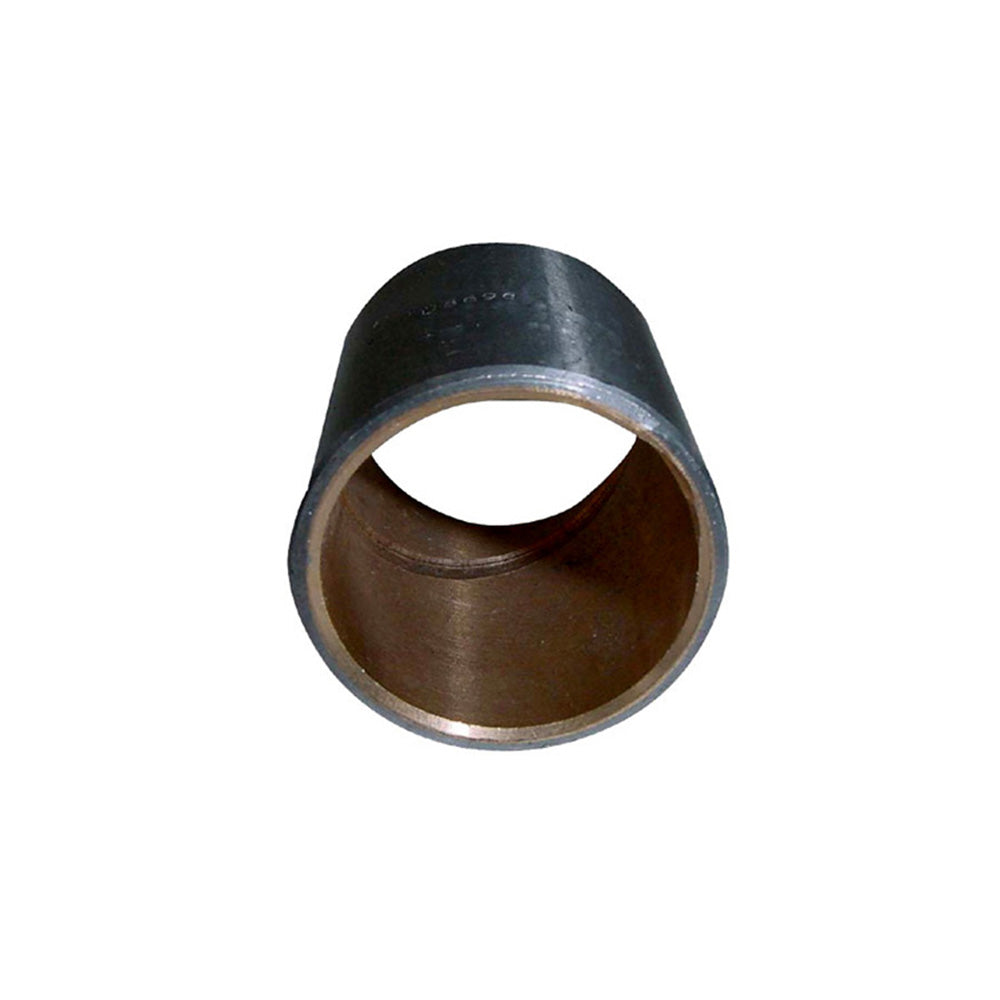

2 Bushings: (38 x 40.8 x 37.6mm)
Replaces Part Number: 2N3109

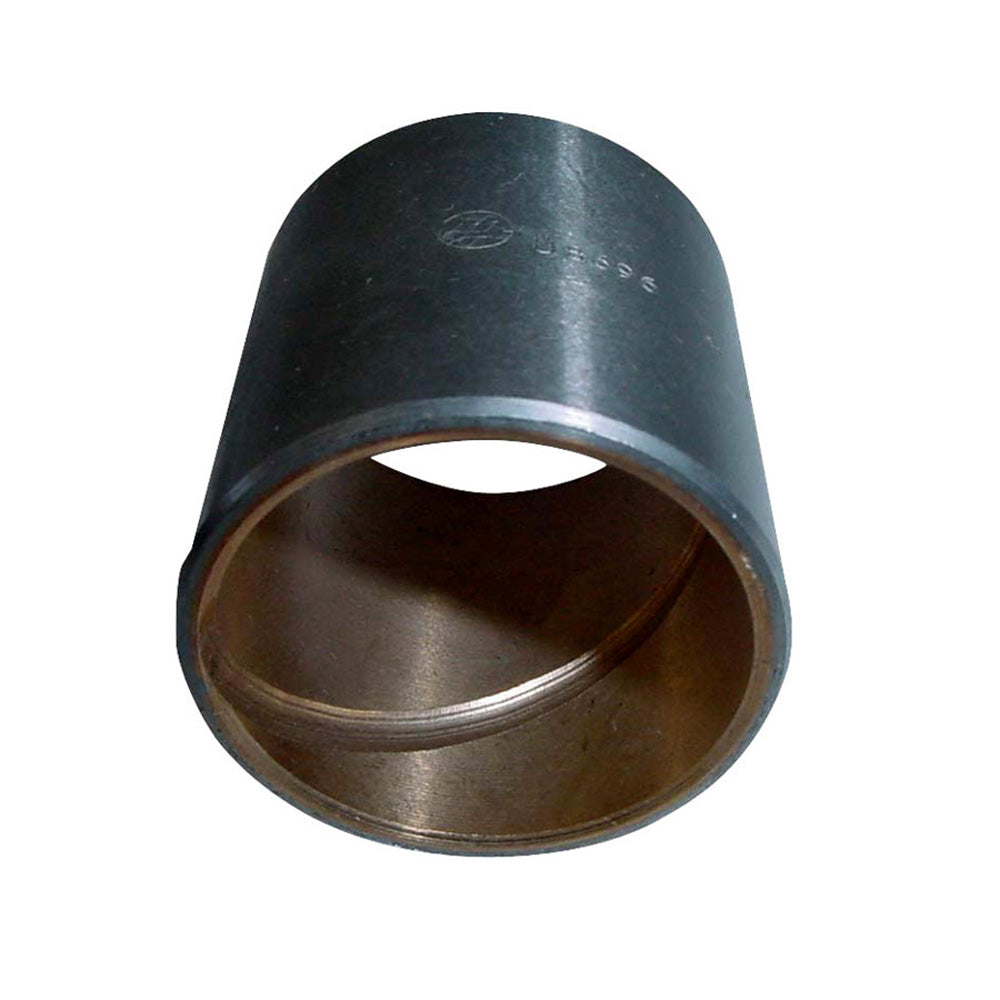

2 Spindle Bushing: (38 x 37.3 x 34mm)
Replaces Part Number: NCA3110A

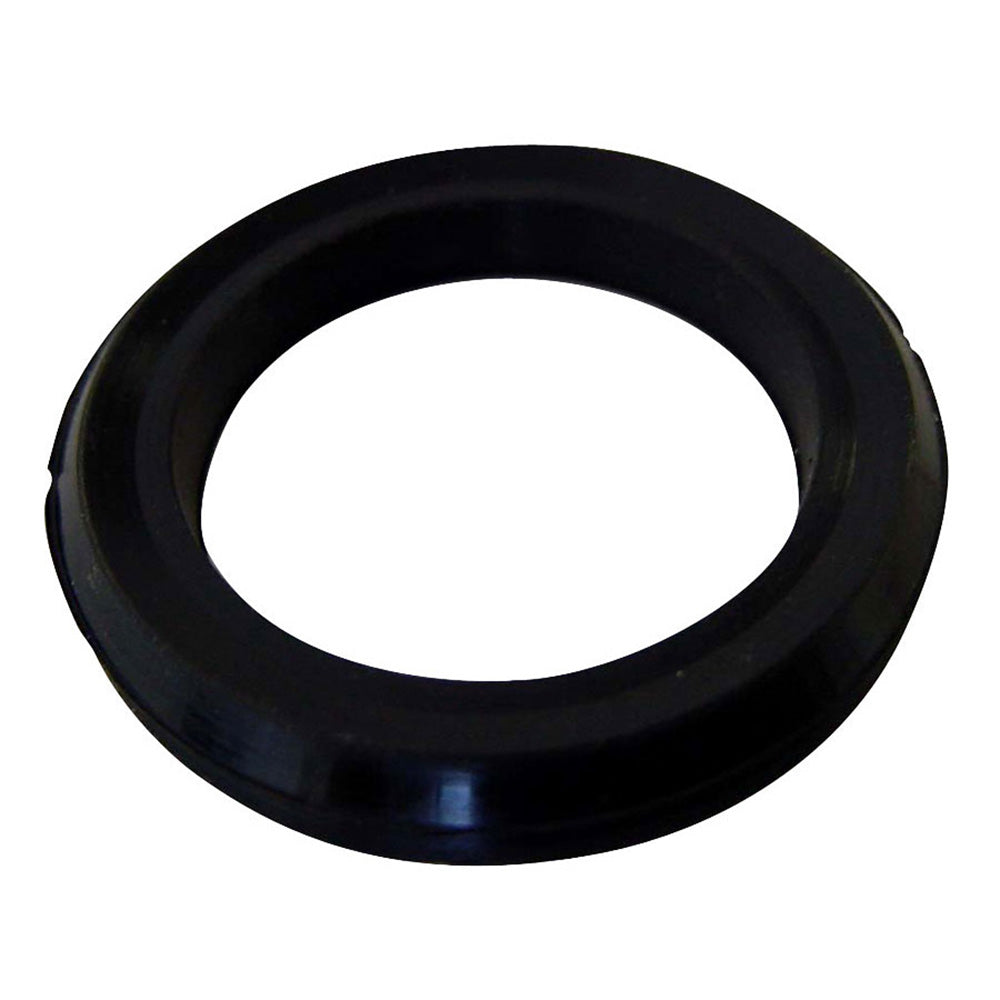

2 Spindle Seal: (43.4 x 31.8 x 5.3mm)
Replaces Part Number: C5NN3125A

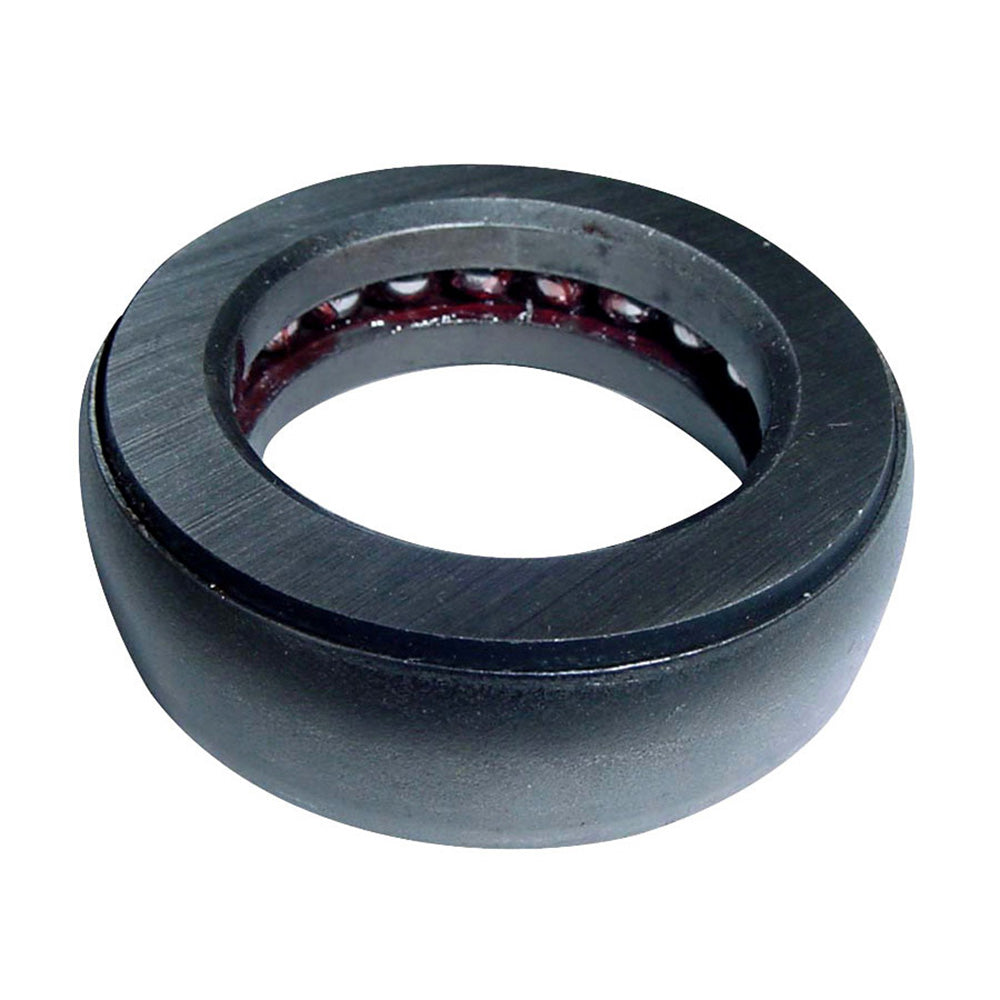

2 Thrust Bearing
Replaces Part Number: C0NN3123B

Models This Part Fits:

801, 900, 601, 600, 800, 700

Additional Information:

(2) Front Spindle Bushing Tech Info: 4 used per tractor, 1.255" inside diameter, 1.378" outside diameter, 1.498" long, Must be honed or reamed to size when installed Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109 (2) Thrust Bearing Tech Info: Bearing Type Spindle Bearing Grease Greaseable ID 1.350" ID Type Round OD 2.200" Sourced Import Width Overall 0.620" Replaces Part Number: 83910196, C0NN3123B (2) Spindle Seal Tech Info: 33mm id, 44mm od Replaces Part Number: 81802812, 8N3528, C5NN3125A, 9N3528 (2) Spindle Bushing Tech Info: ID 1.350" Material Steel OD 1.480" Width 1.500" Replaces Part Numbers: 81717392, 83928345, 947E3110B, 957E3110B, NCA3110A

Reference Numbers:

2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109, 83910196, C0NN3123B, 81802812, 8N3528, C5NN3125A, 9N3528, 81717392, 83928345, 947E3110B, 957E3110B, NCA3110A
