S8301458 Seat Swivel Kit

One New Aftermarket Replacement Seat Swivel Kit for Grammer MSG95 and MSG97 Suspension Seats

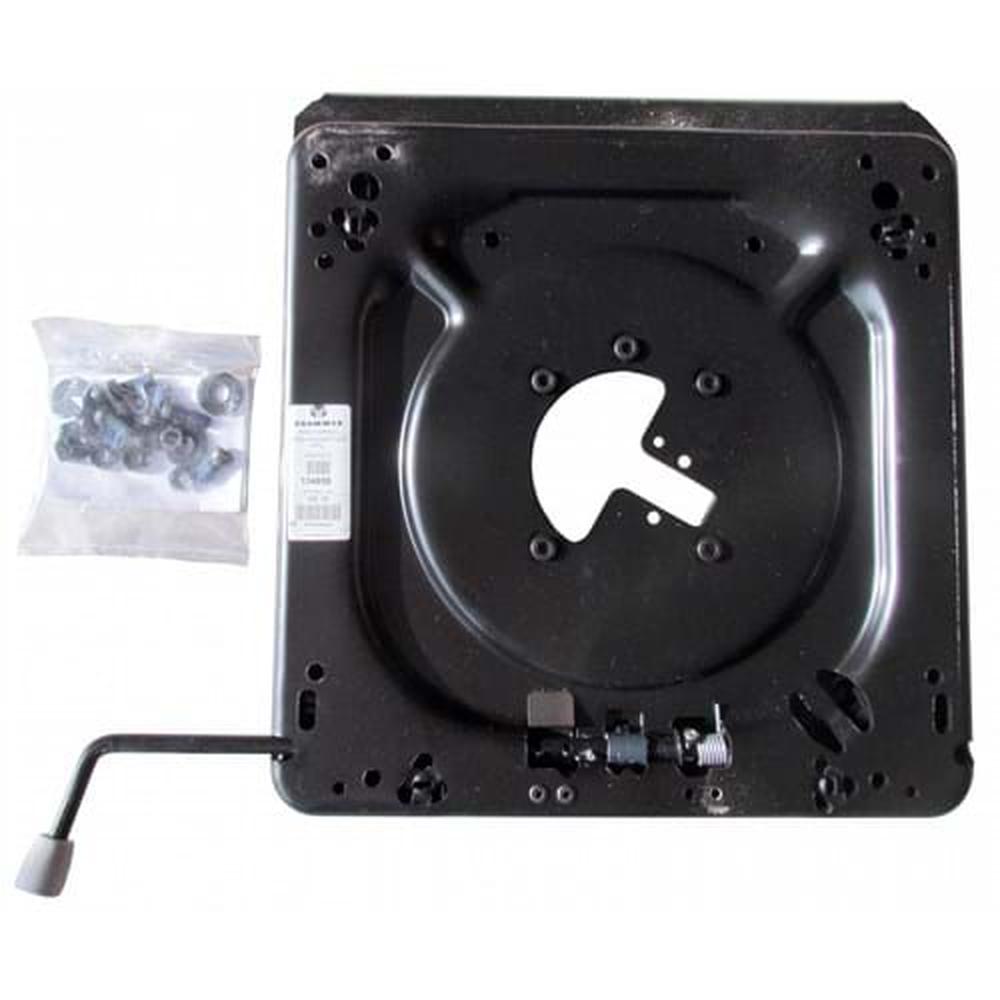

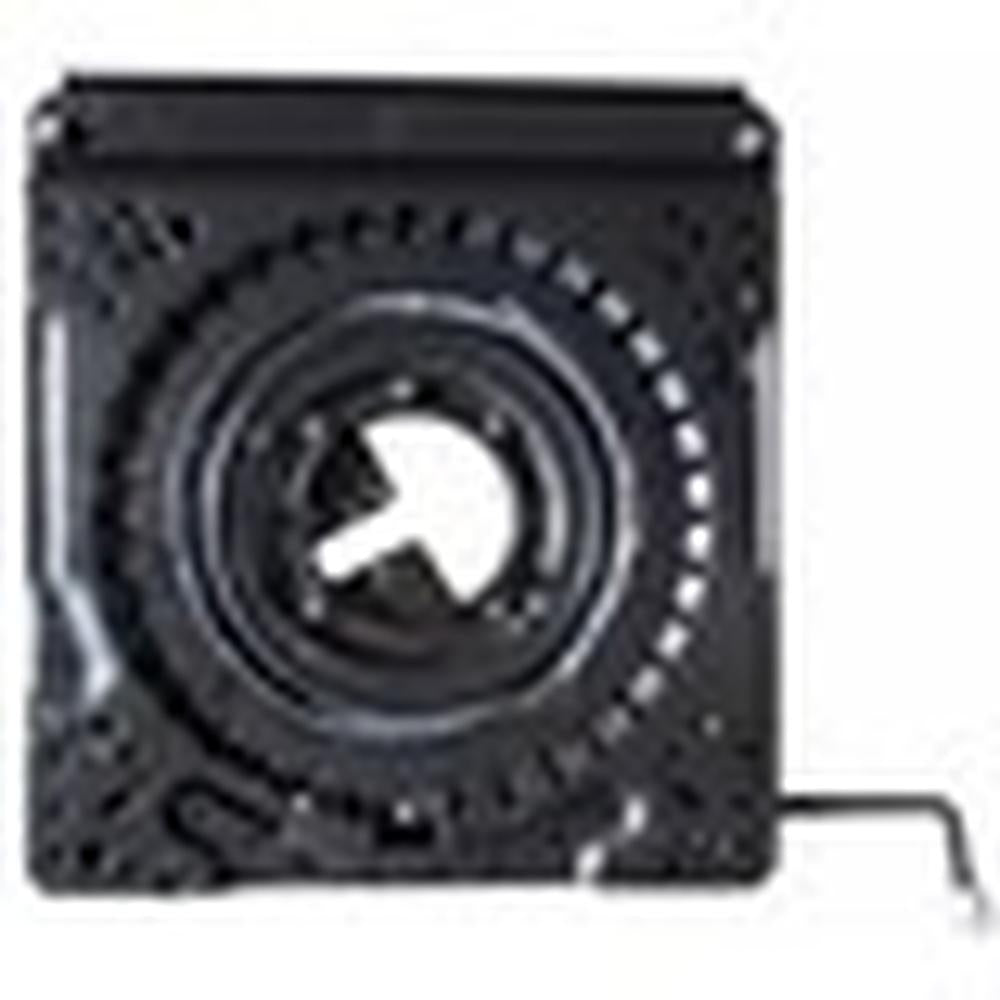

This seat swivel kit mounts between the seat frame and slide rails of Grammer MSG95 and MSG97 suspension systems, allowing the operator seat to rotate a full 360 degrees with locking positions at 10-degree intervals. The swivel adds approximately 30mm (1-3/16 in.) of height to the seating position. Mounting hardware is included. Compatible with a wide range of agricultural, construction, and industrial equipment fitted with Grammer MSG95 or MSG97 suspension seats across brands including John Deere (JD), Case, Case IH, Caterpillar (Cat), Bobcat, Deutz, Deutz-Allis, Massey Ferguson, New Holland, AGCO, Kubota, and others.

Specifications

• Swivel Range: 360 degrees full rotation
• Locking Intervals: Every 10 degrees
• Height Addition: Approximately 30mm (1-3/16 in.)
• Mounting Hardware: Included
• Sold As: Each

Compatible Seat Models

Hy-Capacity / Grammer Seats: S8301452, S8301453, S8301454, S8301528, S8301756

Compatible Suspensions: Grammer MSG95, MSG97, S8301456, S830816

For use on agricultural tractors, construction equipment, and industrial machinery equipped with Grammer MSG95 or MSG97 type suspension seats. Verify seat model compatibility before ordering.

Replaces Part Number(s):

S8301458, S8301458-HYC

Aftermarket Interchange Numbers

AL119292, AL119286, AL117442 (John Deere), 134958, 333/D1209, 333/D1198 (JCB), MSG95SK-RAP, A-MSG95SK, A-MSG95SK-AI

New aftermarket replacement part - not remanufactured, not used.
