S.70689 Tie Rod End, Lh, 2Wd, L2600 Fits Kubota

S.70689 Tie Rod End, Lh, 2Wd, L2600 Fits Kubota

£41.00 GBP
£41.00 GBP
Sale Sold out
Shipping calculated at checkout.

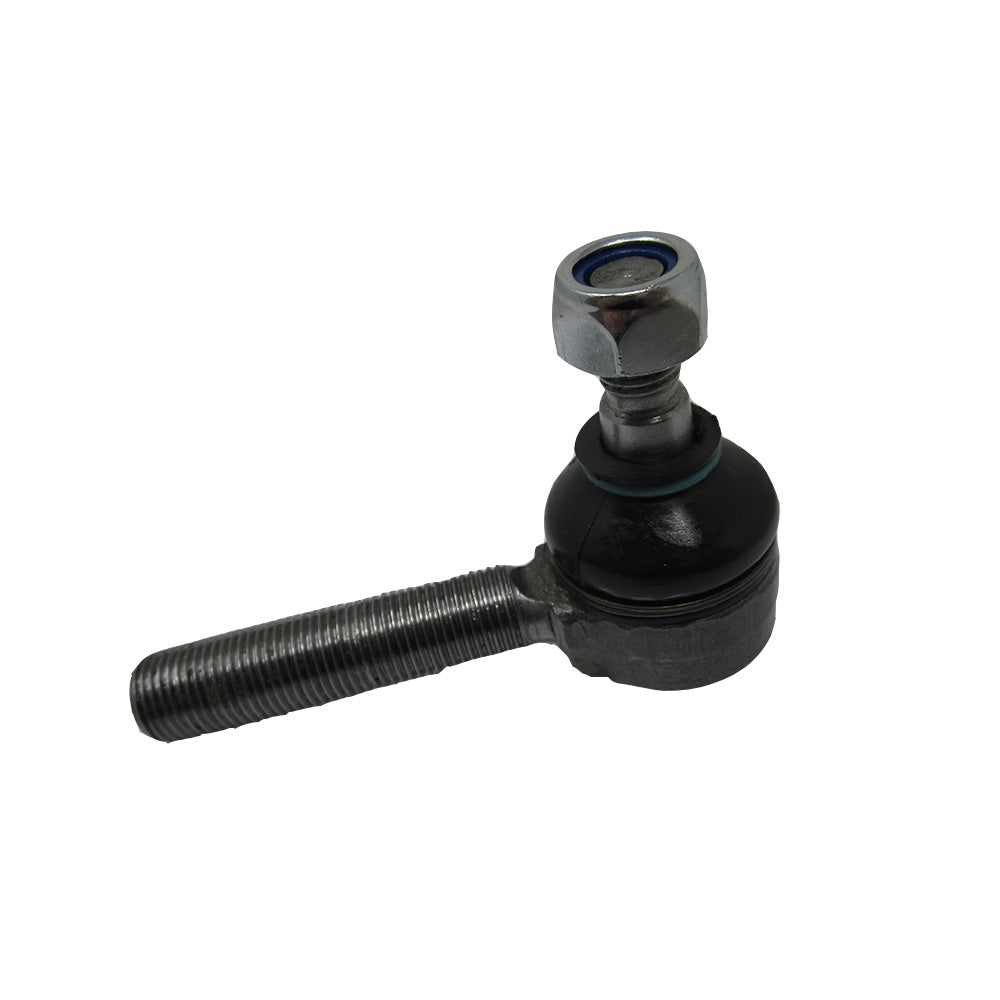

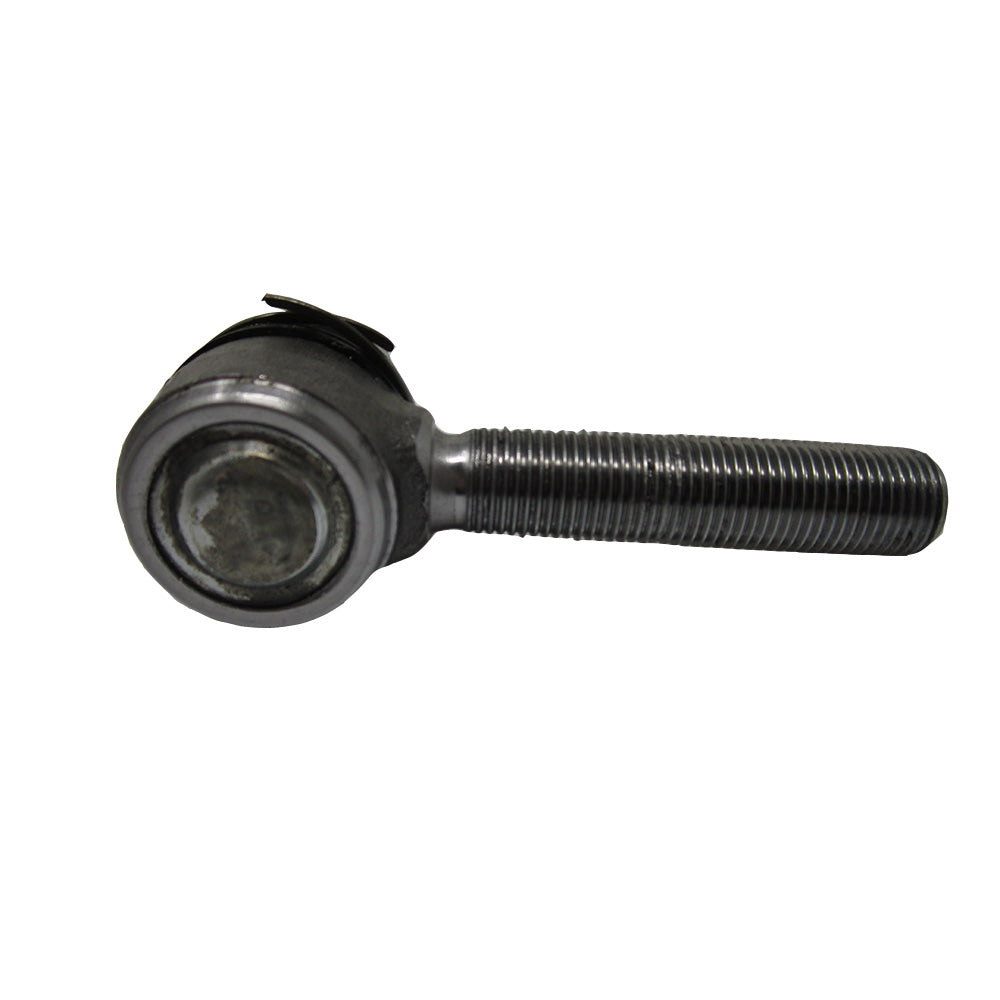

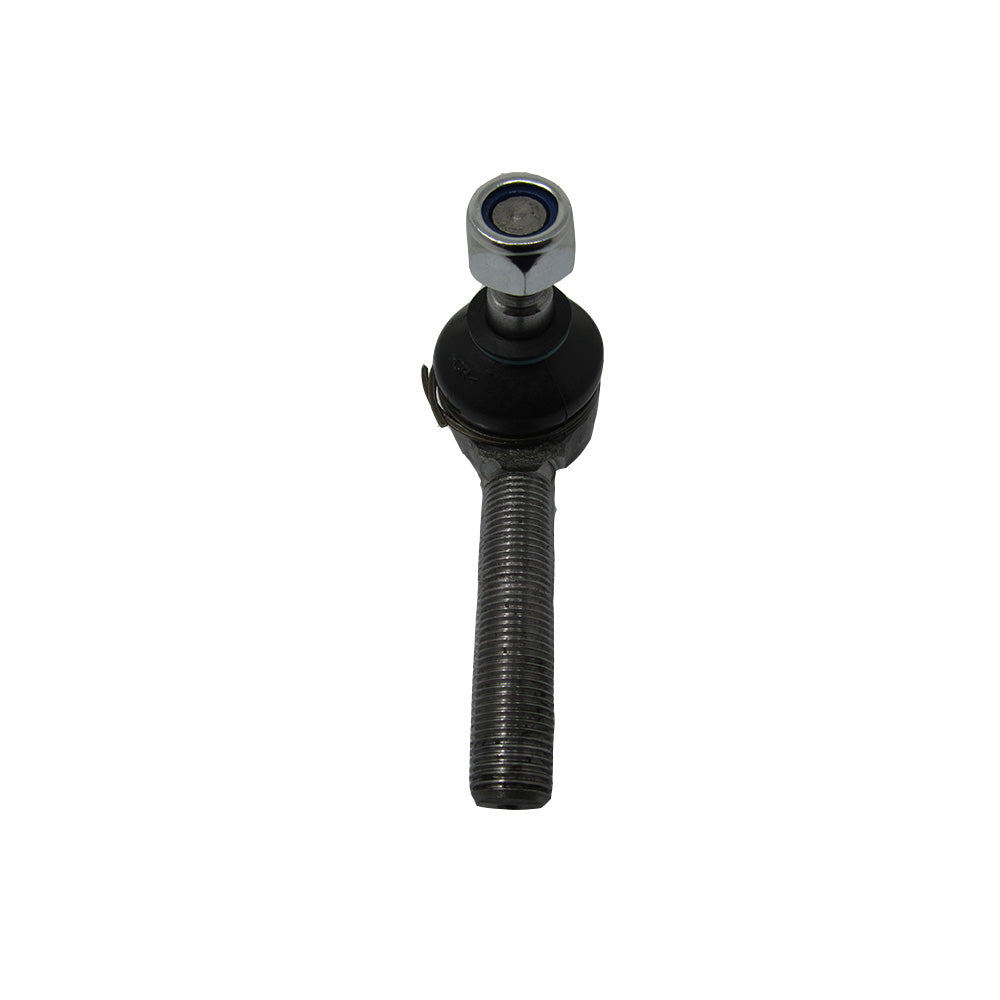

One New Aftermarket Tie Rod End, Lh, 2Wd, L2600
Fits Kubota Models: L185, L185F, L2050, L210, L2250, L2350, L2350F, L245, L245F, L245H, L2500, L2550, L2600, L2650, L2650DT, L285, L2850, L2850F, L2900, L2900F, L295, L2950, L295F, L3000, L3010, L3010F, L3130, L3130F, L3250, L3250F, L3300, L3300F, L3450, L3650, L3650F, L3830, L3830F, L4200, L4200F, L4300, L4300F, L4310, L4310F, MX5000F

Tech Info:
-C mm: 13.9 - 12.9
-Inner side thread A mm: M16 x 1.5
-Length mm: 82
-Outer side thread B mm: M12 x 1.5
-Taper C mm: 14 - 13
-Taper length D mm: 21.5
-Thread length E mm: 18.5

Replaces Part Number(s): 32150-12600, 32150-12601, 32150-12602, 38440-44780

Models This Part Fits:

L2050DT, L3000DT, L235, B9200HSDTOW, B2150D, B2100HSE, B20, B21, B2400, B2150HSD, L2600DT, B2400HSE, L2600, L2600F, B2410HSE, L2500F, L185DT, B9200, L210, B2150HSE, L245DT, L2250F, B8200HSTDP, B9185, L2350DT, B2150E, B1700E, L245, L3000, L2350F, L2350, B9200DCDP, B1700HSE, L295F, L295, L185, B2400E, L2500DT, B9200HSTEP, B8200DP, B2100, L275, B9200DCEP, L2250, L260, L3000F, B8200, B2100E, L2050F, B8200HSTEP, L2500, B1700, B2410, B8200EP, B9200HSTDP, L2050

Additional Information:

M16x1.50 left hand thread Length: 3-1/2"

Reference Numbers:

32150-12600, 3215012600, 32150-12601, 3215012601, 32150-12602, 3215012602, 38440-44780, 3844044780, 38440-44790, 3844044790
