S.62215 Single Hydraulic Pump Fits David Brown

S.62215 Single Hydraulic Pump Fits David Brown

£113.00 GBP
£113.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Single Hydraulic Pump
Fits David Brown Models: 1410, 1412, 1490, 1594, 1690, 1690 Turbo, 1694

Tech Info:

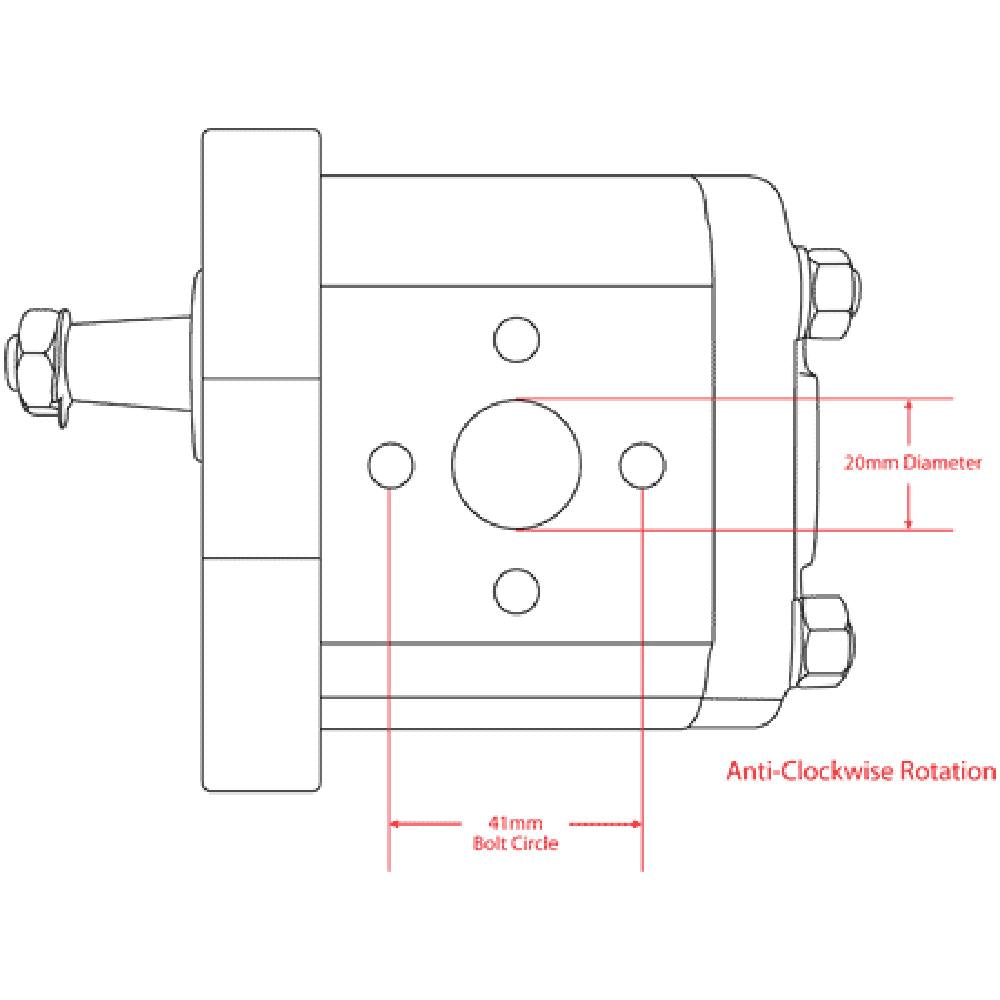

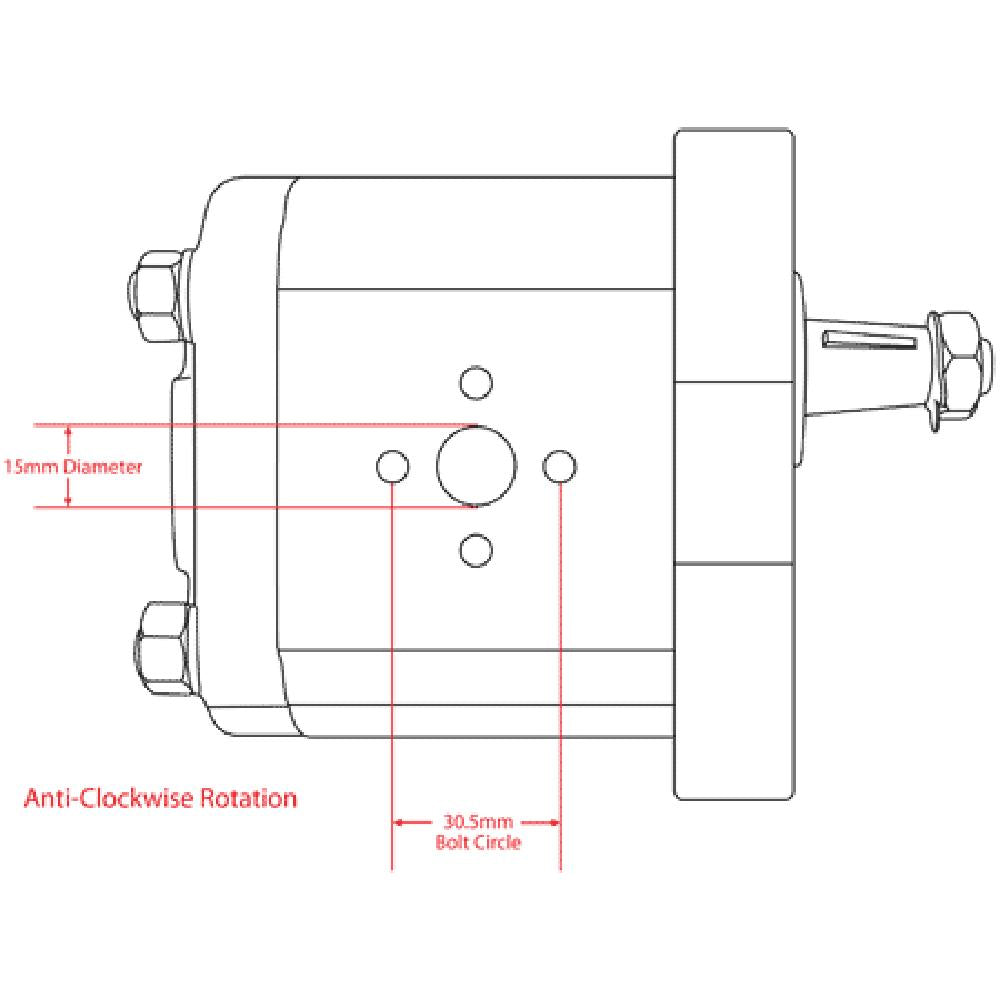

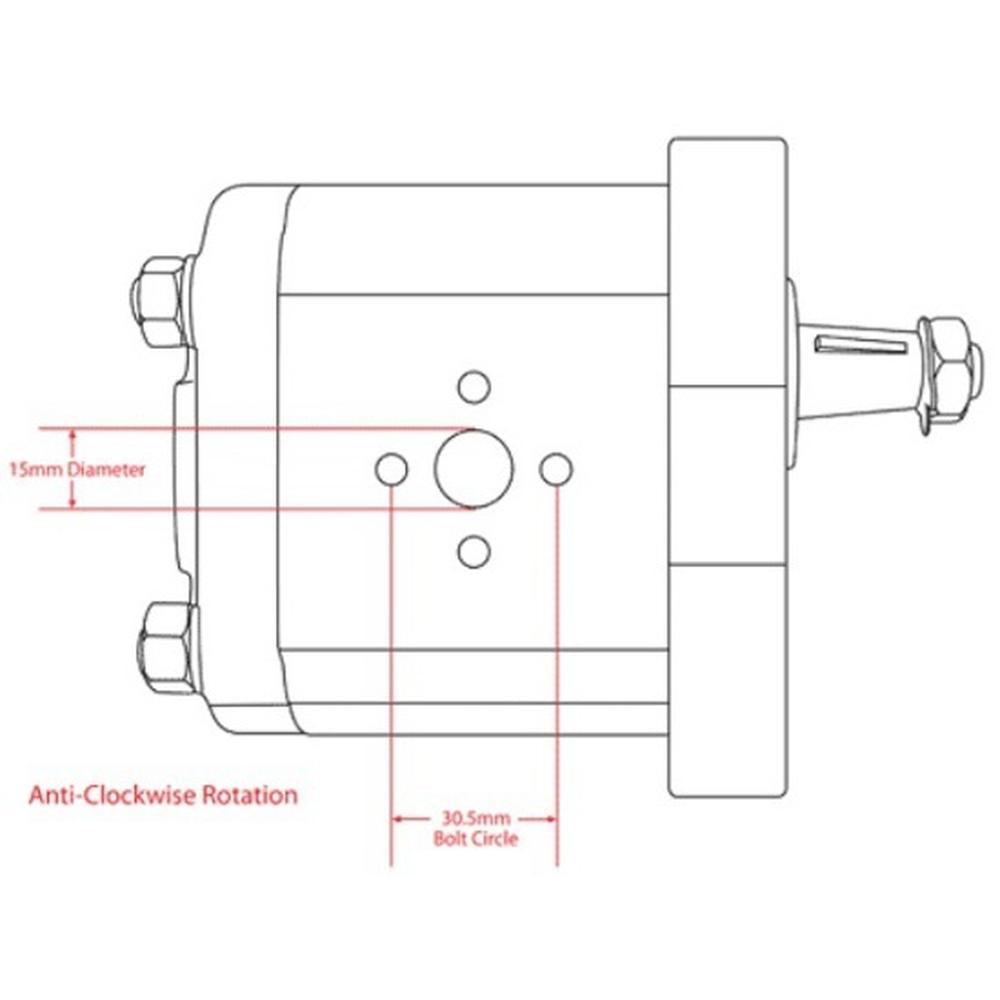

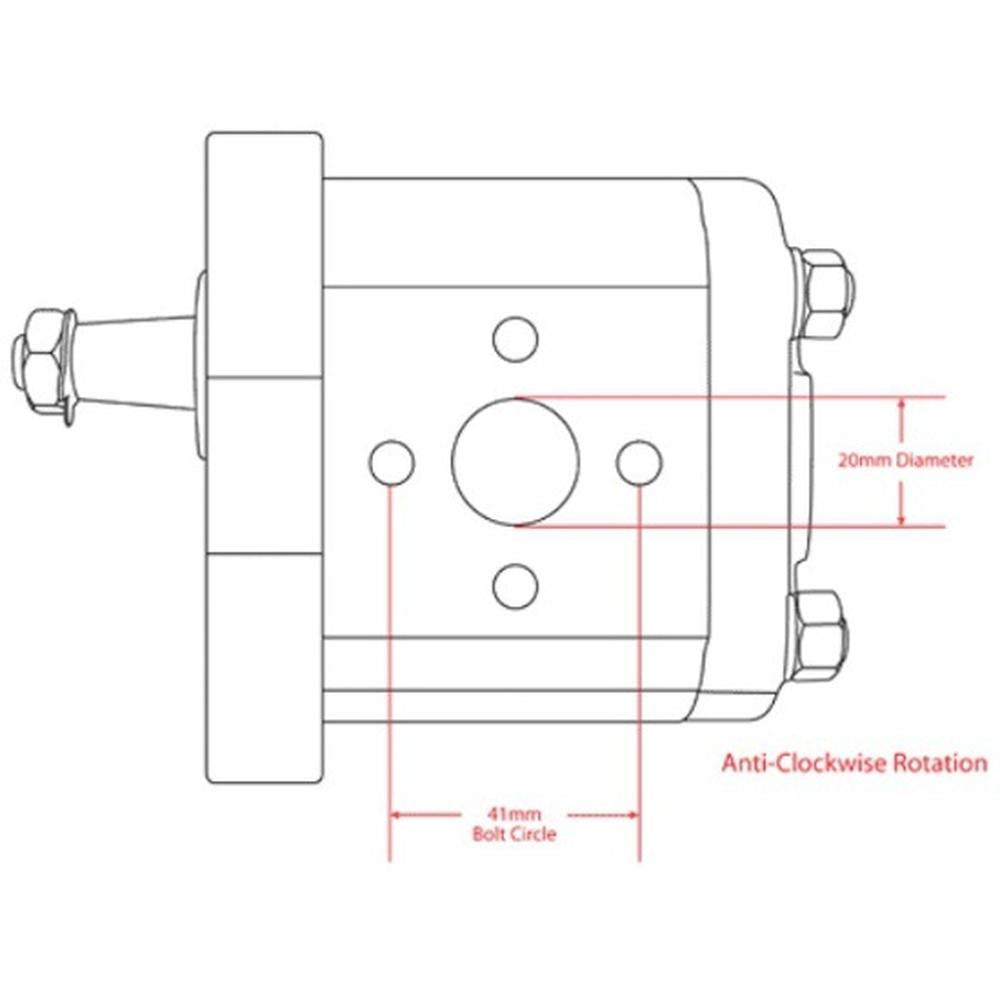

-Diagram specifications: A: 19, B (mm): 103.5, C: 71, D: 96, E: 19, F: 40, G: M8, H: 14.2, I: 30.2, J: M6.
-Front inlet hole fixing hole size: M8
-Front inlet hole fixing hole spacing: 40
-Front inlet hole size: 19
-Front outlet hole fixing hole size: M6
-Front outlet hole fixing hole spacing: 30.2
-Front outlet hole size: 14.2
-Inner max. gallon per minute: 12.55

Replaces Part Number(s): K949605, K200337

Models This Part Fits:

60-90, TK100A, 353, TD95, JX95, 1490, TD80D, 8630, 5010S, 1494, 82-94, 683, 88-93, TD70, TD75D, 60-66, 700 Series, TD95D HC PLUS, 65-94, 1380, 1880, 4010S, 1180, 1690, TD60D, 2-60, TK75M, TK75VA, TK90A, TK85, TK75MA, 1394, TK76, TD75F, 140-90, 1000, 5530, TD85D, 1410, 6530, 1365, 55-88, 4330 Vineyard, 50-86, TD90, TT55, 1280, 1470, 115-90, 1580, 90-90, 70-88, 80-66, 453, TK70VA, 995, 60-88, TK75V, 82-86, TK90MA, TK70FA, JX60, TK65V, TK85M, 3010S, 4030, JX55, TK65F, JX90, 80-88, 65-93, JX65, CX100, Winner 100-130, 70-66, TD60, 700, JX75, 65-66, 1370, 3830, 1594, 110-90, 9630, TK75F, FD7, 70-76, 85-90, TD65F, 100-90, 80-90, TD5.90, 1694, TD65D, TK80A, TD5.75, TT65, 65-90, JX70, 60-94, 1033, 766DT, 60-86, 60-93, 72-94, 130-90, 8430, 703, 1355, 4230, 72-86, TD95D, 1465, 60-76, 70-90, 1690 Turbo, TD5.65, 82-93, 80-76, TD5.80, 88-94, 55-86, 4330, TD85F, 533, 72-93, TD5.100, 833, 643, TK95M, JX100, 55-66, JX110, TD70D, TD90D, TK75FA, JX80, 8830, 980, TK76M, 65-88, TD5.110, 553, 885, JX85, 180-90, TD55D, 7560, 160-90, 433, TK80MA, TD80, MX100C, 1412, 4430

Additional Information:

Rotation: Counter Clockwise Displacement: 19cc

Reference Numbers:

675636AS, 20-7101188, 5179714, 5129488, 2040333, 5169770, 84530154, 73328630, 5113283, PRD2217S, 5169770, 5129488, A42X, 84530154, 9967782, 9967927, 5129488GV, 5113283, 2040333, 5120850, 5093658, 5179714, 05129488, 153634448, 1909916, 1930226, 9967782, 5179414, 5179711, 5094394, 5179714, 5169770, 5093658, 47562399, K949605, K200337, 84530154, 2040333, 87737605, 73328630, 82987745, 5129488, A42X, 84530154, 9967782, 9967927, 5129488GV, 5113283, 2040333, 5120850, 5093658, 5169770, 5179714, 05129488, 153634448, 1909916, 1930226, 47562399, 9967782, 5179414, 5179711, 5094394, 5179714, 5169770, 5093658, K949605, K200337, 84530154, 2040333, 87737605, 73328630, 82987745, 1909916, 1930226, 5113283, 5120850, 5169770, PRD2217S, K200337, K949605

Product Category:

Agriculture
View More: Agriculture Replacement Parts
