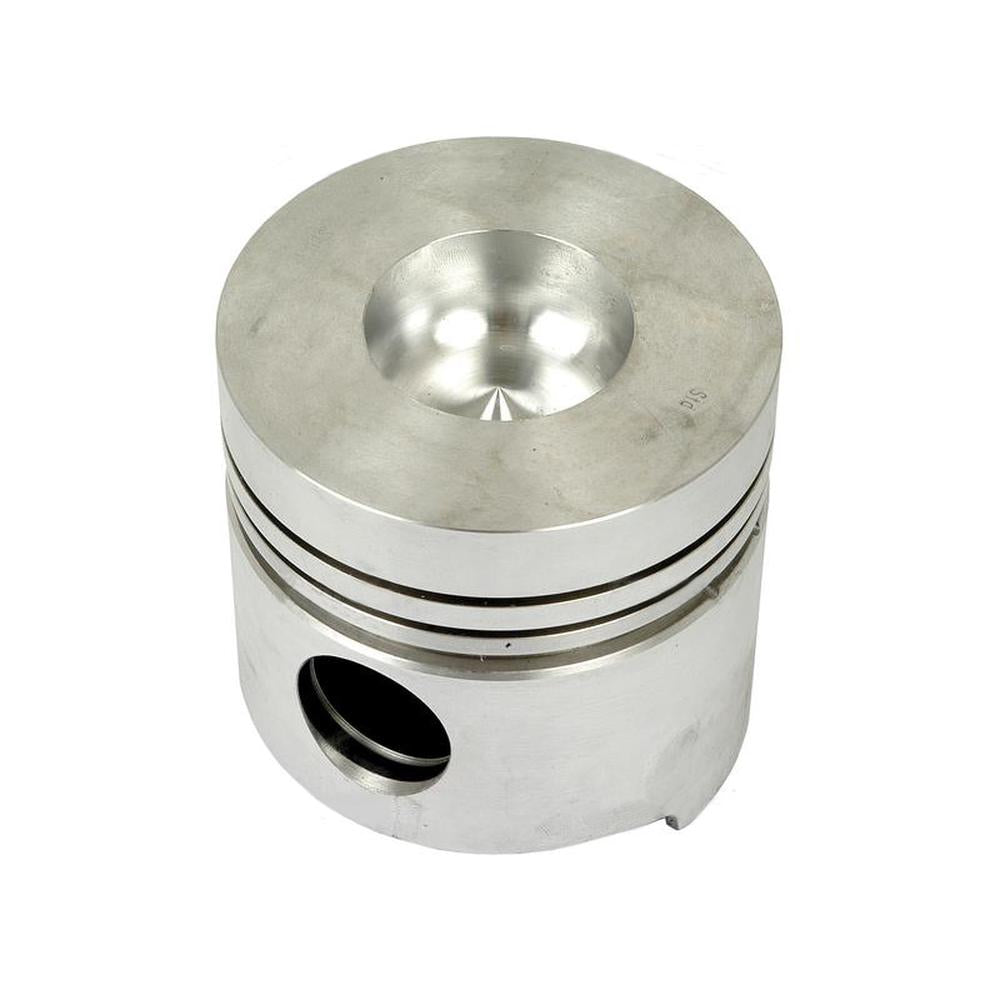

S.59186 Piston (Standard) - Fits Universal Tractors

S.59186 Piston (Standard) - Fits Universal Tractors

£60.00 GBP
£60.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Piston (Standard)

Fits Universal Tractors Models:
1010, 320, 340, 530, 553, 640, 643

Tech Info:
- Al Fin Ring Groove: No
- Bore Ø mm: 101.96
- Bowl Depth: 24.40
- Chamber mm: 48.46
- Compression Height mm: 59.44
- Crown Type: Dish Top
- Number of Rings: 3
- Pin Ø mm: 31.93
- Piston Length mm: 101.40
- Size: Standard

Replaces Part Numbers:
11503170, 8772111, 115 03 170

Models This Part Fits:

610, 610DTE, 2510DTC, 2610, 310DT, 510, 2610SD, 2610SD-DTC, 2510SD, 2510, 2510SD-DTE, 310, 310C, 610C, 610DT, 510DT, 2610DTC

Additional Information:

Piston Length: 3.99” (101.40mm) Compression Height: 2.34” (59.44mm) Bore: 4.01” (101.96mm) Bowl Depth: 0.96” (24.40mm) Chamber: 1.90” (48.46mm) Pin: 1.25” (31.93mm) No. of Rings: 3

Reference Numbers:

TX15107, 115 03 170, 8772111, 11503170, 11503170, 115.03.170
