S.40432 Liner, 31358322/45/82

Name: S.40432 Liner, 31358322/45/82
SKU: 739043M1_4
Price: 32.0 USD
Availability: InStock

S.40432 Liner, 31358322/45/82

£32.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

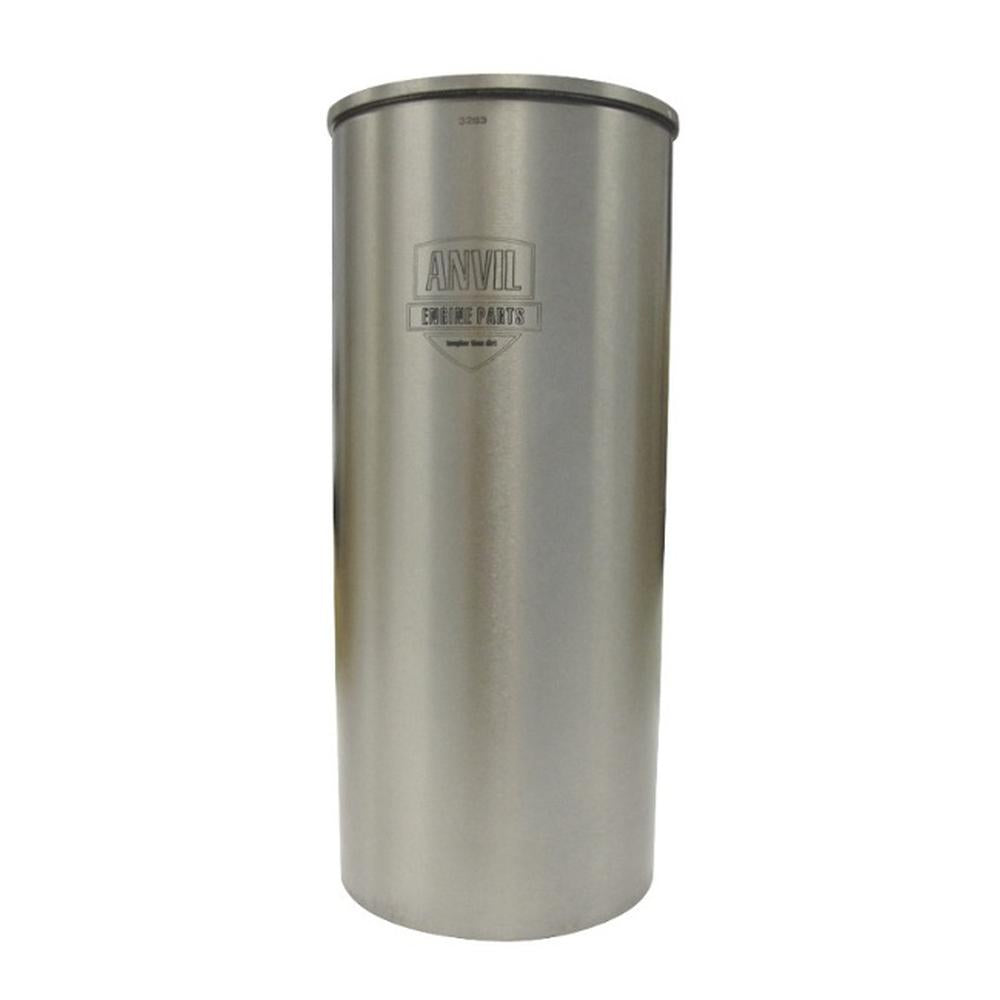

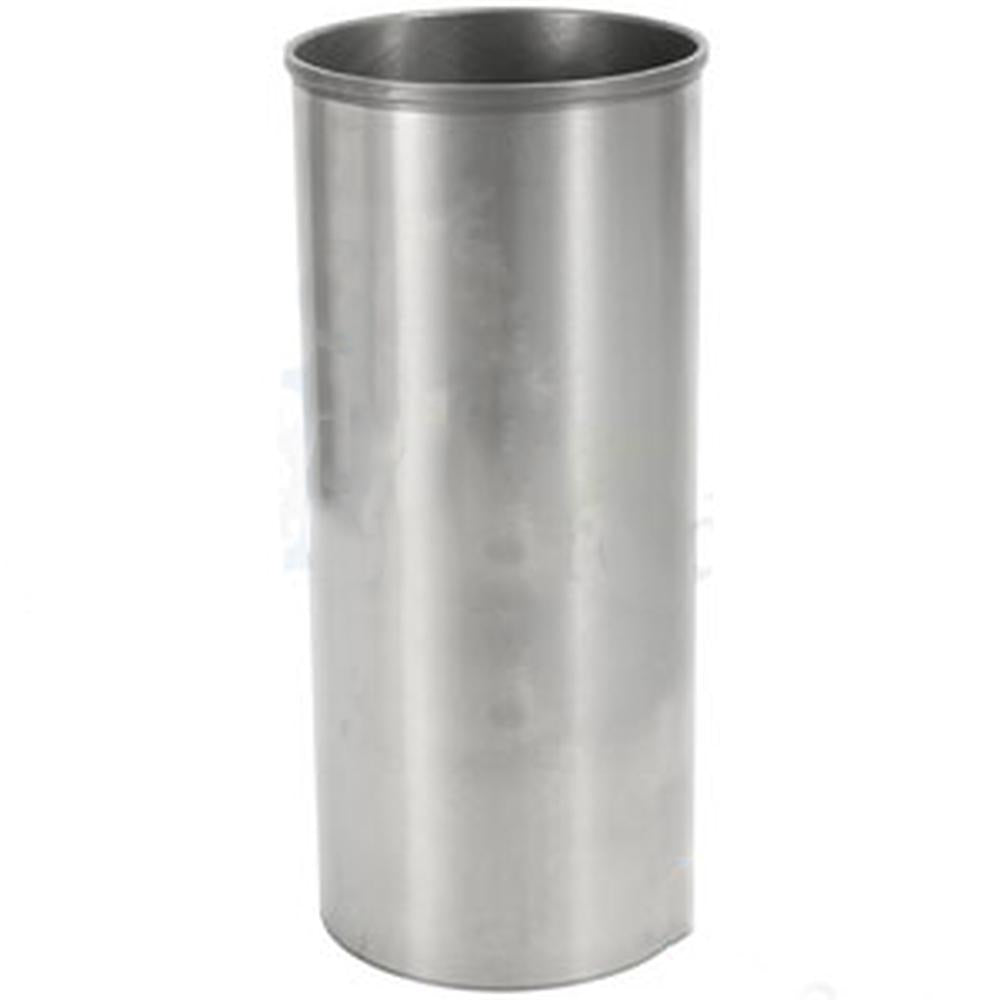

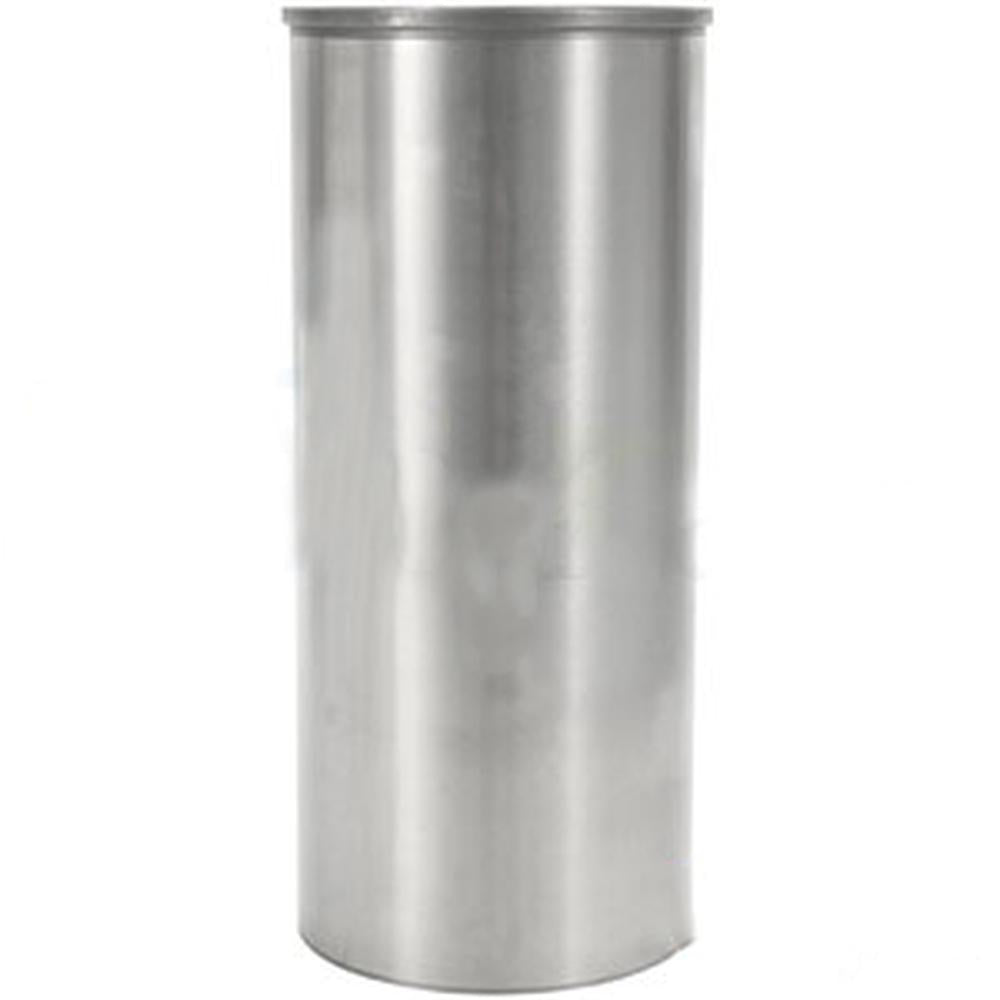

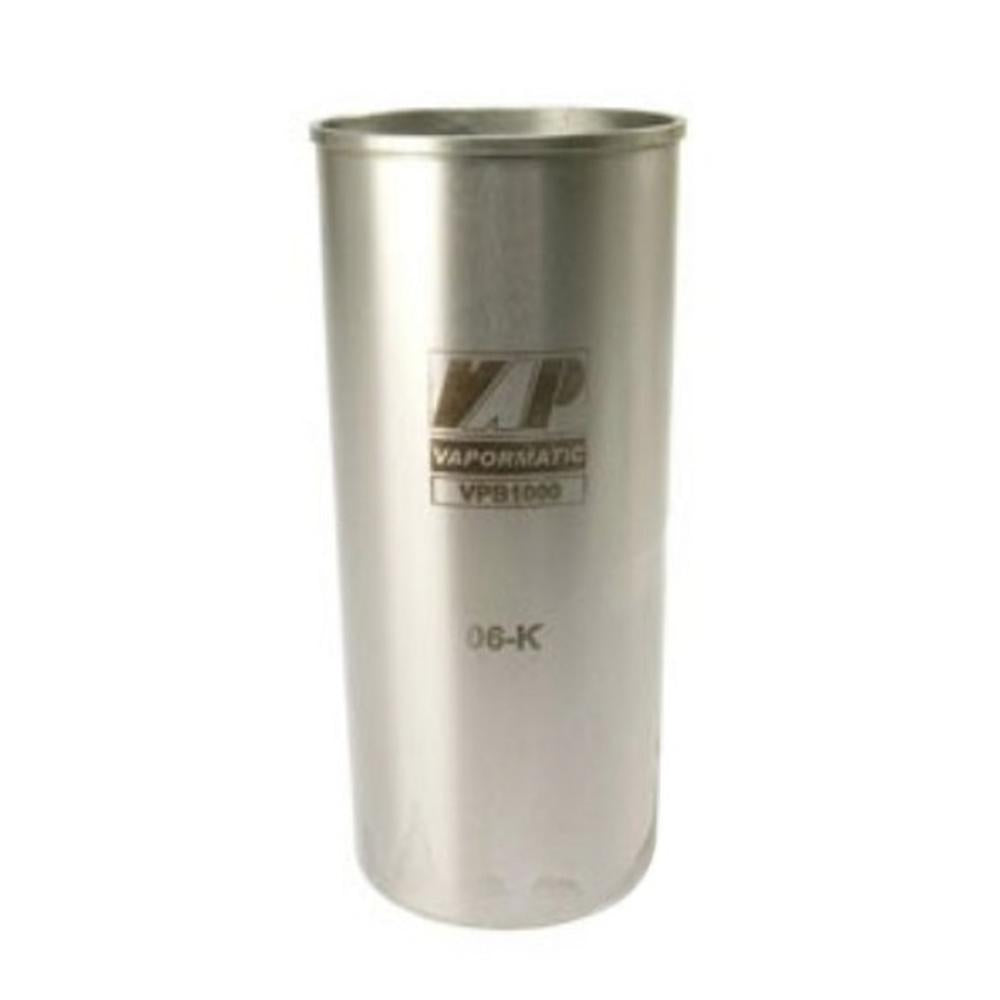

One New Aftermarket Replacement Cylinder Liner (S.40432) for Perkins 3.152 and 4.203 Engines - Fits Massey Ferguson, Leyland, Landini, Fits Allis Chalmers, Fits Volvo, Fits Ford/New Holland

This finished cast cylinder liner is a standard-bore replacement for Perkins A3.152, AD3.152, T3.152, and AD4.203 engines used across a wide range of tractors, industrial equipment, forklifts, and combines. The liner features a 0.150" flanged design and a precision-finished bore, making it a direct drop-in for late engines already fitted with 0.150" flange cast liners. Note: This liner fits late engines with 0.150" flange cast liners. It is not suitable for in-frame overhaul on early engines originally fitted with 0.040" flange chrome liners unless the block has already been converted. Verify your engine serial number and existing liner type before ordering.

Specifications

Bore Diameter: 3.6" (91.49mm) - Standard
Flange Thickness: 0.150" (3.8mm)
Flange Diameter: 3.8" (96.72mm)
Height: 8.4" (215.77mm)
Type: Finished Cast Liner with Flange
Engine Families: Perkins A3.152, AD3.152, T3.152, AG3.152, AD4.203

Compatible Models

Fits Massey Ferguson Tractors: 20, 30, 35, 35X, 40, 50, 65, 130, 133, 134, 135, 140, 145, 148, 150, 152, 154, 154-4, 154C, 155, 158, 160, 164, 165, 203, 205, 230, 231, 233, 234, 234C, 235, 240, 244CF, 245, 250, 253, 254, 254-4, 254C, 255, 260, 263, 264, 264C, 302, 304, 320, 333, 334, 340, 342, 350, 352, 353, 353LX, 354, 360, 400, 430, 550, 560, 765, 2135, 2203, 2205, 3165

Fits Massey Ferguson Industrial/Construction: 20, 20B, 20C, 20E, 20F, 30, 30B, 30D, 30E, 30H, 40, 40B, 203, 203X, 205, 205X, 2200, 2500, 3303, 3305, 4500

Fits Massey Ferguson Combines: 300

Leyland: 245, 253

Fits Allis Chalmers: 160, 6040, 6060

Landini Tractors: Advantage 55, Fits Blizzard 50, Fits Blizzard 60, CF4830, CF5030, CF5830, CF6030, C4500, C4830, C5000, C5500, C5830, C6000, Globus 50, Rex 55, Rex 60, Trekker 60, 4000, 4500, 4530, 5000, 5500, 5530, 5560, 5830, 5840, 5860, 5870, 6030, 6040, 6060, 6070, 7000

Fits Volvo: 320, 350, 400, 430

Fits Ford/New Holland: Super Dexta (block machining required for flange fitment - verify before ordering), 5000, 6000

Perkins Engine Applications (additional): A3.152 (CD), AD3.152 (CE), AD4.203 (JE), T3.152.4 (CN)

Replaces Part Number(s):

739043M1, 31358322, 31358345, 131358345, 1434175M1, 734175M1, 72080003, AHM2186, 28057, 8N7996, PH31358345

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

CF5830, 2500, 203, 234, 430, 230 US BUILT, 154C, 550, 6030, 5870, 264C, 7000, 320, TREKKER 60, CF6030, CF4830, 233, 240, C5830, 250, SUPER DEXTA, 4000, 2205, 235, GLOBUS 50, 260, 165 US BUILT, 203X, 145, 152, 5860, C4830, 400, 20C, 164, 6070, 135, 5560, BLIZZARD 50, 350, 263, 302, 6040, 5000, 65, 5530, 3303, 340, CF5030, C5000, 30D, AD4.203 (JE), 5830, 30B, 353, 165, 353LX, 231, 352, 5500, 20, 253, 20B, 2203, 4500, 134, 40, 5840, BLIZZARD 60, ADVANTAGE 55, 264, 254C, 135 US BUILT, 234C, 2135, 2200, 6060, 765, 3165, 20F, 158, 160, C5500, REX 55, A3.152 (CD), 134C, 205, 244CF, 6000, 245, 155, 360, T3.152.4 (CN), C6000, C4500, 254-4, 154-4, 140, 3305, 333, REX 60, 154, 40B, 30E, 255, 205X, 354, 65 US BUILT, 230, 334, 4530, 20E, 30, 254, 342, 560, 148, 35 US BUILT, AD3.152 (CE), 30H, 50, 150, 35, 35X, 304

Additional Information:

Bore Diameter: 3.6" (91.49mm) Flange Thickness: 0.150" (3.8mm) Flange Diameter: 3.8" (96.72mm) Height: 8.4" (215.77mm)

Reference Numbers:

739043M1, 131358345, 28057, 31358345, 31358322, 72080003, 739043M1, 31358345, 31358322, AHM2186, PH31358345, 8N7996, 1434175M1, 31358345, 31358322, 739043M1, 734175M1
