S.128505 YOKE, 1 3/16 SQUARE BORE, 35
S.128505 YOKE, 1 3/16 SQUARE BORE, 35
Couldn't load pickup availability

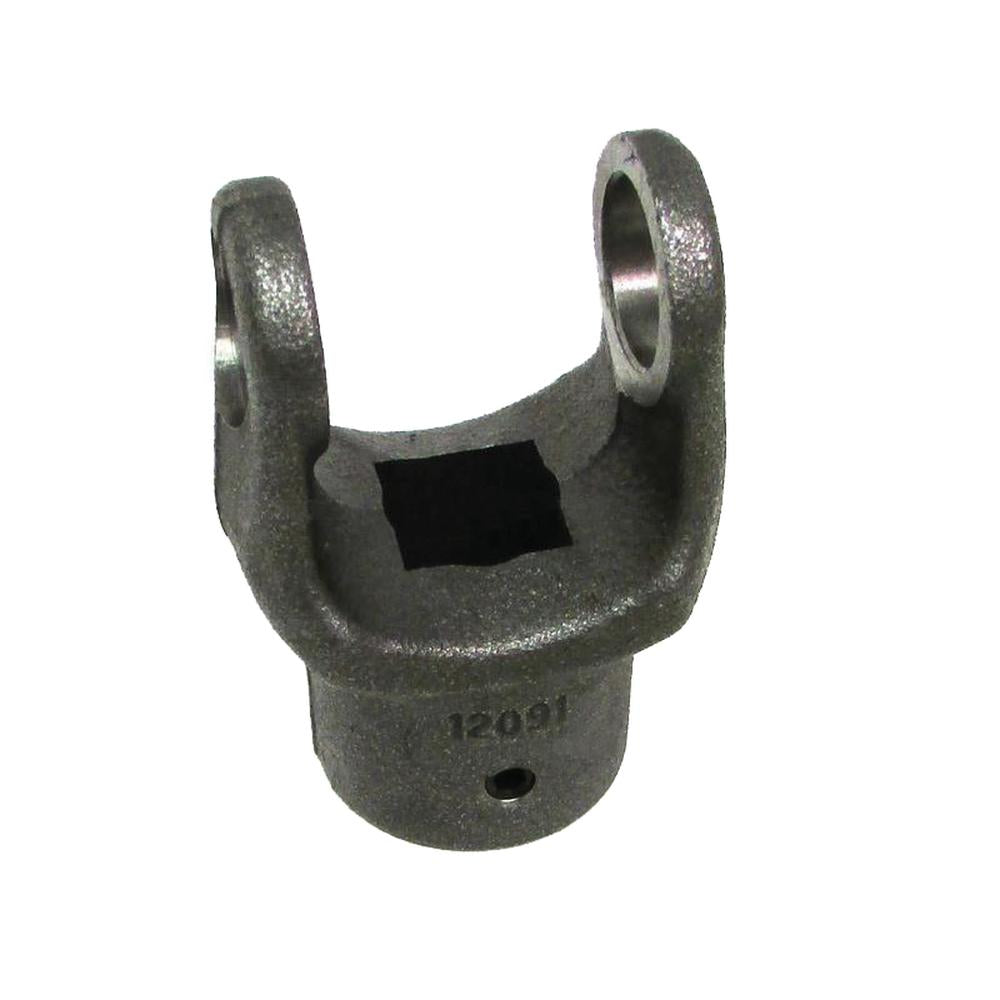

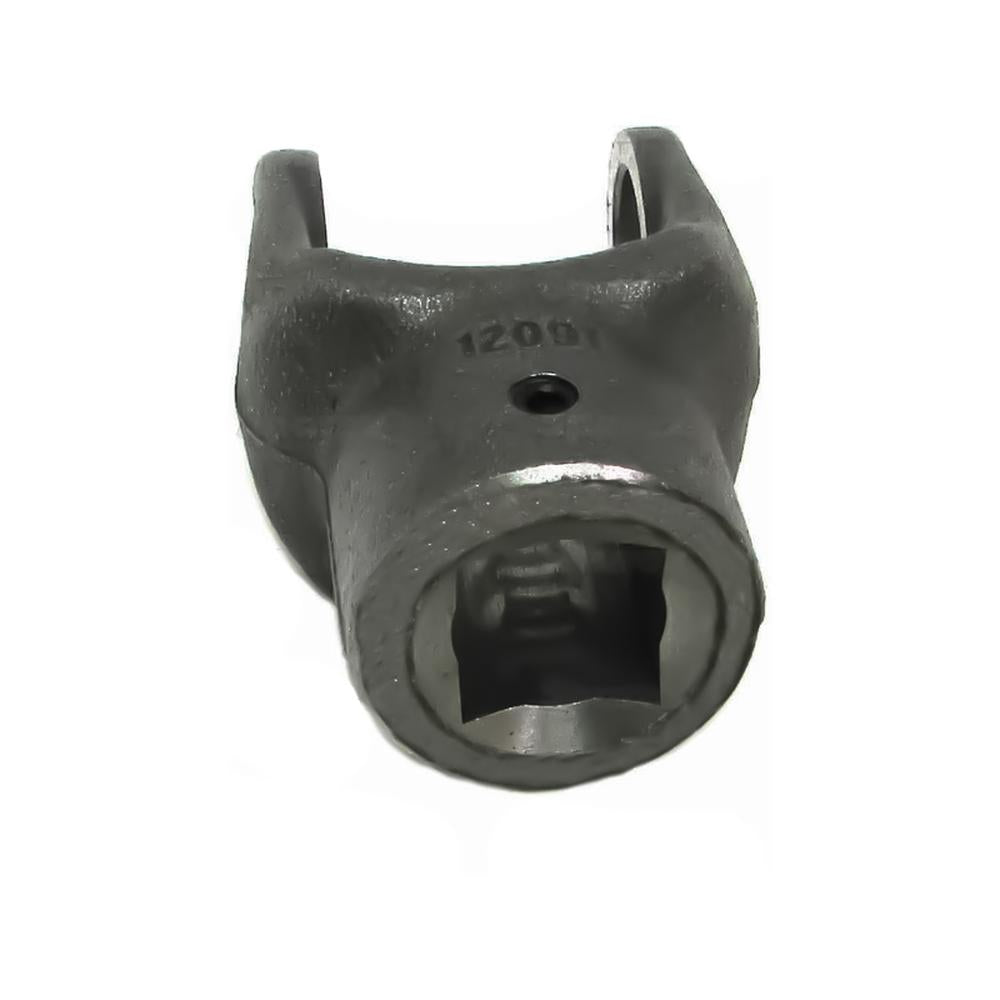

One New Aftermarket Replacement PTO Weld Yoke - Series 35, 1-3/16" Square Bore
This aftermarket replacement PTO weld yoke features a 1-3/16" square bore and is designed for use with Series 35 North American PTO driveline shafts and tubes. The weld-connection design secures the yoke to the implement or tractor shaft, transmitting power from the tractor engine to attached implements such as rotary cutters, tillers, post hole augers, and other PTO-driven equipment. The Series 35 designation identifies the u-joint cross and bearing size used in this driveline assembly.
Specifications
- Bore Shape: Square
- Bore Size: 1-3/16 in.
- PTO Driveline Series: 35 (North American)
- Connection Type: Weld yoke
- HP Rating: Up to 108 HP at 1000 RPM / 70 HP at 540 RPM (Series 35)
- Outside Diameter: 2.25 in. (Series 35)
Compatible Applications
Fits Series 35 North American PTO driveline assemblies used across a wide range of agricultural tractors and implements. Verify series compatibility by measuring the u-joint cross and bearing kit caps on your existing driveline before ordering.
Replaces Part Number(s):
S.128505, S.128505-SPX
New aftermarket replacement part - not remanufactured, not used.
