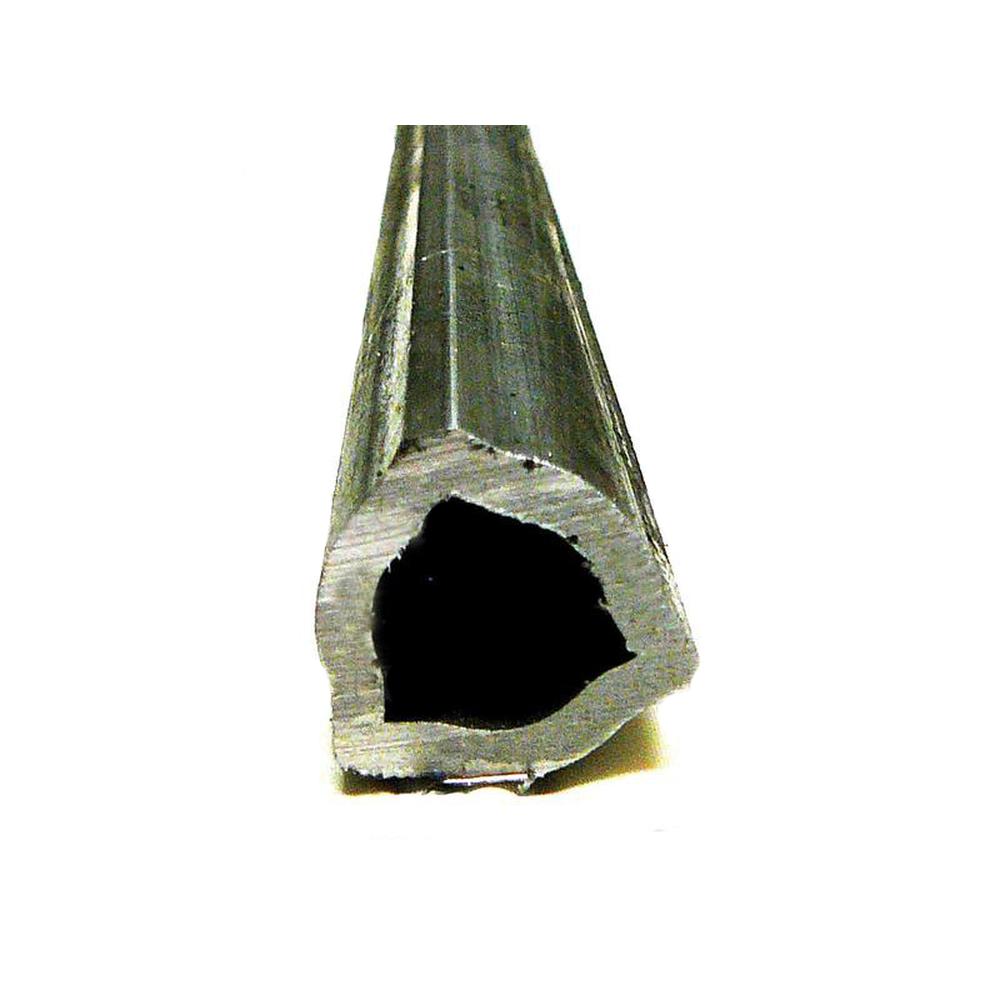

S.128010 TUBE, PROFILE, 5', A2 TYPE - TRIANGLE

One New Aftermarket Replacement PTO Profile Tube - A2 Type, Triangle, 5' Length

This PTO profile tube features a triangular (A2 type) cross-section and is used in agricultural Power Take-Off (PTO) driveline assemblies. Triangle-profile PTO tubes serve as the sliding outer or inner shaft component of a PTO driveshaft, allowing the driveline to telescope and transmit torque from the tractor to an implement. The A2 designation identifies the specific triangular profile series, which mates with a corresponding inner or outer tube of the same series. This tube is sold as a 5-foot (approximately 1.5m) cut length, allowing it to be trimmed to the required driveline length in the field or shop.

Specifications

• Profile Type: Triangle (A2 Series)
• Length: 5 ft (approximately 1.5m)
• Application: PTO driveline shaft - outer or inner profile tube

Compatible Models

Universal PTO Driveline Application: This is a universal PTO profile tube not tied to a specific tractor make or model. It is compatible with any PTO driveshaft assembly using an A2-series triangle profile tube, including assemblies from Bondioli & Pavesi, Walterscheid, and other Italian and German series driveline manufacturers used across agricultural equipment brands.

Replaces Part Number(s):

S.128010-SPX

New aftermarket replacement part - not remanufactured, not used.
