ROTARY CUTTER PTO DRIVELINE Fits John Deere CX15 CX20 HX15 HX20 BW14544 BW15804
ROTARY CUTTER PTO DRIVELINE Fits John Deere CX15 CX20 HX15 HX20 BW14544 BW15804
Regular price
£1,013.00 GBP
Regular price
Sale price
£1,013.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

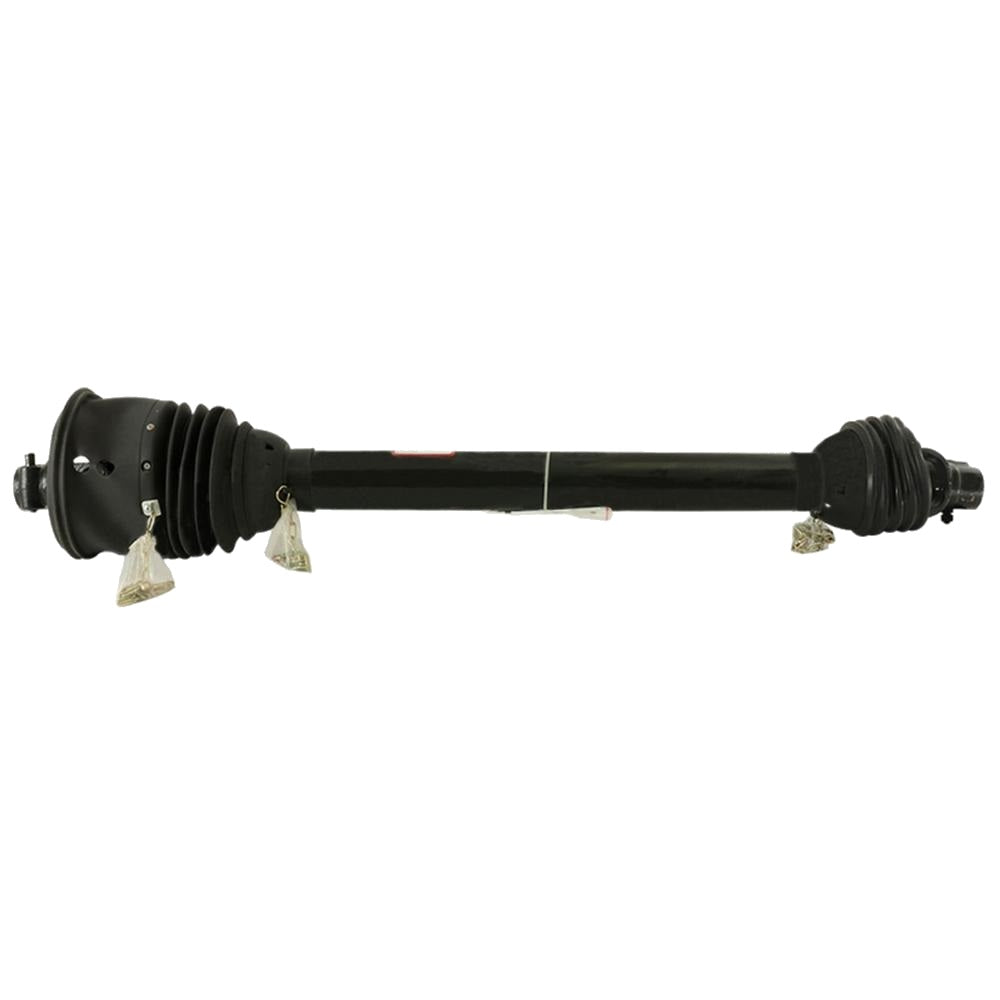

One New Aftermarket Replacement CCV Driveline Fits John Deere Rotary Cutter models: 1517, 1518, 2018 (All without Offset Shearbolt Clutch)
Fits Walterscheid WWE Series: 2580
PLEASE NOTE: It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size: 2580
C-to-C Length: 1210 MM/ 48"
Total Length: 58"
Tractor End: 1-3/8" - 21AS Lock
Implement End: 1-3/4" - 20 Clamp
Tube Style: B
KIT CONTAINS:
(1) Z 1/2 W2580 TR 1210 1.3/8 (WT58482A)
(1) Z 1/2 W2580 MA 1210 1.3/4 (WM58483A)
Item Components:
(2) Roll Pins, 10 MM x 90 MM, 2 pack (P10X90)
(1) Complete Safety Shield (WSC252580-A)
(1) Inboard Yoke, used w/ S5 Profile Tubing (W097140-A)
