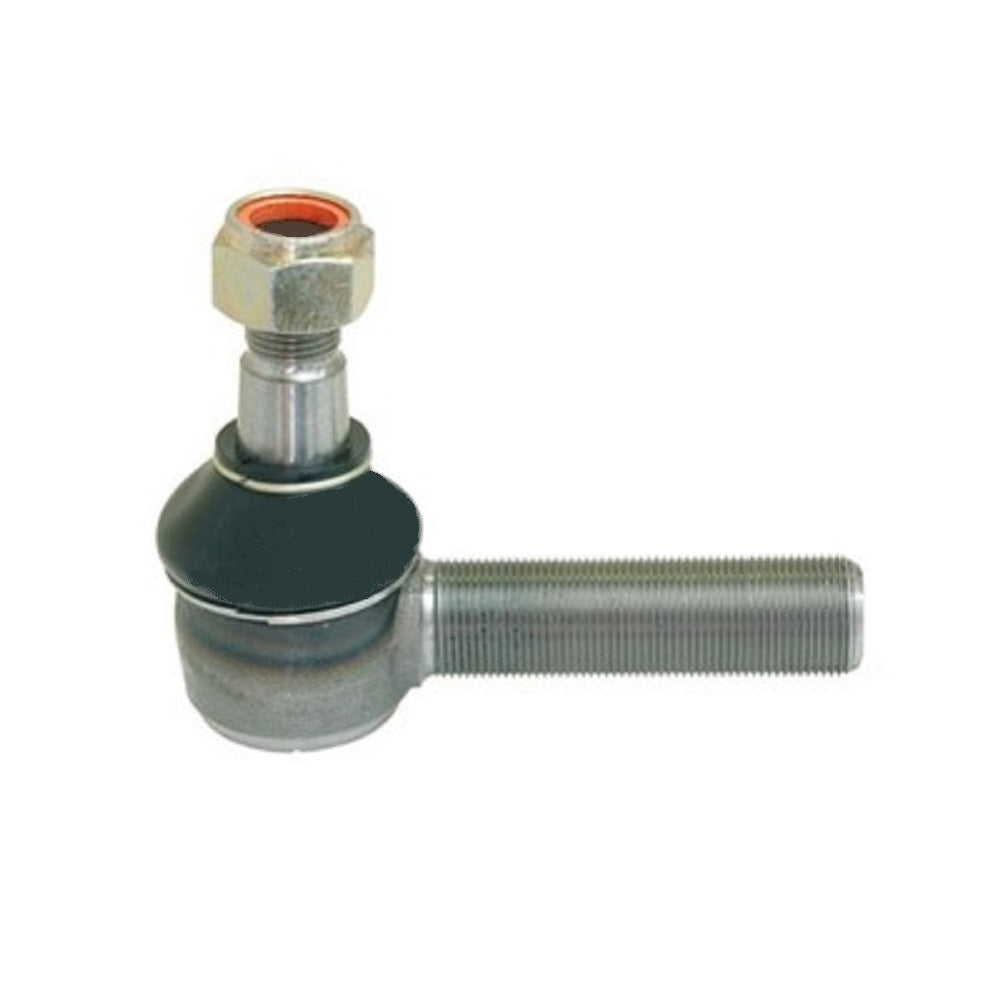

RH Tie Rod Fits John Deere Tractor Models 3030 3120 3130

Name: RH Tie Rod Fits John Deere Tractor Models 3030 3120 3130
SKU: K260254_3
Price: 27.0 USD
Availability: InStock

RH Tie Rod Fits John Deere Tractor Models 3030 3120 3130

£27.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement RH Tie Rod Fits John Deere Tractors

Replaces Part Numbers:
AL38645, 87031

Fits John Deere Models:
3030, 3120, 3130

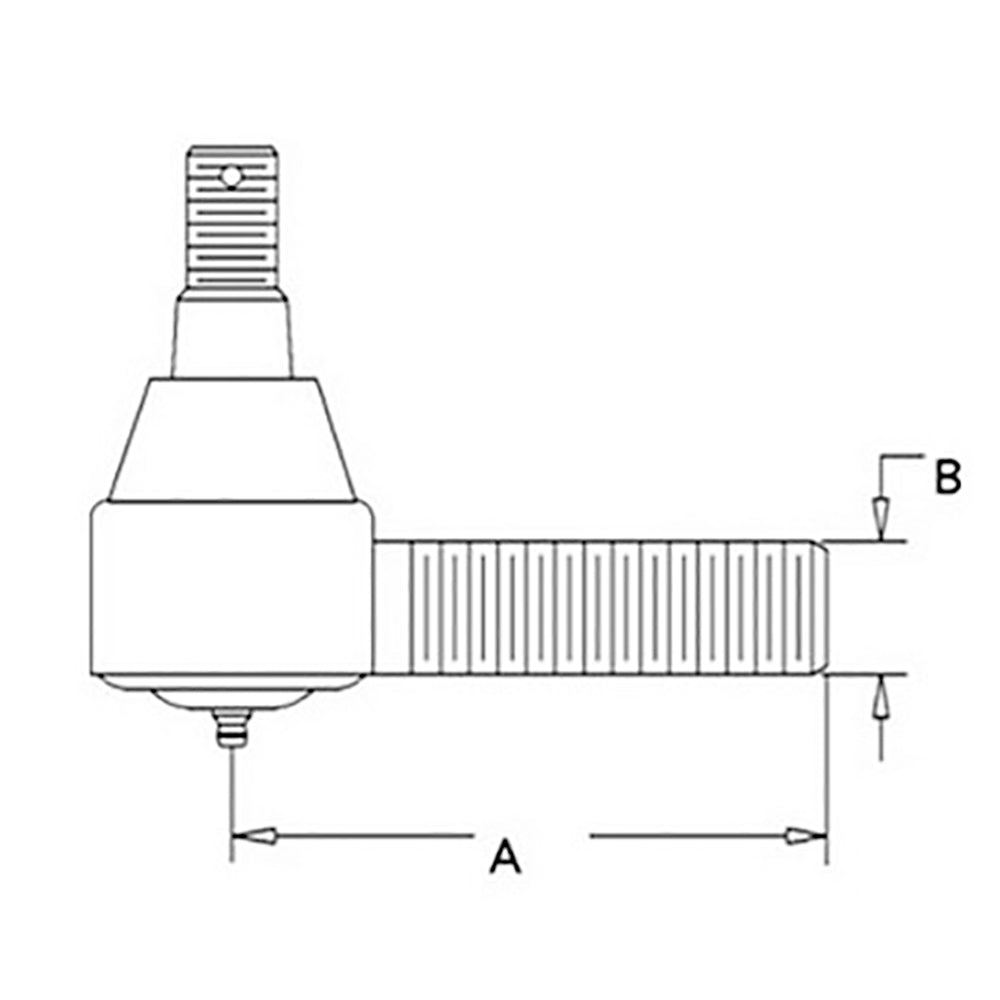

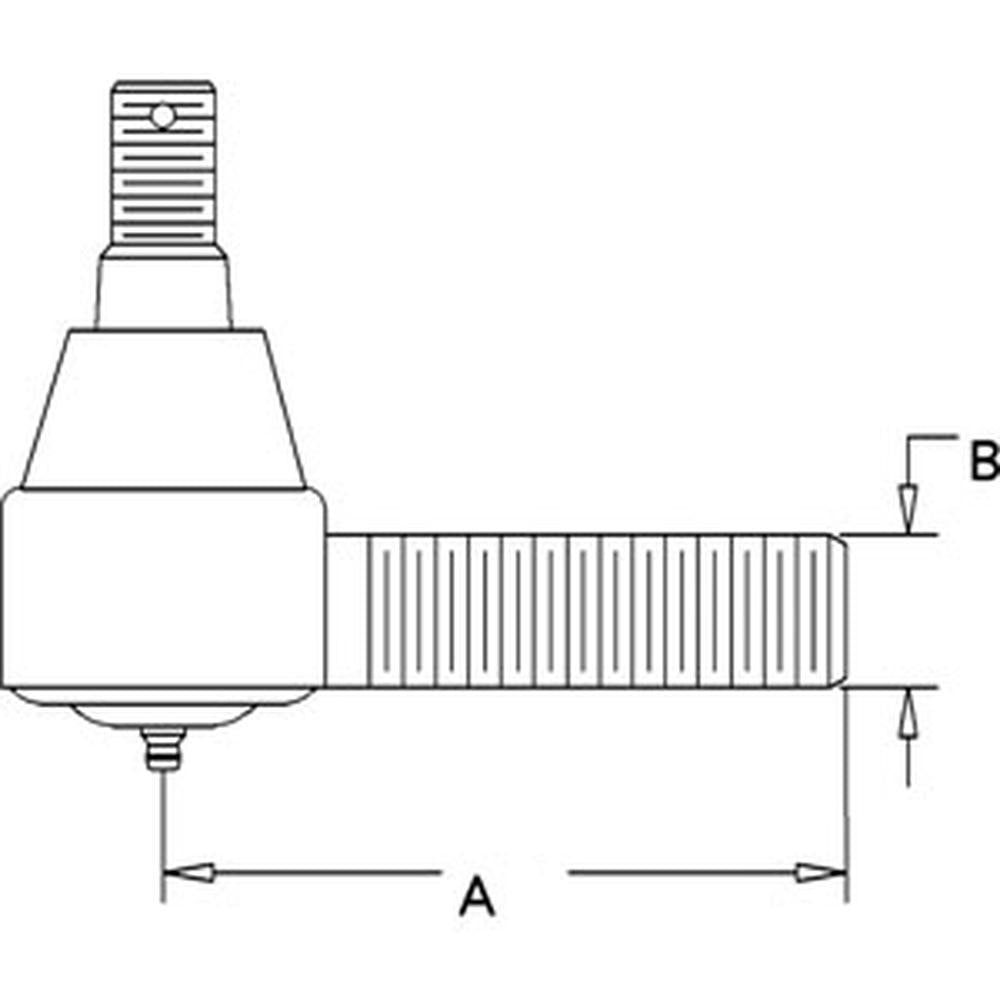

Tech Specs:
Right Hand
Thread size (major diameter of the male thread): M24 x 1.5
Thread size (stud thread/upper threaded portion): M18 x 1.5
Taper diameter (large end of the tapered stud): 21.6-20mm/ 0.85" - 0.79"
Taper length (length of the tapered section): 16.5mm/0.65"

Models This Part Fits:

580B, 480D, 584FL, 585E, 580, 580G, 580SE, 1494, 586FL, 480B, 480C, 555, 1690 TURBO, 586E, 480E, 550, 3030, 655, 1694, 580 SUPER D, 3120, 1690, 580C, 580F, 580D, 585D, 586D, 3130, 580E, 584E, 1394, 1594, 584D

Additional Information:

Right Hand Thread size (major diameter of the male thread): M24 x 1.5 Thread size (stud thread/upper threaded portion): M18 x 1.5 Taper diameter (large end of the tapered stud): 21.6-20mm/ 0.85" - 0.79" Taper length (length of the tapered section): 16.5mm/0.65"
